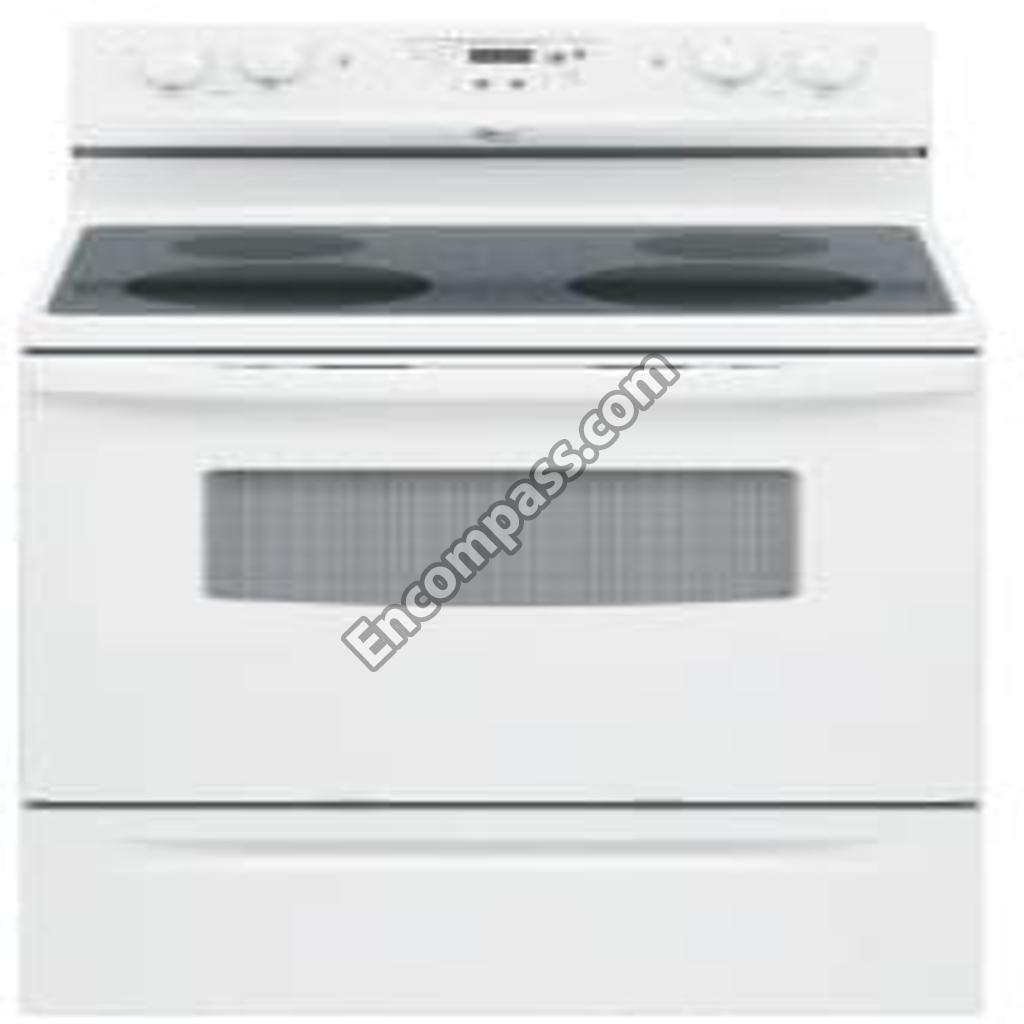

Model Image
Manufacturer

Whirlpool

Model Number

RF212PXSQ4

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10355051 W10355051 AFFRESH COOKTOP CLEANER
W11042467 W11042467 AFFRESH STAINLESS STEEL CLEANE
W10355049 W10355049 AFFRESH STAINLESS STEEL CLEANE
W11447673 W11447673 ANCHOR-TIP
8274034 8274034 BACK, MAIN
WP9761958 WP9761958 BLOCK-TERM
W10525121 W10525121 BRACKET, CONSOLE MOUNTING
WPW10462912 WPW10462912 BRKT-MNTG
9762078 9762078 BRKT-MNTG, EOC
W11728255 W11728255 BRKT-SRVCE
W11502236 W11502236 BRKT-SUPRT
4396923 4396923 BROILER PAN & GRID (PORCELAIN)
WP3196068 WP3196068 CAMERA LENS-LIGHT
W10336909 W10336909 CLEANER
W10355010 W10355010 CLEANER
31617A 31617A CLEANER, GAS GRATE & DRIP PAN
WP8273564 WP8273564 CLIP
W10137382 W10137382 CLIP
W10404688 W10404688 CLIP, OVEN SUPPORT
3196200 3196200 CLIP, SPRING
313660 313660 CLIP, WIRE GROUND
9761517 9761517 CLIP,DOOR MNTG
WPW10271774 WPW10271774 CONTROL BOARD
W10248204 W10248204 COOKTOP
WPW10326122 WPW10326122 COVER-BLCK
WP8272473 WP8272473 COVER-REAR
W10275756 W10275756 DEGREASER
W10817434 W10817434 DOOR HANDLE
W10347465 W10347465 DOOR HINGE
WP8523175 WP8523175 DOOR TRIM
WP8523166 WP8523166 DOOR TRIM
WP8523172 WP8523172 DOOR TRIM
W10296838 W10296838 DRAWER, STORAGE
WPW10308477 WPW10308477 ELMNT-BAKE
W10856603 W10856603 ELMNT-BROL
W11219365 W11219365 ENDCAP-PNL
241430 241430 FOIL, ALUMINUM (18`` X 25 )
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196037 WP3196037 FOOT-LEVEL
WP3196548 WP3196548 FUSE-THRML
W11542153 W11542153 GASKT-DOOR
WP9762476 WP9762476 GLASS DOOR
WP9758163 WP9758163 GLASS DOOR
WP8053334 WP8053334 GLIDE-DRWR
WPW10114344 WPW10114344 GLIDE-DRWR
4396096RB 4396096RB GRIDDLE, GOURMET
W10174431 W10174431 HARNS-WIRE
W11171875 W11171875 HARNS-WIRE
W11232223 W11232223 HARNS-WIRE
W10174432 W10174432 HARNS-WIRE
W10647259 W10647259 HINGE-RECV
WP3148952 WP3148952 INFINITE CONTROL SWITCH
WP3148953 WP3148953 INFINITE CONTROL SWITCH
W10196159 W10196159 INSTRUCTIONS INSTALLATIONS
WPW10208653 WPW10208653 INSULATION
W11311894 W11311894 INSULATION
8053915 8053915 INSULATION, VENT
242905 242905 KIT, CANNING ELEMENT
WP9761962 WP9761962 KNOB
8009 8009 LIGHT BULB
9761340 9761340 LINER, DOOR
9757609 9757609 NAMEPLATE
WP7103P027-60 WP7103P027-60 NUT
W10200356 W10200356 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350956 350956 PAINT, PRESSURIZED SPRAY (12 OZ.) (ALMOND)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
W10170526 W10170526 PAN
W10123240 W10123240 PAN-BROILR
W11219377 W11219377 PANEL-DRWR
WPW10575396 WPW10575396 PANEL-SIDE
W10170632 W10170632 PANL-CNTRL
WP3195060 WP3195060 PIN-COOKTP
31463 31463 PROTECTANT,COOKTOP
4396927 4396927 RACK, SPLIT OVEN
WPW10256908 WPW10256908 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
WP8054068 WP8054068 RETAINER
9761500 9761500 RETAINER, INSUL.
WP3196814 WP3196814 RIVET
9762761 9762761 SAFER COOKING TIPS
WA906B WA906B SCRAPER, COOKTOP
WP3196154 WP3196154 SCREW
W11244557 W11244557 SCREW
W10491985 W10491985 SCREW
W10817436 W10817436 SCREW
WPW10200660 WPW10200660 SCREW
WP3400832 WP3400832 SCREW
WP3196174 WP3196174 SCREW
WP489491 WP489491 SCREW
W10777162 W10777162 SCREW
WP3400016 WP3400016 SCREW
WP98008545 WP98008545 SCREW
WP3196557 WP3196557 SCREW
3196172 3196172 SCREW
WPW10067840 WPW10067840 SCREW
WP3400882 WP3400882 SCREW
W11233072 W11233072 SCREW
3196166 3196166 SCREW
WP3196170 WP3196170 SCREW
WPW10181986 WPW10181986 SENSOR
W10134247 W10134247 SHIELD-HT
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER
242828 242828 SPLICING WIRES--25FT. LENGTH (WIRE, BLACK 12 GA. 150 C)
242821 242821 SPLICING WIRES--25FT. LENGTH (WIRE, BLUE 14 GA. 150 C)
242822 242822 SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 GA. 150 C)
8316784 8316784 SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 GA. 200 C)
242823 242823 SPLICING WIRES--25FT. LENGTH (WIRE, GREEN 14 GA. 150 C)
242824 242824 SPLICING WIRES--25FT. LENGTH (WIRE, ORANGE 14 GA. 150 C)
242825 242825 SPLICING WIRES--25FT. LENGTH (WIRE, RED 14 GA. 150 C)
242831 242831 SPLICING WIRES--25FT. LENGTH (WIRE, RED 14 GA. 200 C)
242827 242827 SPLICING WIRES--25FT. LENGTH (WIRE, YELLOW 14 GA. 150 C)
WPW10225448 WPW10225448 SPRING
WPW10242957 WPW10242957 SURFACE ELEMENT
W10823699 W10823699 SURFACE ELEMENT
W10133888 W10133888 TECH SHEET
9757143 9757143 TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
9757142 9757142 TEMPLATE, ANTI-TIP (ENGLISH/SPANISH)
WPW10144763 WPW10144763 TIE-WIRE
W10817433 W10817433 TRIM-VENT
WPW10134285 WPW10134285 TUBE-VENT
3184020 3184020 WIRE, GROUND
