Model Image
Manufacturer

Whirlpool

Model Number

RF3010XEN0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4364358 4364358 BACK, MAIN
4364377 4364377 BACKGUARD (INCLUDES NO.5) (ALMOND)
4364370 4364370 BACKGUARD (INCLUDES NO.5) (WHITE)
4364378 4364378 BACKGUARD, COMPLETE (ALMOND)
4364119 4364119 BACKGUARD, COMPLETE (WHITE)
4364046 4364046 BACKGUARD, COMPLETE (WING NUT, 10 X 24)
WPW10245259 WPW10245259 BLOCK-TERM
4364365 4364365 BODY, DRAWER
4364356 4364356 BOTTOM, LOWER BOX
4364076 4364076 BOTTOM, MAIN
4364359 4364359 BOTTOM, OVEN
4364355 4364355 BOTTOM, UPPER BOX
WPW10196406 WPW10196406 BOWL-DRIP
WPW10196405 WPW10196405 BOWL-DRIP
4364133 4364133 BRACE, BACK
8190785 8190785 BRACKET
4364177 4364177 BRKT, RECEPTACLE
4364363 4364363 BROILER DRAWER (LEFT)
4364364 4364364 BROILER DRAWER (RIGHT)
4364305 4364305 BUMPER, DRAWER
4364158 4364158 CATCH, STRIKEPIN
4364218 4364218 CLIP, ROD SUPPORT
4364130 4364130 CLIP, THERMOBULB
4364353 4364353 COOKTOP (ALMOND)
4364352 4364352 COOKTOP (WHITE)
4364357 4364357 COVER, REAR
4364354 4364354 COVER, SWITCH
4364111 4364111 DECAL, MANIFOLD
WPW10345409 WPW10345409 ELEMENT (2100W) (LEFT REAR & RIGHT FRONT)
WP4364349 WP4364349 ELEMENT, BAKE
4364348 4364348 ELEMENT, BROIL
W11673271 W11673271 FOOT-LEVEL
4364136 4364136 FRAME, FRONT
4364083 4364083 GASKET, OVEN TOP
WP4364084 WP4364084 GASKT-DOOR
4364065 4364065 GRILL, BROILER
4364350 4364350 GUARD, OVEN LIGHT
4364054 4364054 HANDLE, DRAWER
4364070 4364070 HANDLE, OVEN DOOR
4364224 4364224 HARNESS, WIRE (14 GA RED JUMPER)
4364222 4364222 HARNESS, WIRE (14 GA. BLK JUMPR)
4364257 4364257 HEX NUT, 10-32
4364102 4364102 HINGE PIN (2)
4364072 4364072 HINGE, OVEN DOOR
4364345 4364345 INDICATOR, SURF/OV
WPW10197681 WPW10197681 INFINITE CONTROL SWITCH
4364078 4364078 INSULATION, BACK
4364071 4364071 INSULATION, DOOR
4364079 4364079 INSULATION, WRAP

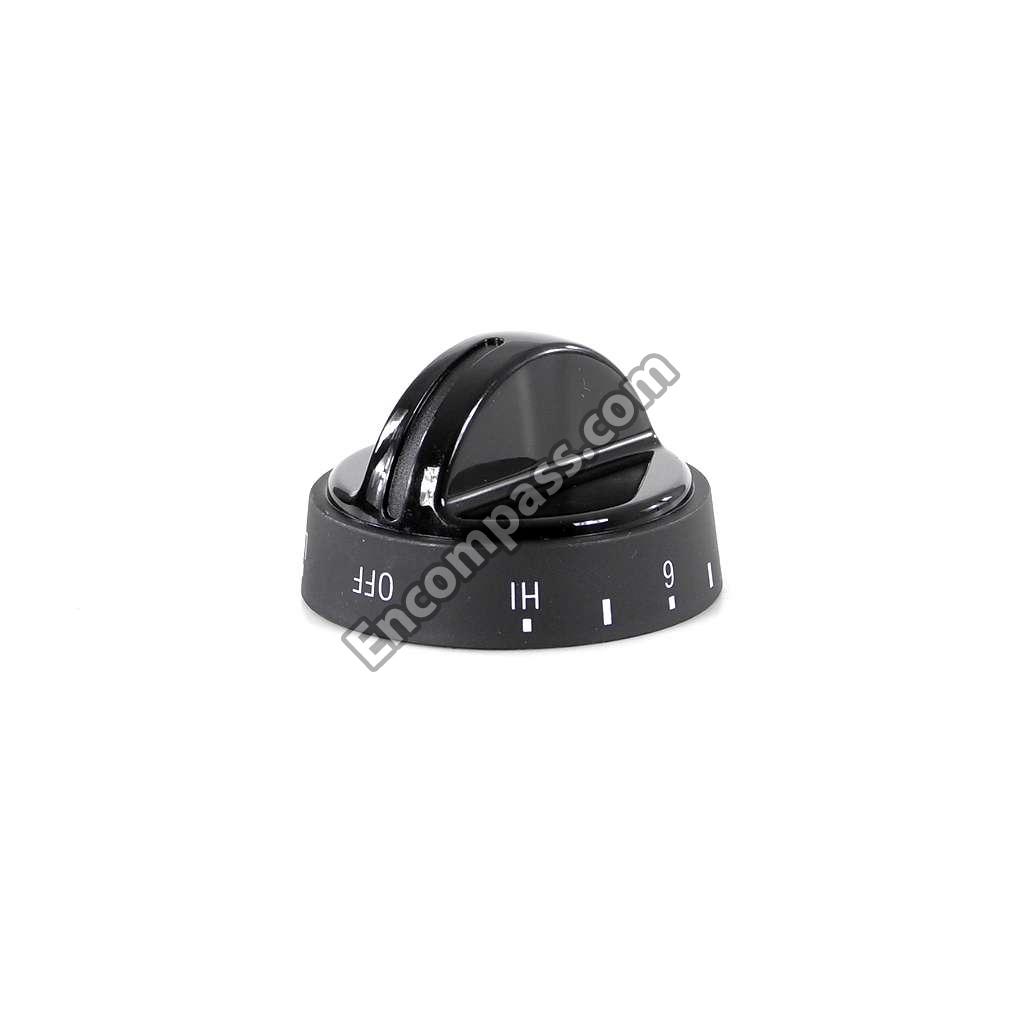

WP4364483 WP4364483 KNOB
WP4364481 WP4364481 KNOB, THERMOSTAT
8009 8009 LIGHT BULB
4364049 4364049 LINER, DOOR
4364106 4364106 OVERLAY, BACKGUARD
4364216 4364216 PAN, BROILER
4364362 4364362 PANEL, DRAWER (ALMOND)
4364361 4364361 PANEL, DRAWER (WHITE)
4364366 4364366 PANEL, MANIFOLD (INCLUDES NO.7)
4364051 4364051 PANEL, OVEN DOOR (ALMOND)
4364254 4364254 PANEL, OVEN DOOR (SCREW, 10AB X 1/2)
4364050 4364050 PANEL, OVEN DOOR (WHITE)
4364082 4364082 PANEL, SIDE (ALMOND)
4364081 4364081 PANEL, SIDE (WHITE)
WP4364085 WP4364085 RACK, OVEN
330031 330031 RECEPTACLE
4364091 4364091 RECEPTACLE, LIGHT
4364360 4364360 RETAINER, BOTTOM
4364093 4364093 RING, OVEN LIGHT
4364217 4364217 ROD, SUPPORT
W11233072 W11233072 SCREW
W10853069 W10853069 SCREW
W10856125 W10856125 SCREW
WP313808 WP313808 SCREW
4364057 4364057 SCREW, 10-24 X 3/8
4364256 4364256 SCREW, 8A X 1
4364255 4364255 SCREW, NO.10 X 1/2
4364246 4364246 SCREW, NO.8 X 1/2
4364055 4364055 SPACER, HANDLE
4364157 4364157 STRIKEPIN, COOKTOP (INCLUDES NUT)
4364369 4364369 SUPPORT, BACKGUARD
4364089 4364089 SUPPORT, LT. REAR
4364090 4364090 SUPPORT, RT. REAR
WPW10345407 WPW10345407 SURFACE ELEMENT
4364179 4364179 SWITCH, INFINITE (USE W/6`` ELEMENT)
4364176 4364176 SWITCH, LIMIT

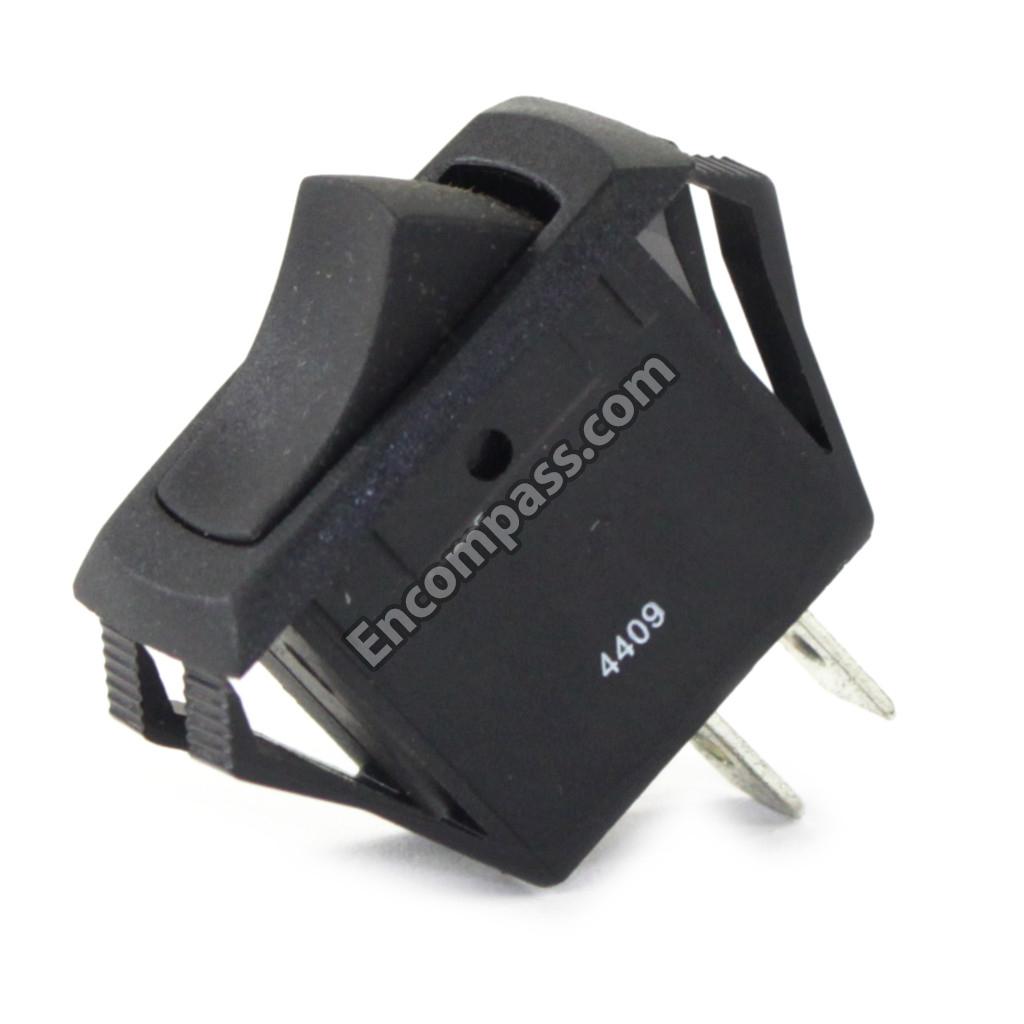

4364351 4364351 SWITCH, OVEN LIGHT
WP4364181 WP4364181 THERMOSTAT
LIT4364040 LIT4364040 USE & CARE GUIDE
4364207 4364207 VENT, OVEN TUBE
4364095 4364095 WIRE BUSHING
4364225 4364225 WIRE, BLACK BAKE
4364227 4364227 WIRE, BLUE SWITCH
4364191 4364191 WIRE, ELEMENT (BLACK (RT. REAR))
4364190 4364190 WIRE, ELEMENT (BLUE (LEFT REAR))
4364188 4364188 WIRE, ELEMENT (RED (LEFT FRONT))
4364189 4364189 WIRE, ELEMENT (YELLOW (RT. FRONT))
4364367 4364367 WIRE, ORANGE IND.
4364368 4364368 WIRE, RED IND.
4364226 4364226 WIRE, YELLOW BRLR
