Manufacturer

Whirlpool

Model Number

RF314PXMQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11447673 W11447673 ANCHOR-TIP
8274034 8274034 BACK, MAIN
WP9761958 WP9761958 BLOCK-TERM
3196454 3196454 BRACKET, ELEMENT
8524063 8524063 BRACKET, IND LIGHT
W10838990 W10838990 BRKT-MNTG
W11728255 W11728255 BRKT-SRVCE
WP3196068 WP3196068 CAMERA LENS-LIGHT
W10355051 W10355051 CLEANER, COOKTOP
WP3196925 WP3196925 CLIP
WP8273564 WP8273564 CLIP
3196025 3196025 CLIP, GLASS (6)
W10404688 W10404688 CLIP, OVEN SUPPORT
3196576 3196576 CLIP, PANEL (6)
313660 313660 CLIP, WIRE GROUND

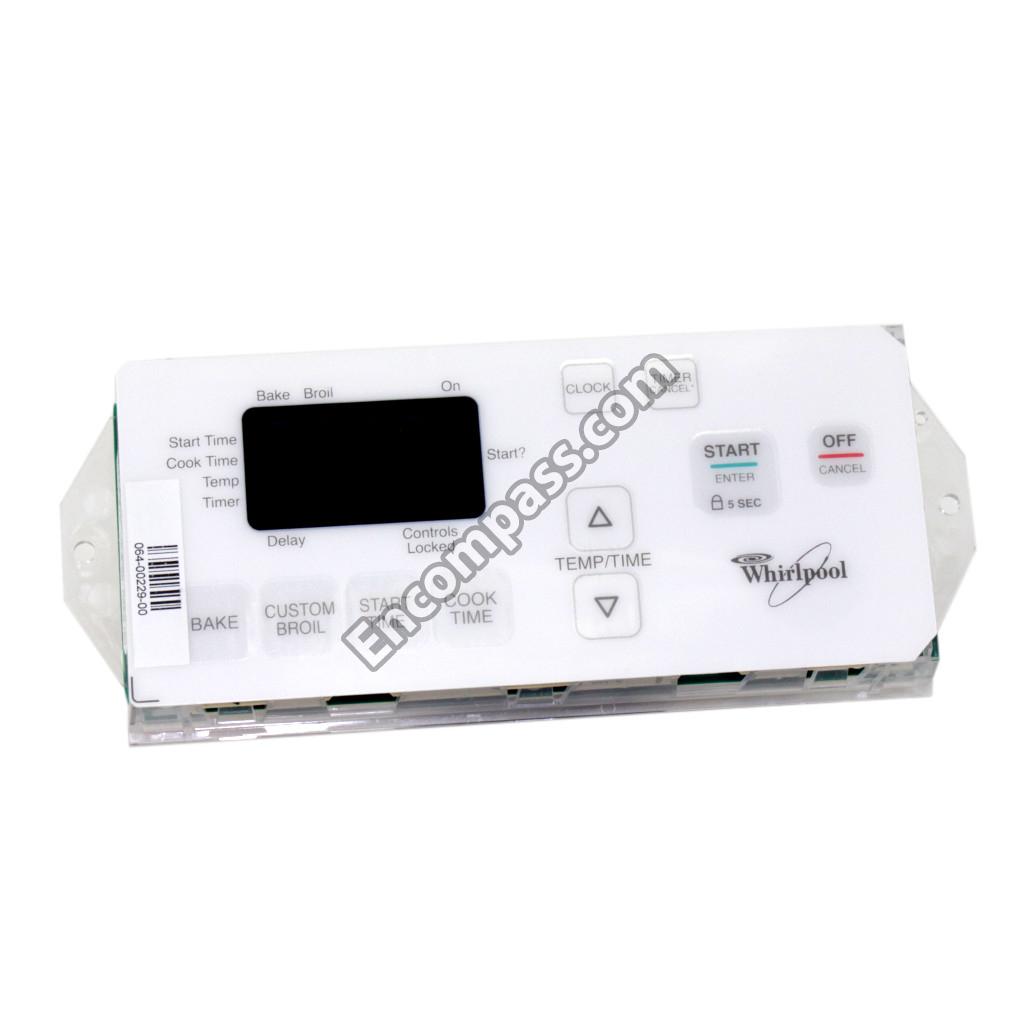

WP6610463 WP6610463 CONTROL BOARD
W10173297 W10173297 COOKTOP (WHITE/WHITE)
WPW10326122 WPW10326122 COVER-BLCK
WP8272473 WP8272473 COVER-REAR
WPW10202216 WPW10202216 DOOR HANDLE
WP8523175 WP8523175 DOOR TRIM
WP8523166 WP8523166 DOOR TRIM
WP8523172 WP8523172 DOOR TRIM
WPW10016370 WPW10016370 DOOR TRIM
W10296838 W10296838 DRAWER, STORAGE
WPW10308477 WPW10308477 ELMNT-BAKE
W10856603 W10856603 ELMNT-BROL
3186190 3186190 ENDCAP (WHITE LEFT HAND)
3186191 3186191 ENDCAP (WHITE RIGHT HAND)
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196037 WP3196037 FOOT-LEVEL
100000 100000 FRAME, FRONT (NOT SERVICED)
WP3196548 WP3196548 FUSE-THRML
W11542153 W11542153 GASKT-DOOR
WP9762476 WP9762476 GLASS DOOR
WP9758163 WP9758163 GLASS DOOR
WP8053334 WP8053334 GLIDE-DRWR
WP3195546 WP3195546 GLIDE-DRWR
261582 261582 GREASE
9761862 9761862 GUIDE, USE & CARE
9758196 9758196 HARNESS, WIRE (CONTROL)
9761468 9761468 HARNESS, WIRE (COOKTOP LEFT)
9761458 9761458 HARNESS, WIRE (COOKTOP RIGHT)
9756752 9756752 HARNESS, WIRE (SENSOR)
WP8053808 WP8053808 HINGE, DOOR (2)
WP3148953 WP3148953 INFINITE CONTROL SWITCH
WP3148952 WP3148952 INFINITE CONTROL SWITCH
9759923 9759923 INSTRUCTIONS INSTALLATIONS TEMPLATE, ANTI-TIP
W11311894 W11311894 INSULATION
WPW10208653 WPW10208653 INSULATION
8053915 8053915 INSULATION, VENT
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP8522565 WP8522565 KNOB
8009 8009 LIGHT BULB
8523740 8523740 LIGHT, INDICATOR (HOT SURFACE)
WP8523265 WP8523265 LIGHT-IND
3186296 3186296 LINER, DOOR
9757143 9757143 LITERATURE (ENGLISH/FRENCH)
9757142 9757142 LITERATURE (ENGLISH/SPANISH)
WP112432 WP112432 NUT
978883 978883 PAINT, BULK (1 QT.) (ALMOND (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350956 350956 PAINT, PRESSURIZED SPRAY (12 OZ.) (ALMOND)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
4396923 4396923 PAN, BROILER
3186173 3186173 PANEL, BACKGUARD (WHITE)
W11219377 W11219377 PANEL-DRWR
WPW10575396 WPW10575396 PANEL-SIDE
814381 814381 PIN KIT-DR REMOVAL
WPW10256908 WPW10256908 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
8524114 8524114 RELIEF, STRAIN
WP8054068 WP8054068 RETAINER
9761500 9761500 RETAINER, INSULATION
WP3196814 WP3196814 RIVET
9757239 9757239 ROD - DR SWITCH
3191638 3191638 SAFER COOKING TIPS
W11244557 W11244557 SCREW
WP3196154 WP3196154 SCREW
WP3196175 WP3196175 SCREW
WP179051 WP179051 SCREW
W10491985 W10491985 SCREW
WP3196164 WP3196164 SCREW
WP3400832 WP3400832 SCREW
WP3196174 WP3196174 SCREW
WP489491 WP489491 SCREW
WP7101P246-60 WP7101P246-60 SCREW
WP3400016 WP3400016 SCREW
WP98008545 WP98008545 SCREW
3196172 3196172 SCREW
WP3400882 WP3400882 SCREW
W11233072 W11233072 SCREW
WP4449746 WP4449746 SCREW
WP3196557 WP3196557 SCREW
WP3196170 WP3196170 SCREW
WPW10181986 WPW10181986 SENSOR
8523280 8523280 SHIELD, HEAT
8524132 8524132 SHIELD, WIRING
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER
3149191 3149191 SPRING, LOCATOR
8273905 8273905 SUPPORT, CORNER LR
3195987 3195987 SUPPORT, CORNER RR
8523408 8523408 SUPPORT, ENDCAP (LEFT HAND)
8523409 8523409 SUPPORT, ENDCAP (RIGHT HAND)
3195736 3195736 SUPPORT, FRONT (2)
W10823699 W10823699 SURFACE ELEMENT
WPW10242957 WPW10242957 SURFACE ELEMENT
9758161 9758161 SWITCH, DOOR
3149360 3149360 SWITCH, ROCKER (WHITE)
4454080 4454080 TECH SHEET
WPW10134285 WPW10134285 TUBE-VENT
WP72107 WP72107 TUCHUP
242828 242828 WIRE (12 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
3184020 3184020 WIRE, GROUND
