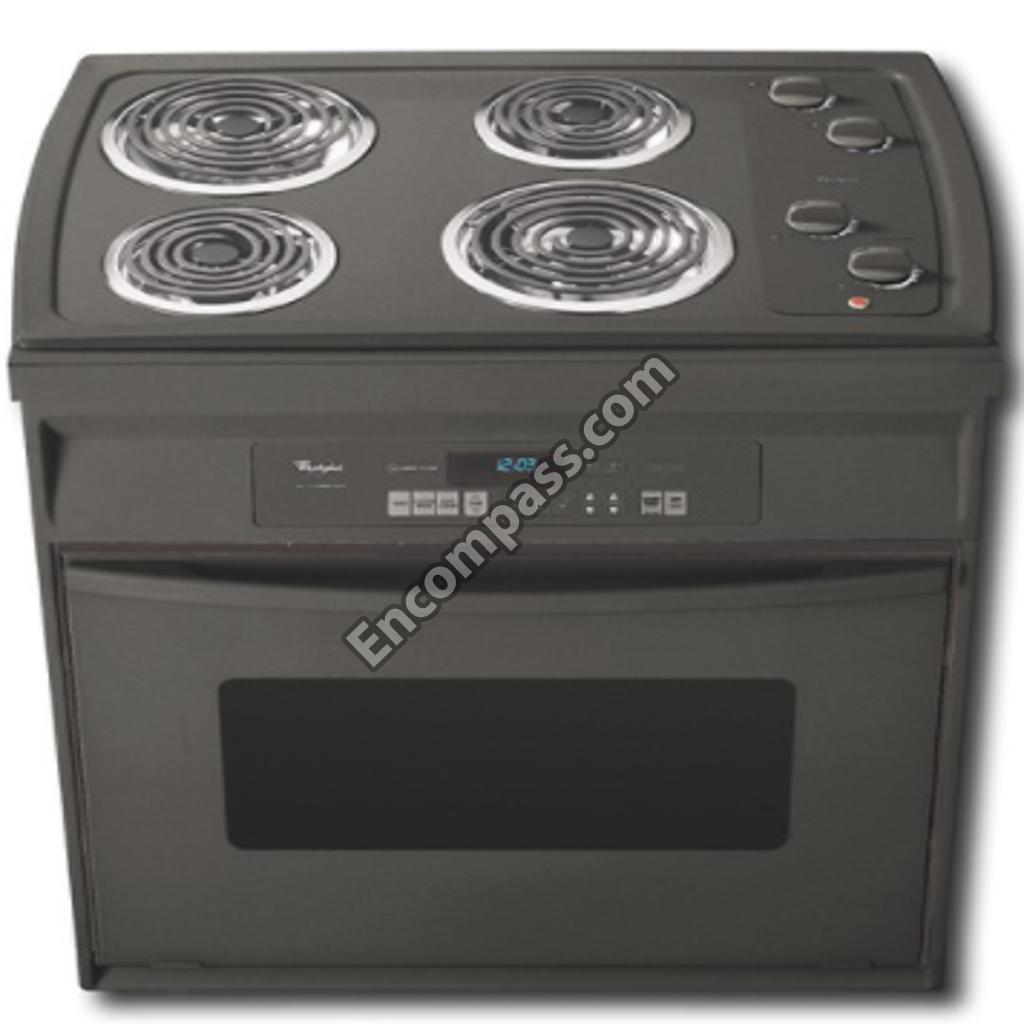

Model Image
Manufacturer

Whirlpool

Model Number

RS675PXGB15

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4452121 4452121 (TRIM, SIDE (LEFT HAND) (BISCUIT)
WP482338 WP482338 ADHESIVE
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
4452234 4452234 BACK, CHASSIS
W10123223 W10123223 BACK, CONTROL
9759713 9759713 BASE, CHASSIS
WP8203546 WP8203546 BLOCK-TERM
WPW10176670 WPW10176670 BLOWER
W10196405RW W10196405RW BOWL-DRIP
W10196406RW W10196406RW BOWL-DRIP
WP4450813 WP4450813 BRACKET, HANDLE
3192330 3192330 BRACKET, MOUNTING
WP9759230 WP9759230 BRKT-MNTG
WP9759229 WP9759229 BRKT-MNTG
4448520 4448520 BUMPER, DOOR
3192459 3192459 BURNER BOX
FE02313 FE02313 BUSHING
4448664 4448664 CLAMP
WP3195917 WP3195917 CLIP
3192575 3192575 CLIP, MTG. (4)
4451163 4451163 CONDUIT
WP8302994 WP8302994 CONTROL BOARD
WP4456312 WP4456312 CONTROL PANEL ASSEMBLY. (BISCUIT)
8284709 8284709 COOKTOP (BISCUIT)
3191167 3191167 COOKTOP (BLACK)
3191168 3191168 COOKTOP (WHITE)
3191842 3191842 COVER, REAR
WP4451747 WP4451747 COVER-REAR
4457117 4457117 DEFLECTOR, VENT
WP9760889 WP9760889 DOOR DOOR LATCH
4452860 4452860 DOOR HANDLE (BISCUIT)
WP4448854 WP4448854 DOOR HANDLE (BLACK)
4448855 4448855 DOOR HANDLE (WHITE)
WP9760572 WP9760572 DOOR HINGE
WP9760571 WP9760571 DOOR HINGE
4455177 4455177 ELBOW, VENT BOTTOM
4455178 4455178 ELBOW, VENT TOP
WPW10207397 WPW10207397 ELEMENT
WP9760771 WP9760771 ELMNT-BROL
WPW10115831 WPW10115831 FRAME-FRNT
4451034 4451034 GASKET, CONTROL PANEL
W11675844 W11675844 GASKET-OVN
WP9759228 WP9759228 GLASS DOOR
WP9759641 WP9759641 GLASS DOOR
WP9759639 WP9759639 GLASS DOOR
WP9759225 WP9759225 GLASS DOOR
WP4449259 WP4449259 GLASS DOOR
9759640 9759640 GLASS, DOOR FRONT (BISCUIT)
WP3195996 WP3195996 GRID-PAN
8301876 8301876 HARNESS, WIRE
4456590 4456590 HARNESS, WIRE (INFINITE SWITCH)
4455592 4455592 HARNESS, WIRE (LIGHT)
3191220 3191220 HARNESS, WIRE (MAIN)
814381 814381 HINGE PIN KIT
WP4455605 WP4455605 HINGE-RECV
WP4455606 WP4455606 HINGE-RECV
WP3191473 WP3191473 INFINITE CONTROL SWITCH
WP3191471 WP3191471 INFINITE CONTROL SWITCH
W10075750 W10075750 INSTALLATION INSTRUCTIONS
WP4451722 WP4451722 INSULATION
W11684730 W11684730 INSULATION
WP4450365 WP4450365 INSULATION, BACK
WP3196232 WP3196232 KNOB
WP3196231 WP3196231 KNOB
W10067870 W10067870 LENS-LIGHT
WP4173175 WP4173175 LIGHT BULB
WP4456181 WP4456181 LIGHT-IND
WPW10734065 WPW10734065 LIGHT-OVEN
100000 100000 LINER, OVEN (NOT SERVICEABLE)
WP9759413 WP9759413 LINER-DOOR
WP112432 WP112432 NUT
WP261869 WP261869 PAINT CW
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
261900 261900 PAINT, SPRAY (CITRINE WHITE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10737569 W10737569 PAN-BROILR
8284707 8284707 PANEL, CONTROL (BISCUIT)
3191228 3191228 PANEL, CONTROL (BLACK)
3191229 3191229 PANEL, CONTROL (WHITE)
4451761 4451761 PLATE, SERVICE
WPW10179152 WPW10179152 RACK-OVEN
814372 814372 RAIL-MTG
814371 814371 RAIL-MTG
WP9759243 WP9759243 RANGE THERMOSTAT
W10205119 W10205119 RETAINER
WP4457132 WP4457132 RETAINER
WP4448933 WP4448933 RETAINER
W10205117 W10205117 RETAINER, CLIP (BLACK)
4450864 4450864 RETAINER, CLIP (WHITE)
3191638 3191638 SAFE COOKING TIPS
9759133 9759133 SAFECOOKING TIPS
WP3400015 WP3400015 SCREW
WP4448950 WP4448950 SCREW
WP4450038 WP4450038 SCREW
W11684512 W11684512 SCREW
WP4449746 WP4449746 SCREW
WP4449154 WP4449154 SCREW
WP4449040 WP4449040 SCREW
W11233072 W11233072 SCREW
WP4449809 WP4449809 SCREW
WP4449743 WP4449743 SCREW
WP8281236 WP8281236 SCREW
WP3400832 WP3400832 SCREW
WP4449745 WP4449745 SCREW
WP12990527 WP12990527 SCREW
WP3177991 WP3177991 SCREW
4450800 4450800 SCREW, GROUND
8300820 8300820 SEAL, DOOR TOP
3183956 3183956 SEAL, SWITCH SHAFT (4)
W10491987 W10491987 SEAL-FOAM
WPW10131825 WPW10131825 SENSOR
4457114 4457114 SHIELD, HEAT BOTTOM
WP4457104 WP4457104 SHIELD, HEAT TOP
W10782197 W10782197 SIDE, CHASSIS
3191833 3191833 SIDE, CONTROL COMPT. (LEFT)
3191832 3191832 SIDE, CONTROL COMPT. (RIGHT)
4452260 4452260 SPACER, FOAM
4452222 4452222 SPACER, HARNESS
4449845 4449845 SUPPORT, BRACKET
4451478 4451478 SUPPORT, INSULATION
WP4451985 WP4451985 SUPPRESSOR
WP660532 WP660532 SURFACE ELEMENT
WPW10259865 WPW10259865 SURFACE ELEMENT
8302072 8302072 TECH SHEET
8303099 8303099 TOP CHASSIS
WP4448477 WP4448477 TRIM
4452415 4452415 TRIM, BOTTOM (BISCUIT)
4448478 4448478 TRIM, BOTTOM (WHITE)
8300518 8300518 TRIM, EXTENSION (BISCUIT)
3192102 3192102 TRIM, EXTENSION (BLACK)
3192103 3192103 TRIM, EXTENSION (WHITE)
4450847 4450847 TRIM, SIDE (LEFT HAND) (BLACK)
4450848 4450848 TRIM, SIDE (LEFT HAND) (WHITE)
4452120 4452120 TRIM, SIDE (RIGHT HAND) (BISCUIT)
4450844 4450844 TRIM, SIDE (RIGHT HAND) (BLACK)
4450845 4450845 TRIM, SIDE (RIGHT HAND) (WHITE)
W10861715 W10861715 TUBE-VENT
9763523 9763523 USE & CARE GUIDE
4448549 4448549 VENT, CONTROL PANEL
4451759 4451759 VENT, EXHAUST
242828 242828 WIRE (12 GA. 150 C BLACK)
242829 242829 WIRE (12 GA. 150 C RED)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242826 242826 WIRE (14 GA. 150 C WHITE)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
242832 242832 WIRE (14 GA. 200 C YELLOW)
3184020 3184020 WIRE, GROUND
