Model Image
Manufacturer

Whirlpool

Model Number

RS675PXGT5

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
591014 591014 ADHESIVE LOCTITE (1/3 OZ.)
4452234 4452234 BACK, CHASSIS
W10123223 W10123223 BACK, CONTROL
9759713 9759713 BASE, CHASSIS
72032 72032 BLACK
285006 285006 BLACK
W10491987 W10491987 BLOCK, FOAM
WP8203546 WP8203546 BLOCK, TERMINAL
WP4455334 WP4455334 BLOWER, 60MM
W10196405RW W10196405RW BOWL-DRIP
W10196406RW W10196406RW BOWL-DRIP
WP4449746 WP4449746 BRACKET, HANDLE (SCREW)
WP4450813 WP4450813 BRACKET, HANDLE(2)
3192330 3192330 BRACKET, MOUNTING
WP4455352 WP4455352 BRKT-MNTG
WP4455509 WP4455509 BRKT-SUPRT
4448520 4448520 BUMPER, DOOR
3192459 3192459 BURNER BOX
4452165 4452165 CAMERA LENS, LIGHT
WP261869 WP261869 CITRINE WHITE
4448664 4448664 CLAMP
WP3195917 WP3195917 CLIP
3192575 3192575 CLIP, MTG. (4)
W10205117 W10205117 CLIP, RETAINER (BLACK MODEL)
4451163 4451163 CONDUIT
4456310 4456310 CONTROL PANEL
WP4456312 WP4456312 CONTROL PANEL ASSEMBLY. W/MEMBRANESWITCH (WHITE)
WP4449745 WP4449745 CONTROL PANEL ASSY. (SCREW)
3191169 3191169 COOKTOP (ALMOND)
8284709 8284709 COOKTOP (BISCUIT)
3191167 3191167 COOKTOP (BLACK)
3191168 3191168 COOKTOP (WHITE)
3191842 3191842 COVER, REAR
WP4451747 WP4451747 COVER-REAR
4448856 4448856 DOOR HANDLE (ALMOND)
4452860 4452860 DOOR HANDLE (BISCUIT)
WP4448854 WP4448854 DOOR HANDLE (BLACK)
4448855 4448855 DOOR HANDLE (WHITE)
WP4455525 WP4455525 DOOR HINGE
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
4455177 4455177 ELBOW, VENT BOTTOM
4455178 4455178 ELBOW, VENT TOP
WPW10207397 WPW10207397 ELEMENT
WP9760767 WP9760767 ELMNT-BROL
4451740 4451740 FRAME, FRONT
4451034 4451034 GASKET, CONTROL PANEL
W11675844 W11675844 GASKET, DOOR
8300897 8300897 GLASS DOOR
WP9759641 WP9759641 GLASS DOOR
WP9759639 WP9759639 GLASS DOOR
9759640 9759640 GLASS, DOOR FRONT (BISCUIT)
WP4449259 WP4449259 GLASS, INNER
WP4455257 WP4455257 GLASS, INNER
WP4449263 WP4449263 GLASS, INNER
WP4448444 WP4448444 GROMMET
LIT3191638 LIT3191638 GUIDE BOOK STICKER
4455626 4455626 HARNESS, WIRE (EDC)
4456590 4456590 HARNESS, WIRE (INFINITE SWITCH)
4455592 4455592 HARNESS, WIRE (LIGHT)
3191220 3191220 HARNESS, WIRE (MAIN)
8185503 8185503 HINGE-RECV

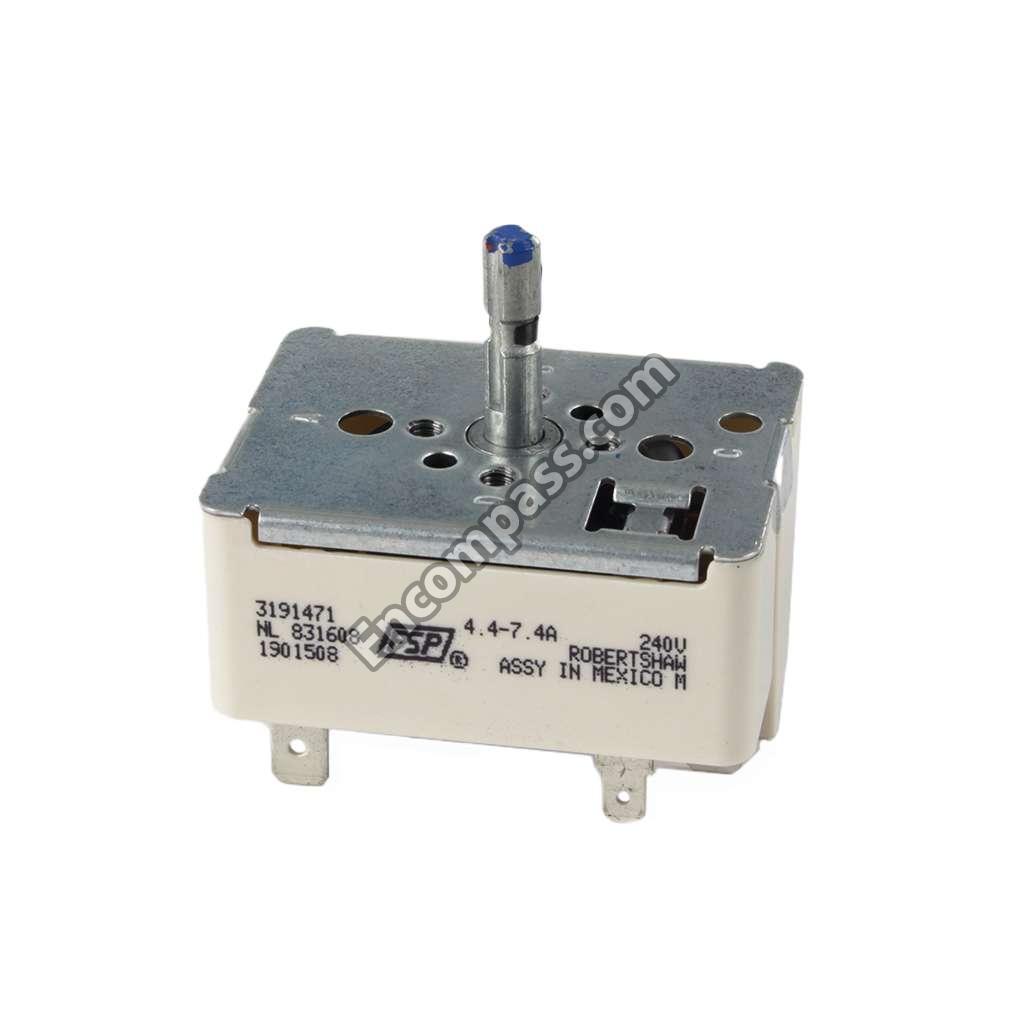

WP3191471 WP3191471 INFINITE CONTROL SWITCH
LIT3191799 LIT3191799 INSTALLATION INSTRUCTIONS
W11684730 W11684730 INSULATION
WP4450365 WP4450365 INSULATION, BACK
WP4451722 WP4451722 INSULATION, DOOR
WP3196231 WP3196231 KNOB, CONTROL (2)
WP3196233 WP3196233 KNOB, CONTROL (4) (ALMOND)
WP3196232 WP3196232 KNOB, INFINITE (4)
WP4451896 WP4451896 LATCH ASSEMBLY
WP4173175 WP4173175 LIGHT BULB

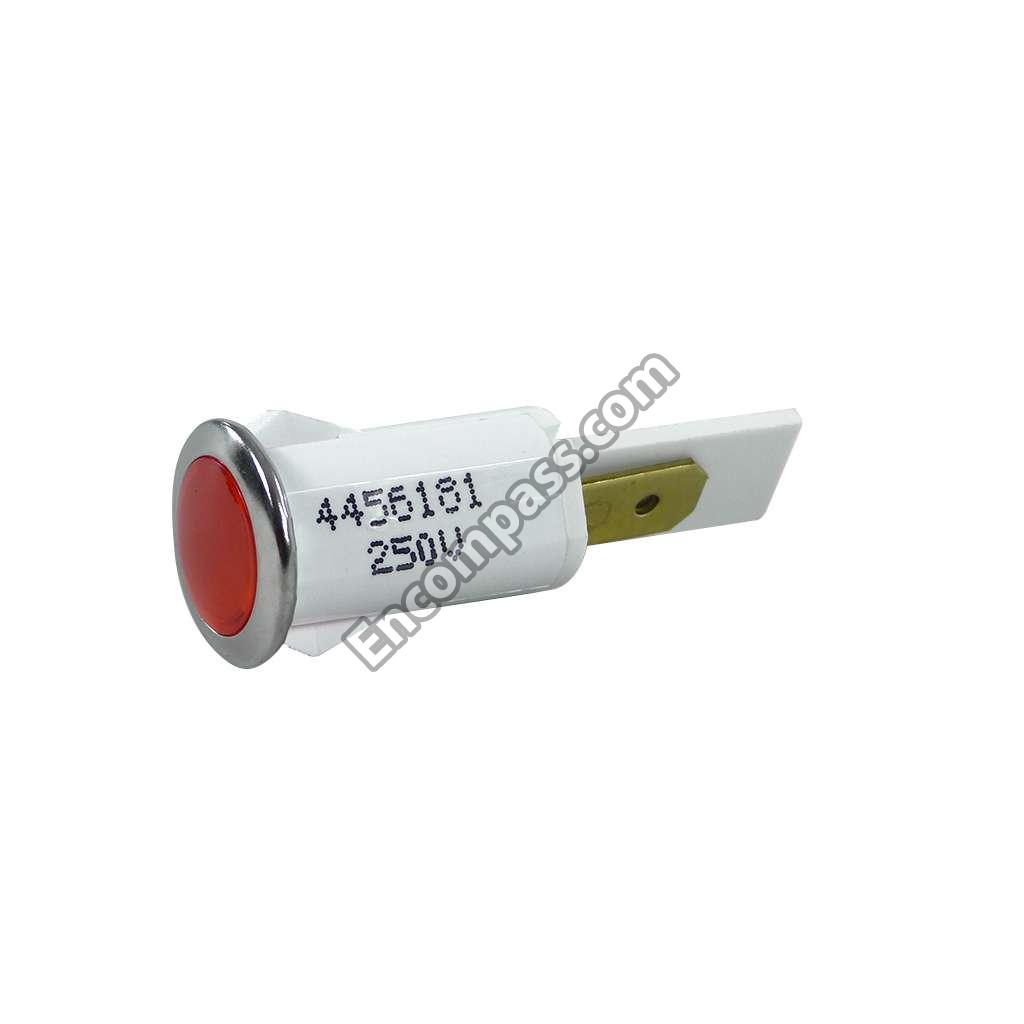

WP4456181 WP4456181 LIGHT-IND
100000 100000 LINER, OVEN (NOT A SERVICEABLE PART)
WP9759413 WP9759413 LINER-DOOR
8186024 8186024 MICROCOMPUTER
4452312 4452312 MICROSWITCH N.C.
WP4450118 WP4450118 NUT
WP112432 WP112432 NUT, T-BLOCK (4)
4452368 4452368 OVEN LIGHT ASSEMBLY
261900 261900 PAINT, SPRAY (CITRINE WHITE (6 OZ.))
3191230 3191230 PANEL, CONTROL (ALMOND)
8284707 8284707 PANEL, CONTROL (BISCUIT)

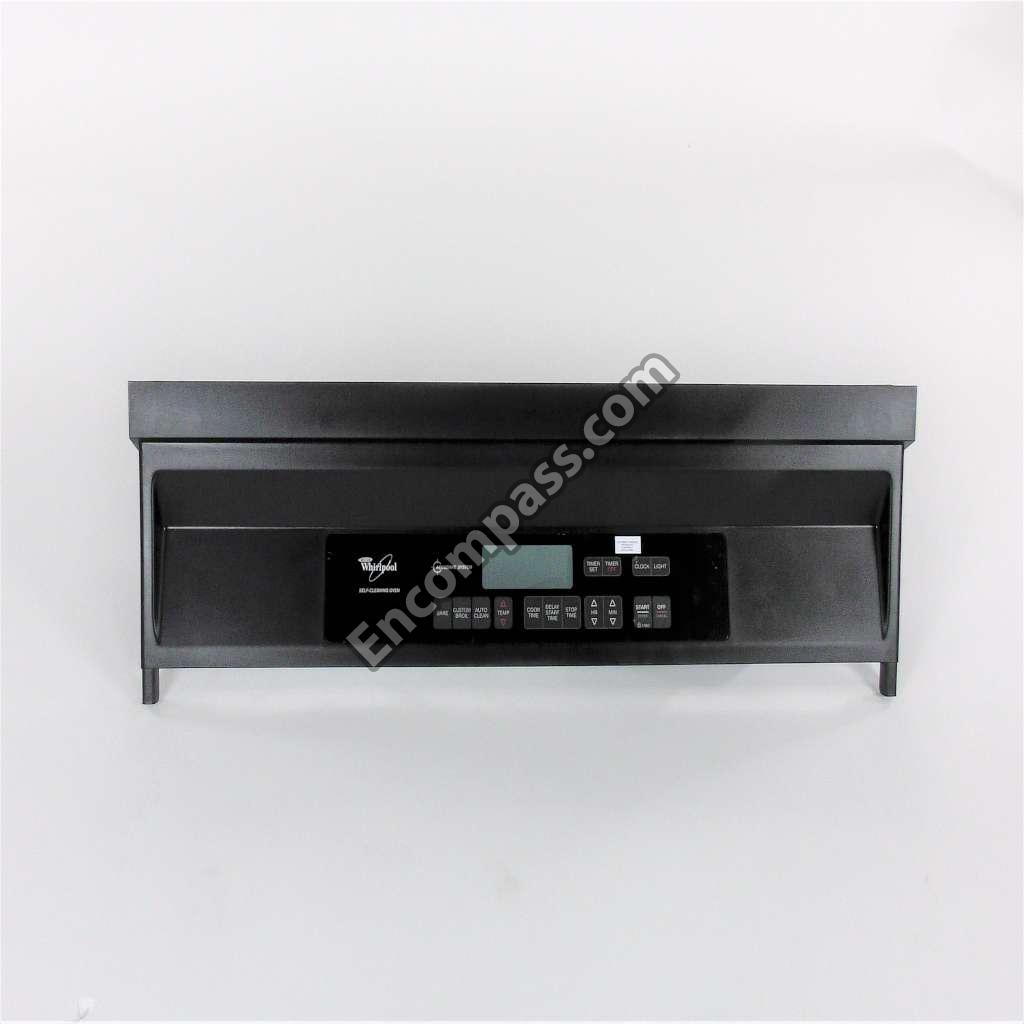

3191228 3191228 PANEL, CONTROL (BLACK)
3191229 3191229 PANEL, CONTROL (WHITE)
814381 814381 PIN HINGE KIT
4451761 4451761 PLATE, SERVICE
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
WPW10179152 WPW10179152 RACK, OVEN
814371 814371 RAIL-MTG
814372 814372 RAIL-MTG
W10205119 W10205119 RETAINER
WP4448933 WP4448933 RETAINER
4450865 4450865 RETAINER, CLIP (ALMOND)
4450864 4450864 RETAINER, CLIP (WHITE)
4451671 4451671 RETAINER, GLASS
4451668 4451668 RETAINER, GLASS
WP12990527 WP12990527 SCREW
WP4450038 WP4450038 SCREW
WP4449040 WP4449040 SCREW
WP4449743 WP4449743 SCREW (2)
WP3400016 WP3400016 SCREW (2)
WP4449154 WP4449154 SCREW (BLACK) (WHITE)
WP4449809 WP4449809 SCREW, 8-18 X 3/8
4450800 4450800 SCREW, GROUND
WP4448950 WP4448950 SCREW, INSTALL (2)
4451674 4451674 SEAL, DOOR TOP
3183956 3183956 SEAL, SWITCH SHAFT (4)
WP482338 WP482338 SEALER, SILASTIC (3OZ.)
WPW10131825 WPW10131825 SENSOR
4450362 4450362 SHIELD, HEAT
3191833 3191833 SIDE, CONTROL COMPT. (LEFT)
3191832 3191832 SIDE, CONTROL COMPT. (RIGHT)
814509 814509 SIDE-COMPT
4452224 4452224 SOLENOID
350930 350930 SPRAY (13 OZ.) (WHITE)
4451537 4451537 SPRING, DOOR LATCH
4449845 4449845 SUPPORT, BRACKET
4451478 4451478 SUPPORT, INSULATION
WPW10259865 WPW10259865 SURFACE ELEMENT
WP660532 WP660532 SURFACE ELEMENT
WP3191473 WP3191473 SWITCH, INFINITE (2200/2600W RF (RED STEM))
3400855 3400855 SWITCH, INFINITE (SCREW, 8-32 X 1/4)
4456568 4456568 SWITCH, MICRO
LIT3192845 LIT3192845 TECH SHEET
WP9759243 WP9759243 THERMOSTAT (TOD) (LOWER)
8303099 8303099 TOP, CHASSIS
4448862 4448862 TRIM, BOTTOM (ALMOND)
4452415 4452415 TRIM, BOTTOM (BISCUIT)
WP4448477 WP4448477 TRIM, BOTTOM (BLACK MODEL)
4448478 4448478 TRIM, BOTTOM (WHITE)
3192104 3192104 TRIM, EXTENSION (ALMOND)
8300518 8300518 TRIM, EXTENSION (BISCUIT)
3192102 3192102 TRIM, EXTENSION (BLACK)
3192103 3192103 TRIM, EXTENSION (WHITE)
WP8281236 WP8281236 TRIM, SIDE (BLACK MODEL)
4450849 4450849 TRIM, SIDE (LH ALMOND)
4452121 4452121 TRIM, SIDE (LH BISCUIT)
4450848 4450848 TRIM, SIDE (LH WHITE)
4450846 4450846 TRIM, SIDE (RH ALMOND)
4452120 4452120 TRIM, SIDE (RH BISCUIT)
4450844 4450844 TRIM, SIDE (RH BLACK)
4450845 4450845 TRIM, SIDE (RH WHITE)
4450847 4450847 TRIM, SIDE (RIGHT HAND) (BLACK & BS MODELS)
W10861715 W10861715 TUBE-VENT
LIT3191537 LIT3191537 USE & CARE GUIDE
4448549 4448549 VENT, CONTROL PANEL
4451759 4451759 VENT, EXHAUST
242828 242828 WIRE (12 GA. 150 C BLACK)
242829 242829 WIRE (12 GA. 150 C RED)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242826 242826 WIRE (14 GA. 150 C WHITE)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
242832 242832 WIRE (14 GA. 200 C YELLOW)
3184020 3184020 WIRE, GROUND
