Model Image
Manufacturer

Whirlpool

Model Number

RTC1500AAW

Description

No description available

Interactive Exploded View

Parts List

Part Number Description
67072-1 67072-1 ACTUATOR, MEAT KEEPER
68112-1 68112-1 ARM, SENSOR
WP627843 WP627843 ARM-EJECTR
WP2182124 WP2182124 ARM-STRIPR
67529-1 67529-1 AXLE WHEEL
66493-1 66493-1 BAFFLE, AIR DIVIDER
67673-1 67673-1 BEZEL, NAMEPLATE
WP627985 WP627985 BIMETL-DEF
64359-1 64359-1 BLADE, EVAPORATOR FAN
WP12587601 WP12587601 BLADE- CON
66460-1 66460-1 BOTTOM, FRZ.
WP2256087 WP2256087 BRACKET
67464-2 67464-2 BRACKET, CENTER ROLLER
60108-1 60108-1 BRACKET, COIL TO TRAY
67392-2 67392-2 BRACKET, DEFROST TIMER
66225-1 66225-1 BRACKET, FAN MOTOR
64856-1 64856-1 BRACKET, FAN MOTOR
67157-1 67157-1 BRACKET, HANDLE
67157-4 67157-4 BRACKET, HANDLE
67703-1 67703-1 BRACKET, LIGHT
69363-1 69363-1 BRACKET, WATER VALVE
67530-1 67530-1 BRACKET, WHEEL
28272-6 28272-6 BUMPER, DOOR
68187-1 68187-1 CAP, CONNECTOR
65039-1 65039-1 CAP, DRAIN TUBE
WP2262343 WP2262343 CAPACITOR
876595 876595 CAPACITOR
876776 876776 CAPACITOR
WP488366 WP488366 CLAMP
68935-1 68935-1 CLIP
WP628379 WP628379 CLIP
WP2315522 WP2315522 CLIP
60216-1 60216-1 CLIP
60263-1 60263-1 CLIP, DEFROST HEATER
67386-1 67386-1 CLIP, HANDLE
66799-3 66799-3 CLIP, HANDLE SCREW
67259-1 67259-1 CLIP, KICKPLATE
65887-1 65887-1 CLIP, OVERLOAD
62581-1 62581-1 CLIP, RETAINING WHEEL (REAR)
56686-5 56686-5 CLIP, SECONDARY SEAL
65886-1 65886-1 CLIP, TERMINAL COVER
WPM0114003 WPM0114003 CLIP- SPEE
W10439652 W10439652 COMPRESSOR
RA43871-1 RA43871-1 CONDENSER
67074-1 67074-1 CONTROL, MEAT KEEPER
WP68601-6 WP68601-6 CONTROL- T
52890-3 52890-3 CORD, POWER
67117-3 67117-3 COVER HINGE
67169-1 67169-1 COVER THERMOSTAT
67493-1 67493-1 COVER, CRANK
66403-1 66403-1 COVER, EVAPORATOR
65398-1 65398-1 COVER, HEAT EXCHANGER
68978-1 68978-1 COVER, LOWER HINGE (BLK)
66480-4 66480-4 COVER, PLENUM
66589-2 66589-2 COVER, TERMINAL
69138-1 69138-1 COVER, UNIT COMPARTMENT
67229-3 67229-3 COVER, UPPER HINGE (ALM.)
67229-4 67229-4 COVER, UPPER HINGE(WHT.)
67636-1 67636-1 CRANK, FRZ. CONTROL
60313-1 60313-1 CUP, SHELF
68757-2 68757-2 CUP, U-RAIL SUPPORT
WP628356 WP628356 CUP-FILL
60120-2 60120-2 DEFLECTOR
69037-1 69037-1 DISC, CRANK COVER
69123-1 69123-1 DIVIDER, MULLION
67041-1 67041-1 DOOR, DAIRY
WPW10143759 WPW10143759 DRIER-UV
67061-3 67061-3 DUCT, AIR
67061-1 67061-1 DUCT, AIR (15` & 17` MODELS)
67061-2 67061-2 DUCT, AIR (19` & 21` MODELS)
67854-2 67854-2 END CAP (L)
67854-1 67854-1 END CAP (R)
68818-1 68818-1 ENDCAP, HANDLE (F.F. DOOR)
67382-1 67382-1 ENDCAP, HANDLE (FRZ.)
67208-1 67208-1 ENDCAP, SHELF TRIM
67211-1 67211-1 ENDCAP, SHELF TRIM
67210-1 67210-1 ENDCAP, SHELF TRIM
67213-1 67213-1 ENDCAP, SHELF TRIM (SAND BEIGE
69114-1 69114-1 EVAPORATOR
67805-1 67805-1 EXTENSION TRIM
67251-1 67251-1 FACADE, CONTROL
67150-1 67150-1 FASTENER, DIVIDER
WPW10289690 WPW10289690 FRONT COVER
67744-2 67744-2 GASKET
67744-1 67744-1 GASKET
67267-8 67267-8 GLASS, CANTILEVER
95099-1 95099-1 GREASE, SILICONE
67023-6 67023-6 GRILL, KICKPLATE
67294-1 67294-1 GROMMET WATER
17245-4 17245-4 GROMMET, COMPRESSOR
53351-1 53351-1 GROMMET, CONDENSER TUBING
67163-1 67163-1 GROMMET, CRISPER SHELF
60068-1 60068-1 GROMMET, TUBE ENTRY
WP61004743 WP61004743 GROMMET- B
67360-1 67360-1 GROUND PLATE
29675-33 29675-33 GROUND WIRE, CONTROL
67190-1 67190-1 GUARD, LIGHT
67778-1 67778-1 HANDLE, DOOR
67528-1 67528-1 HANDLE, LOCK LEVER
RA43645-13 RA43645-13 HEAT EXCHANGER
WP60106-34 WP60106-34 HEATER
67532-1 67532-1 HEATER MULLION
67859-1 67859-1 HINGE, CENTER
68975-2 68975-2 HINGE, LOWER
67456-2 67456-2 HINGE, TOP
67369-1 67369-1 HOLDER, LAMP
WP2195914 WP2195914 HOUSING-IM
67491-1 67491-1 HUMIDITY CONTROL
D7824706Q D7824706Q ICE MAKER ASSEMBLY.
WP61005273 WP61005273 INLET VALVE
67153-1 67153-1 INSERT, HANDLE (FREEZER)
67194-1 67194-1 INSERT, NAMEPLATE
60140-1 60140-1 INSULATION
67244-1 67244-1 KNOB CONTROL
67245-1 67245-1 KNOB, CONTROL
67681-1 67681-1 LEVER, LOCK (LEFT)
67681-2 67681-2 LEVER, LOCK (RIGHT)
8009 8009 LIGHT BULB
67002-1 67002-1 LINER, F.F. DOOR
67001-2 67001-2 LINER. FRZ. DOOR
67073-1 67073-1 LINKAGE, MEAT KEEPER
WP61004888 WP61004888 MOTOR, EVAPORATOR FAN
833697 833697 MOTOR-COND
67247-4-WW 67247-4-WW MULLION FRONT
WP486692 WP486692 NUT
431019-511 431019-511 NUT
WP245183 WP245183 NUT
WP627018 WP627018 NUT
431041-505 431041-505 NUT, PUSH-ON
67195-1 67195-1 ORGANIZER
67195-3 67195-3 ORGANIZER PKG
67558-1 67558-1 ORIFICE, DAMPER
60608-2 60608-2 ORIFICE, FAN BLADE
63294-12 63294-12 OVERLOAD
67650-6 67650-6 PAN, CRISPER
67141-1 67141-1 PAN, ICE
67650-5 67650-5 PAN, MEAT
WP68236-1 WP68236-1 PAN- DRAIN
72042-6-WW 72042-6-WW PANEL, F.F. DOOR (WHT)
72042-1-WW 72042-1-WW PANEL, FRZ. DOOR (WHT)
67322-1 67322-1 PIN, CENTER HINGE
68977-1 68977-1 PIN, HINGE
29835-2 29835-2 PIN, WHEEL
67557-1 67557-1 PLUG BUTTON
66920-1 66920-1 PLUG BUTTON
67678-2 67678-2 PLUG BUTTON (WHT)
55782-10 55782-10 PLUG BUTTON, HDLE & DOOR STOP
67634-2 67634-2 PLUG BUTTON, HINGE CUP (WHT)
56144-9 56144-9 PLUG BUTTON, HINGE SCREW (ALM)
56144-13 56144-13 PLUG BUTTON, UPPER HINGE (WHT)
67855-1 67855-1 PLUG, GROMMET
67427-1 67427-1 PROTECTOR, GLASS EDGE
60555-2 60555-2 RAIL, DRAIN PAN (LT)
60555-1 60555-1 RAIL, DRAIN PAN (RT)
67649-2 67649-2 RAIL, MEAT KEEPER
60096-10 60096-10 RAIL, SHELF SUPPORT (LT)
2154436 2154436 RELAY
67541-1 67541-1 RETAINER LIGHT----NA
67033-3 67033-3 RETAINER, DOOR SEAL
67033-1 67033-1 RETAINER, DOOR SEAL
67033-2 67033-2 RETAINER, DOOR SEAL
60069-1 60069-1 RETAINER, ENTRY GROMMET
WP65245-1 WP65245-1 RETAINER-
WP210720 WP210720 RIVET
67499-1 67499-1 ROD PAD CONTROL
WP67423-2 WP67423-2 ROLLER
WP488729 WP488729 SCREW
WPM0223816 WPM0223816 SCREW
414001-1 414001-1 SCREW
65275-28 65275-28 SCREW
WP65275-6 WP65275-6 SCREW
3-80732-001 3-80732-001 SCREW
65275-59 65275-59 SCREW
WP3-24838-048 WP3-24838-048 SCREW
65275-48 65275-48 SCREW
65275-44 65275-44 SCREW
65275-22 65275-22 SCREW
WP488234 WP488234 SCREW
WP250830 WP250830 SCREW
WP400021-1 WP400021-1 SCREW
WP489128 WP489128 SCREW
WP681249 WP681249 SCREW
95105-1 95105-1 SCREW
61005388 61005388 SCREW
406046-1 406046-1 SCREW
WP7101P126-60 WP7101P126-60 SCREW
WP489478 WP489478 SCREW
400015-103 400015-103 SCREW
405016-103 405016-103 SCREW
406013-1 406013-1 SCREW
WP59002061 WP59002061 SCREW
400019-1 400019-1 SCREW
W11233072 W11233072 SCREW
400015-12 400015-12 SCREW
406062-1 406062-1 SCREW
65275-26 65275-26 SCREW (NO.12 X 5/8``)
65275-31 65275-31 SCREW, BRACKET TO HANDLE
65275-21 65275-21 SCREW, CENTER HINGE
65275-9 65275-9 SCREW, COMPRESSOR MOUNTING
403060-1 403060-1 SCREW, HINGE COVER
65275-51 65275-51 SCREW, LOWER HINGE
402020-103 402020-103 SCREW, PANEL
65275-10 65275-10 SCREW, TAPPING PLATE
406083-1 406083-1 SCREW, WHEEL ADJUSTMENT
65275-29 65275-29 SCREW,HANDLE BOTTOM (HEX HEAD)
68946-1 68946-1 SEAL
68866-4 68866-4 SEAL 72``
67731-1 67731-1 SEAL, CRISPER SHELF
67677-1 67677-1 SEAL, MEAT PAN
67265-1 67265-1 SEAL, SHELF (FRONT)
67266-1 67266-1 SEAL, SHELF (REAR)
68989-1 68989-1 SEAL, TOP TOWER
66325-29 66325-29 SEAL, TUNNEL
67890-1 67890-1 SHELF, CRISPER
67349-1 67349-1 SHELF, FILL-IN
67348-3 67348-3 SHELF, FRZ. (WIRE)
67271-3 67271-3 SHELF, FULL
67114-1 67114-1 SHELF, ICE TRAY
67268-1 67268-1 SHELF, MEAT
60109-4 60109-4 SHIELD, DEFROST HEATER
69117-1 69117-1 SHIELD, HEAT
69031-1 69031-1 SHIM
67697-4 67697-4 SHIM
67746-4 67746-4 SHIM
67746-1 67746-1 SHIM
67697-2 67697-2 SHIM HANDLE
67697-3 67697-3 SHIM HANDLE
67857-1 67857-1 SHIM, CENTER HINGE
65031-1 65031-1 SHIM, UPPER HINGE
66228-1 66228-1 SHROUD, CONDENSER
67147-1 67147-1 SIDE, ICE TRAY SHELF
WP487627 WP487627 SLEEVE
67556-1 67556-1 SLEEVE, SENSOR ARM
69022-1 69022-1 STOP, DOOR
67662-1 67662-1 STOP, DOOR
66101-1 66101-1 STUD, SHELF
67596-1 67596-1 SUPPORT
60096-11 60096-11 SUPPORT
67895-1 67895-1 SUPPORT, CRISPER SHELF (LT)
67895-2 67895-2 SUPPORT, CRISPER SHELF (RT)

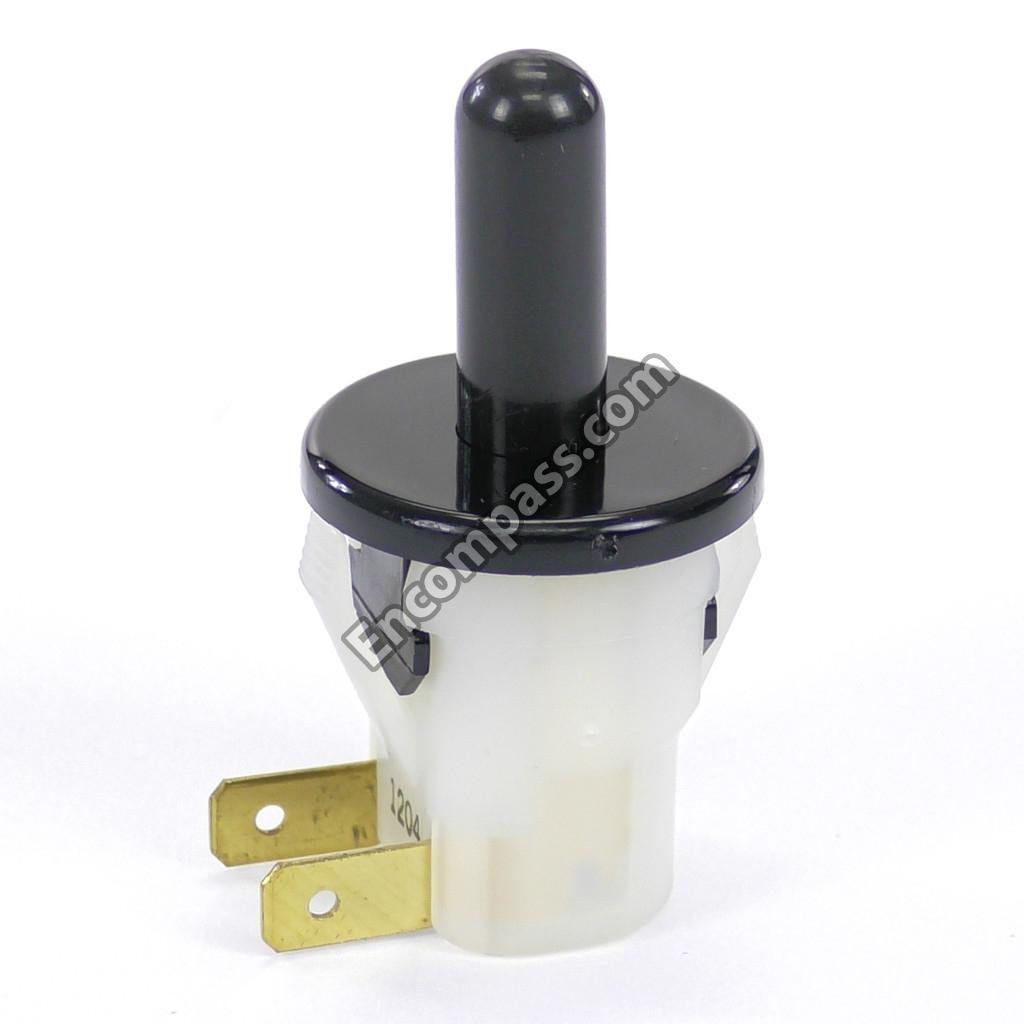

68970-1 68970-1 SWITCH DOO
67363-1 67363-1 SWITCH, MULLION
67475-1 67475-1 TAPPING PLATE
67874-1 67874-1 TAPPING PLATE, LOWER HINGE
59101-1 59101-1 TAPPING PLATE, WHEEL
WP285432 WP285432 TERMINAL
WP52085-28 WP52085-28 THERMOSTAT
WP2205813 WP2205813 TIE-WIRE
693993 693993 TIMER
WP4391974 WP4391974 TIMER-DEF
24580-4 24580-4 TIP, ADJUSTMENT SCREW
WP841180A WP841180A TRAY
67004412A 67004412A TRAY, BUTTER
69118-1 69118-1 TRAY, DRIP
67215-1 67215-1 TRAY, EGG
67783-10 67783-10 TRIM
67783-8 67783-8 TRIM
67204-3 67204-3 TRIM CRISPER
67309-8 67309-8 TRIM, CANTILEVER
67309-10 67309-10 TRIM, CANTILEVER
66651-5 66651-5 TRIM, DOOR
67718-1 67718-1 TRIM, DOOR SHELF
67718-11 67718-11 TRIM, DOOR SHELF
67718-16 67718-16 TRIM, DOOR SHELF
67718-5 67718-5 TRIM, DOOR SHELF
67805-4 67805-4 TRIM, EXTENSION
67428-1 67428-1 TRIM, ICE MAKER COVER
67071-1 67071-1 TRIM, MEAT KEEPER
67176-5 67176-5 TRIM, SHELF
WPB5705307 WPB5705307 TUBE
54531-7 54531-7 TUBE, DRAIN
67666-3 67666-3 TUBE, FILL
67525-4 67525-4 TUNNEL, AIR
67115-1 67115-1 TUNNEL, AIR (FRZ)
60408-2 60408-2 U-NUT, CONDENSER
68756-5 68756-5 U-RAIL, CRISPER SHELF SUPPORT
693206 693206 UPPER FRONT PANEL ASSEMBLY (GOLDEN HARVEST)
WPM0274039 WPM0274039 WASHER
WP54233-1 WP54233-1 WASHER
61005628 61005628 WASHER
420007-400 420007-400 WASHER
420005-1 420005-1 WASHER, CONTROL ROD
67483-3 67483-3 WASHER, DOOR SPACER
420092-900 420092-900 WASHER, SPRING
67455-1 67455-1 WHEEL FRONT
67455-2 67455-2 WHEEL, ROLLER
60110-1 60110-1 WIRE COVER
69154-1 69154-1 WIRE HARNESS
69062-1 69062-1 WIRE HARNESS, COMPRESSOR
67672-1 67672-1 WIRE HARNESS, ICE MAKER
69162-1 69162-1 WIRE HARNESS, MAIN
67862-1 67862-1 WIRE HARNESS, TIMER
