Model Image
Manufacturer

Whirlpool

Model Number

RY160LXTB2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11447673 W11447673 ANCHOR-TIP
3601F373-60 3601F373-60 BAFFLE, RETAINER
4011F371-80 4011F371-80 BOTTOM, BURNER BOX
WPW10196405 WPW10196405 BOWL-DRIP
W10196406RW W10196406RW BOWL-DRIP
WP3801F656-51 WP3801F656-51 BRACKET
3801F881-51 3801F881-51 BRACKET, BURNER BOX
3801F887-51 3801F887-51 BRACKET, DRAWER
3801F886-51 3801F886-51 BRACKET, GLASS (2)
3801F832-45 3801F832-45 BRACKET, HANDLE (LEFT)
3801F831-45 3801F831-45 BRACKET, HANDLE (RIGHT)
W10190166 W10190166 BRACKET, POWER SUPPLY
9762761 9762761 BROCHURE, TIPS (SAFE COOKING)
WP7730P011-60 WP7730P011-60 CAMERA LENS- INDI
W10355051 W10355051 CLEANER, COOKTOP
WPW10281322 WPW10281322 CONNECTOR
74017P033-6 74017P033-6 CONNECTOR, CABLE
W10769823 W10769823 CONTROL BOARD
2002M200-81 2002M200-81 COOKTOP
2002M200-09 2002M200-09 COOKTOP
4005F810-51 4005F810-51 COVR-ACESS
74010897 74010897 DOOR LATCH ASSEMBLY
WP3608F116-70 WP3608F116-70 DOOR TRIM
WP3608F117-70 WP3608F117-70 DOOR TRIM
WP3608F117-71 WP3608F117-71 DOOR TRIM
WP3608F116-71 WP3608F116-71 DOOR TRIM
WP3405F037-80 WP3405F037-80 DRAWR-UTIL
WPW10310274 WPW10310274 ELMNT-BAKE
WP7406P218-60 WP7406P218-60 ELMNT-BROL
7726P401-60 7726P401-60 END CAP (LEFT BLACK)
7726P333-60 7726P333-60 END CAP (LEFT WHITE)
7726P400-60 7726P400-60 END CAP (RIGHT BLACK)
7726P332-60 7726P332-60 END CAP (RIGHT WHITE)
3826F066-51 3826F066-51 EXTENSION, BACK
3826F064-51 3826F064-51 EXTENSION, SHIELD
WPW10586440 WPW10586440 FAN-BLWR
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
WPW10176723 WPW10176723 GLASS, DOOR (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS) (BLACK)
WPW10176724 WPW10176724 GLASS, DOOR (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS) (WHITE)
74003645 74003645 GLASS, INNER
261582 261582 GREASE
WP3195996 WP3195996 GRID-PAN
7701P462-60 7701P462-60 HANDLE, DOOR (BLACK)
WP7701P463-60 WP7701P463-60 HANDLE, DOOR (WHITE)
5175P370-60 5175P370-60 HARNESS, UNITY III COIL TOP
5171P565-60 5171P565-60 HARNESS, WIRE (COIL LT)
5171P556-60 5171P556-60 HARNESS, WIRE (COIL RT)
5171P934-60 5171P934-60 HARNESS, WIRE (MAIN)
74010890 74010890 HARNESS, WIRE (SENSOR)
74011142 74011142 HINGE, OVEN DOOR
3605F345-51 3605F345-51 HOLDER, VENT TUBE
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
8101P746-60 8101P746-60 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
100000 100000 INSULATION
W10165725 W10165725 INSULATION
7002P246-60 7002P246-60 INSULATION, DOOR
7002P456-60 7002P456-60 INSULATION, OVEN BOTTOM
74010987 74010987 INSULATION, WRAP
7003P101-60 7003P101-60 INSULATOR, CORD
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP74003612 WP74003612 KNOB (4) (BLACK)
WP74003611 WP74003611 KNOB WHT
74002974 74002974 LEVER, DOOR LATCH (GRY)
WP8009P031-60 WP8009P031-60 LEVER-LOCK
7407P185-60 7407P185-60 LIGHT ASSEMBLY
8009 8009 LIGHT BULB
WP74004153 WP74004153 LIGHT- IND
WP2402W312-19 WP2402W312-19 LINER-DOOR
2404F030-51 2404F030-51 LINING, DRAWER
3804F294-51 3804F294-51 MAIN BACK
W10854980 W10854980 NAMEPLATE
WP488130 WP488130 NUT
3804F231-51 3804F231-51 NUT, LOCK (2)
74005230 74005230 NUT, LOCK (8-32)
WP74001574 WP74001574 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT)
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WP3196076 WP3196076 PAN-BROILR
4005F312-51 4005F312-51 PANEL, ACCESS
2416F059-70 2416F059-70 PANEL, DRAWER (BLACK)
2416F059-71 2416F059-71 PANEL, DRAWER (WHITE)
2618F201-51 2618F201-51 PANEL, SHIELD (LEFT)
2618F206-51 2618F206-51 PANEL, SHIELD (RIGHT)

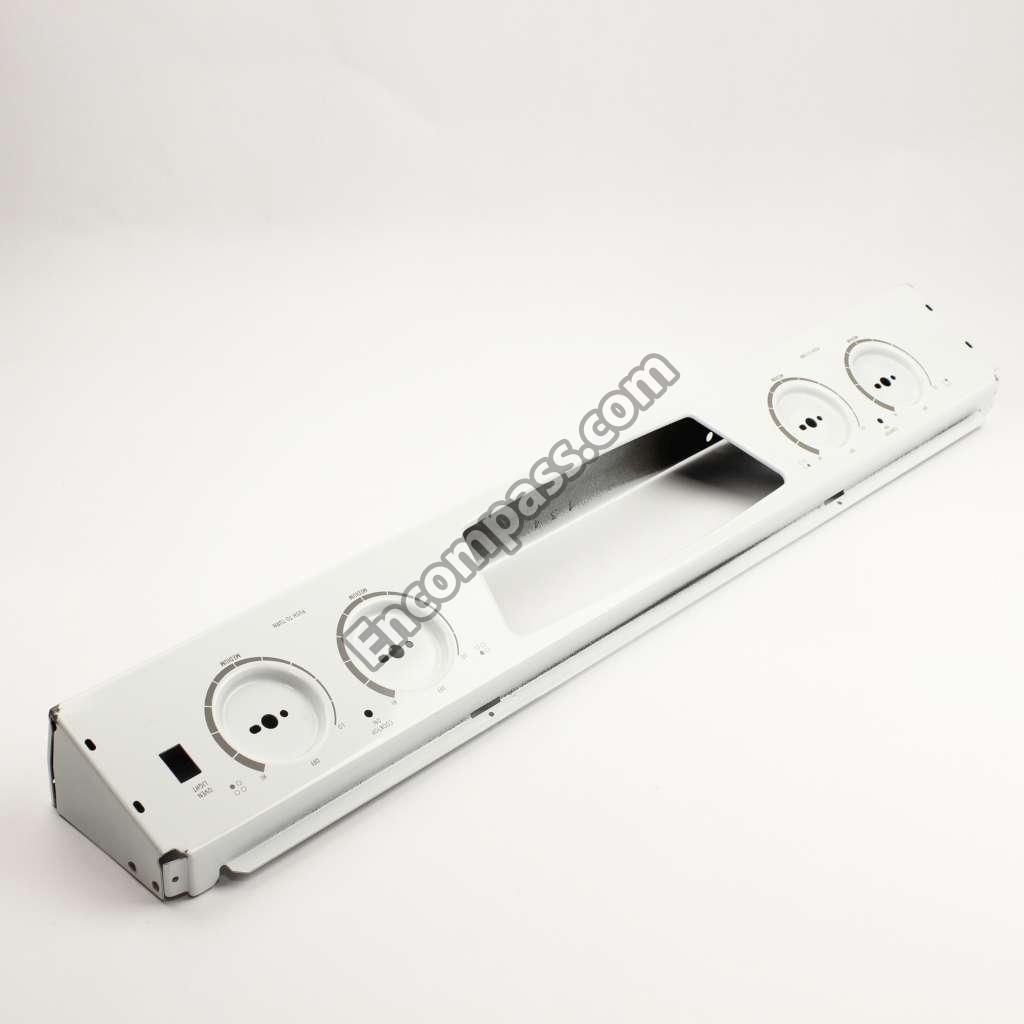

2616N401-09 2616N401-09 PANL-CNTRL
W10165802 W10165802 PANL-CNTRL
4020W035-80 4020W035-80 PEDESTAL, BOTTOM
WP4020F036-80 WP4020F036-80 PEDESTAL, FRONT
W10165724 W10165724 PLATE-ADPT
WPW10282492 WPW10282492 RACK-OVEN
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
WP74004078 WP74004078 ROLLER- DR
W10182835 W10182835 RUNNER, DRAWER (2)
WP7101P072-60 WP7101P072-60 SCREW
W10828565 W10828565 SCREW
WP74006515 WP74006515 SCREW
WP74010805 WP74010805 SCREW
WP4159193 WP4159193 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP74003976 WP74003976 SCREW
WP90767 WP90767 SCREW
WP59002061 WP59002061 SCREW
WP98008544 WP98008544 SCREW
WP98008545 WP98008545 SCREW
WP7101P309-60 WP7101P309-60 SCREW
W11233072 W11233072 SCREW
74003975 74003975 SCREW (8ABX3/8-BLK)
7201P152-60 7201P152-60 SEAL, DOOR
WP74005231 WP74005231 SHAFT, ROLLER (2)
3604W156-70 3604W156-70 SHIELD, VENT (BLACK)
3604W156-71 3604W156-71 SHIELD, VENT WHITE
8034P008-60 8034P008-60 SMOKE ELIMINATOR
WP74005546 WP74005546 SPACER- RU
WP3807F708-70 WP3807F708-70 SUPPORT
WP3807F708-71 WP3807F708-71 SUPPORT
3807F640-51 3807F640-51 SUPPORT
3807F601-51 3807F601-51 SUPPORT, CONTROL PANEL
3807F494-45 3807F494-45 SUPPORT, ELEMENT
3807F732-51 3807F732-51 SUPPORT, OVEN (REAR)
3807F727-45 3807F727-45 SUPPORT, OVEN BOTTOM
WPW10345407 WPW10345407 SURFACE ELEMENT
WP9761346 WP9761346 SURFACE ELEMENT
WP7403P239-60 WP7403P239-60 SWITCH
WP74008718 WP74008718 SWITCH, ROCKER (BLACK)
74008717 74008717 SWITCH, ROCKER (WHT)
WP7450P034-60 WP7450P034-60 SWTCH-LMIT
WP74004224 WP74004224 TAPE
8270P133-60 8270P133-60 TAPE, FOIL
WP3608F141-71 WP3608F141-71 TRIM-DOOR
3608F141-70 3608F141-70 TRIM-DOOR
WP3608F138-70 WP3608F138-70 TRIM-SIDE
WP3608F138-71 WP3608F138-71 TRIM-SIDE
8026P085-60 8026P085-60 TUBE, VENT UPPER
8026P074-60 8026P074-60 TUBE, VENT UPPER
W10165722 W10165722 TUBE-VENT
8113P749-60 8113P749-60 USE & CARE GUIDE
8119P448-60 8119P448-60 WIRING DIAGRAM
