Model Image
Manufacturer

Whirlpool

Model Number

RY160LXTS3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3601F373-51 3601F373-51 BAFFEL, RETAINER
4011F371-80 4011F371-80 BOTTOM, BURNER BOX
W10196406RW W10196406RW BOWL-DRIP
WPW10196405 WPW10196405 BOWL-DRIP
WP3801F656-51 WP3801F656-51 BRACKET
3801F881-51 3801F881-51 BRACKET, BURNER BOX
3801F887-51 3801F887-51 BRACKET, DRAWER
3801F886-51 3801F886-51 BRACKET, GLASS (2)
W10190166 W10190166 BRACKET, POWER SUPPLY
5706X572-81 5706X572-81 CABLE, ASSEMBLY.(FLEX)
WP7730P011-60 WP7730P011-60 CAMERA LENS- INDI
W10355051 W10355051 CLEANER, COOKTOP
7112P034-60 7112P034-60 CLIP, GLASS (2)
8019P013-60 8019P013-60 CLIP, WIRE
WPW10281322 WPW10281322 CONNECTOR
W10769823 W10769823 CONTROL BOARD

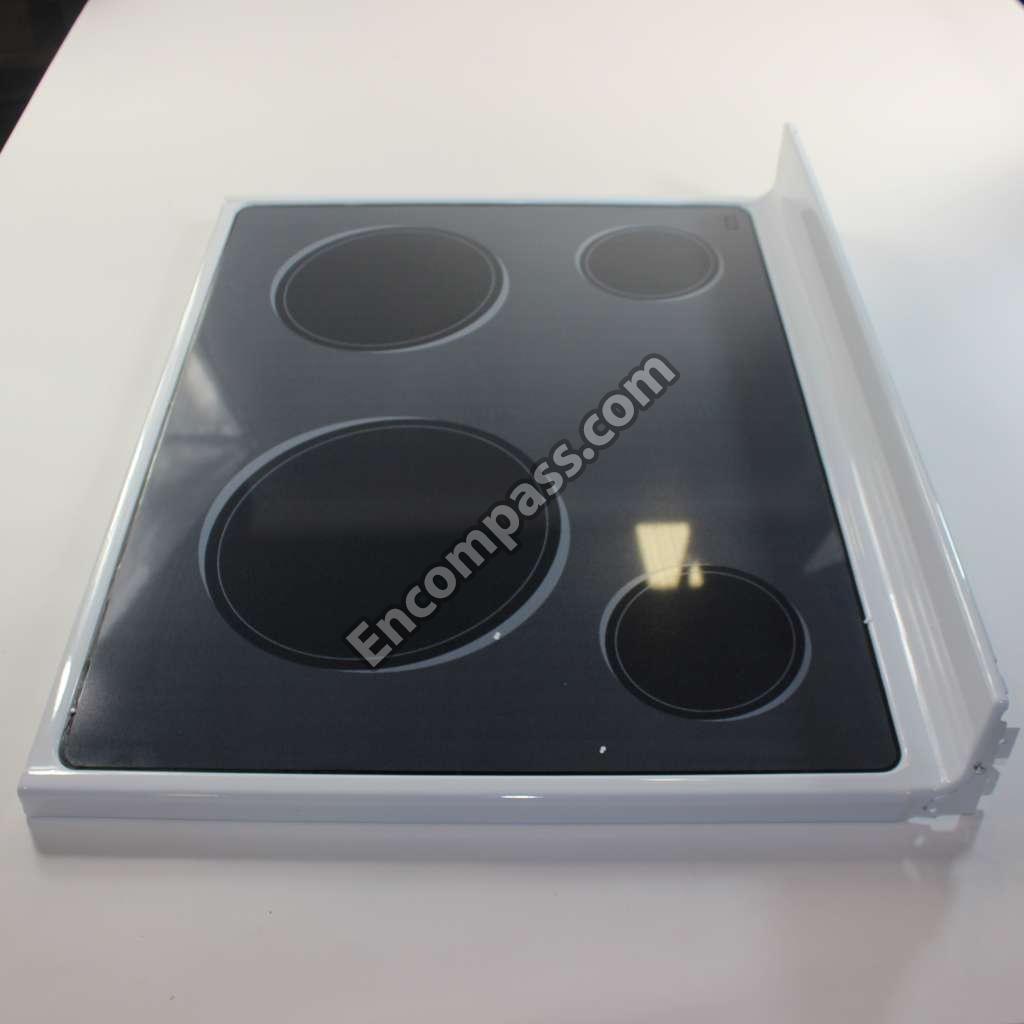

2002M200-09 2002M200-09 COOKTOP
4005F810-51 4005F810-51 COVER, MAIN WIRE
74010897 74010897 DOOR LATCH ASSEMBLY
WP3405F037-80 WP3405F037-80 DRAWR-UTIL
WPW10310274 WPW10310274 ELMNT-BAKE
WP7406P218-60 WP7406P218-60 ELMNT-BROL
7726P401-60 7726P401-60 END CAP (LEFT BLACK)
7726P400-60 7726P400-60 END CAP (RIGHT BLACK)
3826F066-51 3826F066-51 EXTENSION, BACK
3826F064-51 3826F064-51 EXTENTION, SHIELD
7427P218-60 7427P218-60 FAN, COOLING
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
W10168886 W10168886 FOIL-DOOR
WP74009029 WP74009029 GASKET- DO
WPW10162384 WPW10162384 GASKT-DOOR
7802P768-60 7802P768-60 GLASS, COATED
74003645 74003645 GLASS, INNER
74004857 74004857 GLASS, INNER CLEAR
261582 261582 GREASE
7701P462-60 7701P462-60 HANDLE, DOOR
WPW10180296 WPW10180296 HANDLE, DRAWER
5175P370-60 5175P370-60 HARNESS, UNITY III COIL TOP
5171P565-60 5171P565-60 HARNESS, WIRE (COIL LT)
5171P556-60 5171P556-60 HARNESS, WIRE (COIL RT)

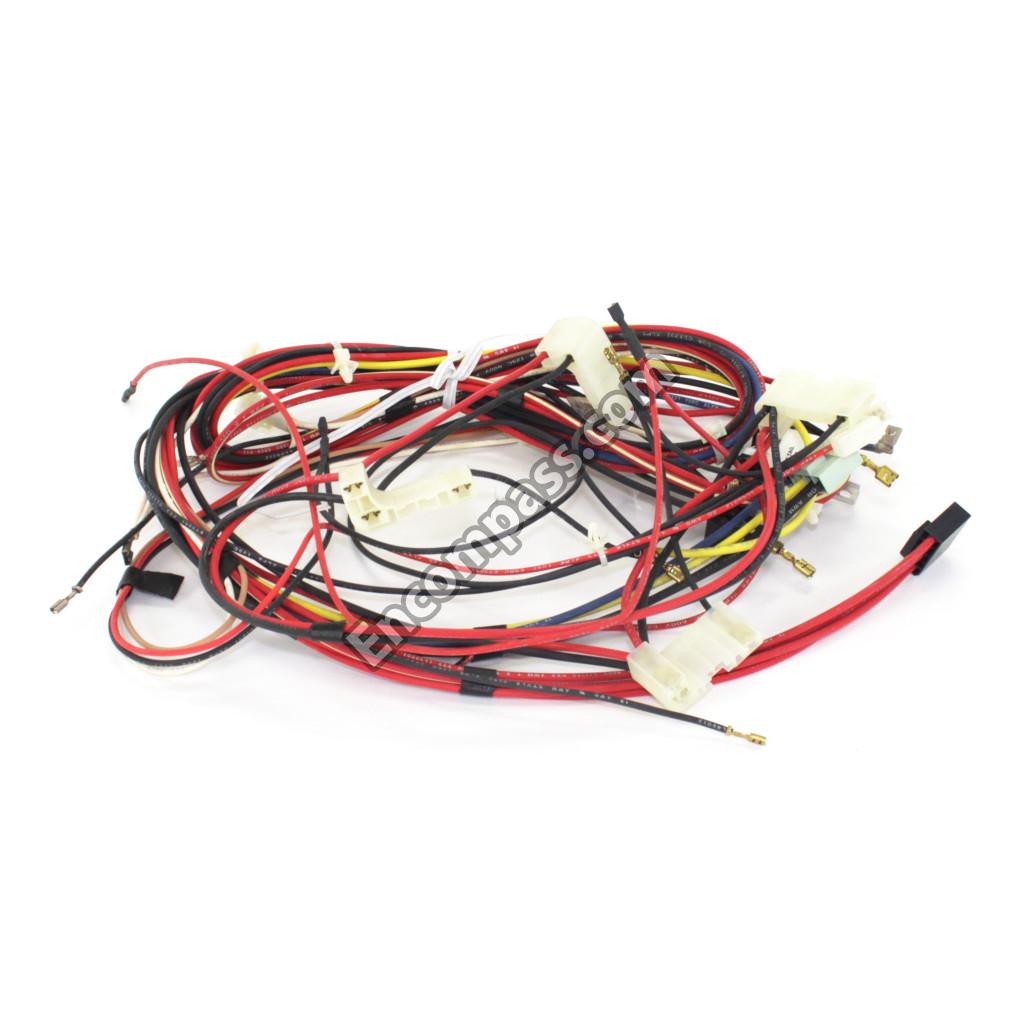

5171P934-60 5171P934-60 HARNESS, WIRE (MAIN)
74010890 74010890 HARNESS, WIRE (SENSOR)
74011142 74011142 HINGE, OVEN DOOR
3605F345-51 3605F345-51 HOLDER, VENT TUBE
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
8101P746-60 8101P746-60 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
WP74010043 WP74010043 INSULATION
100000 100000 INSULATION
W10165725 W10165725 INSULATION
7002P246-60 7002P246-60 INSULATION, DOOR
74011048 74011048 INSULATION, FOIL
7002P456-60 7002P456-60 INSULATION, OVEN BOTTOM
74010987 74010987 INSULATION, WRAP
7003P101-60 7003P101-60 INSULATOR, CORD
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP74003612 WP74003612 KNOB (4)
WP7407P182-60 WP7407P182-60 LAMP-ASM
WP8009P031-60 WP8009P031-60 LEVER-LOCK
8009 8009 LIGHT BULB
WP74004153 WP74004153 LIGHT- IND
WP2402W312-19 WP2402W312-19 LINER-DOOR
2404F030-51 2404F030-51 LINING, DRAWER
14272883 14272883 NAMEPLATE, LOGO
WP488130 WP488130 NUT
74005230 74005230 NUT, LOCK (8-32)
WP74001574 WP74001574 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
4005F612-51 4005F612-51 PANEL, ACCESS
WPW10253205 WPW10253205 PANEL, DWR (SS)
2618F201-51 2618F201-51 PANEL, SHIELD (LEFT)
2618F206-51 2618F206-51 PANEL, SHIELD (RIGHT)
W10166282 W10166282 PANEL-CBNT
W10168887 W10168887 PANEL-DOOR

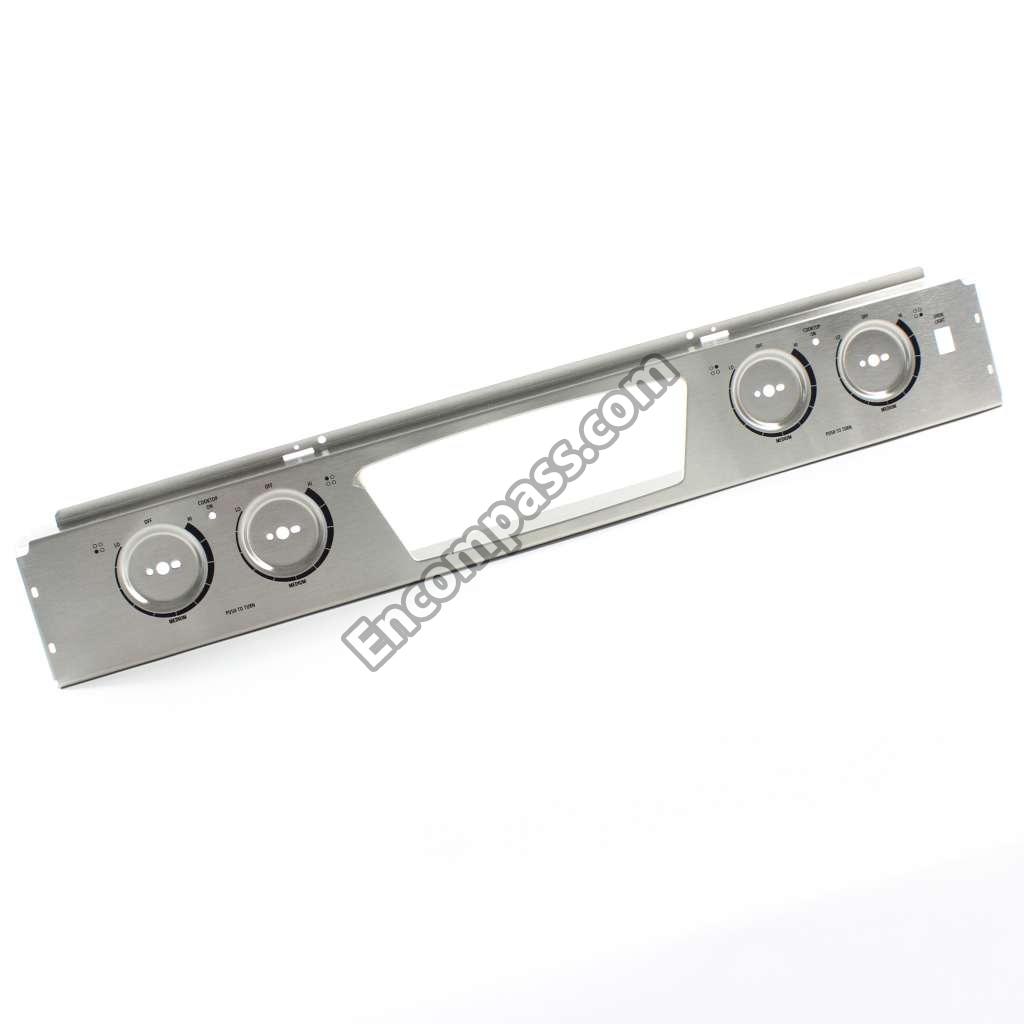

2614N159-50 2614N159-50 PANL-CNTRL
4020W035-80 4020W035-80 PEDESTAL, BOTTOM
WP4020F036-80 WP4020F036-80 PEDESTAL, FRONT
W10165724 W10165724 PLATE-ADPT
WPW10282492 WPW10282492 RACK-OVEN
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
3804F231-51 3804F231-51 RETAINER, BOTTOM
3804F293-45 3804F293-45 RETAINER, GLASS
WP74004078 WP74004078 ROLLER- DR
W10182835 W10182835 RUNNER, DRAWER (2)
WP7101P072-60 WP7101P072-60 SCREW
WP74006515 WP74006515 SCREW
WP74010805 WP74010805 SCREW
WP4159193 WP4159193 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP74003976 WP74003976 SCREW
WP90767 WP90767 SCREW
W11233072 W11233072 SCREW
WP59002061 WP59002061 SCREW
WP98008545 WP98008545 SCREW
WP7101P309-60 WP7101P309-60 SCREW
WP7101P498-60 WP7101P498-60 SCREW
74003975 74003975 SCREW (8ABX3/8-BLK)
WP74005231 WP74005231 SHAFT, ROLLER (2)
3604F418-51 3604F418-51 SHIELD, DOOR
8034P008-60 8034P008-60 SMOKE ELIMINATOR
WP74005546 WP74005546 SPACER- RU
3807F640-51 3807F640-51 SUPPORT
3807F601-51 3807F601-51 SUPPORT, CONTROL PANEL
3807F494-45 3807F494-45 SUPPORT, ELEMENT
3807F732-51 3807F732-51 SUPPORT, OVEN (REAR)
WP9761346 WP9761346 SURFACE ELEMENT
WPW10345407 WPW10345407 SURFACE ELEMENT
WP7403P239-60 WP7403P239-60 SWITCH
WP74008718 WP74008718 SWITCH, ROCKER
WP7450P034-60 WP7450P034-60 SWTCH-LMIT
WP74004224 WP74004224 TAPE
WP3608F138-70 WP3608F138-70 TRIM-SIDE
W10165722 W10165722 TUBE, VENT LOWER
8026P085-60 8026P085-60 TUBE, VENT UPPER
8026P074-60 8026P074-60 TUBE, VENT UPPER
8113P749-60 8113P749-60 USE & CARE GUIDE
8119P154-60 8119P154-60 WIRING DIAGRAM
