Model Image
Manufacturer

Whirlpool

Model Number

SC8720EDB0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3601F261-51 3601F261-51 BAFFLE, BOTTOM(LT)
3415F003-51 3415F003-51 BAND-MOTOR
4011F362-51 4011F362-51 BOX, BURNER
WP3801F403-80 WP3801F403-80 BRACKET
3801F438-51 3801F438-51 BRACKET, FAN SWTCH
3801F620-51 3801F620-51 BRACKET, MANIFOLD
74005189 74005189 BURNER (REAR-BLK)
Y712601 Y712601 BURNER, GRILL
WP7505P283-60 WP7505P283-60 BURNR-TOP
8007P031-60 8007P031-60 BUSHING, CONDUIT
7103P192-60 7103P192-60 CAP, NUT (4)
8106P068-60 8106P068-60 CARD, FLOW TEST
7111P027-60 7111P027-60 CLAMP, CABLE
7104P008-60 7104P008-60 CLIP, CONDUIT
7104P003-60 7104P003-60 CLIP, COVER PLATE
7104P011-60 7104P011-60 CLIP, PAN (4)
3415F004-51 3415F004-51 CLIP, PLENUM
7104P006-60 7104P006-60 CLIP, ``J`` (2)
7434P012-60 7434P012-60 CONDUIT, METAL
7417P023-60 7417P023-60 CONNECTOR, CONDUIT
7402P089-60 7402P089-60 CORD, POWER
4378932 4378932 COVER
4005F508-51 4005F508-51 COVER, ACCESS (RT)
4005F614-51 4005F614-51 COVER, FRONT
4005F512-80 4005F512-80 COVER, MOTOR
WP7772P007-60 WP7772P007-60 COVER-VENT
8104P576-60 8104P576-60 DIAGRAM, WIRING
WP707929 WP707929 FILTER- GR
W10250511 W10250511 GASKET, FOAM
12001178 12001178 GRATE, GRILL (2)
WPY04100335 WPY04100335 GRATE- BUR
4378931 4378931 GRIDDLE (OPTIONAL)
8312P151-60 8312P151-60 GUARD, BLOWER
7701P176-60 7701P176-60 HANDLE (2) (BLACK)
5170P429-60 5170P429-60 HARNESS, WIRE
W10777874 W10777874 HOUSING, BLOWER
WP71002179 WP71002179 IGNTR-SURF
8101P350-60 8101P350-60 INSTALLATION INSTRUCTIONS
7414P023-60 7414P023-60 INSULATOR, SWITCH
WP71003558 WP71003558 ISOLATOR-
WPY707869 WPY707869 JAR- DRAIN
12200045 12200045 KIT, BURNER TUBE

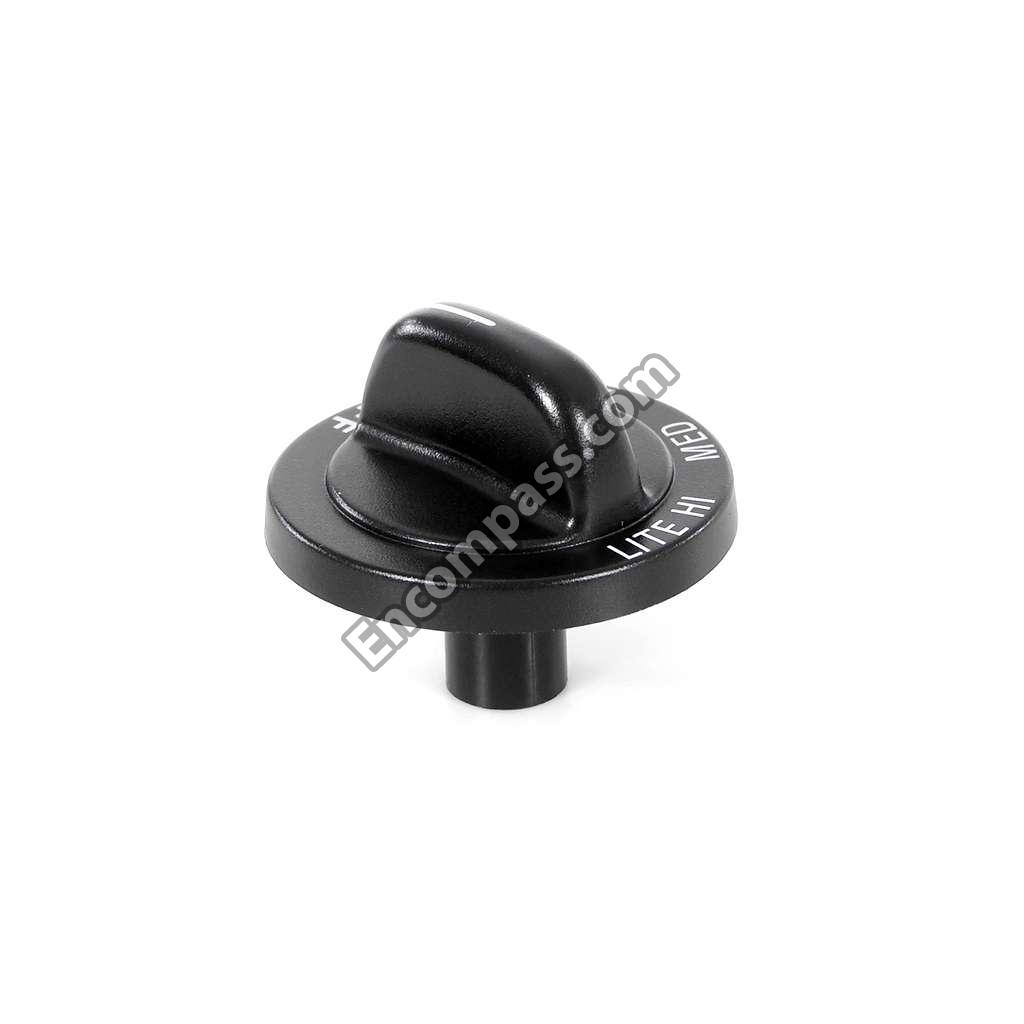

WP7733P184-60 WP7733P184-60 KNOB, CONTROL (4) (BLACK)

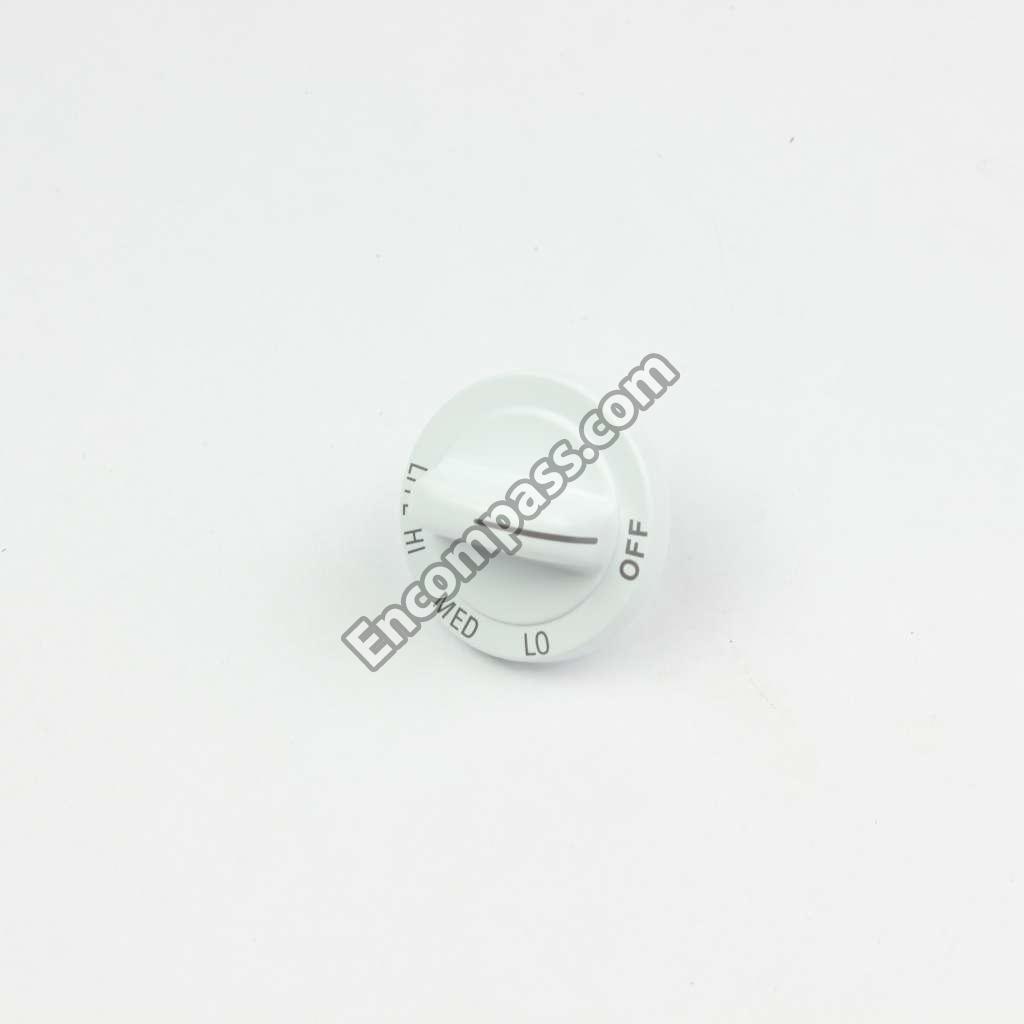

WP71002149 WP71002149 KNOB, CONTROL (4) (WHITE)
WP7739P095-60 WP7739P095-60 KNOB, FAN (BLACK)
WP5700M611-60 WP5700M611-60 LID-JAR
WPY707702 WPY707702 LOCKNUT
7109P054-60 7109P054-60 LOCKWASHER (2)
5700M477-60 5700M477-60 LP CONVERSION KIT
W10191956 W10191956 MANIFOLD
4378984 4378984 MODULE
4378986 4378986 MODULE, COMPLETE (AVAILABLE IN BLACK ONLY)
7431P006-60 7431P006-60 MODULE, SPARK
7409P010-60 7409P010-60 MOTOR, BLOWER
WP7103P027-60 WP7103P027-60 NUT
M0282009 M0282009 NUT
7103P158-60 7103P158-60 NUT, JAM (2)
7103P159-60 7103P159-60 NUT, SWITCH (2)
Y704977 Y704977 NUT, TUBING (4)
8111P466-60 8111P466-60 OWNERS MANUAL
7103P164-60 7103P164-60 PALNUT, FAN SWITCH
3824F017-1X 3824F017-1X PAN, AERATION (STANDOFF (4))
3401F033-19 3401F033-19 PAN, MODULE (LEFT)
WP3401F034-19 WP3401F034-19 PAN, MODULE (RIGHT)
3401X055-09 3401X055-09 PAN-MODULE
7770P009-60 7770P009-60 PANEL, CONTROL (BLACK)
4005W501-70 4005W501-70 PANEL, COVER (BLACK)
71001764 71001764 PIN, LOCATOR
4005F648-80 4005F648-80 PLATE, COVER
2801W038-80 2801W038-80 PLENUM
W11106948 W11106948 REGULATOR
7428P029-60 7428P029-60 RELAY
3804F188-50 3804F188-50 RETAINER, FILTER
4026F008-51 4026F008-51 RING, INLET
4026F009-51 4026F009-51 RING, RESTRICTOR
WP71001171 WP71001171 SCREW
71002058 71002058 SCREW
WP4381696 WP4381696 SCREW
3400855 3400855 SCREW
W11233072 W11233072 SCREW
71003131 71003131 SCREW
WP90767 WP90767 SCREW
7101P405-60 7101P405-60 SCREW, PAN
8019P018-60 8019P018-60 SCREW, PLENUM
7212P053-60 7212P053-60 SEAL, PAN
8038P003-60 8038P003-60 SPRING, RETAINER
WP71002755 WP71002755 SWITCH, FAN
7403P620-60 7403P620-60 SWITCH, MICRO
WPY704512 WPY704512 SWITCH- VA
WPY704513 WPY704513 SWTCH-IGNR
9762761 9762761 TIPS, SAFE COOKING (ENGLISH)
W10065852 W10065852 TIPS, SAFE COOKING (FRENCH)
2001W134-09 2001W134-09 TOP, MAIN (BLACK)
12200046 12200046 TUBE, BURNER (LF)
12200047 12200047 TUBE, BURNER (LR)
7506P160-60 7506P160-60 TUBE, BURNER (RF)
WPY04100188 WPY04100188 VALVE-BRNR
WP7502P382-60 WP7502P382-60 VALVE-BRNR
7109P055-60 7109P055-60 WASHER, TUBING (4)
WPY707985 WPY707985 WHEEL-FAN
5112P295-60 5112P295-60 WIRE, GROUND
