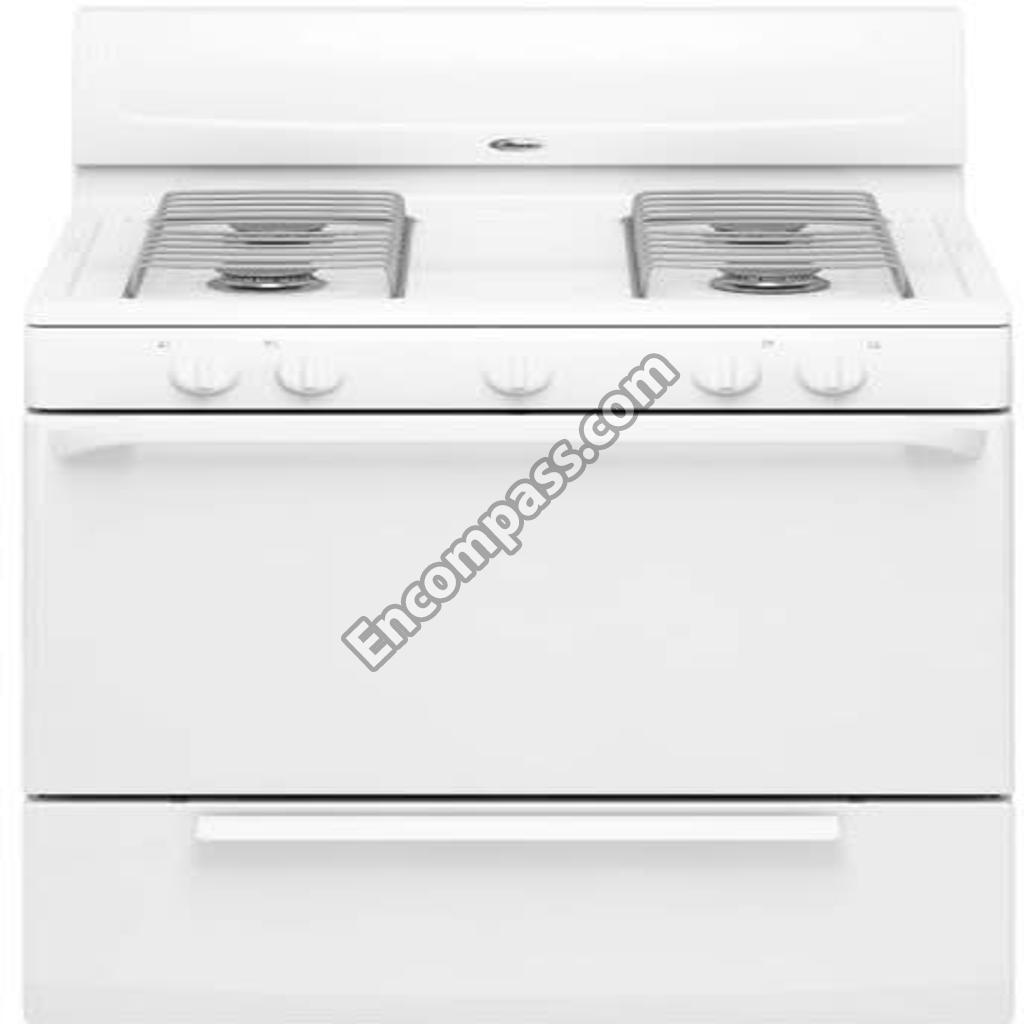

Model Image
Manufacturer

Whirlpool

Model Number

SF110AXSQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10477747 WPW10477747 ANCHOR-TIP
98015100 98015100 BACK, MAIN
98005768 98005768 BACK, OVEN
98003847 98003847 BAFFLE, BASE
98015683 98015683 BAFFLE, SIDE (2)
98007126 98007126 BASE, FOOT
98017517 98017517 BOLT, VALVE MTG
WP98004449 WP98004449 BOTTM-OVEN
98017967 98017967 BRACKET, HANDLE (2)
98004761 98004761 BRACKET, RACK (2)
98007410 98007410 BRACKET, REGULATOR
98017516 98017516 BRACKET, VALVE (4)
WP98017741 WP98017741 BRKT-MNTG
W10831827 W10831827 BUMPER
98004052 98004052 BUMPER, DOOR (2)
WP98012138 WP98012138 BURNR-OVEN
WP98017537 WP98017537 BURNR-TOP
98015022 98015022 BUSHING, SNAP (2)
98007205 98007205 CAP, INSULATION
WP98017461 WP98017461 CAP-BURNER
549193 549193 CLAMP, POWER CORD
WPW10278150 WPW10278150 CLIP
W11229684 W11229684 CLIP
98005642 98005642 CLIP, BULB (2)
98013690 98013690 CLIP, FLUE
98005502 98005502 CLIP, OVEN BOTTOM
98005026 98005026 CLIP, TUBING
3196696 3196696 CLIP, WIRE
WP98017619W WP98017619W COOKTOP
98006710 98006710 COUNTERWEIGHT
98008341 98008341 COVER, GUIDE (4)
98014104 98014104 COVER, LIGHT SOCKET
98007192 98007192 COVER, MODULE
98014105 98014105 COVER, VALVE
WP98017915W WP98017915W DOOR HANDLE
WP98017875 WP98017875 DOOR HINGE
98005336 98005336 ENDCAP (WHITE LEFT)
98005337 98005337 ENDCAP (WHITE RIGHT)
98007431 98007431 FITTING 3/8TO9/16
WPW10116396 WPW10116396 FLUE-BOX
98015346 98015346 FOIL, SIDE (2)
100000 100000 FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196037 WP3196037 FOOT-LEVEL
98006750 98006750 FRAME, FRONT
WP98014893 WP98014893 GAS VALVE
WPW10217472 WPW10217472 GASKT-DOOR
WP98017162 WP98017162 GASKT-DOOR
8190014 8190014 GRATE-KIT
261582 261582 GREASE
WP98003480 WP98003480 GRID-PAN
98004715 98004715 GUIDE, RACK (4)
W10106860 W10106860 GUIDE, USE & CARE
98006623 98006623 HANDLE, BRLR DOOR
W11499074 W11499074 HANGER, BRLR DOOR
98014534 98014534 HARNESS, T-STAT
98017873 98017873 HINGE, DOOR (LEFT)
W10918546 W10918546 IGNTR-OVEN
WPW10209657 WPW10209657 IGNTR-SURF
WPW10209656 WPW10209656 IGNTR-SURF
W10032070 W10032070 INSTALLATI
98015589 98015589 INSTALLATION INSTR (TEMPLATE)
WPW10208653 WPW10208653 INSULATION
W11684802 W11684802 INSULATION
W11311894 W11311894 INSULATION
W11706555 W11706555 INSULATION
98015234 98015234 INSULATION, DOOR
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP98008321 WP98008321 KNOB
WP98006102 WP98006102 KNOB
98017966 98017966 LINER, DOOR
98004698 98004698 LINER, DOOR
98013314 98013314 LOCATOR, BURNER
9757609 9757609 NAMEPLATE
WPY703856 WPY703856 NUT
WP98017348 WP98017348 ORIFICE
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP98016005 WP98016005 PAN-BROILR
98017736W 98017736W PANEL, BACKGUARD
98009337 98009337 PANEL, DOOR
WP98017968W WP98017968W PANEL-DOOR
WP98010042 WP98010042 PANEL-SIDE
W10094870 W10094870 PANL-MNFLD
98004053 98004053 PIN, HINGE (2)
98017558 98017558 PIPE, MANIFOLD
W11173616 W11173616 POWER CORD
98016570 98016570 RACK, BROILER
WPW10312013 WPW10312013 RACK-OVEN
98003830 98003830 RAIL, BASE (2)
W11590249 W11590249 RANGE SPARK MODULE
98006083 98006083 REAR, BACKGUARD
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W10624131 W10624131 REGULATOR
98004629 98004629 RETAINER (LEFT)
98004564 98004564 RETAINER (RIGHT)
98017250 98017250 RETAINER, UPPER (2)
98007130 98007130 SAFER COOKING TIPS
WP59002061 WP59002061 SCREW
WP8533842 WP8533842 SCREW
98006644 98006644 SCREW
3196166 3196166 SCREW
WP98008545 WP98008545 SCREW
W10856125 W10856125 SCREW
W10837674 W10837674 SCREW
W11676351 W11676351 SCREW
1180823 1180823 SCREW
98013634 98013634 SCREW
W10837731 W10837731 SCREW
WP3400805 WP3400805 SCREW
W10850756 W10850756 SCREW
W11233072 W11233072 SCREW
WP98007225 WP98007225 SCREW
98006715 98006715 SHIELD, CHANNEL
W10164112 W10164112 SHIELD, INSULATION
98007191 98007191 SHIELD, LOWER
98004451 98004451 SIDE, OVEN (LEFT HAND)
98004452 98004452 SIDE, OVEN (RIGHT HAND)
98004773 98004773 SPACER, HANDLE
98007396 98007396 SPACER, HINGE
98015099 98015099 SPREADER, FLAME
98008379 98008379 SPRING, BROILER (LEFT)
98008380 98008380 SPRING, BROILER (RIGHT)
WPW10032010 WPW10032010 SPUD-ORFCE
98012175 98012175 SUPPORT, BURNER
98003791 98003791 SUPPORT, HINGE
98015363 98015363 SUPPORT, REAR
98007032 98007032 TECH SHEET
WPW10641988 WPW10641988 THRMST-OVN
WP3391018 WP3391018 TIE-WIRE
98004447 98004447 TOP, OVEN
WP98017171 WP98017171 TUBING-GAS
98009179 98009179 U - NUT
WPW10141709 WPW10141709 VALVE, BURNER (4)
WP98017359 WP98017359 VENTURI
WP98017582 WP98017582 VENTURI
98007193 98007193 WASHER
242828 242828 WIRE (12 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
WPW10361492 WPW10361492 WIRE HARNESS
8316781 8316781 WIRE, BLACK 14 GA. 150 C
98006739 98006739 WIRE, BRICK
3184020 3184020 WIRE, GROUND
