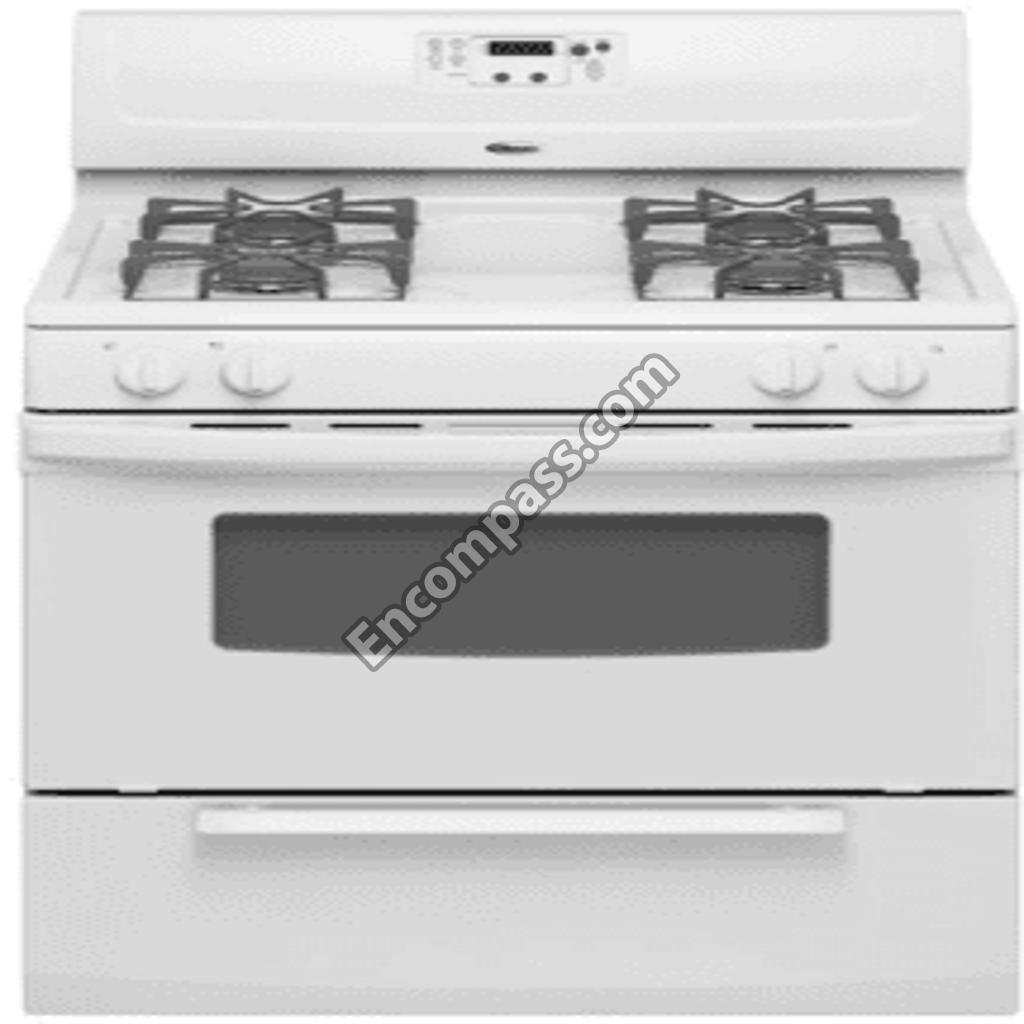

Whirlpool

Model Number

SF114PXSQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
98010557 98010557 ACTUATOR (2)
WPW10477747 WPW10477747 ANCHOR-TIP
98015100 98015100 BACK, MAIN
98013777 98013777 BACK, OVEN
98003847 98003847 BAFFLE, BASE
98015683 98015683 BAFFLE, SIDE (2)
98007126 98007126 BASE, FOOT
98017517 98017517 BOLT, VALVE MTG
WP98004449 WP98004449 BOTTM-OVEN
98007410 98007410 BRACKET, REGULATOR
98018144 98018144 BRACKET, TIMER (LEFT)
98018143 98018143 BRACKET, TIMER (RIGHT)
98017516 98017516 BRACKET, VALVE (4)
WP98017741 WP98017741 BRKT-MNTG
98004227 98004227 BUMPER
W10831827 W10831827 BUMPER
98004052 98004052 BUMPER, DOOR (2)
WP98012138 WP98012138 BURNR-OVEN
WP98017537 WP98017537 BURNR-TOP
98015022 98015022 BUSHING, SNAP (2)
98007205 98007205 CAP, INSULATION
WP98017461 WP98017461 CAP-BURNER
549193 549193 CLAMP, POWER CORD
WPW10278150 WPW10278150 CLIP
W11229684 W11229684 CLIP
98013690 98013690 CLIP, FLUE
98004952 98004952 CLIP, GLASS (LEFT)
98004953 98004953 CLIP, GLASS (RIGHT)
98005502 98005502 CLIP, OVEN BOTTOM
98005026 98005026 CLIP, TUBING
3196696 3196696 CLIP, WIRE
98005896 98005896 CLIP, WIRE
WPW10114369 WPW10114369 CONTROL, ELEC (BISCUIT)
W10831525 W10831525 CONTROL, ELEC (BLACK)
WP98017619W WP98017619W COOKTOP
WP98017619T WP98017619T COOKTOP (BISCUIT)
WP98017619B WP98017619B COOKTOP (BLACK)
98006710 98006710 COUNTERWEIGHT
98014104 98014104 COVER, LIGHT SOCKET
98007192 98007192 COVER, MODULE
98014105 98014105 COVER, VALVE
98018061 98018061 DEFLCTOR, REAR CVR

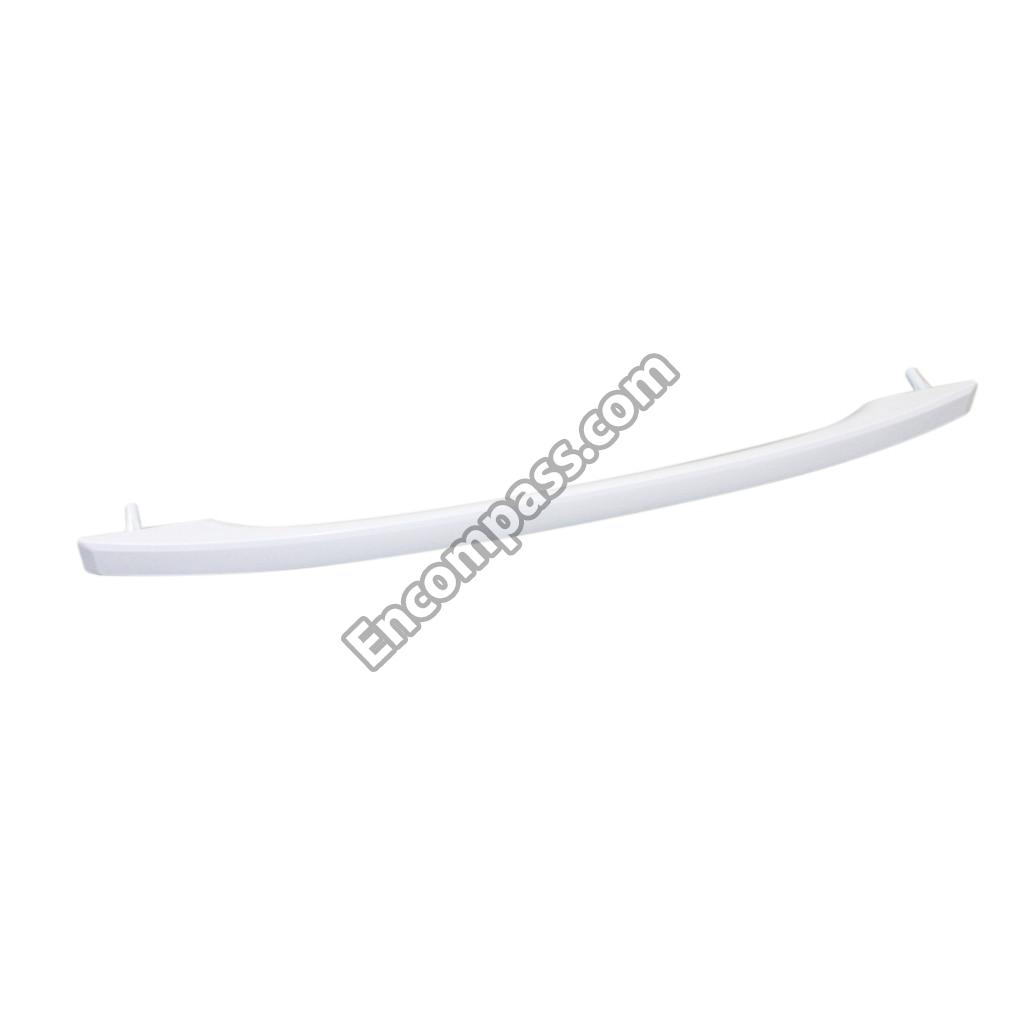

WP98017790B WP98017790B DOOR HANDLE
WP98017790W WP98017790W DOOR HANDLE
WP98017875 WP98017875 DOOR HINGE
WP98010187 WP98010187 DOOR TRIM
WP98010185 WP98010185 DOOR TRIM
WP98017767B WP98017767B DOOR TRIM
WP98017767W WP98017767W DOOR TRIM
98008274 98008274 ENDCAP (BISCUIT LEFT)
98008275 98008275 ENDCAP (BISCUIT RIGHT)
98004632 98004632 ENDCAP (BLACK LEFT)
98004633 98004633 ENDCAP (BLACK RIGHT)
98005336 98005336 ENDCAP (WHITE LEFT)
98005337 98005337 ENDCAP (WHITE RIGHT)
98007431 98007431 FITTING 3/8TO9/16
WPW10116396 WPW10116396 FLUE-BOX
98015346 98015346 FOIL, SIDE (2)
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196037 WP3196037 FOOT-LEVEL
98005044 98005044 FRAME, FRONT
WP98014893 WP98014893 GAS VALVE
WPW10217472 WPW10217472 GASKT-DOOR
WP98017162 WP98017162 GASKT-DOOR
WP98006801 WP98006801 GLASS DOOR
WP98017779 WP98017779 GRATE-BRNR
WP98017780 WP98017780 GRATE-BRNR
261582 261582 GREASE
WP98003480 WP98003480 GRID-PAN
98004994 98004994 GUIDE, FIXED (2) (LEFT)
W10206642 W10206642 GUIDE, MOBILE (LEFT HAND)
W10099470 W10099470 GUIDE, USE & CARE
WPW10206641 WPW10206641 GUIDE-DRWR
WPW10206639 WPW10206639 GUIDE-DRWR
WP3405189 WP3405189 HANDLE
WP3405184 WP3405184 HANDLE
WP3405190 WP3405190 HANDLE
98017790T 98017790T HANDLE, OVEN DOOR (BISCUIT)
98017728 98017728 HARNESS, CONTROL
W10918546 W10918546 IGNTR-OVEN
WPW10209656 WPW10209656 IGNTR-SURF
WPW10209657 WPW10209657 IGNTR-SURF
W10032050 W10032050 INSTALLATI
W10032060 W10032060 INSTALLATI
98015589 98015589 INSTALLATION INSTR (TEMPLATE)
WPW10208653 WPW10208653 INSULATION
W11684802 W11684802 INSULATION
W11706555 W11706555 INSULATION
W11311894 W11311894 INSULATION
98015234 98015234 INSULATION, DOOR
98012904 98012904 INSULATION, RETAINER-BOTTOM
98004938 98004938 INSULATION, RETAINER-TOP
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP98006102 WP98006102 KNOB
WP98008208 WP98008208 KNOB
WP98006100 WP98006100 KNOB
8009 8009 LIGHT BULB
98010182 98010182 LINER, DOOR
98017076 98017076 LINER, DOOR
100000 100000 LITERATURE PARTS
98013314 98013314 LOCATOR, BURNER
98010184 98010184 LOWER TRIM, DOOR (BISCUIT)
9757609 9757609 NAMEPLATE
WPY703856 WPY703856 NUT
WP98017349 WP98017349 ORIFICE
WP98017348 WP98017348 ORIFICE
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP98016005 WP98016005 PAN-BROILR
98017734T 98017734T PANEL, CONTROL (BISCUIT)
98017734B 98017734B PANEL, CONTROL (BLACK)
WP98017734W WP98017734W PANEL, CONTROL (WHITE)
WP98017961T WP98017961T PANEL, DOOR (BISCUIT)
98009341 98009341 PANEL, DOOR (BISCUIT)
WP98017961B WP98017961B PANEL, DOOR (BLACK)
98009343 98009343 PANEL, DOOR (BLACK)
WP98017961W WP98017961W PANEL, DOOR (WHITE)
98010045 98010045 PANEL, SIDE (2) (BISCUIT)
WP98009342 WP98009342 PANEL-DRWR
WP98010042 WP98010042 PANEL-SIDE
WP98010043 WP98010043 PANEL-SIDE
W10094830 W10094830 PANL-MNFLD
W10094850 W10094850 PANL-MNFLD
W10094860 W10094860 PANL-MNFLD
98017556 98017556 PIPE, MANIFOLD
W11173616 W11173616 POWER CORD
WPW10312013 WPW10312013 RACK-OVEN
98003830 98003830 RAIL, BASE (2)
W11590249 W11590249 RANGE SPARK MODULE
98006083 98006083 REAR, BACKGUARD
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W10624131 W10624131 REGULATOR
98004629 98004629 RETAINER (LEFT)
98004564 98004564 RETAINER (RIGHT)
98017250 98017250 RETAINER, UPPER
98007130 98007130 SAFER COOKING TIPS
WP98008544 WP98008544 SCREW
WP98008545 WP98008545 SCREW
WP59002061 WP59002061 SCREW
WP8533842 WP8533842 SCREW
3196166 3196166 SCREW
WP3400832 WP3400832 SCREW
W10856125 W10856125 SCREW
W10837674 W10837674 SCREW
W11676351 W11676351 SCREW
1180823 1180823 SCREW
98013634 98013634 SCREW
W10837731 W10837731 SCREW
WP3400805 WP3400805 SCREW
W10850756 W10850756 SCREW
W11233072 W11233072 SCREW
WP98007225 WP98007225 SCREW
98008169 98008169 SCREW (BISCUIT)
WPW10181986 WPW10181986 SENSOR
98006715 98006715 SHIELD, CHANNEL
W10164112 W10164112 SHIELD, INSULATION
98007191 98007191 SHIELD, LOWER
98016787T 98016787T SIDE TRIM, DOOR (2) (BISCUIT LEFT)
98016795T 98016795T SIDE TRIM, DOOR (2) (BISCUIT RIGHT)
98016787B 98016787B SIDE TRIM, DOOR (2) (BLACK LEFT)
98016795B 98016795B SIDE TRIM, DOOR (2) (BLACK RIGHT)
98016787W 98016787W SIDE TRIM, DOOR (2) (WHITE LEFT)
98016795W 98016795W SIDE TRIM, DOOR (2) (WHITE RIGHT)
98004451 98004451 SIDE, OVEN (LEFT HAND)
98004452 98004452 SIDE, OVEN (RIGHT HAND)
W10856866 W10856866 SOCKT-LITE
98015099 98015099 SPREADER, FLAME
WPW10032030 WPW10032030 SPUD-ORFCE
98017784 98017784 STORAGE, DRAWER
98012175 98012175 SUPPORT, BURNER
98015363 98015363 SUPPORT, REAR
98016664 98016664 SUPPORT, TRAY (LEFT (2))
98016666 98016666 SUPPORT, TRAY (RIGHT (2))
WP3196262 WP3196262 SWTCH-LITE
98018086 98018086 TECH SHEET
WP3391018 WP3391018 TIE-WIRE
98004447 98004447 TOP, OVEN
98017767T 98017767T TRIM, TOP DOOR (BISCUIT)
WP98017171 WP98017171 TUBING-GAS
98009179 98009179 U - NUT
WPW10141709 WPW10141709 VALVE, BURNER (4)
WP98017359 WP98017359 VENTURI
WP98017583 WP98017583 VENTURI
WP98017582 WP98017582 VENTURI
98007193 98007193 WASHER
242828 242828 WIRE (12 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
WPW10361492 WPW10361492 WIRE HARNESS
8316781 8316781 WIRE, BLACK 14 GA. 150 C
98006739 98006739 WIRE, BRICK
3184020 3184020 WIRE, GROUND
