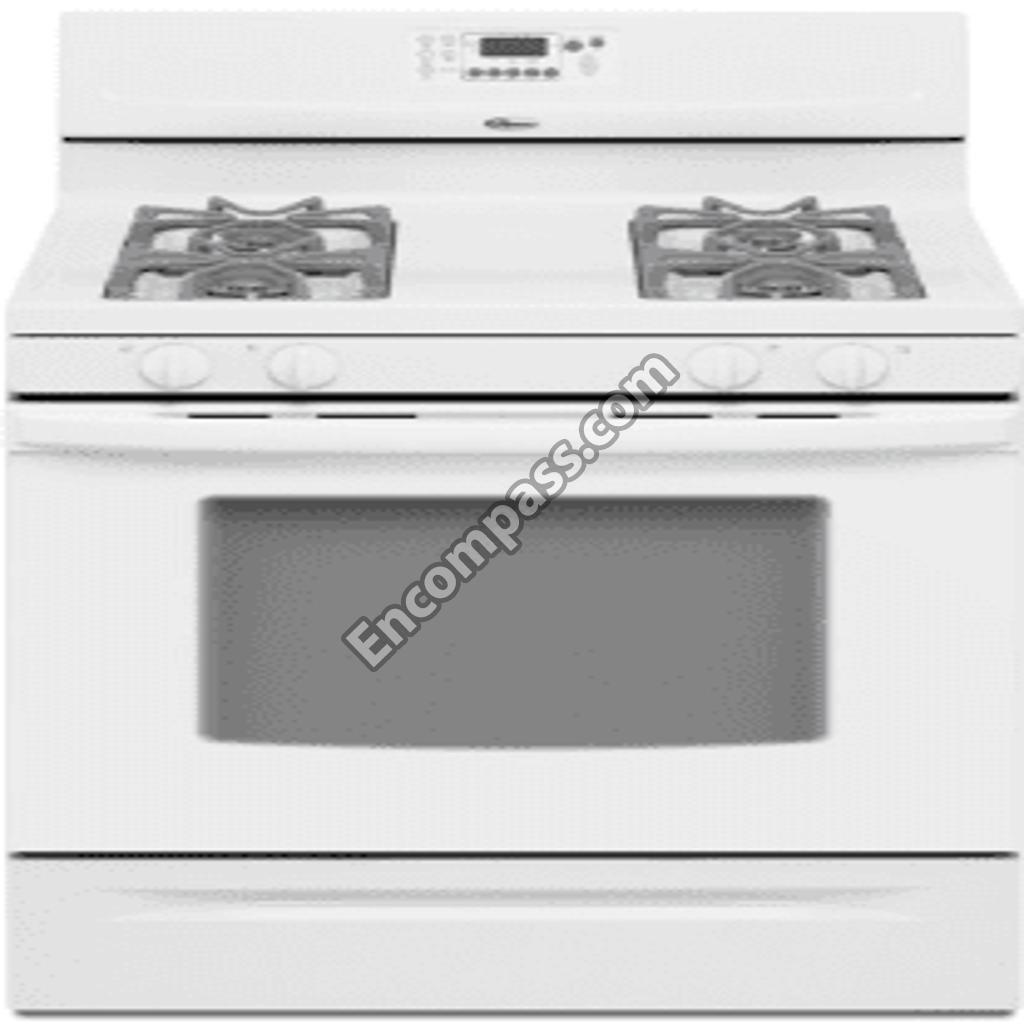

Model Image
Manufacturer

Whirlpool

Model Number

SF265LXTQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11447673 W11447673 ANCHOR-TIP
9757143 9757143 ANTI-TIP TEMPLATE (ENGLISH/FRENCH)
9757142 9757142 ANTI-TIP TEMPLATE (ENGLISH/SPANISH)
W10222733 W10222733 BACK, MAIN
9757609 9757609 BADGE
8053967 8053967 BAFFLE, BURNER
3400228 3400228 BOLT
WP3195097 WP3195097 BOTTM-OVEN
W11379351 W11379351 BOX-BURNER, GAS SEALED
8053971 8053971 BRACE, MAIN BACK
W10462909 W10462909 BRACKET, DRAWER (STAINLESS MODEL)
8523412 8523412 BRACKET, SUPPORT
8523249 8523249 BRKT, MANIFOLD MTG
WP3196794 WP3196794 BRKT-GLASS
9762095 9762095 BRKT-MNTG, CONSOLE
9762726 9762726 BRKT-MNTG, DSI
9762078 9762078 BRKT-MNTG, EOC
W11502236 W11502236 BRKT-SUPRT
WP8273701 WP8273701 BURNER BASE (SMALL (1))
WP8273700 WP8273700 BURNR-BASE
WP8054078 WP8054078 BURNR-BRLR
WP4455981 WP4455981 BURNR-HEAD
WP4455979 WP4455979 BURNR-HEAD
WP4455980 WP4455980 BURNR-HEAD
WP9758078 WP9758078 BURNR-OVEN
WP3191904 WP3191904 CAP-BURNER
WP8273343 WP8273343 CAP-BURNER
WP3191898 WP3191898 CAP-BURNER
WP3191905 WP3191905 CAP-BURNER
WP3191901 WP3191901 CAP-BURNER
WP3191903 WP3191903 CAP-BURNER
WP8273345 WP8273345 CAP-BURNER
WP8273344 WP8273344 CAP-BURNER
WP3191899 WP3191899 CAP-BURNER
WP9781235 WP9781235 CLIP
WP8273564 WP8273564 CLIP
3196025 3196025 CLIP, DOOR GLASS
16515 16515 CLIP, HARNESS
3196696 3196696 CLIP, HARNESS
9761512 9761512 CLIP, MOUNTING
3196576 3196576 CLIP, PANEL (6)
3196896 3196896 CLIP, WIRE
3400964 3400964 CLIP, WIRE
9761517 9761517 CLIP,DOOR MNTG
W10114384 W10114384 CONTROL BOARD
WPW10114385 WPW10114385 CONTROL, RANGE (BISCUIT)
WPW10114383 WPW10114383 CONTROL, RANGE (WHITE)
8195546 8195546 COOKTOP
W11213959 W11213959 COOKTOP
W11213958 W11213958 COOKTOP
8272403 8272403 COVER, IGNITER
WP8273132 WP8273132 COVER, LOWER
WP9756301 WP9756301 COVER, UPPER
WPW10107820 WPW10107820 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
W11597884 W11597884 DOOR HANDLE
WP9761982 WP9761982 DOOR HANDLE
W10347466 W10347466 DOOR HINGE
WP8523175 WP8523175 DOOR TRIM
WP8523180 WP8523180 DOOR TRIM
WP8523177 WP8523177 DOOR TRIM
WP8523178 WP8523178 DOOR TRIM
W10761014 W10761014 DOOR TRIM
WP8523172 WP8523172 DOOR TRIM
WP8523166 WP8523166 DOOR TRIM
WP8523173 WP8523173 DOOR TRIM
W10761018 W10761018 DOOR TRIM
WP8523167 WP8523167 DOOR TRIM
WP9762391 WP9762391 DOOR TRIM
W10296838 W10296838 DRAWER, STORAGE
W10184435 W10184435 ENDCAP (LEFT HAND BISCUIT)
W11219664 W11219664 ENDCAP-PNL
W11219365 W11219365 ENDCAP-PNL
W11230611 W11230611 ENDCAP-PNL
W11230612 W11230612 ENDCAP-PNL
W11219665 W11219665 ENDCAP-PNL
3186489 3186489 FITTING, BROILER
W11457094 W11457094 FLUE-OVEN
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
100000 100000 FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196037 WP3196037 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WPW10293048 WPW10293048 GAS VALVE
W11542153 W11542153 GASKT-DOOR
WPW10118454 WPW10118454 GLASS DOOR
WPW10330077 WPW10330077 GLASS DOOR
WPW10118455 WPW10118455 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR
WPW10118456 WPW10118456 GLASS, OUTER DOOR (BISCUIT)
WP8053334 WP8053334 GLIDE-DRWR
WP9759785 WP9759785 GLIDE-DRWR
WP8522853 WP8522853 GRATE, BURNER (4) (ESPRESSO)
WPW10447925 WPW10447925 GRATE-KIT
261582 261582 GREASE
9761984 9761984 HANDLE, DOOR (BISCUIT)
9761983 9761983 HANDLE, DOOR (BLACK)
9762433 9762433 HARNESS, MAIN (EOC PYRO)
8523599 8523599 HARNESS, WIRE (COOKTOP SPARK)
WP8524207 WP8524207 HARNESS, WIRE BAKE - BROIL
W10647259 W10647259 HINGE-RECV
WP8054129 WP8054129 IGNTR-OVEN
WP9758079 WP9758079 IGNTR-OVEN
WP8523793 WP8523793 IGNTR-SURF
9762998 9762998 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
WPW10278991 WPW10278991 INSULATION
W11684915 W11684915 INSULATION
W11688737 W11688737 INSULATION
9761490 9761490 INSULATION
8053915 8053915 INSULATION, VENT
WP8273279 WP8273279 KNOB
W11242931 W11242931 KNOB
8522626 8522626 KNOB, CONTROL (3) (BISCUIT)
8009 8009 LIGHT BULB
WP9761344 WP9761344 LINER-DOOR
WP8273060 WP8273060 NUT
WP8273064 WP8273064 ORIFICE
WP8273065 WP8273065 ORIFICE
WP8273067 WP8273067 ORIFICE
WP8273066 WP8273066 ORIFICE
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
4396923 4396923 PAN, BROILER
8523856 8523856 PANEL, MANIFOLD (BISCUIT)
8523855 8523855 PANEL, MANIFOLD (BLACK)
8053832 8053832 PANEL, SIDE (2) (BLACK-TEXTURED)
W10162246 W10162246 PANEL, SIDE (BISCUIT)
WPW10244872 WPW10244872 PANEL, STAINLESS STEEL MODEL
W11230486 W11230486 PANEL-DRWR
W11230490 W11230490 PANEL-DRWR
W10022110 W10022110 PANEL-DRWR
WPW10575396 WPW10575396 PANEL-SIDE
W10005820 W10005820 PANL-CNTRL
W10005830 W10005830 PANL-CNTRL
W10005840 W10005840 PANL-CNTRL
WP8523854 WP8523854 PANL-MNFLD
W10117565 W10117565 PANLCNTRL
9762230 9762230 PIPE, MANIFOLD
WP9757891 WP9757891 POWER CORD
WPW10256908 WPW10256908 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
WPW10331686 WPW10331686 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11539580 W11539580 RETAINER
9761449 9761449 RETAINER, INSUL. (LEFT HAND)
9761448 9761448 RETAINER, INSUL. (RIGHT HAND)
WP3196813 WP3196813 RIVET
WP3196814 WP3196814 RIVET
3196815 3196815 RIVET, PUSH (2) (ALMOND)
9757239 9757239 ROD - DOOR SWITCH, REAR MOUNT
W10078370 W10078370 ROD-LATCH
9762761 9762761 SAFER COOKING TIPS
WP3196174 WP3196174 SCREW
W11244557 W11244557 SCREW
WP3196175 WP3196175 SCREW
W10491985 W10491985 SCREW
WPW10031790 WPW10031790 SCREW
WP3196164 WP3196164 SCREW
W11169708 W11169708 SCREW
WP3400832 WP3400832 SCREW
WP7101P246-60 WP7101P246-60 SCREW
WP98008545 WP98008545 SCREW
W10777162 W10777162 SCREW
WP3196152 WP3196152 SCREW
WP3400016 WP3400016 SCREW
W11684507 W11684507 SCREW
3196265 3196265 SCREW
WP8273062 WP8273062 SCREW
WP8273096 WP8273096 SCREW
W11233072 W11233072 SCREW
WP3196557 WP3196557 SCREW
98008169 98008169 SCREW (BISCUIT)
3196166 3196166 SCREW (WHITE)
WP3368921 WP3368921 SCREW-TORX
W10008830 W10008830 SEAL-OVEN
WPW10181986 WPW10181986 SENSOR
8053969 8053969 SHIELD, HEAT
WP8053910 WP8053910 SHIELD, HEAT
8053968 8053968 SHIELD, LOWER
8053505 8053505 SHIELD, LOWER HEAT
WP8272747 WP8272747 SHIELD-HT
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER
W10137062 W10137062 SPREADER, FLAME (BROILER)
WP8053970 WP8053970 SPREADER, FLAME (OVEN)
WP8523418 WP8523418 SPUD-ORFCE
WP9757262 WP9757262 SWTCH-LITE
9762973 9762973 TECH SHEET
3195927 3195927 TIE,WIRE
9761976 9761976 TRIM, TOP (BISCUIT)
9761975 9761975 TRIM, TOP (WHITE)
WP8272222 WP8272222 TUBING (BROILER FITTING TO VALVE)
8523402 8523402 TUBING (MANIFOLD TO REGULATOR)
8273698 8273698 TUBING, BURNER W/ORIFICE (LEFT REAR)
WP8273695 WP8273695 TUBING, BURNER W/ORIFICE (RIGHT FRONT)
WP8273697 WP8273697 TUBING, BURNER W/ORIFICE (RIGHT REAR)
WP8273693 WP8273693 TUBING-GAS
W10110369 W10110369 USE & CARE GUIDE
WP8273004 WP8273004 VALVE (RIGHT REAR)
WP9757218 WP9757218 VALVE-BRNR
242828 242828 WIRE (12 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
WPW10295998 WPW10295998 WIRE HARNESS
W10045060 W10045060 WIRE-GROND
