Model Image
Manufacturer

Whirlpool

Model Number

SF3000EWN1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4315756 4315756 ANTI TIP KIT
4363572 4363572 BAFFLE, BOTTOM
4157006 4157006 BASE, FRONT
4157220 4157220 BLOCK, DISCONNECT
4315071 4315071 BOTTOM, OVEN
4314992 4314992 BRACKET, TOP SUPT.
4315408 4315408 BUMPER, COOKTOP (2) 01 6-20 X 1`` (2)
4363416 4363416 BURNER BOX
4157205 4157205 BURNER, FRONT (2)
4320441 4320441 BURNER, OVEN
Y07699200 Y07699200 BURNER, REAR (2)
3405248 3405248 CABLE TIE
4157330 4157330 CLIP, SPEED
98005642 98005642 CLIP, THERM BULB
307748 307748 CONTROL PANEL
4314892 4314892 COOKTOP (ALMOND)
4314891 4314891 COOKTOP (WHITE)
4320602 4320602 ENDCAP (L.H.)
4320603 4320603 ENDCAP (R.H.)
4321270 4321270 EXTENSION BURNER BOX
4157014 4157014 FLUE, BOX
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25`)
4320775 4320775 FRAME
4320464 4320464 FRAME, FRONT
4321201 4321201 GLIDE, STOP (4)
4157196 4157196 GRATE (4)
4315094 4315094 GRID
LIT3149508 LIT3149508 GUIDE, COOKING
4157040 4157040 HANDLE, DOOR
4320451 4320451 HINGE, DOOR (2)
4157049 4157049 HINGE, DOOR (L.H.)
4157048 4157048 HINGE, DOOR (R.H.)
WP31939701 WP31939701 IGNITOR- B
Y07491203 Y07491203 IGNITOR- G
LIT4315709 LIT4315709 INSTUCTIONS, INSTALLATION
WPW10208653 WPW10208653 INSULATION
4157033 4157033 INSULATION

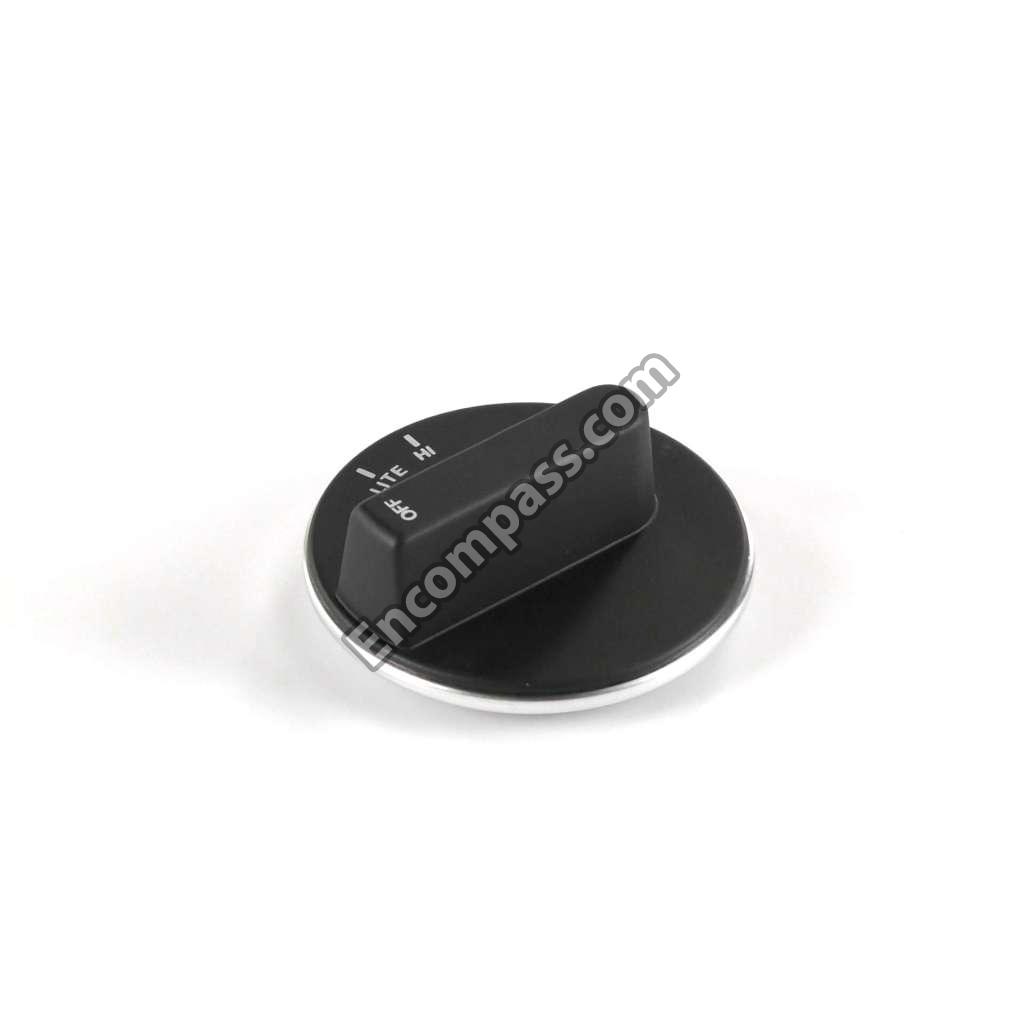

WP4320580 WP4320580 KNOB, BURNER (5)
WPY0312066 WPY0312066 KNOB, THERMOSTAT
4363195 4363195 LEG, LEVELER (4)
4315520 4315520 LINER, BROILER
4321171 4321171 LINER, BROILER DOOR
4320562 4320562 LINER, DOOR
4315054 4315054 LINER, OVEN BACK
4315753 4315753 LINER, OVEN SIDE (2)
4315045 4315045 LINER, OVEN TOP
4314933 4314933 LOCATOR STUD (2)
4372836 4372836 MODULE, SPARK
486511 486511 NUT
W10080180 W10080180 NUT
4157332 4157332 NUT (4)
4157528 4157528 PANEL, BACKGUARD (ALMOND)
4157158 4157158 PANEL, BACKGUARD (WHITE)
4320816 4320816 PANEL, BROILER (ALMOND)
4320807 4320807 PANEL, BROILER (WHITE)
4320786 4320786 PANEL, DOOR (ALMOND)
4320785 4320785 PANEL, DOOR (WHITE)
4320582 4320582 PANEL, MANIFOLD
4315380 4315380 PANEL, REAR
4157130 4157130 PANEL, SIDE (2) (ALMOND)
4157000 4157000 PANEL, SIDE (2) (WHITE)
4315381 4315381 PIN, ROLLER (2)
W10295523 W10295523 PIPE PLUG
8189643 8189643 PIPE-MNFLD
4157053 4157053 PLATE (2)
4157171 4157171 PLATE, MODULE
WP9757891 WP9757891 POWER CORD
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
4320804 4320804 RACK, OVEN (2)
4320809 4320809 RACK, OVEN (2)
4363194 4363194 RAIL, BASE (2)
4157084 4157084 REGULATOR, PRESSURE
3370307 3370307 RELIEF, STRAIN
LIT4321205 LIT4321205 REPAIR PARTS LIST
4320352 4320352 RING, HOLD DOWN
4315388 4315388 ROLLER (2)
4157132 4157132 SAFE EDGE
W10491986 W10491986 SCREW
487125 487125 SCREW
WP3387230 WP3387230 SCREW
4159300 4159300 SCREW
WP681414 WP681414 SCREW
WP308685 WP308685 SCREW
4157054 4157054 SCREW (2)
4332668 4332668 SCREW (FOR NO.18)
868430 868430 SCREW, 10-24 X 1/2 (2)
311996 311996 SCREW, 10-32 X 1/2 HEX WASHER HEAD W/GROUND RING
254217 254217 SCREW, 10A X 3/8 (2)
4315330 4315330 SCREW, 8-18 X 1/2 BLACK (2)
681605 681605 SCREW, NO.6-20 X 1`` (2)
31958801 31958801 SEAL- OVEN
4362586 4362586 SHIELD, IGNITOR
4157325 4157325 SHIELD, INSULATION
4157331 4157331 SHIELD, RADIATION
4157074 4157074 SHUTTER, AIR (4)
241279 241279 SPACER
4320440 4320440 SPREADER, FLAME
4363233 4363233 SPRING, DOOR (2)
4157185 4157185 STRAIN RELIEF
4157159 4157159 SUPPORT, BACKGUARD (LEFT HAND)
4157160 4157160 SUPPORT, BACKGUARD (RIGHT HAND)
4320798 4320798 SUPPORT, BURNER
4157011 4157011 SUPPORT, MAIN (2)
4320443 4320443 SUPPORT, MANIFOLD (L.H.)
4320444 4320444 SUPPORT, MANIFOLD (R.H.)
4315382 4315382 SUPPORT, REAR (2)
Y07659500 Y07659500 THERMOSTAT
4320465 4320465 TRACK, LOWER (LEFT SIDE)
4320466 4320466 TRACK, RIGHT SIDE
4320468 4320468 TRACK, UPPER (RIGHT ASSEMBLY.)
4342530 4342530 TUBING-GAS
LIT4315703 LIT4315703 USE & CARE GUIDE
4320442 4320442 VALVE, ELECTRIC GAS
Y07596400 Y07596400 VALVE, GAS
4157661 4157661 VALVE, SHUT OFF
WP4157180 WP4157180 VALVE, SWITCH
Y07646901 Y07646901 VALVE-OVEN
