Model Image
Manufacturer

Whirlpool

Model Number

SF3010EEW3

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4364077 4364077 BACK, MAIN
4364424 4364424 BACKGUARD, COMPLETE (ALMOND)
4364420 4364420 BACKGUARD, COMPLETE (WHITE)
4363696 4363696 BASE-BKGD
4364167 4364167 BOLT, THERMOSTAT
4364173 4364173 BOLT, VALVE MTG.
4364073 4364073 BOTTOM, BURNER BOX
4364076 4364076 BOTTOM, MAIN
4364086 4364086 BOTTOM, OVEN
4364094 4364094 BOX, POWER
8190785 8190785 BRACKET
4364061 4364061 BROILER DRAWER RUNNER (LEFT)
4364062 4364062 BROILER DRAWER RUNNER (RIGHT)
4364064 4364064 BROILER PAN
4364170 4364170 BURNER, OVEN
4364155 4364155 BURNER, TOP FRONT
WP4364154 WP4364154 BURNER, TOP REAR
4364158 4364158 CATCH, STRIKEPIN
4364145 4364145 COOKTOP (ALMOND)
4364144 4364144 COOKTOP (WHITE)
4364150 4364150 COVER, PILOT
4364044 4364044 ELECTRODE, OVEN
4364042 4364042 FLAME SPREADER
4364074 4364074 FLUE BOX
W11673271 W11673271 FOOT-LEVEL
4364136 4364136 FRAME, FRONT
4364083 4364083 GASKET, OVEN DOOR

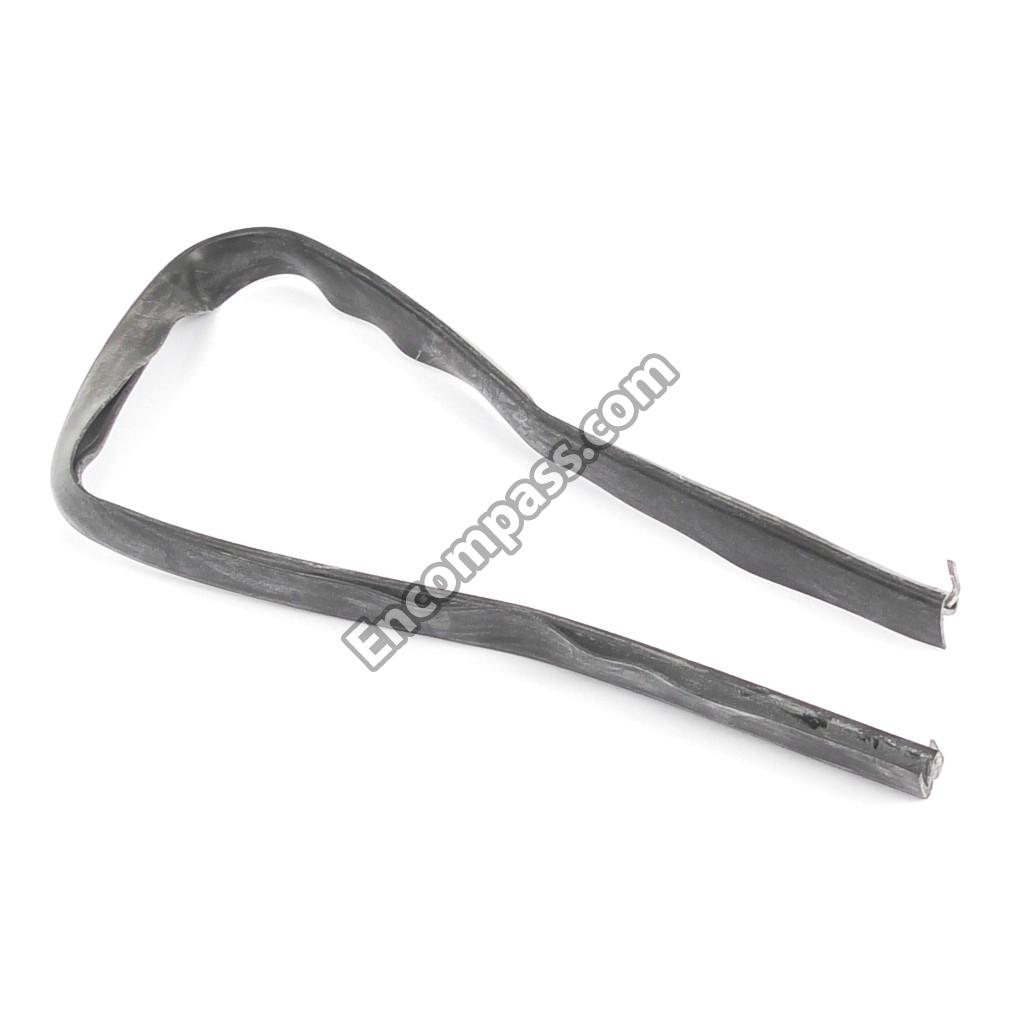

WP4364084 WP4364084 GASKT-DOOR
4364123 4364123 GLIDE, BROILER PAN
4364146 4364146 GRATE (4)
4364065 4364065 GRILL, BROILER
4364054 4364054 HANDLE, DRAWER
4364070 4364070 HANDLE, OVEN DOOR
4364494 4364494 HARNESS, SWITCH (INCLUDES BURNER SWITCHES)
4364102 4364102 HINGE PIN (2)
4364066 4364066 HINGE, BROILER (LEFT)
4364067 4364067 HINGE, BROILER (RIGHT)
4364072 4364072 HINGE, OVEN DOOR
4364147 4364147 IGNITOR, SURFACE (LEFT)
4364078 4364078 INSULATION, BACK
4364056 4364056 INSULATION, BROILER DRAWER
4364071 4364071 INSULATION, DOOR
4364079 4364079 INSULATION, WRAP
4364156 4364156 KNOB, BURNER
4364165 4364165 KNOB, THERMOSTAT
8009 8009 LIGHT BULB
4364122 4364122 LINER, BRLR DRAWER
4364063 4364063 LINER, BROILER
4364049 4364049 LINER, DOOR
4364164 4364164 LOXIT FITTING 3/8``
WP488130 WP488130 NUT
4364426 4364426 OVERLAY, MANIFOLD
4364053 4364053 PANEL, BROILER DOOR (ALMOND)
4364052 4364052 PANEL, BROILER DOOR (WHITE)
4364427 4364427 PANEL, MANIFOLD (INCLUDES NO.4)
4364051 4364051 PANEL, OVEN DOOR (ALMOND)
4364254 4364254 PANEL, OVEN DOOR (SCREW, 10AB X 1/2)
4364050 4364050 PANEL, OVEN DOOR (WHITE)
4364082 4364082 PANEL, SIDE (ALMOND)
4364081 4364081 PANEL, SIDE (WHITE)
4364169 4364169 PILOT, OVEN BURNER
4364160 4364160 PIPE, MANIFOLD
4364099 4364099 POWER CORD
4364414 4364414 PRESSURE REGULATOR
WP4364085 WP4364085 RACK, OVEN
4364091 4364091 RECEPTACLE, LIGHT
4364075 4364075 RING, FLUE BOX
4364093 4364093 RING, OVEN LIGHT
WP9419621 WP9419621 SCREW
W10853069 W10853069 SCREW
W10856125 W10856125 SCREW
4364057 4364057 SCREW, 10-24 X 3/8
4176875 4176875 SCREW, 10-24 X 5/8
4364055 4364055 SPACER, HANDLE
4364409 4364409 SPARK MODULE
4364060 4364060 SPRING, BROILER
4364100 4364100 STRAIN RELIEF
4364157 4364157 STRIKE PIN W/NUT
4364103 4364103 SUPPORT, BACKGUARD
4364152 4364152 SUPPORT, BURNER
4364163 4364163 SUPPORT, MANIFOLD
4364089 4364089 SUPPORT, SIDE (LEFT)
4364090 4364090 SUPPORT, SIDE (RIGHT)
4364048 4364048 SWITCH, OVEN LIGHT
4364045 4364045 SWITCH, THERMOSTAT
4364098 4364098 THERMOSTAT WIRE
WP4364166 WP4364166 THERMOSTAT, OVEN (INCLUDES NO. 31)
4364038 4364038 TUBING, OVEN 3/8`` O.D.
4364039 4364039 TUBING, PILOT 3/16`` O.D.
4364162 4364162 VALVE, BURNER (INCLUDES NO.32)
4364168 4364168 VALVE, SAFETY
4364046 4364046 WINGNUT
4364095 4364095 WIRE BUSHING
4364407 4364407 WIRING DIAGRAM
