Model Image
Manufacturer

Whirlpool

Model Number

SF315PEMQ1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
98017831 98017831 ANTI-TIP KIT
98007461 98007461 BACK, MAIN
98013777 98013777 BACK, OVEN
98003847 98003847 BAFFLE, BASE
98007126 98007126 BASE, FOOT
WP98004449 WP98004449 BOTTM-OVEN
98005296 98005296 BRACKET, RACK
98007410 98007410 BRACKET, REGULATOR
98008499 98008499 BRACKET, TIMER (LEFT)
98008498 98008498 BRACKET, TIMER (RIGHT)
98005500 98005500 BRKT., VENTURI (4)
98004227 98004227 BUMPER
W10831827 W10831827 BUMPER
98004723 98004723 BUMPER (2)
98004314 98004314 BURNER, OVEN
98008971 98008971 BURNER, TOP (LEFT)
WP98003939 WP98003939 BURNER, TOP (RIGHT)
98007390 98007390 BUTTON, PLUG (15/32``)
98007388 98007388 BUTTON, PLUG (25/32``)
98007389 98007389 BUTTON, PLUG (5/16``)
98007205 98007205 CAP, INSULATION
WP98005518 WP98005518 CAP-BURNER
549193 549193 CLAMP, POWER CORD
WPW10278150 WPW10278150 CLIP
W11229684 W11229684 CLIP
98013690 98013690 CLIP, FLUE
98004952 98004952 CLIP, GLASS (LEFT)
98004953 98004953 CLIP, GLASS (RIGHT)
98005502 98005502 CLIP, OVEN BOTTOM
98005026 98005026 CLIP, TUBING
98005915 98005915 CLIP, WIRE
98005896 98005896 CLIP, WIRE

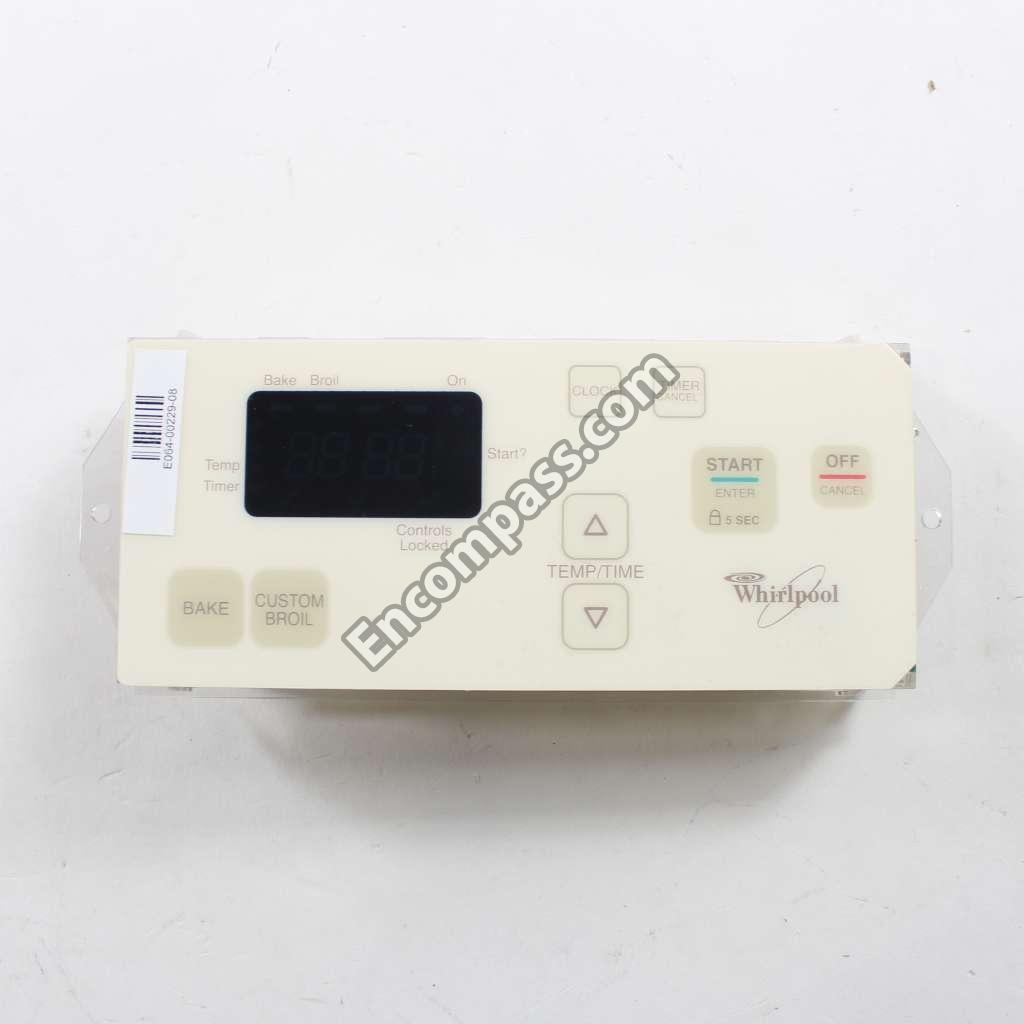

WP6610446 WP6610446 CONTROL BOARD
WP6610444 WP6610444 CONTROL BOARD
WP6610445 WP6610445 CONTROL, ELEC (WHITE)
98009678 98009678 COOKTOP (BISCUIT)
98009676 98009676 COOKTOP (BLACK)
98009677 98009677 COOKTOP (WHITE)
98006710 98006710 COUNTERWEIGHT
98007192 98007192 COVER, MODULE
WP98006793 WP98006793 DOOR TRIM
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
98008274 98008274 ENDCAP (BISCUIT LEFT)
98008275 98008275 ENDCAP (BISCUIT RIGHT)
98004632 98004632 ENDCAP (BLACK LEFT)
98004633 98004633 ENDCAP (BLACK RIGHT)
98005336 98005336 ENDCAP (WHITE LEFT)
98005337 98005337 ENDCAP (WHITE RIGHT)
98007430 98007430 FITTING 1/4TO9/16
98007431 98007431 FITTING 3/8TO9/16
WPW10116396 WPW10116396 FLUE-BOX
100000 100000 FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196037 WP3196037 FOOT-LEVEL
98005044 98005044 FRAME, FRONT

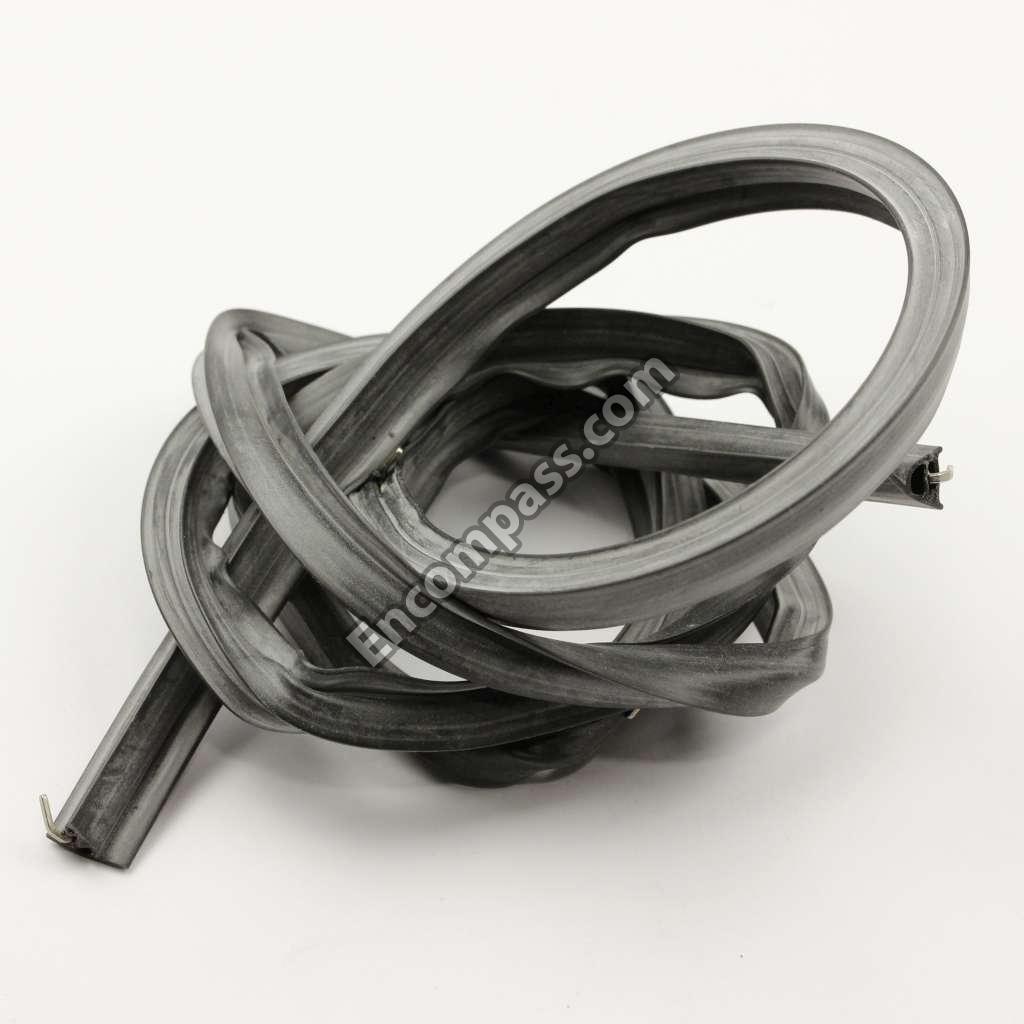

WPW10217472 WPW10217472 GASKT-DOOR
98004042 98004042 GLASS, INNER
8190014 8190014 GRATE-KIT
261582 261582 GREASE
WP98003480 WP98003480 GRID-PAN
98004994 98004994 GUIDE, FIXED (2) (LEFT)
W10206642 W10206642 GUIDE, MOBILE (LEFT HAND)
WPW10206641 WPW10206641 GUIDE-DRWR
WPW10206639 WPW10206639 GUIDE-DRWR
98008266 98008266 HANDLE, BRLR DOOR (BISCUIT)
98006624 98006624 HANDLE, BRLR DOOR (BLACK)
98006623 98006623 HANDLE, BRLR DOOR (WHITE)
WP98005318 WP98005318 HANDLE, OVEN DOOR
98008164 98008164 HANDLE, OVEN DOOR (BISCUIT)
WP98005317 WP98005317 HANDLE, OVEN DOOR (BLACK)
98014883 98014883 HARNESS, CONTROL
98005561 98005561 HARNESS, SWITCH
WP98004734 WP98004734 HINGE, DOOR (2)
12400035 12400035 IGNITER, OVEN OVEN PILOT)
WPW10209656 WPW10209656 IGNITER, TOP (RR)
W10918546 W10918546 IGNTR-OVEN
WPW10209657 WPW10209657 IGNTR-SURF
WPW10208653 WPW10208653 INSULATION
W11684802 W11684802 INSULATION
W11706555 W11706555 INSULATION
W11311894 W11311894 INSULATION
98012545 98012545 INSULATION, DOOR
98012904 98012904 INSULATION, RETAINER-BOTTOM
98004938 98004938 INSULATION, RETAINER-TOP
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP98008208 WP98008208 KNOB
WP98006100 WP98006100 KNOB
WP98006102 WP98006102 KNOB, BURNER (4) (WHITE)
8009 8009 LIGHT BULB
98010182 98010182 LINER, DOOR
98004991 98004991 LINER, DOOR
LIT98014377 LIT98014377 LITERATURE PARTS (GUIDE, USE & CARE)
LIT98007121 LIT98007121 LITERATURE PARTS (INSTALLATION INSTR (TEMPLATE))
LIT98014109 LIT98014109 LITERATURE PARTS (INSTRUCTIONS INSTALLATION)
LIT98007130 LIT98007130 LITERATURE PARTS (SAFER COOKING TIPS)
LIT98007031 LIT98007031 LITERATURE PARTS (TECH SHEET)
98010184 98010184 LOWER TRIM, DOOR (BISCUIT)
WP98010185 WP98010185 LOWER TRIM, DOOR (WHITE)
WP98013676 WP98013676 LP SPUD KIT (FOR USE WITH LP)
98013677 98013677 NATURAL SPUD KIT (FOR USE WITH NATURAL GAS)
WP98004650 WP98004650 NUT, PUSH
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP98016005 WP98016005 PAN-BROILR
98013424T 98013424T PANEL, BACKGUARD (BISCUIT)
98013424B 98013424B PANEL, BACKGUARD (BLACK)
98013424W 98013424W PANEL, BACKGUARD (WHITE)
98008172 98008172 PANEL, DOOR (BISCUIT)
98009336 98009336 PANEL, DOOR (BISCUIT)
98005328 98005328 PANEL, DOOR (BLACK)
98009338 98009338 PANEL, DOOR (BLACK)
98005357 98005357 PANEL, DOOR (WHITE)
98009337 98009337 PANEL, DOOR (WHITE)
98009459 98009459 PANEL, MANIFOLD (BISCUIT)
98009460 98009460 PANEL, MANIFOLD (BLACK)
98009461 98009461 PANEL, MANIFOLD (WHITE)
98010045 98010045 PANEL, SIDE (2) (BISCUIT)
WP98010043 WP98010043 PANEL-SIDE
WP98010042 WP98010042 PANEL-SIDE
814381 814381 PIN HINGE KIT
98013574 98013574 PIPE, MANIFOLD
WP9757891 WP9757891 POWER CORD
98013721 98013721 RACK, BROILER
WPW10312013 WPW10312013 RACK-OVEN
98003830 98003830 RAIL, BASE (2)
98006083 98006083 REAR, BACKGUARD
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))

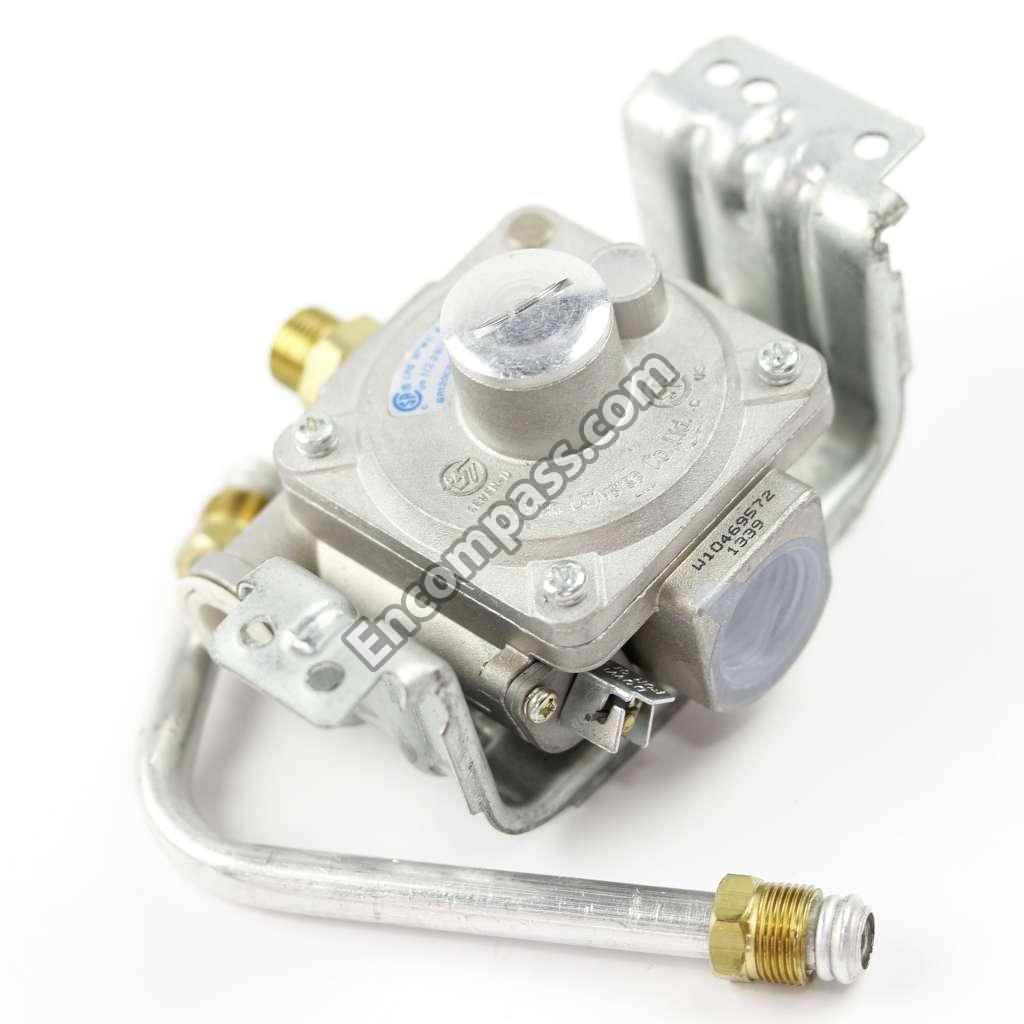

W10624131 W10624131 REGULATOR
98004629 98004629 RETAINER (LEFT)
98004564 98004564 RETAINER (RIGHT)
WP59002061 WP59002061 SCREW
WP8533843 WP8533843 SCREW
98006644 98006644 SCREW
WP3400805 WP3400805 SCREW
WP3400832 WP3400832 SCREW
3196166 3196166 SCREW
W10856125 W10856125 SCREW
WP98006631 WP98006631 SCREW
W10837674 W10837674 SCREW
W11676351 W11676351 SCREW
1180823 1180823 SCREW
98013634 98013634 SCREW
W11428245 W11428245 SCREW
W10837731 W10837731 SCREW
WP98007225 WP98007225 SCREW
W11233072 W11233072 SCREW
98008169 98008169 SCREW (BISCUIT)
4392899 4392899 SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
WPW10181986 WPW10181986 SENSOR-OVEN
98006715 98006715 SHIELD, CHANNEL
W10164112 W10164112 SHIELD, INSULATION
98007191 98007191 SHIELD, LOWER
98008174 98008174 SIDE TRIM, DOOR (2) (BISCUIT)
98006794 98006794 SIDE TRIM, DOOR (2) (WHITE)
98004451 98004451 SIDE, OVEN (LEFT HAND)
98004452 98004452 SIDE, OVEN (RIGHT HAND)
W10856866 W10856866 SOCKT-LITE
98004773 98004773 SPACER, HANDLE
W11590249 W11590249 SPARK MODULE
350930 350930 SPRAY (13 OZ.) (WHITE)
98011923 98011923 SPREADER, FLAME
98006209 98006209 STORAGE, DRAWER
98004453 98004453 SUPPORT, BURNER
98005295 98005295 SUPPORT, RACK
98015363 98015363 SUPPORT, REAR
3149360 3149360 SWITCH, ROCKER (WHITE)
WP9781581 WP9781581 SWTCH-LITE
98008276 98008276 SWTICH, ROCKER (BISCUIT)
98006392 98006392 SWTICH, ROCKER (BLACK)
98004294 98004294 TIE, INSULATION
98008175 98008175 TOP TRIM, DOOR (BISCUIT)
98006884 98006884 TOP TRIM, DOOR (BLACK)
98006885 98006885 TOP TRIM, DOOR (WHITE)
98004447 98004447 TOP, OVEN
WP98010187 WP98010187 TRIM, LOWER DOOR
98007429 98007429 TUBING, INLET
98009179 98009179 U - NUT
WP98005574 WP98005574 VALVE, BURNER (4)
98005626 98005626 VALVE, BURNER (4) (11,500 BTU)
WP98014893 WP98014893 VALVE, OVEN
WP6610244 WP6610244 VENTURI
WP6610243 WP6610243 VENTURI
98007193 98007193 WASHER
98007132 98007132 WASHER, VALVE (4)
242828 242828 WIRE (12 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
8316781 8316781 WIRE, BLACK 14 GA. 150 C
98006739 98006739 WIRE, BRICK
3184020 3184020 WIRE, GROUND
242832 242832 WIRE, YELLOW 14 GA. 200~C
