Model Image
Manufacturer

Whirlpool

Model Number

SF367LXSS1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11447673 W11447673 ANCHOR-TIP
9757143 9757143 ANTI-TIP TEMPLATE (ENGLISH/FRENCH)
9757142 9757142 ANTI-TIP TEMPLATE (ENGLISH/SPANISH)
W10222733 W10222733 BACK, MAIN
8053967 8053967 BAFFLE, BURNER
3400228 3400228 BOLT
WP3195097 WP3195097 BOTTM-OVEN
W11379351 W11379351 BOX-BURNER, GAS SEALED
8053971 8053971 BRACE, MAIN BACK
W10462909 W10462909 BRACKET, DRAWER (STAINLESS MODEL)
9762078 9762078 BRACKET, EOC MOUNT
8523412 8523412 BRACKET, SUPPORT
8523249 8523249 BRKT, MANIFOLD MTG
WP3196794 WP3196794 BRKT-GLASS
9762095 9762095 BRKT-MNTG, CONSOLE
9762726 9762726 BRKT-MNTG, DSI
W11502236 W11502236 BRKT-SUPRT
WP8273701 WP8273701 BURNER BASE (SMALL (1))
WP8273700 WP8273700 BURNR-BASE
WP8054078 WP8054078 BURNR-BRLR
WP4455980 WP4455980 BURNR-HEAD
WP4455979 WP4455979 BURNR-HEAD
WP4455981 WP4455981 BURNR-HEAD
WP9758078 WP9758078 BURNR-OVEN
WP3191905 WP3191905 CAP-BURNER
WP3191899 WP3191899 CAP-BURNER
WP3191901 WP3191901 CAP-BURNER
WP3191903 WP3191903 CAP-BURNER
WP3191898 WP3191898 CAP-BURNER
WP3191904 WP3191904 CAP-BURNER
WP9781235 WP9781235 CLIP
WP8273564 WP8273564 CLIP
3196025 3196025 CLIP, DOOR GLASS
9761517 9761517 CLIP, DOOR MNTG(2)
3196696 3196696 CLIP, HARNESS
16515 16515 CLIP, HARNESS
9761512 9761512 CLIP, MOUNTING
3196576 3196576 CLIP, PANEL (6)
3196896 3196896 CLIP, WIRE
3400964 3400964 CLIP, WIRE

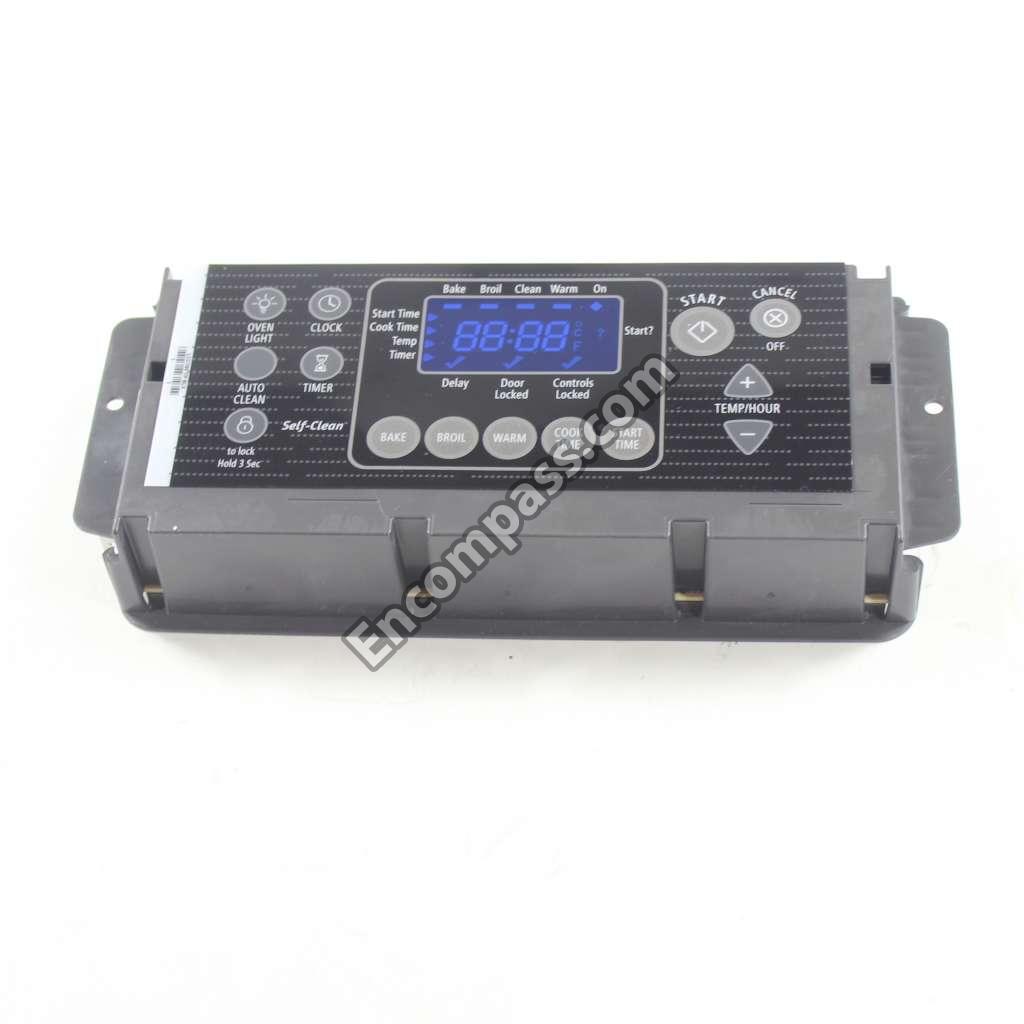

WPW10108190 WPW10108190 CONTROL BOARD
WPW10184045 WPW10184045 CONTROL PANEL
W11213958 W11213958 COOKTOP
W11213959 W11213959 COOKTOP
8272403 8272403 COVER, IGNITER
WP8273132 WP8273132 COVER, LOWER
WP9756301 WP9756301 COVER, UPPER
WPW10107820 WPW10107820 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
WP9761982 WP9761982 DOOR HANDLE
WP8190282 WP8190282 DOOR HANDLE
W10347464 W10347464 DOOR HINGE
W10347466 W10347466 DOOR HINGE
WP8523175 WP8523175 DOOR TRIM
WP8523177 WP8523177 DOOR TRIM
WP8523180 WP8523180 DOOR TRIM
WPW10067550 WPW10067550 DOOR TRIM
WP8523172 WP8523172 DOOR TRIM
WP8523166 WP8523166 DOOR TRIM
W10761014 W10761014 DOOR TRIM
8184858 8184858 DOOR TRIM
W10761018 W10761018 DOOR TRIM
WP9762391 WP9762391 DOOR TRIM
W10296838 W10296838 DRAWER, STORAGE
W11219370 W11219370 ENDCAP-PNL
W11219365 W11219365 ENDCAP-PNL
W11219664 W11219664 ENDCAP-PNL
W11219665 W11219665 ENDCAP-PNL
3186489 3186489 FITTING, BROILER
W11457094 W11457094 FLUE-OVEN
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
100000 100000 FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196037 WP3196037 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WPW10293048 WPW10293048 GAS VALVE
W11542153 W11542153 GASKT-DOOR
WPW10330077 WPW10330077 GLASS DOOR
WPW10118454 WPW10118454 GLASS DOOR
WPW10118455 WPW10118455 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR
WP8053334 WP8053334 GLIDE-DRWR
WP9759785 WP9759785 GLIDE-DRWR
8522847 8522847 GRATE, CENTER (GRAY)
WP8522846 WP8522846 GRATE-BRNR
WPW10447925 WPW10447925 GRATE-KIT
261582 261582 GREASE
WP9762251 WP9762251 HANDLE (UNIVERSAL SILVER MODEL)
9761983 9761983 HANDLE, DOOR (BLACK)
9761985 9761985 HANDLE, DOOR (STAINLESS STEEL)
WP8524207 WP8524207 HARNESS, BAKE & BROIL IGNITOR
8523599 8523599 HARNESS, WIRE (COOKTOP SPARK)
W10082160 W10082160 HARNS-WIRE
W10647259 W10647259 HINGE-RECV
WP8054129 WP8054129 IGNTR-OVEN
WP9758079 WP9758079 IGNTR-OVEN
WP8523793 WP8523793 IGNTR-SURF
9762997 9762997 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
WPW10278991 WPW10278991 INSULATION
W11688737 W11688737 INSULATION
W11684915 W11684915 INSULATION
9761490 9761490 INSULATION
8053915 8053915 INSULATION, VENT
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP8273108 WP8273108 KNOB
WP8273104 WP8273104 KNOB
WP8273103 WP8273103 KNOB
8009 8009 LIGHT BULB
WP9761344 WP9761344 LINER-DOOR
9757609 9757609 NAMEPLATE
WP8273060 WP8273060 NUT
WP8273067 WP8273067 ORIFICE
WP8273065 WP8273065 ORIFICE
WP8273064 WP8273064 ORIFICE
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
4396923 4396923 PAN, BROILER
9762093 9762093 PANEL, CONTROL (BLACK)
9762091 9762091 PANEL, CONTROL (WHITE)
WPW10244872 WPW10244872 PANEL, DRAWER FRONT FOR STAINLESS STEEL AND UNIVERSAL SILVER MODELS
8523855 8523855 PANEL, MANIFOLD (BLACK)
8053832 8053832 PANEL, SIDE (2) (BLACK)
W11230486 W11230486 PANEL-DRWR
W11230490 W11230490 PANEL-DRWR
WPW10575396 WPW10575396 PANEL-SIDE
WP8523854 WP8523854 PANL-MNFLD
9762230 9762230 PIPE, MANIFOLD
WP9757891 WP9757891 POWER CORD
WPW10256908 WPW10256908 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
WPW10331686 WPW10331686 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11539580 W11539580 RETAINER
9761449 9761449 RETAINER, INSUL. (LEFT HAND)
9761448 9761448 RETAINER, INSUL. (RIGHT HAND)
WP3196813 WP3196813 RIVET
WP3196814 WP3196814 RIVET
9757239 9757239 ROD - DR SWITCH
W10078370 W10078370 ROD-LATCH
9762761 9762761 SAFER COOKING TIPS (ENGLISH
9759133 9759133 SAFER COOKING TIPS (FRENCH)
WP3196174 WP3196174 SCREW
W11244557 W11244557 SCREW
WP3196175 WP3196175 SCREW
WP3196164 WP3196164 SCREW
WPW10031790 WPW10031790 SCREW
W10491985 W10491985 SCREW
W11169708 W11169708 SCREW
WP7101P246-60 WP7101P246-60 SCREW
WP98008545 WP98008545 SCREW
WP3400832 WP3400832 SCREW
WP3196152 WP3196152 SCREW
W10777162 W10777162 SCREW
WP3400016 WP3400016 SCREW
W11684507 W11684507 SCREW
3196265 3196265 SCREW
WP8273062 WP8273062 SCREW
WP8273096 WP8273096 SCREW
W11233072 W11233072 SCREW
WP3196557 WP3196557 SCREW
3196166 3196166 SCREW (WHITE)
WP3368921 WP3368921 SCREW-TORX
W10008830 W10008830 SEAL-OVEN
WPW10181986 WPW10181986 SENSOR
8053969 8053969 SHIELD, HEAT
WP8053910 WP8053910 SHIELD, HEAT
8053968 8053968 SHIELD, LOWER
8053505 8053505 SHIELD, LOWER HEAT
WP8272747 WP8272747 SHIELD-HT
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER
W10137062 W10137062 SPREADER, FLAME (BROILER)
WP8053970 WP8053970 SPREADER, FLAME (OVEN)
W10854965 W10854965 SPUD-ORFCE
WP9757262 WP9757262 SWTCH-LITE
W10116296 W10116296 TECH SHEET (ENGLISH)
W10116297 W10116297 TECH SHEET (FRENCH)
3195927 3195927 TIE,WIRE
W10067560 W10067560 TRIM, TOP (UNIVERSAL SILVER MODEL)
9761975 9761975 TRIM, TOP (WHITE)
WP8272222 WP8272222 TUBING (BROILER FITTING TO VALVE)
8523402 8523402 TUBING (MANIFOLD TO REGULATOR)
8273696 8273696 TUBING, BURNER W/ORIFICE (RIGHT FRONT)
8523506 8523506 TUBING, BURNER W/ORIFICE (RIGHT REAR)
WP8273693 WP8273693 TUBING-GAS
WP8273694 WP8273694 TUBING-GAS
W10110368 W10110368 USE & CARE GUIDE
WP8273004 WP8273004 VALVE (RIGHT REAR)
WP9757218 WP9757218 VALVE-BRNR
242828 242828 WIRE (12 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
WPW10295998 WPW10295998 WIRE HARNESS
W10045060 W10045060 WIRE-GROND
