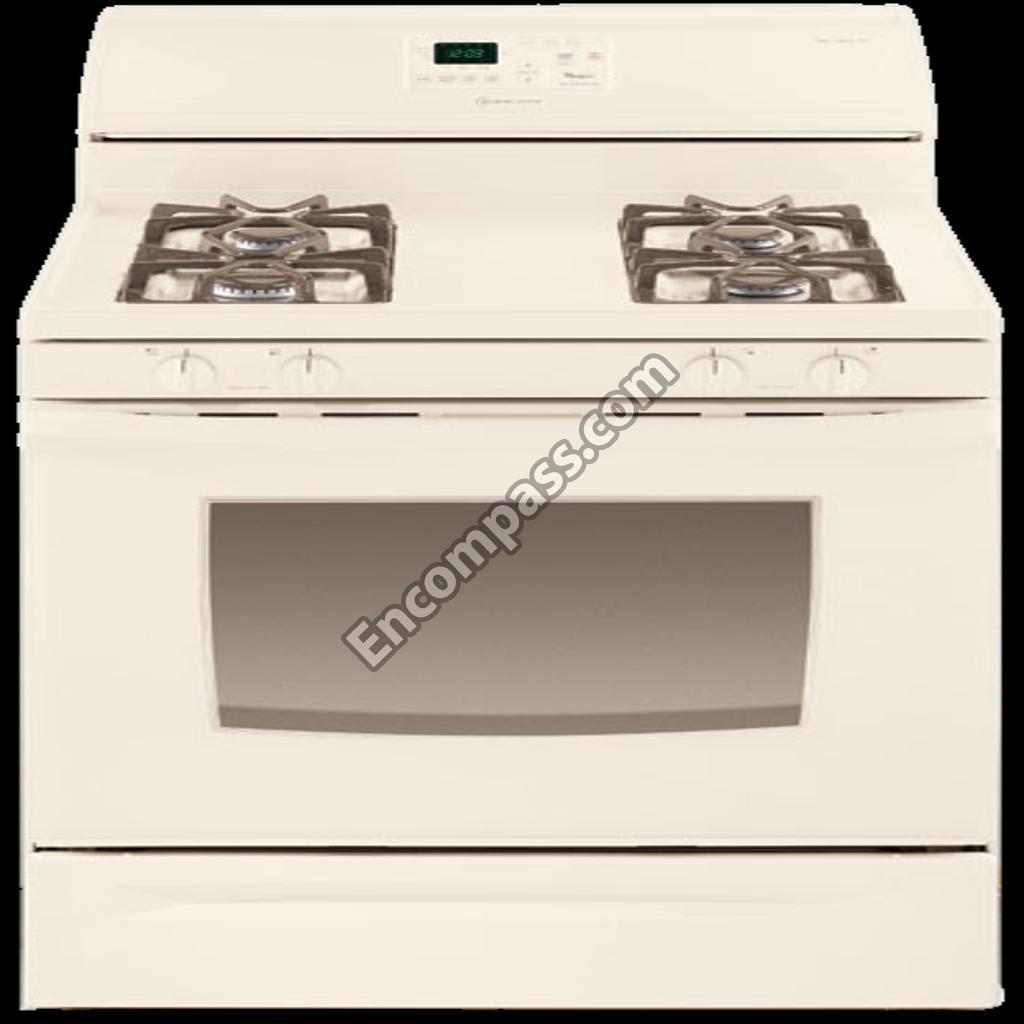

Model Image
Manufacturer

Whirlpool

Model Number

SF368LEPT1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WP3191905 WP3191905 Whirlpool (LF) (MOUSE GRAY)
285006 285006 Whirlpool ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
W11447673 W11447673 Whirlpool ANCHOR-TIP
9757143 9757143 Whirlpool ANTI-TIP TEMPLATE (ENGLISH/FRENCH)
9757142 9757142 Whirlpool ANTI-TIP TEMPLATE (ENGLISH/SPANISH)
W10222733 W10222733 Whirlpool BACK, MAIN
8053967 8053967 Whirlpool BAFFLE, BURNER
WP3195097 WP3195097 Whirlpool BOTTOM, OVEN
W11457094 W11457094 Whirlpool BOX, FLUE
W11379351 W11379351 Whirlpool BOX-BURNER, GAS SEALED
8053971 8053971 Whirlpool BRACE, MAIN BACK
W10462909 W10462909 Whirlpool BRACKET, DRAWER (2)
8523412 8523412 Whirlpool BRACKET, SUPPORT
8523249 8523249 Whirlpool BRKT, MANIFOLD MTG
WP3196794 WP3196794 Whirlpool BRKT-GLASS
WP8273700 WP8273700 Whirlpool BURNER BASE (LF - LR - RF)
WP9758078 WP9758078 Whirlpool BURNER, BAKE
WP8054078 WP8054078 Whirlpool BURNR-BRLR
WP3191899 WP3191899 Whirlpool CAP BURNER, MOUSE (GRAY) (6K RF-LR)
WP3191904 WP3191904 Whirlpool CAP, BURNER (BLACK) (LF)
WP3191903 WP3191903 Whirlpool CAP, BURNER (LARGE (3) (GREY))
WP8273345 WP8273345 Whirlpool CAP, BURNER 6K (1) (ESPRESSO 12.5K)
WP8273343 WP8273343 Whirlpool CAP, BURNER 6K ESPRESSO
WP3191901 WP3191901 Whirlpool CAP, BURNER 9.5K BLACK
WP8273344 WP8273344 Whirlpool CAP, BURNER LEFT FRONT (ESPRESSO RIGHT REAR)
WP3191898 WP3191898 Whirlpool CAP, BURNER RF, LF, LR (BLACK)
WP8273564 WP8273564 Whirlpool CLIP
WP3196925 WP3196925 Whirlpool CLIP, DOOR STOP (2)
3196025 3196025 Whirlpool CLIP, GLASS (4)
16515 16515 Whirlpool CLIP, HARNESS
3196696 3196696 Whirlpool CLIP, HARNESS
3196576 3196576 Whirlpool CLIP, PANEL (4)
3196896 3196896 Whirlpool CLIP, WIRE
WP6610451 WP6610451 Whirlpool CONTROL, RANGE (BISCUIT)
WP6610449 WP6610449 Whirlpool CONTROL, RANGE (BLACK)
WP6610450 WP6610450 Whirlpool CONTROL, RANGE (WHITE)
8195546 8195546 Whirlpool COOKTOP
W11213958 W11213958 Whirlpool COOKTOP
W11213959 W11213959 Whirlpool COOKTOP
WP9757891 WP9757891 Whirlpool CORD-POWER
8272403 8272403 Whirlpool COVER, IGNITER
WP8273132 WP8273132 Whirlpool COVER, LOWER
WP9756301 WP9756301 Whirlpool COVER, UPPER
WP9761013 WP9761013 Whirlpool DOOR DOOR LATCH
W11597884 W11597884 Whirlpool DOOR HANDLE
WP8272822 WP8272822 Whirlpool DOOR HINGE
W10296838 W10296838 Whirlpool DRAWER, STORAGE
72017 72017 Whirlpool DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
WP8523793 WP8523793 Whirlpool ELECTRODE (4)
3186189 3186189 Whirlpool ENDCAP (BLACK (RIGHT))
3186188 3186188 Whirlpool ENDCAP (BLACK LH)
8272507 8272507 Whirlpool ENDCAP (LEFT HAND-BISCUIT)
8272508 8272508 Whirlpool ENDCAP (RIGHT HAND-BISCUIT)
3186190 3186190 Whirlpool ENDCAP (WHITE, LEFT HAND)
3186191 3186191 Whirlpool ENDCAP (WHITE, RIGHT HAND)
3186489 3186489 Whirlpool FITTING, BROILER
241430 241430 Whirlpool FOIL, ALUMINUM OVEN (18`` X 25`)
100000 100000 Whirlpool FOLLOWING PARTS NOT ILLUSTRATED
WP3196037 WP3196037 Whirlpool FOOT, FRONT (2)
WPW10058460 WPW10058460 Whirlpool FOOT-LEVEL
9758226 9758226 Whirlpool FRAME, FRONT
WPW10316950 WPW10316950 Whirlpool FRAME, GLASS
WPW10293048 WPW10293048 Whirlpool GAS VALVE
WP8053948 WP8053948 Whirlpool GLASS DOOR
WPW10118456 WPW10118456 Whirlpool GLASS, OUTER (BISCUIT)
WPW10118455 WPW10118455 Whirlpool GLASS, OUTER (BLACK)
WPW10118454 WPW10118454 Whirlpool GLASS, OUTER (WHITE)
WPW10330077 WPW10330077 Whirlpool GLASS, OUTER DOOR (STAINLESS MODEL)
WPW10447925 WPW10447925 Whirlpool GRATE (4) (GRAY)
WP8522853 WP8522853 Whirlpool GRATE, BURNER (4) (ESPRESSO)
261582 261582 Whirlpool GREASE
WP3195996 WP3195996 Whirlpool GRILL, BROILER (OPTIONAL)
9756385 9756385 Whirlpool GUIDE, USE & CARE
WPW10202217 WPW10202217 Whirlpool HANDLE
W10202218 W10202218 Whirlpool HANDLE, DOOR (BISCUIT)
WPW10202216 WPW10202216 Whirlpool HANDLE, DOOR (WHITE)
WPW10295998 WPW10295998 Whirlpool HARNESS, IGNITER (W/SWITCHES)
9758205 9758205 Whirlpool HARNESS, MAIN (EOC PYRO)
WP8524207 WP8524207 Whirlpool HARNESS, WIRE
8523599 8523599 Whirlpool HARNESS,WIRE (COOKTOP SPARK)
WP4455979 WP4455979 Whirlpool HEAD, BURNER (AUXI)
WP4455980 WP4455980 Whirlpool HEAD, BURNER (LR, RR)
WP4455981 WP4455981 Whirlpool HEAD, BURNER (RAPID (12K))
WP8053807 WP8053807 Whirlpool HINGE, DOOR (WHITE, BLACK AND BISCUIT MODELS)
WP8054129 WP8054129 Whirlpool IGNITOR, BROIL
WP9758079 WP9758079 Whirlpool IGNTR-OVEN
9760030 9760030 Whirlpool INSTALLATION INSTRUCTIONS ANTI-TIP TEMPLATE
WPW10208653 WPW10208653 Whirlpool INSULATION
W11688737 W11688737 Whirlpool INSULATION
W11684915 W11684915 Whirlpool INSULATION
8053915 8053915 Whirlpool INSULATION, VENT
WPW10278991 WPW10278991 Whirlpool INSULATION-DOOR
WP8273103 WP8273103 Whirlpool KNOB, ACCUSIMMER (BLACK)
WP8273106 WP8273106 Whirlpool KNOB, BURNER (4) (BISCUIT)
WP8273104 WP8273104 Whirlpool KNOB, CONTROL (2) (WHITE)
WPW10107830 WPW10107830 Whirlpool LATCH-MTR
8009 8009 Whirlpool LIGHT BULB
3186292 3186292 Whirlpool LINER, DOOR
WPW10331686 WPW10331686 Whirlpool MODULE, SPARK
WP8273060 WP8273060 Whirlpool NUT (4)
WP8273065 WP8273065 Whirlpool ORIFICE, BURNER ((RF))
WP8273064 WP8273064 Whirlpool ORIFICE, BURNER (LEFT FRONT)
WP8273066 WP8273066 Whirlpool ORIFICE, BURNER (LEFT REAR)
WP8273067 WP8273067 Whirlpool ORIFICE, BURNER (RIGHT REAR)
4392900 4392900 Whirlpool PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 Whirlpool PAINT, BULK (1 QT.) (WHITE (UNCUT))
4392901 4392901 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT PAINT, BULK (1 QT.))
350942 350942 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
511873 511873 Whirlpool PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP3196076 WP3196076 Whirlpool PAN, BROILER
9758506 9758506 Whirlpool PANEL, BACKGUARD (BISCUIT)
9758508 9758508 Whirlpool PANEL, BACKGUARD (BLACK)
9756757 9756757 Whirlpool PANEL, BACKGUARD (STAINLESS)
9758507 9758507 Whirlpool PANEL, BACKGUARD (WHITE)
W11230490 W11230490 Whirlpool PANEL, DRAWER FRNT
W11230486 W11230486 Whirlpool PANEL, DRAWER FRNT (WHITE)
8523856 8523856 Whirlpool PANEL, MANIFOLD (BISCUIT)
8523855 8523855 Whirlpool PANEL, MANIFOLD (BLACK)
WPW10244872 WPW10244872 Whirlpool PANEL, OUTER
8053832 8053832 Whirlpool PANEL, SIDE (2) (BLACK-TEXTURED)
W10162246 W10162246 Whirlpool PANEL, SIDE (BISCUIT)
W11230473 W11230473 Whirlpool PANEL-DRWR
WPW10575396 WPW10575396 Whirlpool PANEL-SIDE
WP8523854 WP8523854 Whirlpool PANL-MNFLD
814381 814381 Whirlpool PIN KIT-DR REMOVAL
9762230 9762230 Whirlpool PIPE, MANIFOLD
3196439 3196439 Whirlpool PLUG-BUTTON
WPW10256908 WPW10256908 Whirlpool RACK, OVEN (3)
WPW10306546 WPW10306546 Whirlpool RAIL, BASE (2)
8212471 8212471 Whirlpool REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11539580 W11539580 Whirlpool RETAINER
3196523 3196523 Whirlpool RETAINER, INSUL. (LEFT HAND)
3195726 3195726 Whirlpool RETAINER, INSUL. (RIGHT HAND)
3196815 3196815 Whirlpool RIVET, PUSH (2) (ALMOND)
WP3196814 WP3196814 Whirlpool RIVET, PUSH (2) (WHITE)
WP3196813 WP3196813 Whirlpool RIVET, PUSH (BLACK)
9757239 9757239 Whirlpool ROD - DOOR SWITCH, REAR MOUNT
W10078370 W10078370 Whirlpool ROD, PUSH (DOOR LATCH)
3191638 3191638 Whirlpool SAFER COOKING TIPS
W11244557 W11244557 Whirlpool SCREW
WP3196175 WP3196175 Whirlpool SCREW
W11169708 W11169708 Whirlpool SCREW
WP7101P246-60 WP7101P246-60 Whirlpool SCREW
WP98008545 WP98008545 Whirlpool SCREW
WP3196152 WP3196152 Whirlpool SCREW
W11684507 W11684507 Whirlpool SCREW
3196265 3196265 Whirlpool SCREW
WP8273096 WP8273096 Whirlpool SCREW
W11233072 W11233072 Whirlpool SCREW
WP4449746 WP4449746 Whirlpool SCREW
WP3196557 WP3196557 Whirlpool SCREW
WP8273062 WP8273062 Whirlpool SCREW
WP3400832 WP3400832 Whirlpool SCREW
WP3400016 WP3400016 Whirlpool SCREW (2)
WP3196164 WP3196164 Whirlpool SCREW (2)
98008169 98008169 Whirlpool SCREW (BISCUIT)
3196166 3196166 Whirlpool SCREW (WHITE)
W10491985 W10491985 Whirlpool SCREW 8-18 X .250
WP9781235 WP9781235 Whirlpool SCREW, ANCHOR
3400964 3400964 Whirlpool SCREW, GROUND
WP179051 WP179051 Whirlpool SCREW, HANDLE (2)
WP3368921 WP3368921 Whirlpool SCREW-TORX
4392899 4392899 Whirlpool SCREWS10-16X.375 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
W11542153 W11542153 Whirlpool SEAL, OVEN
WP8524109 WP8524109 Whirlpool SEAL, OVEN FLANGE
WPW10181986 WPW10181986 Whirlpool SENSOR-OVEN
8053969 8053969 Whirlpool SHIELD, HEAT
WP8053910 WP8053910 Whirlpool SHIELD, HEAT
3196136 3196136 Whirlpool SHIELD, HEAT (2)
8524111 8524111 Whirlpool SHIELD, HEAT (2)
8053968 8053968 Whirlpool SHIELD, LOWER
8053505 8053505 Whirlpool SHIELD, LOWER HEAT
WP8272747 WP8272747 Whirlpool SHIELD-HT
W11594027 W11594027 Whirlpool SOCKT-LITE
W10877054 W10877054 Whirlpool SPACER
WP3195546 WP3195546 Whirlpool SPACER, DRAWER
WP8053334 WP8053334 Whirlpool SPACER, GLIDE
350930 350930 Whirlpool SPRAY (13 OZ.) (WHITE)
W10137062 W10137062 Whirlpool SPREADER, FLAME (BROILER)
WP8053970 WP8053970 Whirlpool SPREADER, FLAME (OVEN)
WP8523418 WP8523418 Whirlpool SPUDS, LP GAS (KIT OF 4)
8272243 8272243 Whirlpool STAINLESS MODEL
8523408 8523408 Whirlpool SUPPORT
8523409 8523409 Whirlpool SUPPORT, ENDCAP (RIGHT HAND)
8273501 8273501 Whirlpool SWITCH, ROCKER (BISCUIT)
3149360 3149360 Whirlpool SWITCH-ROCKER (WHITE)
W11243424 W11243424 Whirlpool SWTCH-LITE
WP4314961 WP4314961 Whirlpool SWTCH-LITE
9755996 9755996 Whirlpool TECH SHEET
3195927 3195927 Whirlpool TIE,WIRE
WP8523180 WP8523180 Whirlpool TRIM, BOTTOM
W10761018 W10761018 Whirlpool TRIM, DOOR SIDE (BLACK L.H.)
WP8523166 WP8523166 Whirlpool TRIM, DOOR SIDE (RIGHT HAND)
WP8523167 WP8523167 Whirlpool TRIM, DOOR SIDE LEFT HAND (BISCUIT)
W10761014 W10761014 Whirlpool TRIM, DOOR SIDE LEFT HAND (BLACK)
WP8523177 WP8523177 Whirlpool TRIM, LOWER
WP8523173 WP8523173 Whirlpool TRIM, SIDE (LEFT HAND BISCUIT)
W10016380 W10016380 Whirlpool TRIM, TOP
W10016450 W10016450 Whirlpool TRIM, TOP (BISCUIT)
WPW10016370 WPW10016370 Whirlpool TRIM, TOP (WHITE)
WP8523178 WP8523178 Whirlpool TRIM-DOOR
WP8523175 WP8523175 Whirlpool TRIM-DOOR
WP8523172 WP8523172 Whirlpool TRIM-DOOR
WP8272222 WP8272222 Whirlpool TUBING (BROILER FITTING TO VALVE)
8523402 8523402 Whirlpool TUBING (MANIFOLD TO REGULATOR)
8273698 8273698 Whirlpool TUBING, BURNER W/ORIFICE (LEFT REAR)
WP8273695 WP8273695 Whirlpool TUBING, BURNER W/ORIFICE (RIGHT FRONT)
WP8273697 WP8273697 Whirlpool TUBING, BURNER W/ORIFICE (RIGHT REAR)
WP8273693 WP8273693 Whirlpool TUBING-GAS
WP9757218 WP9757218 Whirlpool VALVE (LF - RF - LR)
WP8273004 WP8273004 Whirlpool VALVE (RIGHT REAR)
242828 242828 Whirlpool WIRE (12 GA. 150 C BLACK)
242821 242821 Whirlpool WIRE (14 GA. 150 C BLUE)
242822 242822 Whirlpool WIRE (14 GA. 150 C BROWN)
242823 242823 Whirlpool WIRE (14 GA. 150 C GREEN)
242824 242824 Whirlpool WIRE (14 GA. 150 C ORANGE)
242825 242825 Whirlpool WIRE (14 GA. 150 C RED)
8316784 8316784 Whirlpool WIRE (14 GA. 200 C BROWN)
242831 242831 Whirlpool WIRE (14 GA. 200 C RED)
