Model Image
Manufacturer

Whirlpool

Model Number

SF5340ERW6

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4157776 4157776 ARM, BOTTOM
4157777 4157777 ARM, TOP
4157754 4157754 BAFFLE, BOTTOM
66000-1 66000-1 BALLAST
4157805 4157805 BASE, FRONT
4157200 4157200 BASE, LIGHT
4157757 4157757 BOTTOM, BACKGUARD
4315363 4315363 BOTTOM, OVEN
WP786333 WP786333 BOWL-DRIP
4157178 4157178 BRACKET, CLOCK
4157772 4157772 BRACKET, HANDLE
4157129 4157129 BRACKET, RECEPTABLE
4157873 4157873 BRACKET, SPACER
4157862 4157862 BRACKET, SUPPORT
4157473 4157473 BRKT-SUPRT
8189794 8189794 BUMPER
4157756 4157756 BURNER BOX
4157205 4157205 BURNER, FRONT (2)
4363109 4363109 BURNER, GRIDDLE
Y07699200 Y07699200 BURNER, REAR (2)
8189506 8189506 BURNR-OVEN
4157770 4157770 CATCH
4157144 4157144 CLIP, BOTTOM (2)
4157146 4157146 CLIP, SIDE (2)
4157330 4157330 CLIP, SPEED (2)
98005642 98005642 CLIP, THERM BULB
4157145 4157145 CLIP, TOP
4157127 4157127 CLIP, WIRE (2) INSULATION
4157214 4157214 CLOCK
4363828 4363828 CONNECTOR
4157899 4157899 COOKTOP (ALMOND)
4157898 4157898 COOKTOP (WHITE)
4157783 4157783 COVER, GRIDDLE (ALMOND)
4157782 4157782 COVER, GRIDDLE (WHITE)
4157013 4157013 COVER, WIRE
4363152 4363152 CUP, GREASE
4157186 4157186 ENDCAP (L.H.)
4157187 4157187 ENDCAP (R.H.)
4157014 4157014 FLUE, BOX
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25`)
4157798 4157798 FRAME
4363352 4363352 FRAME, FRONT
4315089 4315089 FRAME, FRONT (COMPARTMENT)
4157148 4157148 GLASS
4157803 4157803 GLASS
4157196 4157196 GRATE (4)
8189700 8189700 GRATE-BRNR
4315094 4315094 GRID
4157790 4157790 GRIDDLE
LIT786302 LIT786302 GUIDE, COOKING
LIT786775 LIT786775 GUIDE, USE & CARE
4157794 4157794 HANDLE
4157040 4157040 HANDLE, DOOR
4157773 4157773 HINGE, BOTTOM
4157049 4157049 HINGE, DOOR (L.H.)
4157048 4157048 HINGE, DOOR (R.H.)
Y07489700 Y07489700 HINGE, OVEN DOOR
4157774 4157774 HINGE, TOP
WPY07491300 WPY07491300 IGNITOR, OVEN
Y07491203 Y07491203 IGNITOR- G
4157845 4157845 INSERT, GRIDDLE (ALMOND)
4157780 4157780 INSERT, GRIDDLE (WHITE)
LIT786738 LIT786738 INSTUCTIONS, INSTALLATION
WPW10208653 WPW10208653 INSULATION
4157033 4157033 INSULATION

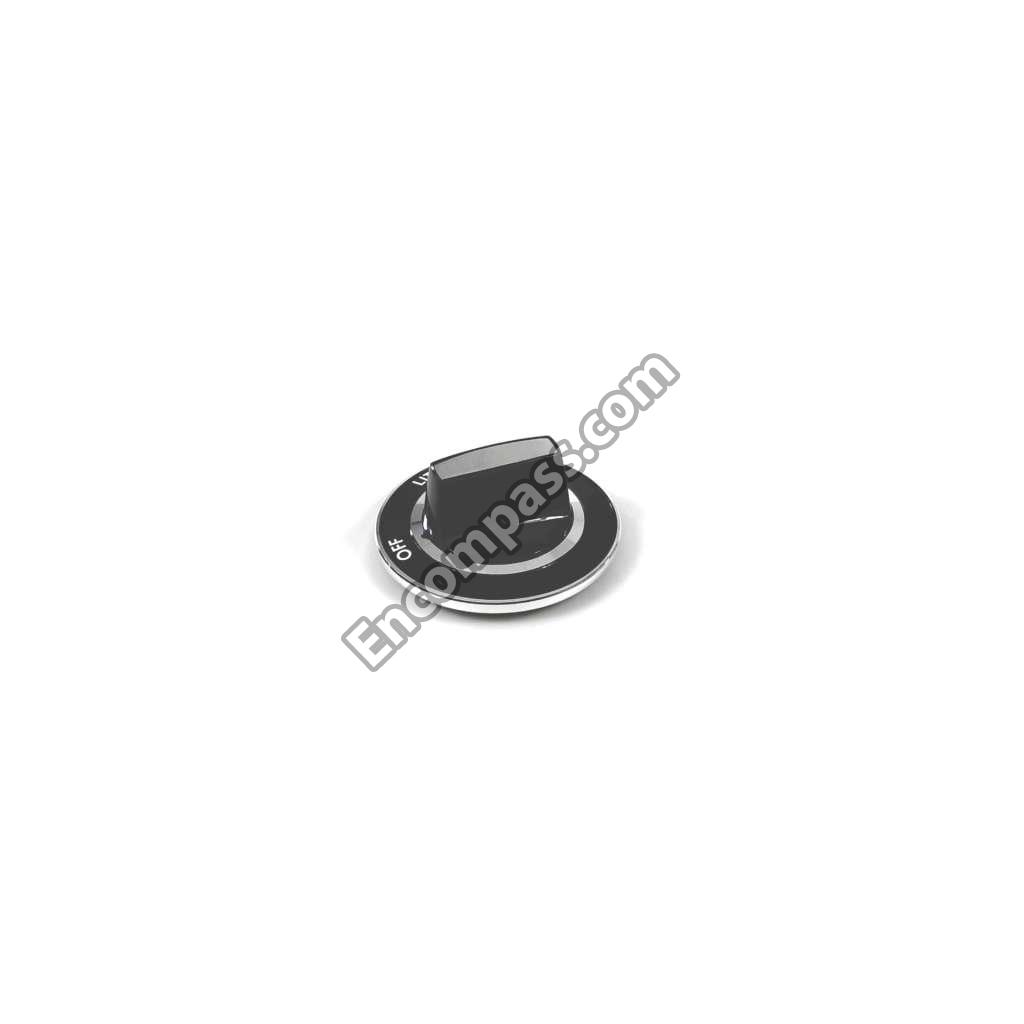

WP4179282 WP4179282 KNOB
786434 786434 KNOB, CLOCK (3)

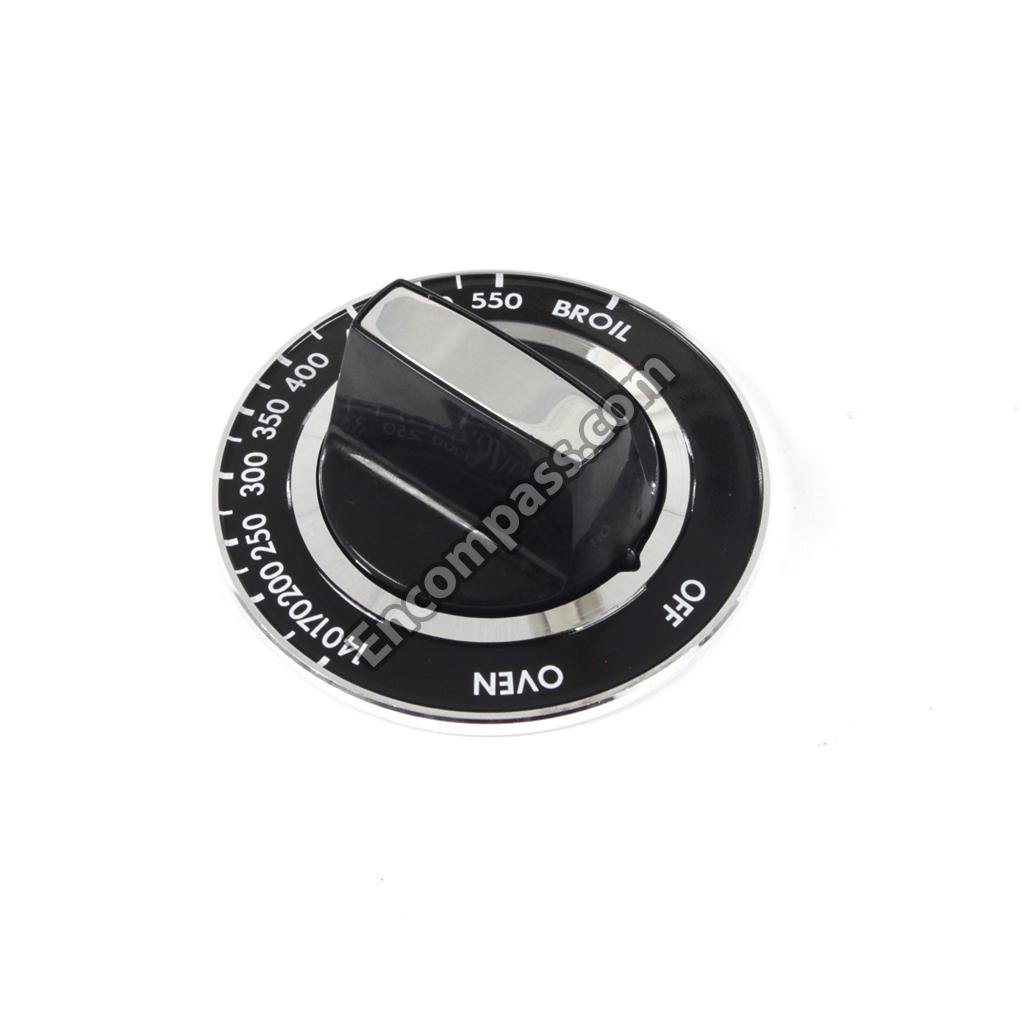

WPY07506601 WPY07506601 KNOB, THERMOSTAT
4363195 4363195 LEG, LEVELER (4)
8009 8009 LIGHT BULB
674590 674590 LIGHT, FLUORESCENT 33``
4315520 4315520 LINER, BROILER
4315091 4315091 LINER, BROILER DOOR
4315067 4315067 LINER, DOOR
4314847 4314847 LINER, DOOR
4315058 4315058 LINER, OVEN BACK
4315042 4315042 LINER, OVEN SIDE (2)
4315051 4315051 LINER, OVEN TOP
8189705 8189705 LINER-DOOR
LIT4315360 LIT4315360 LIST, REPAIR PARTS
4314887 4314887 MANIFOLD
4363454 4363454 MODULE, SPARK
486511 486511 NUT
W10080180 W10080180 NUT
4157332 4157332 NUT (4)
4157755 4157755 PANEL (COMPARTMENT)
4315267 4315267 PANEL, BROILER (ALMOND)
4315266 4315266 PANEL, BROILER (WHITE)
4157142 4157142 PANEL, DOOR (ALMOND)
4314846 4314846 PANEL, DOOR (ALMOND)
4157759 4157759 PANEL, DOOR (WHITE)
4314845 4314845 PANEL, DOOR (WHITE)
4314872 4314872 PANEL, MANIFOLD
4315349 4315349 PANEL, REAR
4157753 4157753 PANEL, REAR
4157130 4157130 PANEL, SIDE (2) (ALMOND)
4157000 4157000 PANEL, SIDE (2) (WHITE)
Y07697200 Y07697200 PILOT, OVEN BURNER (STANDING)
4157051 4157051 PIN, ROLLER (2)
4157009 4157009 PIN, ROLLER (2)
W10295523 W10295523 PIPE PLUG
4157053 4157053 PLATE (2)
4157171 4157171 PLATE, MODULE
WP9757891 WP9757891 POWER CORD
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
4157810 4157810 RACK, OVEN (2)
4363194 4363194 RAIL, BASE (2)
4157084 4157084 REGULATOR, PRESSURE
3370307 3370307 RELIEF, STRAIN
4157031 4157031 RING, HOLD DOWN
WP98392 WP98392 RING-E
4157797 4157797 ROD, SUPPORT
4157008 4157008 ROLLER (2)
4157050 4157050 ROLLER (4)
4157132 4157132 SAFE EDGE
W10491986 W10491986 SCREW
4157018 4157018 SCREW
487125 487125 SCREW
WP3387230 WP3387230 SCREW
4159300 4159300 SCREW
WP681414 WP681414 SCREW
WP308685 WP308685 SCREW
4157054 4157054 SCREW (2)
4332668 4332668 SCREW (FOR NO.18)
WPY07623603 WPY07623603 SCREW, 10-12 X 1/2 (3)
4157122 4157122 SCREW, 10-12 X 1/2 (4)
4157118 4157118 SCREW, 10-12 X 5/8 (2)
486146 486146 SCREW, 10-24 X 1/2
254217 254217 SCREW, 10A X 3/8 (2)
309051 309051 SCREW, 8A X 3/8 (2)
4157771 4157771 SHELF
4157876 4157876 SHIELD
4157877 4157877 SHIELD, HEAT
4157331 4157331 SHIELD, RADIATION
4157074 4157074 SHUTTER, AIR (4)
4157097 4157097 SHUTTER, BURNER
4157164 4157164 SOCKET, LIGHT (2)
4363758 4363758 SOCKT-LITE
241279 241279 SPACER
4157170 4157170 SPACER, LIGHT (4)
4157115 4157115 SPEED CLIP (4)
4363233 4363233 SPRING, DOOR (2)
92790 92790 STARTER
4157185 4157185 STRAIN RELIEF
4157133 4157133 STRAIN RELIEF
4157165 4157165 SUPPORT, BACKGUARD (LEFT HAND)
4157166 4157166 SUPPORT, BACKGUARD (RIGHT HAND)
4157807 4157807 SUPPORT, BURNER (L.H.)
4157808 4157808 SUPPORT, BURNER (R.H.)
4157806 4157806 SUPPORT, CENTER
4157788 4157788 SUPPORT, CENTER (L.H.)
4157787 4157787 SUPPORT, CENTER (R.H.)
4363397 4363397 SUPPORT, LINER
4157011 4157011 SUPPORT, MAIN (2)
4157088 4157088 SUPPORT, MANIFOLD (L.H.)
4179357 4179357 SUPPORT, MANIFOLD (R.H.)
4315382 4315382 SUPPORT, REAR (2)
4157775 4157775 SUPPORT, SHELF
WP4340895 WP4340895 SWITCH, OVEN LIGHT (2)
WP878009 WP878009 SWITCH, THERMOSTAT
4179354 4179354 THERMOSTAT (INCLUDES ILL. NO. 51)
4363800 4363800 TOP
4157007 4157007 TRACK, BROILER (2)
4157044 4157044 TRACK, UPPER (2)
4314888 4314888 TRIM, COOKTOP (2)
8189701 8189701 TUBING-GAS
4342530 4342530 TUBING-GAS
4179356 4179356 VALVE, 180~ (4) (INCLUDES ILL. NO. 52)
4157094 4157094 VALVE, SAFETY

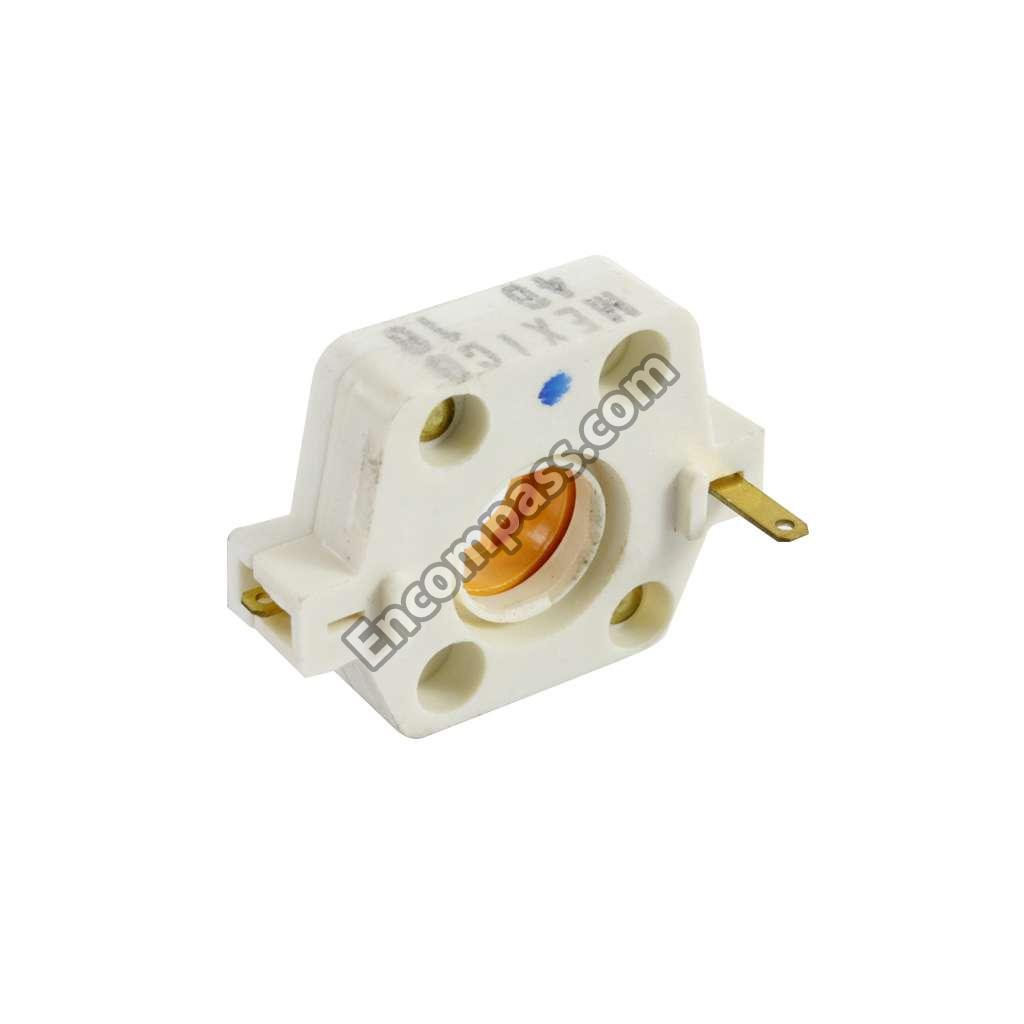

WP4157180 WP4157180 VALVE, SWITCH
Y07729700 Y07729700 WINDOW, OVEN DOOR (2) PANE
