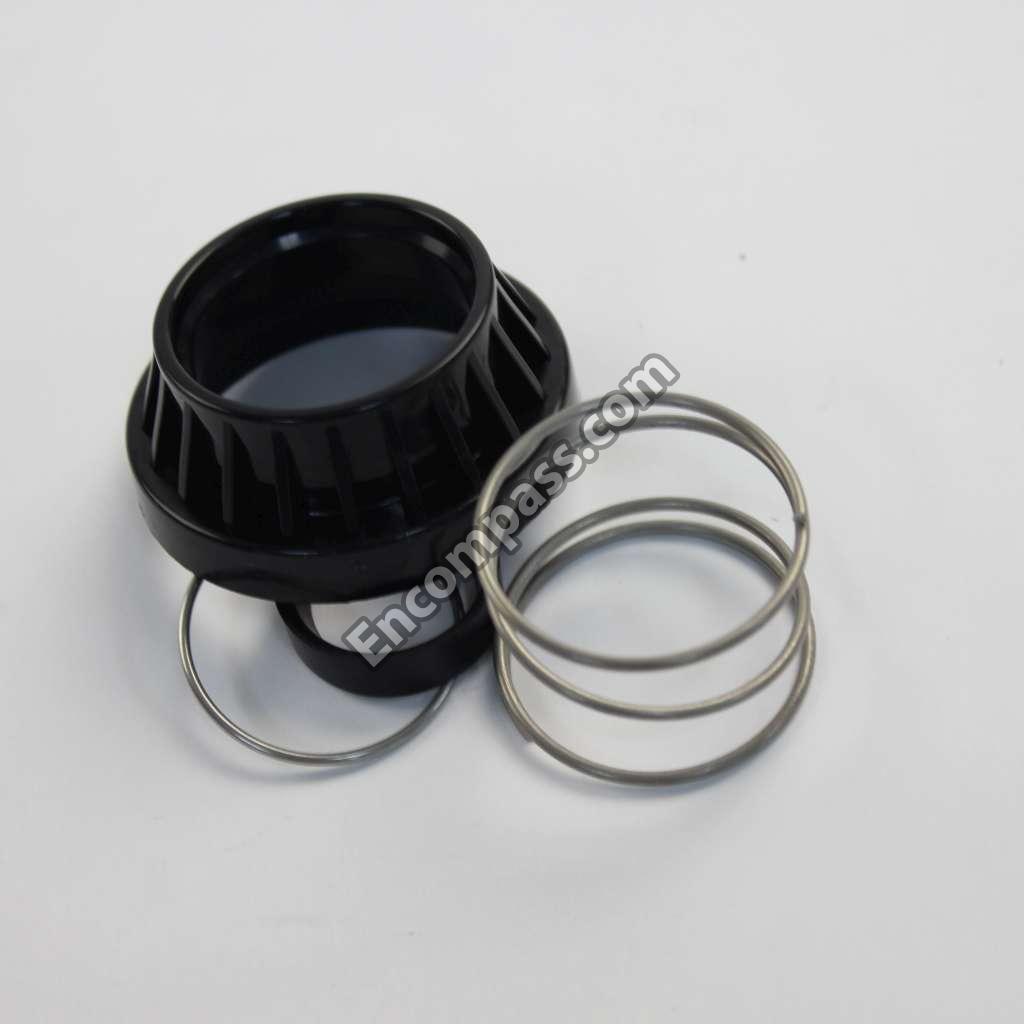

Model Image
Manufacturer

Whirlpool

Model Number

SHF5584P2

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
300109 300109 ACTUATOR
718646 718646 ACUTATOR ASSEMBLY
350083 350083 ADAPTER
WPW10254672 WPW10254672 ADAPTER
719930 719930 ADAPTER, HOSE
WP72107 WP72107 ALMOND
350956 350956 ALMOND
978833 978833 ALMOND (UNCUT)
WP304204 WP304204 ARM-SPRAY
719094 719094 BAR, TORSION (L.H.)
719093 719093 BAR, TORSION (R.H.)
303222 303222 BARRIER, CONSOLE
303223 303223 BARRIER, DOOR
303129 303129 BARRIER, PUSHBUTTON
3367203 3367203 BASE, PUMP
WP719576 WP719576 BEARING, NOZZLE
718629 718629 BLEEDER ASSEMBLY
715073 715073 BRACKET
300754 300754 BRACKET, CONTROL
719342 719342 BRACKET, OVERFLOW SWITCH
675531 675531 BUMPER
715779 715779 BUMPER (2)
719235 719235 BUMPER, RUBBER
300239 300239 BUTTON, RETAINER (3)
WP3367910 WP3367910 CAP
718577 718577 CAP
718576 718576 CAP, DRIP
302591 302591 CAP, END (L.H.)
302590 302590 CAP, END (R.H.)
WP3370639 WP3370639 CASTER
WP596669 WP596669 CLAMP
WP8269146 WP8269146 CLAMP
596553 596553 CLAMP, STRAIN RELIEF
301663 301663 CLIP, GASKET (2)
301857 301857 CLIP, WIRE
261886 261886 COFFEE
WP285170 WP285170 COLLAR KIT, FAUCET COUPLER
WP717253 WP717253 CONNECTOR
W10876590 W10876590 CONNECTOR
303012 303012 CONSOLE ASSEMBLY
4387043 4387043 COVER
301066 301066 COVER, HOUSING (2)
300084 300084 COVERPLATE
300996 300996 DIAL, INDICATOR
718595 718595 DIAPHRAGM, PIN ASSEMBLY
W10311986 W10311986 DISHRACK
W11169039 W11169039 DISHRACK
675551 675551 DISPENSER
303920 303920 DOOR DOOR LATCH
675628 675628 DOOR-INNER
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
304047 304047 EDGING, PANEL
WP300845 WP300845 END CAP, TRACK (4)
675447 675447 FIL&DRNHOS
302113 302113 FILTER AMBER
718035 718035 FLOAT
719581 719581 FOOT (2)
675659 675659 GASKET
713878 713878 GASKET
675582 675582 GASKET
719966 719966 GASKET, OVERFLOW
717000 717000 GASKET, PUMP
301662 301662 GASKET, STANDPIPE (2)
261890 261890 GOLDEN HARVEST
356592 356592 GROMMET
303069 303069 GUARD, SCREEN
302963 302963 GUIDE, USE & CARE
300086 300086 HANDLE, BASKET
302167 302167 HARNESS, WIRING
675489 675489 HEATER
WP304669 WP304669 HOSE, INLET
716234 716234 HOUSING, CORD
302028 302028 HOUSING, GEAR
302891 302891 HOUSING, HOSE
8193529 8193529 IMPELLER
300974 300974 INLET, WATER
303003 303003 INSERT
303027 303027 INSTRUCTIONS, INSTALLATION
301936 301936 KEY, PUMP HOUSING
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
302541 302541 KNOB, TIMER
719621 719621 LEG ASSEMBLY, L.H.
719622 719622 LEG ASSEMBLY, R.H.
206925 206925 LEVELER (THINNER) (2OZ.)
3367283 3367283 LEVER
300119 300119 LEVER, CATCH
675620 675620 LINER-DOOR
303334 303334 LIST, REPAIR PARTS
718829 718829 LOCKNUT (8)
301062 301062 MOTOR, TIMER
261888 261888 NEW AVOCADO
300232 300232 NLABAFFLE,REAR HEAT
98023 98023 NUT (4)
717488 717488 NUT, .125
718575 718575 NUT, 1-14
718537 718537 NUT, 7/16-20 (2)
713799 713799 NUT, 7/8-16
717337 717337 NUT, J-TYPE
303080 303080 NUT, TWIN SPRING
302595 302595 OVERLAY, PANEL
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
72109 72109 PAINT, TOUCH-UP 1/2 OZ. (AVOCADO)
72108 72108 PAINT, TOUCH-UP 1/2 OZ. (COFFEE)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (GOLDEN HARVEST)
100000 100000 PANEL, FRONT
302182 302182 PANEL, TOP
300234 300234 PIN, PIVOT
718596 718596 PLATE
719091 719091 PLATE, COVER
353424 353424 PLUG, TERMINAL (3 WAY) (CONNECTS TO POWER CORD)
675014 675014 POWER CORD
675688A 675688A PUMP & MOTOR
718222 718222 PUMP HOUSING, LOWER
3367439 3367439 PUMP HOUSING, UPPER
301859 301859 PUMP MOTOR
675699 675699 PUSHBUTTON
719585 719585 RECEPTACLE (5-CIRCUIT)
717252 717252 RECEPTACLE, TERMINAL (2-WAY)
691707 691707 RECEPTACLE, TERMINAL (3-WAY)
301536 301536 RELAY, START (ALTERNATE)
300104 300104 RETAINER
3367736 3367736 RETAINER (2)
3367720 3367720 RETAINER, CLIP
WP716401 WP716401 RETAINER, SPRING (2)
300844 300844 ROLLER, RACK TRACK
718226 718226 SCREEN, SUMP
300246 300246 SCREEN, VENT
WP9741232 WP9741232 SCREW
WP308685 WP308685 SCREW
WP488163 WP488163 SCREW
WP98165 WP98165 SCREW
WP488729 WP488729 SCREW
WP488787 WP488787 SCREW
WP489128 WP489128 SCREW
W10759522 W10759522 SCREW
W11693756 W11693756 SCREW
WP488627 WP488627 SCREW
WP356418 WP356418 SCREW
WP487353 WP487353 SCREW
343826 343826 SCREW (2)
303090 303090 SCREW (2)
718326 718326 SCREW, 10-32 X .75
301817 301817 SCREW, 13-16 (4)
98086 98086 SCREW, 4-40 X 3/4
301582 301582 SCREW, 6-32 X 1
WP90767 WP90767 SCREW, 8 A X 3/8
302251 302251 SCREW, 8 X 1/2 (6)
718250 718250 SCREW, 8 X 1/2 HI-LO BLUNT POINT (2)
718257 718257 SCREW, 8-18 X 1.38
303220 303220 SCREW, 8-18 X 3/8 (2)
719266 719266 SCREW, 8-18 X 5/8
712499 712499 SCREW, SHOULDER (8)
711696 711696 SEAL
WP300105 WP300105 SEAL, LEVER
718259 718259 SEAL, RING
302898 302898 SHELL ASSEMBLY (ALMOND)
302899 302899 SHELL ASSEMBLY (COFFEE)
302901 302901 SHELL ASSEMBLY (GOLDEN HARVEST)
302900 302900 SHELL ASSEMBLY (NEW AVOCADO)
302897 302897 SHELL ASSEMBLY (WHITE)
303362 303362 SHIELD, HARNESS
712302 712302 SHIM
304779 304779 SILVERWARE BASKET
718924 718924 SLEEVE
W10909679 W10909679 SLINGER
300450 300450 SOCKET, CASTER (2)
301619 301619 SPACER
301957 301957 SPACER, PANEL
302866 302866 SPACER, TIMER
350930 350930 SPRAY (13 OZ.) (WHITE)
302767 302767 SPRAY ARM, LEVER
675611 675611 SPRING
WP8066018 WP8066018 SPRING
718592 718592 SPRING, CONICAL
675485 675485 STANDPIPE
300233 300233 STRIKE
3367202 3367202 SUPPORT, DOOR (L.H.)
3367201 3367201 SUPPORT, DOOR (R.H.)
718260 718260 SUPPORT, PUMP (4)
675484 675484 SUPPRT-HTR
303075 303075 SWITCH, INTERLOCK (ALTERNATE)
301671 301671 SWITCH, PRESSURE
301672 301672 SWITCH, PRESSURE (ALTERNATE)
302076 302076 SWITCH, PUSHBUTTON
303204 303204 TAG, ENERGY FACT
WP596797 WP596797 TERMINAL
WP94614 WP94614 TERMINAL, FEMALE
WP352088 WP352088 TERMINAL, FEMALE (DISCONNECT BLACK)
303282 303282 THERMOSTAT (ALTERNATE)
799351 799351 THINNER (1 GAL.)
WPW10144763 WPW10144763 TIE-WIRE
302846 302846 TIMER, DISCONNECT
719513 719513 TOEPLATE ASSEMBLY (INCLUDES ILLUS. 43)
WP304170 WP304170 TOWER
300846 300846 TRACK (2)
717528 717528 TRIM, BASKET
301624 301624 TRIM, CONSOLE
302594 302594 TRIM, DOOR (L.H.)
302593 302593 TRIM, DOOR (R.H.)
302250 302250 TRIM, FRONT
675630 675630 TUB-DISHWR
675635 675635 VALVE
66151-1 66151-1 VALVE, WATER INLET
713080 713080 WASHER
675274 675274 WASHER
487596 487596 WASHER
711284 711284 WASHER (2)
300237 300237 WASHER (2)
718750 718750 WASHER (8)
717624 717624 WASHER (8)
718817 718817 WASHER, CUP (8)
WP16123 WP16123 WASHER, INLET HOSE (1-1/16 X 5/8)(4)
717289 717289 WASHER, RETAINER (2)
WP717273 WP717273 WASHER, RUBBER
304200 304200 WHEEL & GEAR ASSEMBLY (4)
4317933 4317933 WHEEL-4PAK
302026 302026 WORM, ADJUSTABLE
261887 261887 XCOFFEE (UNCUT)
261891 261891 XGOLDEN HARVEST (UNCUT)
261889 261889 XNEW AVOCADO (UNCUT)
WP357574 WP357574 ``O`` RING
