Model Image
Manufacturer

Whirlpool

Model Number

SVD48600PK

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
2818F001-80 2818F001-80 ADAPTER, RESTRICTOR RING
74005028 74005028 BACK, MAIN
3415F003-51 3415F003-51 BAND, MOTOR
71002978 71002978 BEZEL, KNOB
71001852 71001852 BLADE FAN
WP8203546 WP8203546 BLOCK-TERM

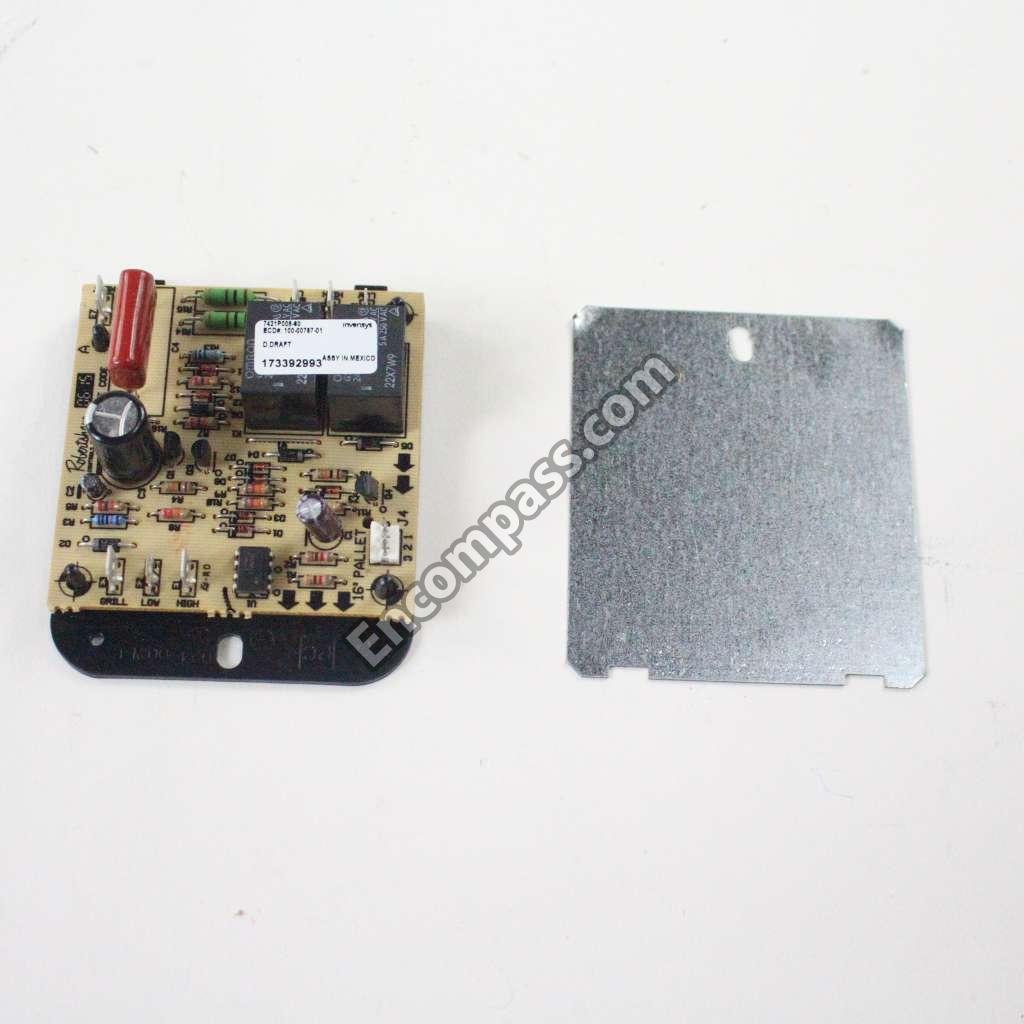

12001694 12001694 BOARD, RELAY (DOWNDRAFT)
WP3801F403-80 WP3801F403-80 BRACKET
Y04100845 Y04100845 BRACKET S
71003349 71003349 BRACKET, CONTROL PANEL (LT)
71003348 71003348 BRACKET, CONTROL PANEL (RT)
71002169 71002169 BRACKET, DRAIN TUBE
71002960 71002960 BRACKET, ELECTRIC MTG
71002993 71002993 BRACKET, GLASS
71002798 71002798 BRACKET, GLASS
WPY705344 WPY705344 BRACKET- A
WP3801F631-51 WP3801F631-51 BRKT-MNTG
71003233 71003233 BUMPER, OVEN DOOR
74005189 74005189 BURNER (REAR-BLK)
Y712601 Y712601 BURNR-GRIL
WP7505P283-60 WP7505P283-60 BURNR-TOP
WP9781049 WP9781049 CAMERA LENS-LIGHT
71002796 71002796 CLAMP, GLASS
Y702331 Y702331 CLAMP, HOSE
71001170 71001170 CLIP, OVEN
71002074 71002074 CLIP, SIDE TRIM
71002959 71002959 CLOCK W/OVERLAY

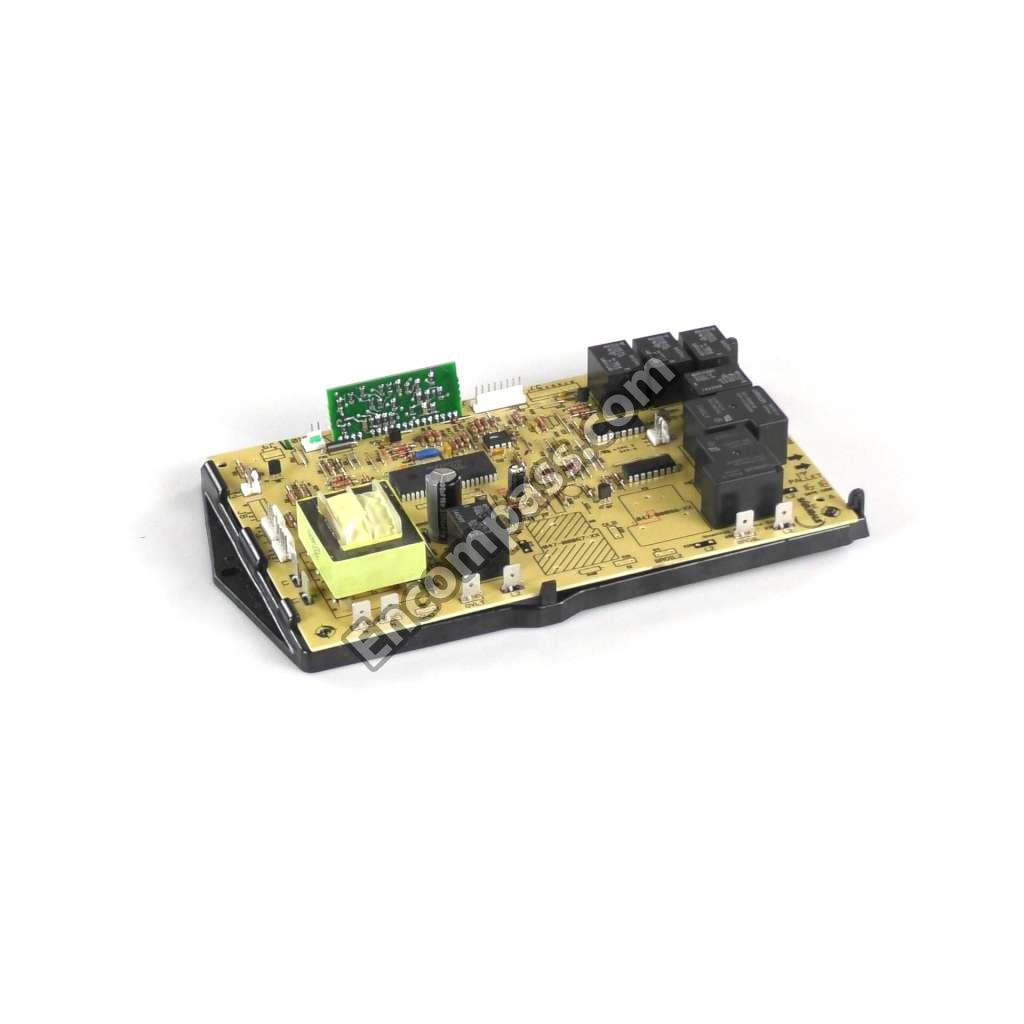

W10757086 W10757086 CONTROL BOARD
WP71001858 WP71001858 CONVECTION MTR ASSEMBLY
71002112 71002112 CORD, POWER (D/DRAFT MOTOR)
Y702475 Y702475 COVER VEN
74002380 74002380 COVER, HOLE
71002065 71002065 COVER, MAIN BACK
71002660 71002660 COVER, RELAY
W10840495 W10840495 COVER-MTR
WP71002106 WP71002106 DOOR LATCH, BASE DOOR
WP71001845 WP71001845 DOOR LATCH, DOOR ASSEMBLY.
WPY702326 WPY702326 DUCT, FLEXIBLE

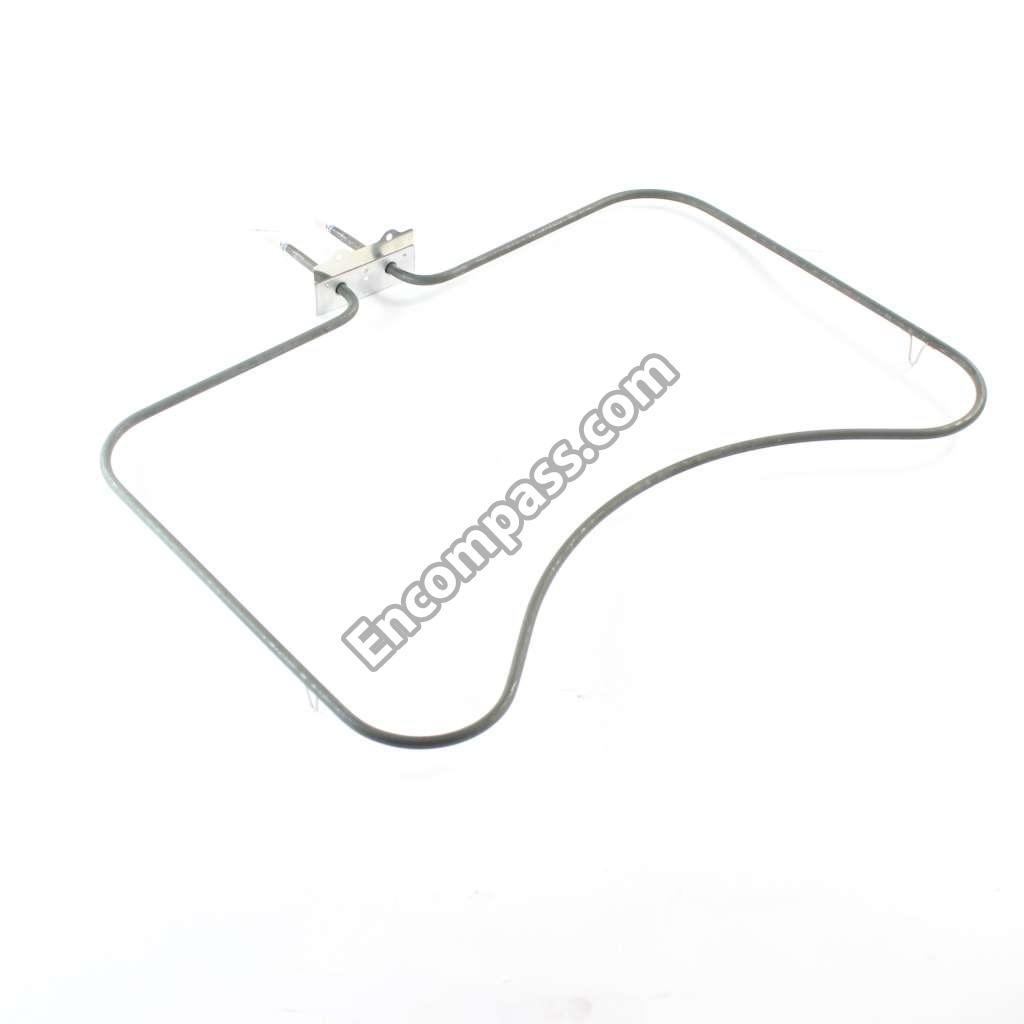

WP71001680 WP71001680 ELEMENT- B
WPW10310260 WPW10310260 ELMNT-BROL
Y700556 Y700556 F*CLIP J
WP74004947 WP74004947 FAN MOTOR
WP71002111 WP71002111 FILTER- GR
71003011 71003011 FITTING- G
71003087 71003087 FRAME, OVEN
715957K 715957K GASKET
74009648 74009648 GLASS DOOR
71002801 71002801 GLASS, INNER
71002800 71002800 GLASS, OUTER
12001481 12001481 GRATE
WP71003089 WP71003089 GRATE
71003267 71003267 GRATE, GRILL
12001178 12001178 GRATE, GRILL (2)
71002063 71002063 GRILL, AIR (BLK)
71002105 71002105 GROMMET, BASE DOOR
71002114 71002114 GUARD, WIRE
71002961 71002961 GUARD, WIRE (RT)
16000326 16000326 GUIDE, QUICK REF - JENN-AIR
71002985 71002985 HANDLE, OVEN DOOR
71002200 71002200 HARNESS, CONTROL
71002117 71002117 HARNESS, CONVECT
71002051 71002051 HARNESS, COOLING FAN
71002201 71002201 HARNESS, DOOR LOCK
71002052 71002052 HARNESS, DOWN DRAFT (J4)
71002974 71002974 HARNESS, HI LIMIT (DDRAFT)
71003030 71003030 HARNESS, HI-LIMIT
71002975 71002975 HARNESS, MAIN
71002204 71002204 HARNESS, RELAY BOARD
71002994 71002994 HEATSINK
71002963 71002963 HEATSINK

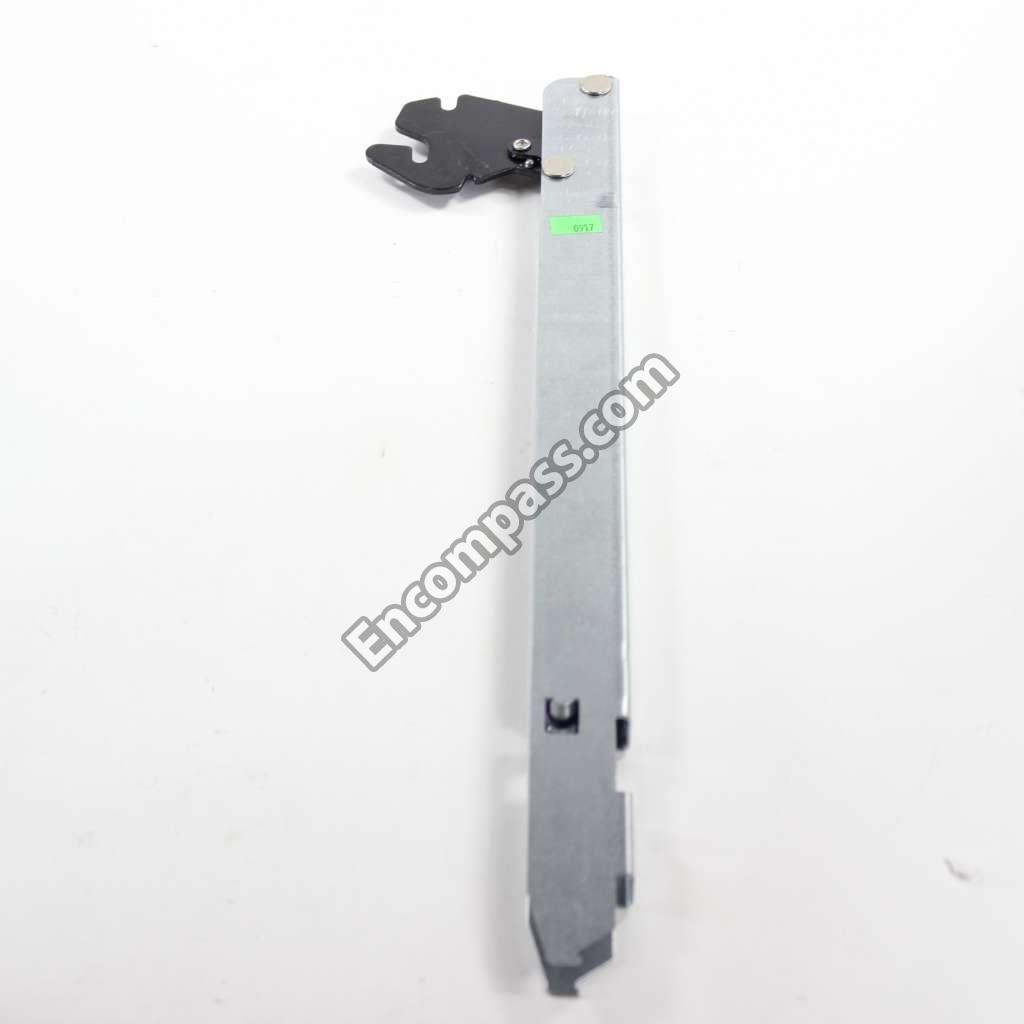

WP71003353 WP71003353 HINGE- DOO
WP71002179 WP71002179 IGNTR-SURF
04100738 04100738 INSERT, DOOR
71001820 71001820 INSULATION (TOP-BTM)
74008278 74008278 INSULATION (WRAP)
71002073 71002073 INSULATION, BACK
71002799 71002799 INSULATION, DOOR
71001838 71001838 INSULATION, DOOR (BTM)
71001839 71001839 INSULATION, DOOR (SIDE)
71002173 71002173 INSULATION, DRAIN TUBE
Y704534 Y704534 INSULATOR
WP71003558 WP71003558 ISOLATOR-
WPY707869 WPY707869 JAR- DRAIN
WP71001057 WP71001057 KNOB- VALV
Y04100573 Y04100573 LEVELER- L
8009 8009 LIGHT BULB
WP74011278 WP74011278 LIGHT- OVE
71002964 71002964 LINER, DOOR
WPY707702 WPY707702 LOCKNUT
704568 704568 LOCKWASHER
71002977 71002977 MANUAL, USE & CARE
1430322 1430322 MODULE-SPK
WPW10201322 WPW10201322 MOTOR-BLWR
71001894 71001894 NAMEPLATE (J/A)
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE
Y052721 Y052721 NUT
WPY703856 WPY703856 NUT
707161 707161 NUT
M0282005 M0282005 NUT K
702748 702748 NUT, DRAIN TUBE
7103P159-60 7103P159-60 NUT-RETAIN
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
71001165 71001165 OVEN WELD ASSEMBLY.
3401F014-19 3401F014-19 PAN, BROIL
3401X055-09 3401X055-09 PAN-MODULE
3401F033-19 3401F033-19 PAN-MODULE
WP3401F034-19 WP3401F034-19 PAN-MODULE
71002068 71002068 PANEL (SIDE-TOP-SIDE)
71002066 71002066 PANEL, ACCESS
71002071 71002071 PANEL, BOTTOM
71002957 71002957 PANEL, CONTROL (STLS)
71002988 71002988 PANEL, DOOR (COPPER)
71002102 71002102 PANEL, KICK (SIDE/BLK)
71003321 71003321 PANEL, SIDE (LT)
71003322 71003322 PANEL, SIDE (RT)
71001764 71001764 PIN, LOCATOR
71002962 71002962 PIPE, MANIFOLD
71001854 71001854 PLATE, CONVECTION (FRT)
71001831 71001831 PLATE, DOOR LATCH
71002072 71002072 PLATE, HINGE COVER
71002077 71002077 PLATE, HINGE RETAINER
71002110 71002110 PLENUM (LWR)
71003033 71003033 PLENUM UP
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
WPW10282527 WPW10282527 RACK-OVEN
71002076 71002076 RAIL, BOTTOM
71001866 71001866 RECEPTACLE, BULB
WP71002206 WP71002206 RECEPTACLE, HINGE
Y04100249 Y04100249 REGULATOR-
8038P003-60 8038P003-60 RETAINER
74005648 74005648 RETAINER, INSULATION
4026F008-51 4026F008-51 RING
4026F009-51 4026F009-51 RING
702380 702380 SCREW
WPW10296816 WPW10296816 SCREW
WP488234 WP488234 SCREW
WP90767 WP90767 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP74003976 WP74003976 SCREW
W11233072 W11233072 SCREW
WP4381696 WP4381696 SCREW
707407 707407 SCREW
WP355214 WP355214 SCREW
W10777874 W10777874 SCROLL, BLOWER ASSEMBLY.
WP71001841 WP71001841 SEAL- DOOR
71002797 71002797 SHIELD, HEAT
WP3604M302-51 WP3604M302-51 SHIELD-HT
71002171 71002171 SPRING, DRAIN JAR
12001809 12001809 SPUD-ORFCE
7809P030-60 7809P030-60 STOP, FILTER
71002043 71002043 SUPPORT, CONTROL PANEL
71002992 71002992 SUPPORT, GLASS BRACKET
WP71002904 WP71002904 SWITCH, DOOR LIGHT
71001129 71001129 SWITCH, DOOR LOCK
7403P620-60 7403P620-60 SWITCH, MICRO
71002322 71002322 SWITCH, VALVE (LT)
71002330 71002330 SWITCH, VALVE (RT)
WP31986601B WP31986601B SWITCH- RO
WP3147265 WP3147265 SWTCH-RCKR
WP7403P899-60 WP7403P899-60 SWTCH-SFTY
71002170 71002170 TOP, DRAIN JAR
71002062 71002062 TOP, MAIN (STNLS)
71002080 71002080 TRIM, DOOR (LWR-BLK)
71002078 71002078 TRIM, SIDE
71002315 71002315 TUBE, BURNER (LF)
71002314 71002314 TUBE, BURNER (LR)
71002317 71002317 TUBE, BURNER (RF)
71002316 71002316 TUBE, BURNER (RR)
71002642 71002642 TUBE, DRAIN
71002320 71002320 TUBE, MANIFOLD SUPPLY
71002324 71002324 TUBE, SUPPLY
71002079 71002079 TUBE, VENT
71002115 71002115 TUBE, VENT
71002323 71002323 VALVE (LT)
71002321 71002321 VALVE (RT)
715617 715617 WASHER (TEFLON)
71001403 71001403 WASHER, ALUM
702747 702747 WASHER, TEFLON
71001855 71001855 WHEEL, CONVECT ASSEMBLY.
WPY707985 WPY707985 WHEEL-FAN
702643 702643 WIRE, GROUND
15002215 15002215 WIRING INFORMATION
