Model Image
Manufacturer

Whirlpool

Model Number

SVE47600BC

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
2818F001-80 2818F001-80 ADAPTER, RESTRICTOR RING
74005028 74005028 BACK, MAIN
3415F003-51 3415F003-51 BAND, MOTOR
71001852 71001852 BLADE FAN
WPY708730 WPY708730 BLOCK- TER
WP8203546 WP8203546 BLOCK-TERM
12001694 12001694 BOARD, RELAY (DOWNDRAFT)
12001898 12001898 BRACKET
71002169 71002169 BRACKET, DRAIN TUBE
71002960 71002960 BRACKET, ELECTRIC MTG
71002046 71002046 BRACKET, LOCK LIGHT
71002086 71002086 BRACKET, TOP TRIM
WPY705344 WPY705344 BRACKET- A
WP3801F631-51 WP3801F631-51 BRKT-MNTG
71003233 71003233 BUMPER, OVEN DOOR
WP9781049 WP9781049 CAMERA LENS-LIGHT
Y702331 Y702331 CLAMP, HOSE
74004835 74004835 CLIP
71001170 71001170 CLIP, OVEN
71002074 71002074 CLIP, SIDE TRIM
Y700450 Y700450 CLIP- SHUN
5708M013-60 5708M013-60 CONTACT/WIRE ASSEMBLY. (BRN)
74005845 74005845 CONTACT/WIRE ASSEMBLY. (VLT)

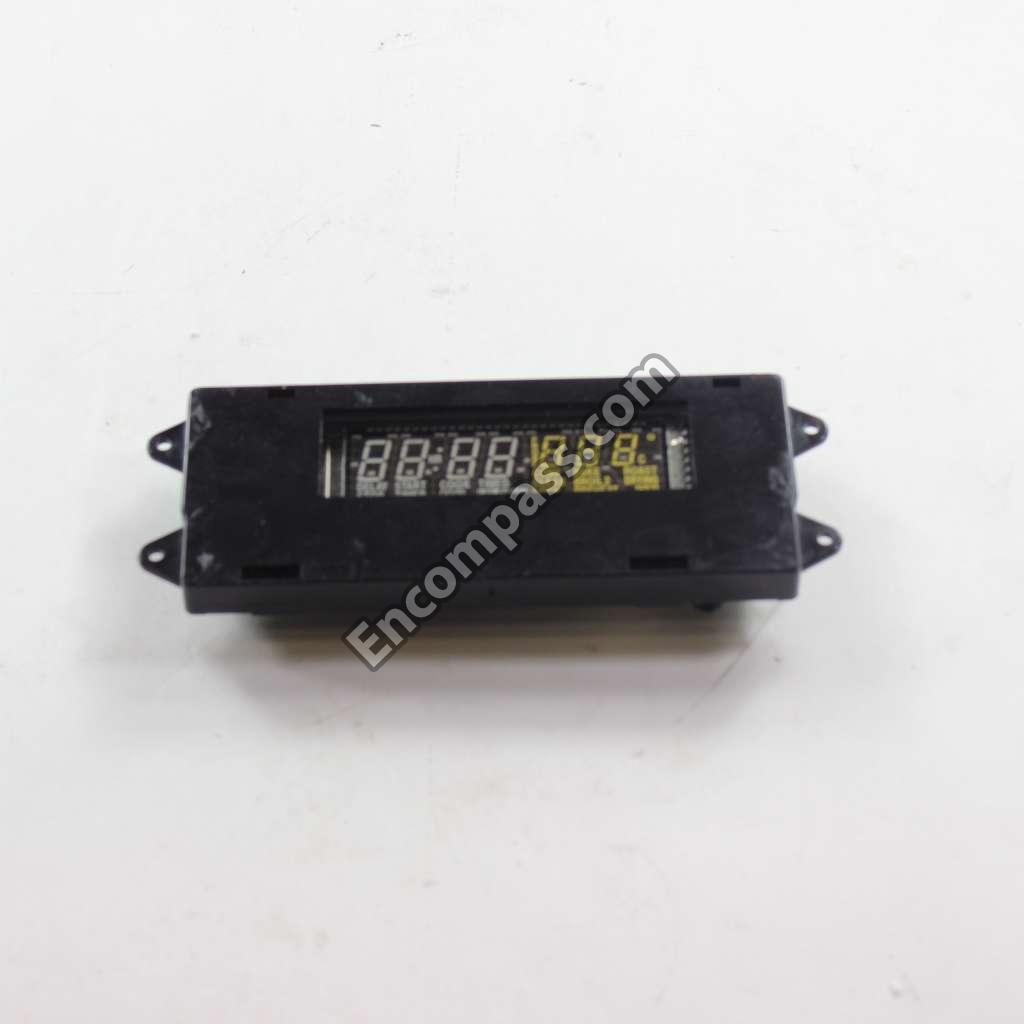

WP71001799 WP71001799 CONTROL BOARD
12001693 12001693 CONTROL BOARD
WP71001858 WP71001858 CONVECTION MTR ASSEMBLY
702751 702751 CORD, POWER
71002112 71002112 CORD, POWER (D/DRAFT MOTOR)
Y702475 Y702475 COVER VEN
74002380 74002380 COVER, HOLE
71002065 71002065 COVER, MAIN BACK
71002456 71002456 COVER, MAIN BACK
704428 704428 COVER, RECEPTACLE
W10840495 W10840495 COVER-MTR
12001523 12001523 DOOR HANDL
WP71002106 WP71002106 DOOR LATCH, BASE DOOR
WP71001845 WP71001845 DOOR LATCH, DOOR ASSEMBLY.
71002402 71002402 DRAIN CLEANOUT ASSEMBLY.
WPY702326 WPY702326 DUCT, FLEXIBLE
WP5700M426-60 WP5700M426-60 ELEMENT
WP71001680 WP71001680 ELEMENT- B
WPW10310260 WPW10310260 ELMNT-BROL
71002037 71002037 END CAP (LT-BLK)
71003014 71003014 END CAP (LT-BLK)
71002036 71002036 END CAP (RT-BLK)
71003015 71003015 END CAP (RT-BLK)
71002209 71002209 EXTRUSION, KICK PANEL (BLK)
Y700556 Y700556 F*CLIP J
WP74004947 WP74004947 FAN MOTOR
WP71002111 WP71002111 FILTER- GR
71002093 71002093 FRAME, BASE DOOR (BLK)
71003087 71003087 FRAME, OVEN
715957K 715957K GASKET
74009648 74009648 GLASS DOOR
71002088 71002088 GLASS, DOOR (BLK)
WP7518P054-60 WP7518P054-60 GRATE, GRILL (EXCALIBUR)
71002063 71002063 GRILL, AIR (BLK)
71002105 71002105 GROMMET, BASE DOOR
71002114 71002114 GUARD, WIRE
71002208 71002208 GUARD, WIRE (RT)
703648 703648 HARNESS, BACKSPLASH
71002117 71002117 HARNESS, CONVECT
71002051 71002051 HARNESS, COOLING FAN
71003181 71003181 HARNESS, DOOR LOCK
71002052 71002052 HARNESS, DOWN DRAFT (J4)
71002450 71002450 HARNESS, HI-LIMIT
71002455 71002455 HARNESS, INFINITE
71002054 71002054 HARNESS, INFINITE
71003182 71003182 HARNESS, OVEN LAMP
71002053 71002053 HARNESS, OVEN SENSOR (J10)
71002049 71002049 HARNESS, SUPPLY (J1)
71003232 71003232 HARNESS- C
WP71003351 WP71003351 HINGE, DOOR
W11120791 W11120791 INFINITE CONTROL SWITCH
WP3413F018-19 WP3413F018-19 INSERT
71002227 71002227 INSULATION (TOP-BACK)
74008278 74008278 INSULATION (WRAP)
71002073 71002073 INSULATION, BACK
71001838 71001838 INSULATION, DOOR (BTM)
71001839 71001839 INSULATION, DOOR (SIDE)
71002173 71002173 INSULATION, DRAIN TUBE
Y700449 Y700449 INSULATOR
WP71003558 WP71003558 ISOLATOR-
WPY707869 WPY707869 JAR- DRAIN
71002711 71002711 KNOB, SWITCH (BLK)
71002056 71002056 KNOB, SWITCH (BLK)
Y04100573 Y04100573 LEVELER- L
8009 8009 LIGHT BULB
71001301 71001301 LIGHT, LOCK
71002964 71002964 LINER, DOOR
WPY707702 WPY707702 LOCKNUT
16010191 16010191 MANUAL, SERVICE
71002618 71002618 MANUAL, USE & CARE
WPW10201322 WPW10201322 MOTOR-BLWR
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE
707161 707161 NUT
M0282005 M0282005 NUT K
702748 702748 NUT, DRAIN TUBE
Y708862 Y708862 NUT- SPEED
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
71003005 71003005 OVEN WELD
71001165 71001165 OVEN WELD ASSEMBLY.
WP3401F075-19 WP3401F075-19 PAN, BROIL
701955 701955 PAN, GRILL (LT)
Y701956 Y701956 PAN, GRILL (RT)
71002068 71002068 PANEL (SIDE-TOP-SIDE)
71002066 71002066 PANEL, ACCESS
71002071 71002071 PANEL, BOTTOM
71002095 71002095 PANEL, FRONT (BLK)
71002098 71002098 PANEL, KICK (BLK)
71002102 71002102 PANEL, KICK (SIDE/BLK)
71003321 71003321 PANEL, SIDE (LT)
71003322 71003322 PANEL, SIDE (RT)
12001520 12001520 PIN-COOKTP
71001854 71001854 PLATE, CONVECTION (FRT)
71001831 71001831 PLATE, DOOR LATCH
71002072 71002072 PLATE, HINGE COVER
71002077 71002077 PLATE, HINGE RETAINER
74011338 74011338 PLATE, ROCK
71002110 71002110 PLENUM (LWR)
71003033 71003033 PLENUM UP
4396923 4396923 PROCELAIN BROILER (PAN AND GRID)
WPW10282527 WPW10282527 RACK-OVEN
71002076 71002076 RAIL, BOTTOM
WPY702434 WPY702434 RECEPTACLE
71001866 71001866 RECEPTACLE, BULB
WP71002206 WP71002206 RECEPTACLE, HINGE ASSEMBLY.
8038P003-60 8038P003-60 RETAINER
74005648 74005648 RETAINER, INSULATION
4026F008-51 4026F008-51 RING
4026F009-51 4026F009-51 RING
WP489128 WP489128 SCREW
WP74003976 WP74003976 SCREW
WP7101P434-60 WP7101P434-60 SCREW
71002545 71002545 SCREW
71002058 71002058 SCREW
WPY706189 WPY706189 SCREW
WP12990527 WP12990527 SCREW
WP67006908 WP67006908 SCREW
W11233072 W11233072 SCREW
WP4381696 WP4381696 SCREW
707407 707407 SCREW
WP90767 WP90767 SCREW
W10777874 W10777874 SCROLL, BLOWER ASSEMBLY.
WP71001841 WP71001841 SEAL- DOOR
WP3604M302-51 WP3604M302-51 SHIELD-HT
Y708572 Y708572 SPADE- CON
71002171 71002171 SPRING, DRAIN JAR
7809P030-60 7809P030-60 STOP, FILTER
WP71002097 WP71002097 STRIKER- D
71002043 71002043 SUPPORT, CONTROL PANEL
700819 700819 SUPPORT, ROCK PLATE
WP71002904 WP71002904 SWITCH, DOOR LIGHT
71001129 71001129 SWITCH, DOOR LOCK
WP71002033 WP71002033 SWITCH- ME
WP7403P899-60 WP7403P899-60 SWTCH-SFTY
704827K 704827K TAPE, DBL. SIDED
71002091 71002091 TAPE, DBL. SIDED (BLK)
71002170 71002170 TOP, DRAIN JAR
71002061 71002061 TOP, MAIN (BLK)

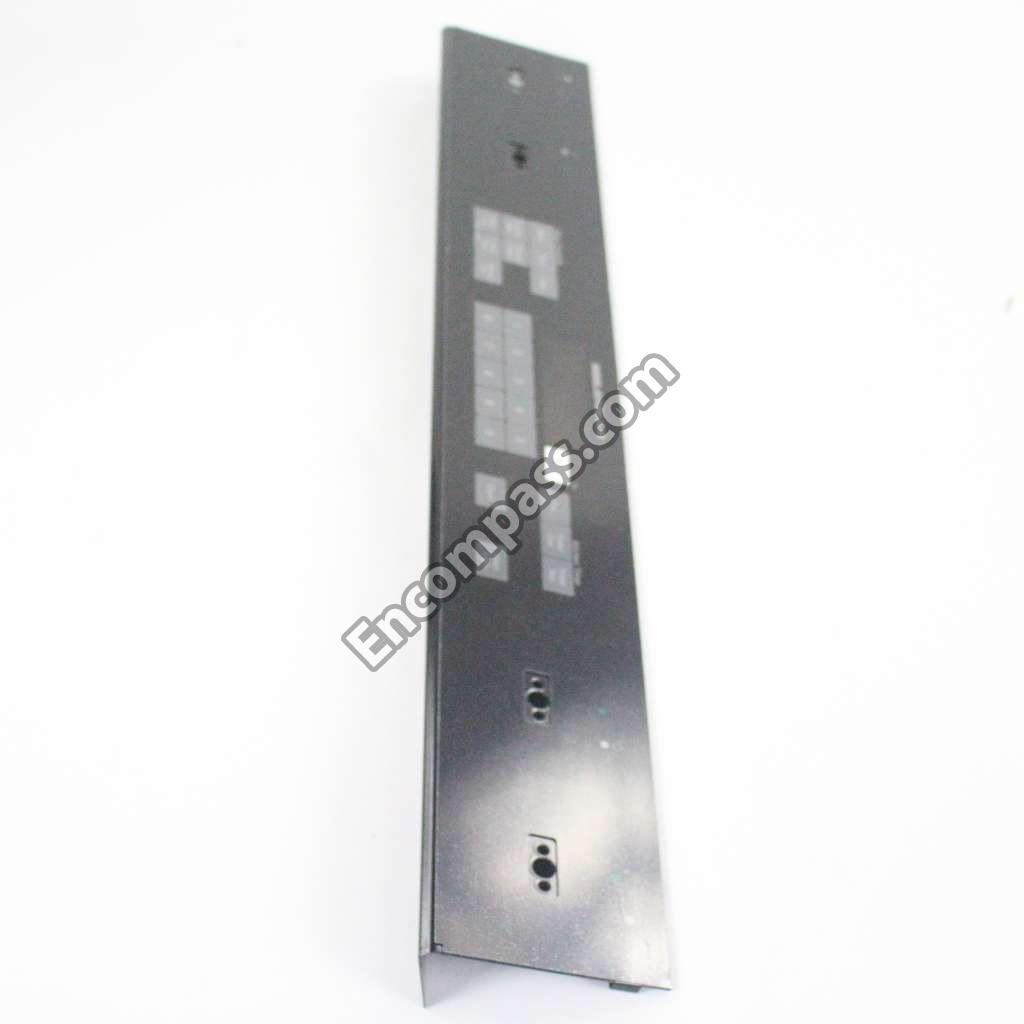

71003016 71003016 TRIM, CONTROL PANEL (BLK)
71002044 71002044 TRIM, CONTROL PANEL (BLK)
71002080 71002080 TRIM, DOOR (LWR-BLK)
71002082 71002082 TRIM, DOOR (SIDE-BLK)
71002084 71002084 TRIM, DOOR (TOP-BLK)
71002078 71002078 TRIM, SIDE
71002642 71002642 TUBE, DRAIN
71002079 71002079 TUBE, VENT
71002115 71002115 TUBE, VENT
Y707664 Y707664 WASHER
71001403 71001403 WASHER, ALUM
702747 702747 WASHER, TEFLON
71001855 71001855 WHEEL, CONVECT ASSEMBLY.
WPY707985 WPY707985 WHEEL-FAN
12001506 12001506 WIRE HARNE
WP5708M007-60 WP5708M007-60 WIRE HARNESS
5708M053-60 5708M053-60 WIRE HARNESS
702643 702643 WIRE, GROUND
15002165 15002165 WIRING INFORMATION
15001883 15001883 WIRING INFORMATION
