Model Image
Manufacturer

Whirlpool

Model Number

TC20QW

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
D7759002 D7759002 ASSY, HEAT EXCH.
12452602Q 12452602Q ASSY, ROLLER BRACKET
12460016 12460016 ASSY,EGG BKT W/ LID
65886-1 65886-1 BALE STRAP
D7859503 D7859503 BAND M.K. CONTROL
D7859604 D7859604 BAND M.K. CONTROL
C8976301 C8976301 BARRIER
C8932201 C8932201 BARRIER LT-SW K
D7595411 D7595411 BASE PAN - PTD
C8927801 C8927801 BLADE, EVAP FAN
B5742603 B5742603 BLADE, FAN
D7862904 D7862904 BLANK SIDE RAIL
D7862903 D7862903 BLANK SIDE RAIL
B8361701 B8361701 BLOCK EVAP COIL
B8322902 B8322902 BLOCK EVAP. COIL
D7547604 D7547604 BOTTLE RACK
D7714706 D7714706 BOTTOM, FREEZER
C8982101 C8982101 BRACKET, COND MOTOR
D7713802 D7713802 BRACKET, CONTROL
D7752701 D7752701 BRACKET, TIMER
D7653003 D7653003 BREAKER, REF TOP V
C8881301 C8881301 BRKT EVAP FAN
D7524501 D7524501 BRKT EVAP FAN SHROUD
10163607 10163607 BTM HINGE BRKT E
10253001 10253001 BUSHING
10252901 10252901 BUSHING
10253002 10253002 BUSHING
67004412A 67004412A BUTTER TRAY
WP67001130 WP67001130 BUTTON- PL
D3958306 D3958306 CAP DOOR
D7681803 D7681803 CAP, PKG RETAINER END
D7681804 D7681804 CAP, PKG RETAINER END
WPW10662129 WPW10662129 CAPACITOR
C8948601 C8948601 CENTER HINGE BRACKET
C8842504 C8842504 CENTER MULLION
C8842505 C8842505 CENTER MULLION, ALMOND
B8373101 B8373101 CENTER PIN HINGE
A3253803 A3253803 CLAMP
B8372901 B8372901 CLAMP
M0102329 M0102329 CLAMP
M0102325 M0102325 CLAMP
M0103901 M0103901 CLAMP
M0104002 M0104002 CLAMP-DRIER
M0110508 M0110508 CLIP
C8952001 C8952001 CLIP
WPM0104106 WPM0104106 CLIP
B8352901 B8352901 CLIP COMP
A3140801 A3140801 CLIP K
M0104102 M0104102 CLIP, CORD
B5733302 B5733302 CLIP, GROUND
WPC8907301 WPC8907301 COLD CONTROL
W10439652 W10439652 COMPRESSOR
D7691002 D7691002 COND. FAN SHRD
D7654301 D7654301 CONDENSER PNTD
D7806404 D7806404 CONTAINER SEC. SER.
M1200004 M1200004 COTTER PIN K
D7872104 D7872104 COVER HINGE
D7872105 D7872105 COVER HINGE L
B0559501 B0559501 COVER K
10073201 10073201 COVER LIGHT
D7545025 D7545025 COVER, CONTROL
D7805911 D7805911 COVER, EGG BUCKET
10201806 10201806 COVER- HNDL SCREW ALMOND
10201805 10201805 COVER- HNDL SCREW ALMOND
D7874402 D7874402 COVER-FL TB/PLUG
10201804 10201804 COVER-HANDLE SCREW G
10201803 10201803 COVER-HANDLE SCREW G
10201802 10201802 COVER-HANDLE SCREW W
10201801 10201801 COVER-HANDLE SCREW W
R0161051 R0161051 DAMPER CONTROL, WARM 26.5 F, N
D7806002 D7806002 DIVIDER, WIRE
67003699 67003699 DOOR SHELF
D7805712 D7805712 DOOR, DAIRY
R0156843 R0156843 DRAIN BLOC
D7790601 D7790601 DRAIN PAN
D7653906 D7653906 DRAIN TUBE
WPB2150504 WPB2150504 DRIER
10163201 10163201 ELBOW DRAIN TUBE
10201604 10201604 EVAP COVER
D7691110 D7691110 EVAP FAN SHROUD
R0170042 R0170042 EVAPORATOR ASSEMBLY
WPC8891605 WPC8891605 EVAPORATOR MOTOR
10043101 10043101 EXT. REAR GLASS
A9008301 A9008301 FELT
A90008301 A90008301 FELT, 1.5``
R0182123 R0182123 FILL TUBE
D7856503 D7856503 FRAME
D7871002 D7871002 FRAME, CANTILEVER
D7853301 D7853301 FRAME, M.K
10253806Q 10253806Q FZ DR FM AS L
10253805Q 10253805Q G FZ DR FM AS CFC 11
10253908Q 10253908Q G REF DR FM AS CFC 11

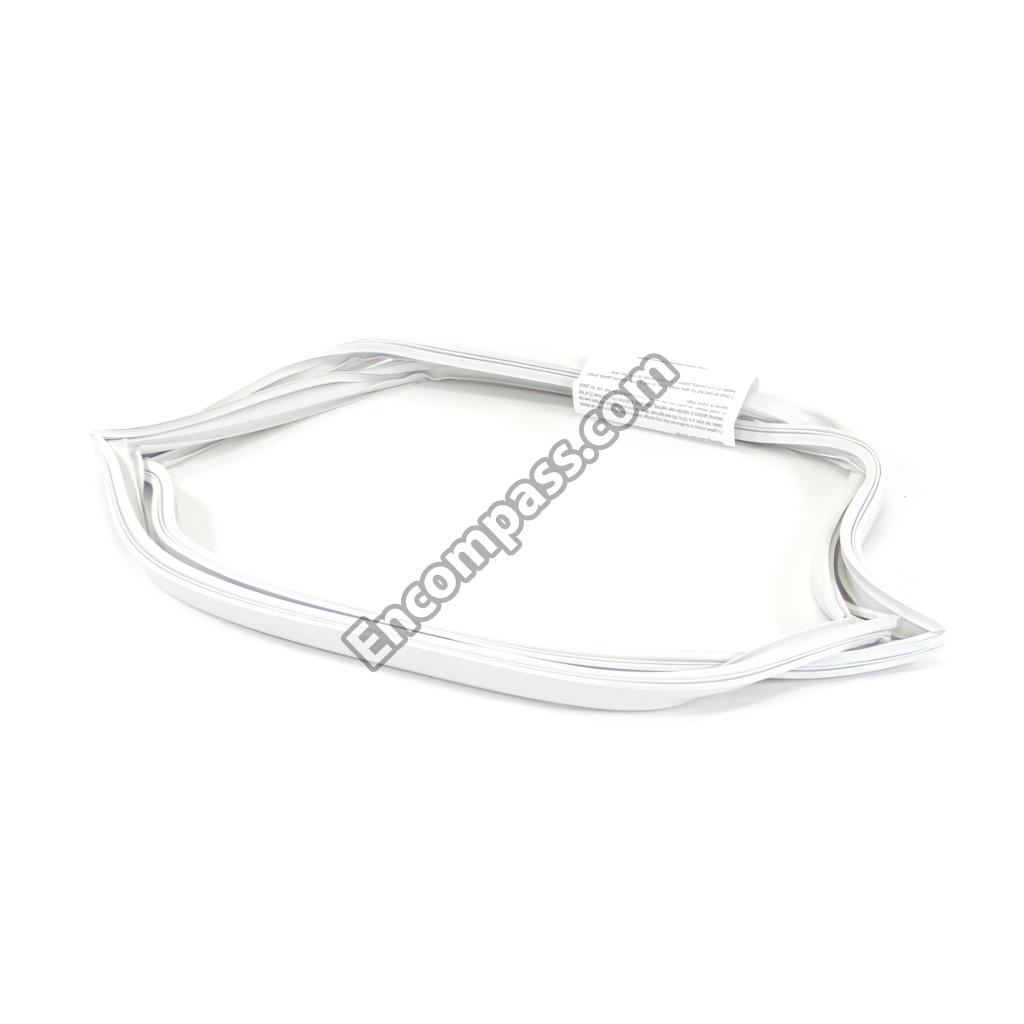

A3132301 A3132301 GASKET
B5759604 B5759604 GASKET
A3030302 A3030302 GASKET
WPD7605109Q WPD7605109Q GASKET
WPD7605108Q WPD7605108Q GASKET
B5759628 B5759628 GASKET K
A3189394 A3189394 GASKET, BOTTOM
WPB8345401 WPB8345401 GASKET, DAMPER
B5759626 B5759626 GASKET, SEALING
A30303-30 A30303-30 GASKET,PER FT
A3263906 A3263906 GASKET-PER FT
10036048 10036048 GLASS CRISPER TOP
10036046 10036046 GLASS SHELF
D7871130 D7871130 GLASS SHELF ASSEMBLY Q
10036043 10036043 GLASS, M.K. SHELF
R0179181 R0179181 GLASS-CRISPER FRAME ASSEMBLY
D7520512 D7520512 GRILLE-TOE K
D7520514 D7520514 GRILLE-TOE L
D7520510 D7520510 GRILLE-TOE-B K
WP2264462 WP2264462 GROMMET
10110701 10110701 GROMMET
10110601 10110601 GROMMET
M0500107 M0500107 GROMMET K
D7859305 D7859305 GROMMET M.K.
67003493 67003493 GROMMET, COMPRESSOR
M0580007 M0580007 GROMMET, SCREW
WP10253523Q WP10253523Q HANDLE
WP10253510Q WP10253510Q HANDLE
WP10253524Q WP10253524Q HANDLE
10253503 10253503 HANDLE ASSEMBLY FZ G
WP10253509Q WP10253509Q HANDLE ASSEMBLY FZ W
10118701 10118701 HARNESS FRZ LIGHT
10115901 10115901 HARNESS M.C.
10104901 10104901 HARNESS, CABINET
10105001 10105001 HARNESS, MULLION
10354601 10354601 HARNESS. M.C.
D7539415 D7539415 HEAT EXCHANGER COVER
D7549705 D7549705 HEATER, EVAPORATOR
D7654504 D7654504 HEATER, MULLION
B5744301 B5744301 HINGE
10161301 10161301 HOLDER TUBE
D7760104 D7760104 HOUSING, LIGHT
D7620028 D7620028 ICE BIN
D7805606 D7805606 INNER DOOR LINER REF
D7869602 D7869602 INNER DOOR, FRZ
C8902601 C8902601 INSERT, CONTROL
B8362502 B8362502 INSUL. MK PLUG
C8887903 C8887903 INSULATION
D7543201 D7543201 INSULATION DAMPER
B0523584 B0523584 INSULATION PER FT.
B5781002 B5781002 JUMPER WIRE
R9800670 R9800670 KIT, SCREW
B5744801 B5744801 KIT,BTM HINGE SHIM
R0194684 R0194684 KIT- TAP P
D7009802 D7009802 KNOB
10038401 10038401 KNOB, CRISPER CONTROL
10253909Q 10253909Q L REF DR FOM AS CFC11
D7599002 D7599002 LADDER, CENTER
8009 8009 LIGHT BULB
C8890206 C8890206 MC BACK ASSEMBLY
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
833697 833697 MOTOR-COND
10184401 10184401 NAMEPLATE, HANDLE
M0286708 M0286708 NUT, SPEED
C8866906 C8866906 OVERLOAD
C8906203 C8906203 OVERLOAD
10184501 10184501 PAD NAMEPLATE
D7581040 D7581040 PAN, CRISPER
D7698332 D7698332 PAN, MEAT
M1200202 M1200202 PIN K
C8814901 C8814901 PIN, HINGE K
M0310720 M0310720 PLUG
M0310314 M0310314 PLUG
M0310606 M0310606 PLUG
M0310601 M0310601 PLUG
M0310608 M0310608 PLUG
M0310704 M0310704 PLUG
M0310319 M0310319 PLUG BUTTON
M0310730 M0310730 PLUG BUTTON (ALMOND)
WPA3076901 WPA3076901 PLUG, BUTTON
A3080001 A3080001 PLUG, BUTTON (BLK)
M0310305 M0310305 PLUG, BUTTON (WHT)
10184306 10184306 PLUG-L NAMEPLATE
10184302 10184302 PLUG-NAMEPLATE G
10184301 10184301 PLUG-NAMEPLATE W
10199701 10199701 POST, CRISPER SUPPORT
10916505 10916505 POWER CORD
D7620106 D7620106 RACK, ICE SERVICE
10253504 10253504 REF DOOR ASSEMBLY, GOLD
C3553407 C3553407 RELAY
2154436 2154436 RELAY
D7869801 D7869801 RETAINER CANT. DOOR V
C8907222 C8907222 RETAINER, PKG
67003698 67003698 RETAINER-
WPM1205302 WPM1205302 RIVET
WP12580304 WP12580304 ROLLER
W11233072 W11233072 SCREW
M0216705 M0216705 SCREW
WPM0223816 WPM0223816 SCREW
M0211530 M0211530 SCREW
WP489349 WP489349 SCREW
WP12990527 WP12990527 SCREW
WP98165 WP98165 SCREW
WP489464 WP489464 SCREW
WP488402 WP488402 SCREW
M0253916 M0253916 SCREW
WP90767 WP90767 SCREW
WP489069 WP489069 SCREW
74009538 74009538 SCREW
WPM0219730 WPM0219730 SCREW
M0226831 M0226831 SCREW
WPW10348409 WPW10348409 SCREW
67006425 67006425 SCREW (3)
M0238833 M0238833 SCREW SHOULDER
M0206313 M0206313 SCREW, MACH
31750402 31750402 SCREW, NO.8-32 X 5/16 PPH (BLK)
M0232330 M0232330 SCREW, SPEXTITE
M0238636 M0238636 SCREW-SM
D7718402 D7718402 SEAL CRISPER
C8987106 C8987106 SEAL DOOR DIKE
Y00000000 Y00000000 SEE NOTE ADD-ON ICE MAKER -- (AVAILABLE FROM SALES)
D7869906 D7869906 SHELF, DOOR
D7580706 D7580706 SHELF, FRZ
10266402 10266402 SHIELD, CAPACITOR
R0176034 R0176034 SHIELD, LIGHT
B5744802 B5744802 SHIM
B5744803 B5744803 SHIM
B8351401 B8351401 SHIM K
B8351402 B8351402 SHIM K
B8389002 B8389002 SHIM TOP HINGE
B5744804 B5744804 SHIM, BOTTOM HINGE
B8351403 B8351403 SHIM, CENTER HINGE
B8389007 B8389007 SHIM, TOP HINGE
B8389003 B8389003 SHIM, TOP HINGE, .016
A3072001 A3072001 SLEEVE K
D7698105 D7698105 SLEEVE, MEAT KEEPER
D7860601 D7860601 SLIDE, CRISPER CONTROL
D7859401 D7859401 SLIDE-MK CONTROL
D7806102 D7806102 SNUGGER DOOR SHELF
D7714407 D7714407 SOCKET-LIGHT
C8973403 C8973403 SOCKET-LIGHT
B8346301 B8346301 SPACER COND.
M0293703 M0293703 SPEEDNUT
C8916701 C8916701 SPRING K
B8358301 B8358301 SPRING, OVERLOAD
10266101 10266101 STOP DOOR
A3041801 A3041801 STRAP K
D7790501 D7790501 SUPPORT DRAIN PAN
D7835501 D7835501 SUPPORT M.C.
M0350101 M0350101 SWITCH
W11384469 W11384469 SWITCH
M0275117 M0275117 TAPE PER ROLL A
C8960801 C8960801 TERM COVER
WP10442411 WP10442411 THERMOSTAT
M0585401 M0585401 TIE, WIRE
WPW10339879 WPW10339879 TIE-WIRE
R0168027 R0168027 TIMER-DEF
Y10110501 Y10110501 TINNEL, WIRE
D7539310 D7539310 TOP REF.
WP841180A WP841180A TRAY
D7616666 D7616666 TRIM, FRONT CRISPER
10049918 10049918 TRIM, FRONT SHELF
C8990401 C8990401 TRIM, REAR SHELF
C8913601 C8913601 TRIM, SHELF
10049909 10049909 TRIM, SHELF
10110401 10110401 TUNNEL, WIRE
B5749501 B5749501 TUNNEL-HEAT EX
C8842501 C8842501 W CENTER MULL. -PNT
10253804Q 10253804Q W FZ DR FOAM CFC11
10253907Q 10253907Q W REF DR FOM AS CFC11
B8365302 B8365302 WASHER
M0270519 M0270519 WASHER
M0274049 M0274049 WASHER
10110202 10110202 WIRE COVER
WPM0321204 WPM0321204 WIRE TIE
