Model Image
Manufacturer

Whirlpool

Model Number

TC406

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
9871125 9871125 ACTUATOR, SAFETY SWITCH
675186 675186 BAG,TRASH
749045 749045 BARRIER GLAS
W10917043 W10917043 BEARING
882688 882688 BEARING
WP9871602 WP9871602 BEARING
749108 749108 BLOCK-STOP
WP8204624 WP8204624 BOLT
WP780239 WP780239 BRKT-RETNR
W11729437 W11729437 BRKT-RETNR
749029 749029 BUMPER CONTAINER
749024 749024 BUMPER RAM
WP776523 WP776523 CAM
Y675395 Y675395 CARRIER
780477 780477 CHAIN, DRIVE
749049 749049 CLAMP WIRE
WP776036 WP776036 CLIP
WP777941 WP777941 COMPACTOR DOOR KIT
749014 749014 COMPARTMENT, DEODORANT
749116 749116 CONTAINER
608009 608009 COVER-FRME
749089 749089 COVER-MOTOR
749015 749015 COVER-RAM
749100 749100 COVER-TOP
675379 675379 DOOR LATCH ASSEMBLY
749026 749026 E RING
749105 749105 END CAP L.
749106 749106 END CAP RH
749122 749122 ESCUTCHEON
749023 749023 FOOT LEVELER
882699 882699 GEAR-DRIVE
749019 749019 GREASE 14 OZ
749107 749107 GROMMET
211881 211881 GROMMET, CORD
WP777328 WP777328 GUARD
41001139 41001139 GUIDE, REAR DOOR LATCH
WP608732 WP608732 HANDLE
749121 749121 HARNESS-MAIN
776941 776941 HUB, POWER SCREW (2)
749001 749001 INSULATION, INNER PANEL
776594 776594 KNOB, ROTARY SWITCH
W10439651 W10439651 MOTOR-DRIVE
749092 749092 NLAWHEEL LH
W10124350 W10124350 NOT REQUIRED PART OR SEE NOTE
WP776338 WP776338 NUT
WP777383 WP777383 NUT
WP776356 WP776356 NUT
777850 777850 NUT
749034 749034 NUT 6-32
WP777533 WP777533 NUT-POWER
675377 675377 PAD-RAM
72032 72032 PAINT, TOUCH-UP (1/2OZ.) (BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ.) (WHITE)
72110 72110 PAINT, TOUCH-UP 1/2 OZ. (HARVEST GOLD)
WP780437 WP780437 PAN-BOTTOM
749063 749063 PANEL, ALMOND & HARVEST GOLD
749128 749128 PANEL, FRONT FRAME
749099 749099 PANEL,FRONT FRAME

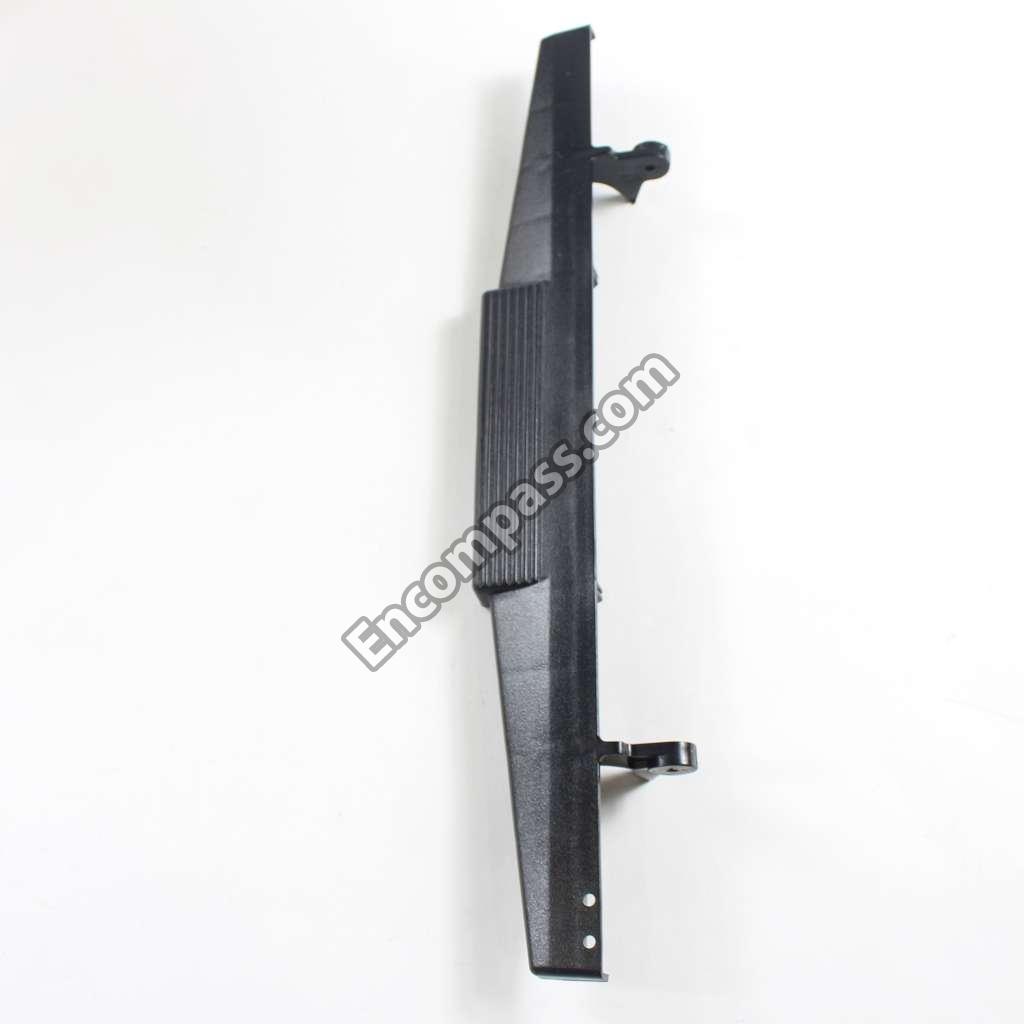

882657 882657 PEDAL-FOOT
749044 749044 PIN
WP454512 WP454512 PIN-SPRING
749038 749038 PLATE MOTOR
779121 779121 PLATE, BEARING (2)
775665 775665 PLATE, DOOR LATCH
749016 749016 PLATE, DOUBLER
749067 749067 POWER SCREW, ASSEMBLY
780413 780413 PROTECTOR, POWERSCREW (2)
775481 775481 RACE, THRUST (4)
749071 749071 RAM ASSEMBLY
749074 749074 RETAINER NUT
749070 749070 SCREW
749021 749021 SCREW
749060 749060 SCREW
WP3351614 WP3351614 SCREW
WP488234 WP488234 SCREW
749042 749042 SCREW
WP489478 WP489478 SCREW
749094 749094 SCREW 16X3/4
749109 749109 SCREW 18X3/8
749098 749098 SCREW 32X3/8
749065 749065 SCREW 6-20X1
314477 314477 SCREW, ACCESS PANEL
912619 912619 SCREW, STEEL
4149659 4149659 SHIELD, HARNESS
WP9870975 WP9870975 SLIDE
9870976 9870976 SLIDE, FRAME (R.H.)
WP777180 WP777180 SPRING
775736 775736 SPRING, DOOR LATCH
749057 749057 SPROCKET WASHER
WP4387911 WP4387911 SWITCH
749081 749081 SWITCH, DRAWER TILT
WP777811 WP777811 SWITCH-DIR
675382 675382 SWITCH-OFF
749055 749055 TRIM, FRONT
WP72107 WP72107 TUCHUP
WP777332 WP777332 WASHER
W11214485 W11214485 WASHER
776035 776035 WASHER, WAVE
749093 749093 WHEEL RH
749072 749072 WIPER-RAM
749131 749131 WIRE HARNESS
