Model Image
Manufacturer

Whirlpool

Model Number

TGS325GW7

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
285006 285006 ACCESSORIES SIDE PANEL KITS PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
WP72107 WP72107 ALMOND
350956 350956 ALMOND
978883 978883 ALMOND (UNCUT)
8273888A 8273888A ANCHOR-TIP
W10222733 W10222733 BACK, MAIN
8053967 8053967 BAFFLE, BURNER
WP3195097 WP3195097 BOTTOM, OVEN
W11457094 W11457094 BOX, FLUE
W11379351 W11379351 BOX-BURNER, GAS SEALED
8053971 8053971 BRACE, MAIN BACK
3195914 3195914 BRACKET, DOOR LATCH
W10462909 W10462909 BRACKET, DRAWER (2)
3186405 3186405 BRKT, MANIFOLD MTG (LEFT HAND)
3186406 3186406 BRKT, MANIFOLD MTG (RIGHT HAND)
238614 238614 BUMPER
WP8273700 WP8273700 BURNER BASE (LF - LR - RF)
WP8273701 WP8273701 BURNER BASE (SMALL (1))
WP8054078 WP8054078 BURNR-BRLR
WP4455979 WP4455979 BURNR-HEAD
WP4455980 WP4455980 BURNR-HEAD
8190618 8190618 BURNR-OVEN
3196439 3196439 BUTTON, PLUG
WP3191901 WP3191901 CAP, BURNER 9.5K BLACK
WP3191898 WP3191898 CAP, BURNER RF, LF, LR (BLACK)
549193 549193 CLAMP, POWER CORD
WP8273564 WP8273564 CLIP
3195813 3195813 CLIP, COOKTOP (2)
WP3196925 WP3196925 CLIP, DOOR STOP (2)
3196025 3196025 CLIP, GLASS (4)
16515 16515 CLIP, HARNESS
3196576 3196576 CLIP, PANEL (4)
3196200 3196200 CLIP, SPRING (2)
3196696 3196696 CLIP, WIRE
3196896 3196896 CLIP, WIRE
8053527 8053527 CLIP, WIRE
6610270 6610270 CONTROL, RANGE (BLACK)
W11213959 W11213959 COOKTOP
8272403 8272403 COVER, IGNITER
WP8273132 WP8273132 COVER, LOWER
WP9756301 WP9756301 COVER, UPPER
WPW10107830 WPW10107830 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
8184858 8184858 DOOR TRIM
W10296838 W10296838 DRAWER, STORAGE
72017 72017 DRAWER, STORAGE PAINT, TOUCH-UP (1/2OZ.) (WHITE)
3186189 3186189 ENDCAP (BLACK (RIGHT))
3186188 3186188 ENDCAP (BLACK LH)
3186489 3186489 FITTING, BROILER
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25`)
WP3196037 WP3196037 FOOT, FRONT (2)
WPW10058460 WPW10058460 FOOT-LEVEL
100000 100000 FRAME, FRONT (NOT SERVICEABLE)
3186290 3186290 FRAME, GLASS
WPW10293048 WPW10293048 GAS VALVE
W11542153 W11542153 GASKT-DOOR
WP9758164 WP9758164 GLASS DOOR
WP9762477 WP9762477 GLASS, OUTER (BLACK)
WPW10268483 WPW10268483 GRATE, BURNER(4)
261582 261582 GREASE
WP3195996 WP3195996 GRILL, BROILER (OPTIONAL)
LIT3191638 LIT3191638 GUIDE BOOK STICKER
WPW10202217 WPW10202217 HANDLE
8274195 8274195 HARNESS, ELECTRODE
8273076 8273076 HARNESS, IGNITER (INCL. SWITCHES)
8273897 8273897 HARNESS, WIRE (MAIN)
8273901 8273901 HARNESS, WIRE BAKE / BROIL
WP8053807 WP8053807 HINGE, DOOR (WHITE, BLACK AND BISCUIT MODELS)
WP8054129 WP8054129 IGNITOR, BROIL
WP8523793 WP8523793 IGNTR-SURF
W11688737 W11688737 INSULATION
WPW10208653 WPW10208653 INSULATION, WRAP
WPW10278991 WPW10278991 INSULATION-DOOR
799832 799832 KIT, PORCELAIN REPAIR (WHITE)
WP8273115 WP8273115 KNOB, CONTROL (4) (BLACK)
8009 8009 LIGHT BULB
3186296 3186296 LINER, DOOR
LIT8273158 LIT8273158 LITERATRURE PARTS (GUIDE, USE & CARE)
LIT3195945 LIT3195945 LITERATRURE PARTS (TEMPLATE (INSTRUCT-INSTALL))
LIT8273169 LIT8273169 LITERATURE PARTS (INSTRUCTIONS, INSTALLATION)
LIT8273173 LIT8273173 LITERATURE PARTS (TECH SHEET)
WP8273060 WP8273060 NUT (4)
WP8273065 WP8273065 ORIFICE, BURNER ((RF))
WP8273066 WP8273066 ORIFICE, BURNER (LEFT REAR)
WP8273067 WP8273067 ORIFICE, BURNER (RIGHT REAR)
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP3196076 WP3196076 PAN, BROILER
8272292 8272292 PANEL, BACKGUARD
W11230486 W11230486 PANEL, DRAWER FRNT (WHITE)
8273035 8273035 PANEL, MANIFOLD
WPW10575396 WPW10575396 PANEL-SIDE
814381 814381 PIN HINGE KIT
WP3195060 WP3195060 PIN-COOKTP
8272411 8272411 PIPE, MANIFOLD
WP9757891 WP9757891 POWER CORD
WPW10256908 WPW10256908 RACK, OVEN (3)
WPW10306546 WPW10306546 RAIL-BASE
WPW10331686 WPW10331686 RANGE SPARK MODULE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
3196523 3196523 RETAINER, INSUL. (LEFT HAND)
3195726 3195726 RETAINER, INSUL. (RIGHT HAND)
9761499 9761499 RETAINER, INSULATION
WP3196814 WP3196814 RIVET, PUSH (2) (WHITE)
W10078370 W10078370 ROD, PUSH (DOOR LATCH)
W11244557 W11244557 SCREW
WP7101P246-60 WP7101P246-60 SCREW
WP98008545 WP98008545 SCREW
WP3196175 WP3196175 SCREW
WP3196152 WP3196152 SCREW
W11684507 W11684507 SCREW
3196265 3196265 SCREW
WP8273096 WP8273096 SCREW
WP4449746 WP4449746 SCREW
WP3196557 WP3196557 SCREW
W11233072 W11233072 SCREW
WP3400832 WP3400832 SCREW
WP8273062 WP8273062 SCREW
WP3196164 WP3196164 SCREW (2)
WP3400016 WP3400016 SCREW (2)
3196166 3196166 SCREW (WHITE)
W10491985 W10491985 SCREW 8-18 X .250
3400964 3400964 SCREW, GROUND
WP179051 WP179051 SCREW, HANDLE (2)
WP3368921 WP3368921 SCREW-TORX
WP8524109 WP8524109 SEAL-OVEN

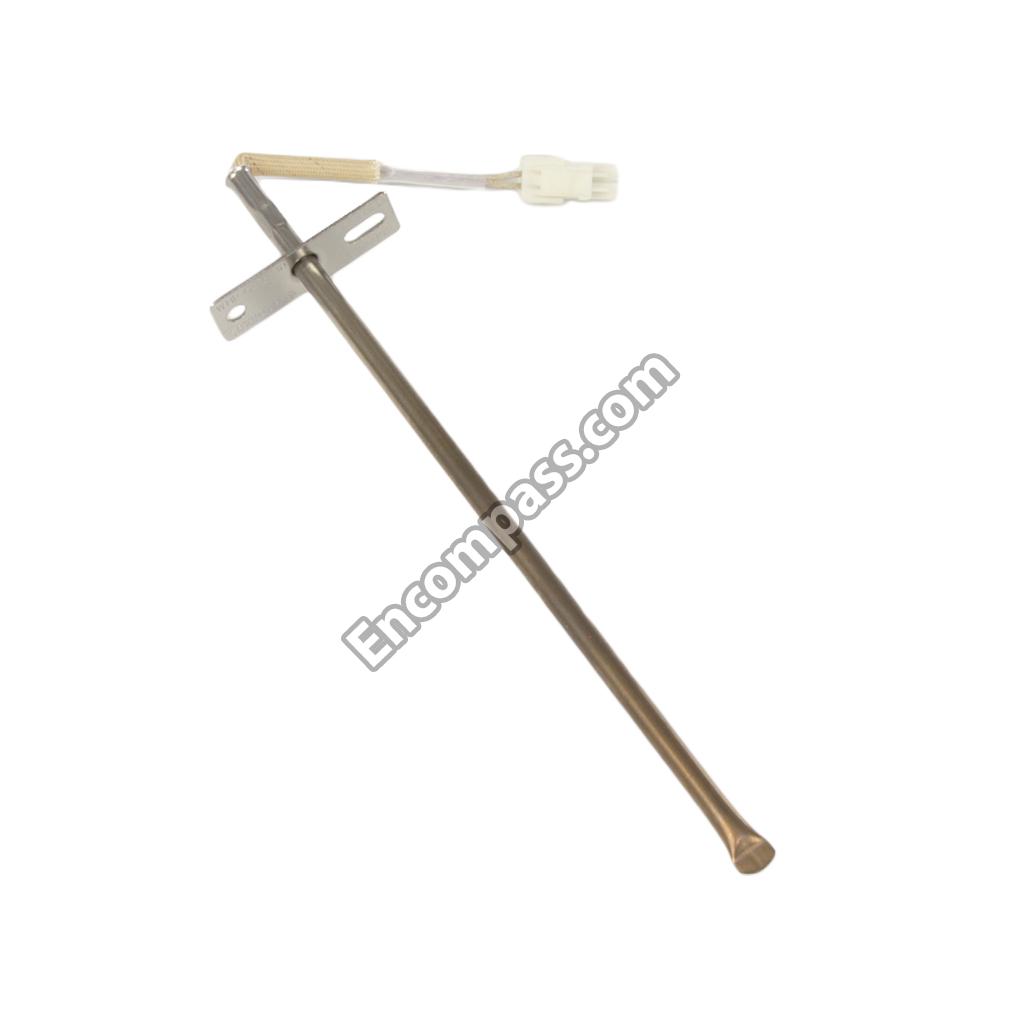

WP8273340 WP8273340 SENSOR, OVEN
3196137 3196137 SHEILD, HEAT (2)
8053969 8053969 SHIELD, HEAT
WP8053910 WP8053910 SHIELD, HEAT
3196136 3196136 SHIELD, HEAT (2)
8053968 8053968 SHIELD, LOWER
8053505 8053505 SHIELD, LOWER HEAT
WP8272747 WP8272747 SHIELD-HT
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER
WP3195546 WP3195546 SPACER, DRAWER
WP8053334 WP8053334 SPACER, GLIDE
350930 350930 SPRAY (13 OZ.) (WHITE)
W10137062 W10137062 SPREADER, FLAME (BROILER)
WP8053970 WP8053970 SPREADER, FLAME (OVEN)
8273175 8273175 SPUDS, LP GAS (KIT OF 4)
3186198 3186198 SUPPORT, ENDCAP (LEFT HAND)
3186199 3186199 SUPPORT, ENDCAP (RIGHT HAND)
WP3195993 WP3195993 SWITCH, DOOR
WP4314961 WP4314961 SWTCH-LITE
W10016380 W10016380 TRIM, TOP
WP8272222 WP8272222 TUBING (BROILER FITTING TO VALVE)
8272685 8272685 TUBING (MANIFOLD TO REGULATOR)
8273699 8273699 TUBING, BURNER W/ORIFICE (LEFT FRONT)
8273698 8273698 TUBING, BURNER W/ORIFICE (LEFT REAR)
WP8273695 WP8273695 TUBING, BURNER W/ORIFICE (RIGHT FRONT)
WP8273697 WP8273697 TUBING, BURNER W/ORIFICE (RIGHT REAR)
8273056 8273056 VALVE
242828 242828 WIRE (12 GA. 150 C BLACK)
242820 242820 WIRE (14 GA. 150 C BLACK)
242821 242821 WIRE (14 GA. 150 C BLUE)
242822 242822 WIRE (14 GA. 150 C BROWN)
242823 242823 WIRE (14 GA. 150 C GREEN)
242824 242824 WIRE (14 GA. 150 C ORANGE)
242825 242825 WIRE (14 GA. 150 C RED)
242827 242827 WIRE (14 GA. 150 C YELLOW)
8316784 8316784 WIRE (14 GA. 200 C BROWN)
242831 242831 WIRE (14 GA. 200 C RED)
242829 242829 WIRE, RED 12 GA. 150~C
242826 242826 WIRE, WHITE 14 GA. 150~C
242832 242832 WIRE, YELLOW 14 GA. 200~C
