Model Image
Manufacturer

Whirlpool

Model Number

TS22AFXKT07

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
2152019 2152019 AIR DIFFUSER COVER
W11596045 W11596045 ARM-CONTRL
WPW10152858 WPW10152858 ARM-DISPSR
WP2195090T WP2195090T ARM-DISPSR
WP2180259 WP2180259 ARM-DISPSR
WP627843 WP627843 ARM-EJECTR
W11256541 W11256541 ARM-PIVOT
W11342242 W11342242 ARM-SHUT
WP2182124 WP2182124 ARM-STRIPR
W10422851 W10422851 AUGER-ICE
W10852691 W10852691 BAFFLE
W10896764 W10896764 BAFFLE, AIR
606755 606755 BAG, INSULATION (36-5/8`` X 46``)
WP2196003 WP2196003 BARRIER
2301193 2301193 BASKET, SLOPE
2301192 2301192 BASKET, TALL
WP1119018 WP1119018 BEARING
1110560 1110560 BEARING BODY
WP627985 WP627985 BIMETL-DEF
WPW10225581 WPW10225581 BIMETL-DEF
WP2187172 WP2187172 BIN CONTROL LEVER
1119009 1119009 BLADE, FIXED (2)
W10278731 W10278731 BLADE, ROTARY A
W10278732 W10278732 BLADE, ROTARY B
W10278733 W10278733 BLADE, ROTARY C
W11458267 W11458267 BLADE-FAN
WP2169142 WP2169142 BLADE-FAN
2157405 2157405 BLOCK BLADE
2186489 2186489 BLOCK-HOUSING
W11500948 W11500948 BRACKET
WP2181929 WP2181929 BRACKET
WP2304673 WP2304673 BRACKET
WP2180226 WP2180226 BRACKET
WP2206629B WP2206629B BRACKET
2256035 2256035 BRACKET, DUAL CRISPER LIGHT
WPW10284487 WPW10284487 BRACKET, MOTOR
W10132419 W10132419 BUSHING
100000 100000 CABINET, (NOT A SERVICEABLE PART)
WP2182195 WP2182195 CAM
WP2182179 WP2182179 CAM-DOOR
WPW10329686 WPW10329686 CAM-DOOR
WP2171706 WP2171706 CAMERA LENS-LIGHT
WP2317782 WP2317782 CAMERA LENS-LIGHT
WP2186494W WP2186494W CAP-FILTER
WP2186494T WP2186494T CAP-FILTER
WP65889-4 WP65889-4 CAPACITOR
WP4387764 WP4387764 CAPACITOR
4387478 4387478 CAPACITOR (SERVICE)
WP4317852 WP4317852 CEMENT, ALUMILASTIC (1 1/4 OZ.)
W11505385 W11505385 CHUTE
WP488366 WP488366 CLAMP
549193 549193 CLAMP, SERVICE CORD
WP2196062 WP2196062 CLIP
WP2315522 WP2315522 CLIP
WP628379 WP628379 CLIP
W11623163 W11623163 CLIP
489396 489396 CLIP
WP2161324 WP2161324 CLIP
W10683556 W10683556 CLIP
WP2195051 WP2195051 CLIP
WP2194719 WP2194719 CLIP
WP1115374 WP1115374 CLIP
WP2155013 WP2155013 CLIP
2155547 2155547 CLIP, HEAT
2208280 2208280 CLIP, WIRE & TUBE
1115375 1115375 CLIP, WIRING
2215823 2215823 CLIP-AIR, DUCT
W10139462 W10139462 COMPRESSOR (INCLUDES ITEMS 11, 12, 20, & 31)
2324712 2324712 CONDENSER ASSEMBLY
1123960 1123960 CONNECTING ROD
WP2154473 WP2154473 CONNECTOR
WP2196089 WP2196089 CONTAINER
2200137 2200137 CONTROL BOX
2311636 2311636 CONTROL BOX HARNESS
W11115203 W11115203 CONTROL PANEL
WPW10169511 WPW10169511 COUPLING
WP2171709 WP2171709 COVER
W10508993 W10508993 COVER
WP2203408W WP2203408W COVER
WP2203407W WP2203407W COVER
2150331 2150331 COVER, CONDUIT
4388357 4388357 COVER-EVAP
WP2162358 WP2162358 COVER-TERM
WP2188756 WP2188756 COVER-UNIT
WP2188661 WP2188661 CRISPER PAN
W10122561 W10122561 CUP, WATER FILL
4392899 4392899 CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KIT (BISCUIT))
350942 350942 CUSTOMER TOUCH-UP MATERIAL (PRIMER, WHITE (12 OZ. SPRAY CAN))
WP1119017 WP1119017 DEFLECTOR
2179350 2179350 DEFLECTOR
WPW10151374 WPW10151374 DIFFUSER
2149544 2149544 DIFFUSER, AIR DUCT
L2206826T L2206826T DOOR ASSEMBLY BT
L2206826W L2206826W DOOR ASSEMBLY WH
2159073 2159073 DOOR GASKET, MAGNETIC (SERVICE) (MIST BEIGE)
WP2203770 WP2203770 DOOR HINGE
8201707 8201707 DOOR HINGE
WP2203771 WP2203771 DOOR HINGE
WPW10307490 WPW10307490 DOOR TRIM
WP2177962K WP2177962K DOOR TRIM
2159072 2159072 DOOR, GASKET MAGNETIC
2171712 2171712 DOOR, ICE COMPARTMENT
WP2180353 WP2180353 DOOR-CHUTE
WP2256101 WP2256101 DOOR-COMP
WPW10143759 WPW10143759 DRIER-UV
4388736 4388736 DRUM
2182146 2182146 DUCT, ICEMAKER
WP2195917K WP2195917K ENDCAP
2318675 2318675 ENERGY LABEL
W10127380 W10127380 ESCUTCHEON
2194744 2194744 ESCUTCHEON, MEAT PAN CONTROL
WP2188822 WP2188822 EVAPORATOR
4389144 4389144 FAN MOTOR
W11254898 W11254898 FAN-SCROLL
489285 489285 FASTENER, PUSH-ON
2304849 2304849 FILLER, WRAPPER (BISCUIT)
2304846 2304846 FILLER, WRAPPER (WHITE)
EDR5RXD1 EDR5RXD1 FILTER
WP4373559 WP4373559 FITTING
8201537 8201537 FITTING
W11566763 W11566763 FITTING
2304903 2304903 FRAME, UNIT MOUNTING
L2216828T L2216828T FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (BISCUIT)
L2216828W L2216828W FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER FRONT PARTS) (WHITE)
WPW10289690 WPW10289690 FRONT COVER
2207289W 2207289W FRONT COVER ASSEMBLY (INCLUDES ITEMS 18, 19, 20 & 21) (BISCUIT)
4386774 4386774 FRONT ROLLER (2)
4388500 4388500 GASKET
WP2155789 WP2155789 GASKET
WP2304241 WP2304241 GASKET
WP2177986 WP2177986 GLASS (3)
W10864399 W10864399 GLASS SHELF
WP542638 WP542638 GREASE
WP2206671T WP2206671T GRILLE
WP2206671W WP2206671W GRILLE
W10802713 W10802713 GRILLE
WP4387558 WP4387558 GROMMET
WP2176759 WP2176759 GROMMET
2176134 2176134 GROMMET (4)
876811 876811 GROMMET (4) ((PRODUCTION))
2186496 2186496 GUARD, FAN
W10850503 W10850503 GUIDE
WP2180224 WP2180224 GUIDE-ICE
2186649T 2186649T HANDLE (BISCUIT)
WP2186649W WP2186649W HANDLE (WHITE)
2217195 2217195 HEAT SHIELD AND DRAIN PAN
WP2323197 WP2323197 HEATER
2203408T 2203408T HINGE COVER (BISCUIT)
2203407T 2203407T HINGE COVER (BISCUIT)
940014 940014 HOLE PLUG
WPW10185018 WPW10185018 HOUSING
WP2186443 WP2186443 HOUSING
WP2195914 WP2195914 HOUSING-IM
W10823377 W10823377 ICE DOR KT
WPW10312301 WPW10312301 ICE-CONTNR
WPW10190965 WPW10190965 ICEMAKER
W10408179 W10408179 INLET VALVE
W11553819 W11553819 INSULATION
799833 799833 KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
876029 876029 KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
833938 833938 KIT, TERMINAL CONNECTOR
2197871 2197871 KNOB, AIR CONTROL
2180200 2180200 LAMP HOLDER
WP2195089T WP2195089T LEVER, ICE DISPENSER (BISCUIT)
WP22002263 WP22002263 LIGHT BULB
8009 8009 LIGHT BULB
8201651 8201651 LOUVER-CAB
876370 876370 MISCELLANEOUS, INSULATION (2 PIECES, 3`` X 24`` X 48``)
628370 628370 MODULAR ICEMAKER SERVICE SHEET
8201515 8201515 MODULE ASSEMBLY (INCLUDES ITEMS 21 & 22)
WPW10190929 WPW10190929 MOLD-ICE
WP2188242 WP2188242 MOTOR
W10124096 W10124096 MOTOR, FAN
W10190935 W10190935 MOTOR-MODL
1110629 1110629 MOUNTING BRACKET
4387535 4387535 OVERLOAD
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
511873 511873 PAINT, TOUCH-UP 1/2 OZ. (WHITE PORCELAIN)
WP2188664 WP2188664 PAN-MEAT
WP2196195 WP2196195 PIN-DOOR
WP2256126 WP2256126 RESERVOIR
WP2155590 WP2155590 RETAINER
WP2256085 WP2256085 RETAINER
1119021 1119021 RETAINER CLIP, ROD
1125525 1125525 RETAINER, SHELF
WP489236 WP489236 RING-E
489229 489229 ROLL PIN
WPW10250570 WPW10250570 ROLLER-CAB
WP2161231 WP2161231 SCOOP-AIR
627068 627068 SCREW
WP965173 WP965173 SCREW
489392 489392 SCREW
489136 489136 SCREW
8533917 8533917 SCREW
WPW10141625 WPW10141625 SCREW
WP488163 WP488163 SCREW
W11544659 W11544659 SCREW
489340 489340 SCREW
WP8533993 WP8533993 SCREW
WP3400906 WP3400906 SCREW
WP3196557 WP3196557 SCREW
WP3400012 WP3400012 SCREW
WP489491 WP489491 SCREW
WP488787 WP488787 SCREW
WP489399 WP489399 SCREW
WP3-24004-109 WP3-24004-109 SCREW
WP3400806 WP3400806 SCREW
798639 798639 SCREW
WP488488 WP488488 SCREW
W10759522 W10759522 SCREW
WP489478 WP489478 SCREW
WP489500 WP489500 SCREW
WP489483 WP489483 SCREW
WPW10141645 WPW10141645 SCREW
WP489464 WP489464 SCREW
WP489497 WP489497 SCREW
WP8281227 WP8281227 SCREW
WP489128 WP489128 SCREW
WP489427 WP489427 SCREW
W10850698 W10850698 SCREW
WP681249 WP681249 SCREW
W10142289 W10142289 SCREW 8-18 X 5/8
4389654 4389654 SCREW NO.8 X 3/8 HEX
718257 718257 SCREW, 8-18 X 1.38
WP503695 WP503695 SEALER
WP505587 WP505587 SEALER
212643 212643 SEALER, GUM (4 FEET)
2255137 2255137 SERVICE & WIRING SHEET
2304542 2304542 SHELF ASSEMBLY, CANTILEVER (3)
2206270 2206270 SHELF LADDER
WP2174249K WP2174249K SHELF-WIRE
WP2209697 WP2209697 SHIM
W11661094 W11661094 SLEEVE
2182757 2182757 SLIDE MEAT PAN CONTROL
W10845585 W10845585 SLIDE, ICE CONTAINER (LEFT)
W10845583 W10845583 SLIDE, ICE CONTAINER (RIGHT)
1115380 1115380 SLIDE, ICE DOOR
WP2152713 WP2152713 SOLENOID
WP625834 WP625834 SPACER
WP1119007 WP1119007 SPACER
WP1119005 WP1119005 SPACER
WPW10224328 WPW10224328 SPRING
1119020 1119020 SPRING, RETURN
489203 489203 SPRING, WASHER

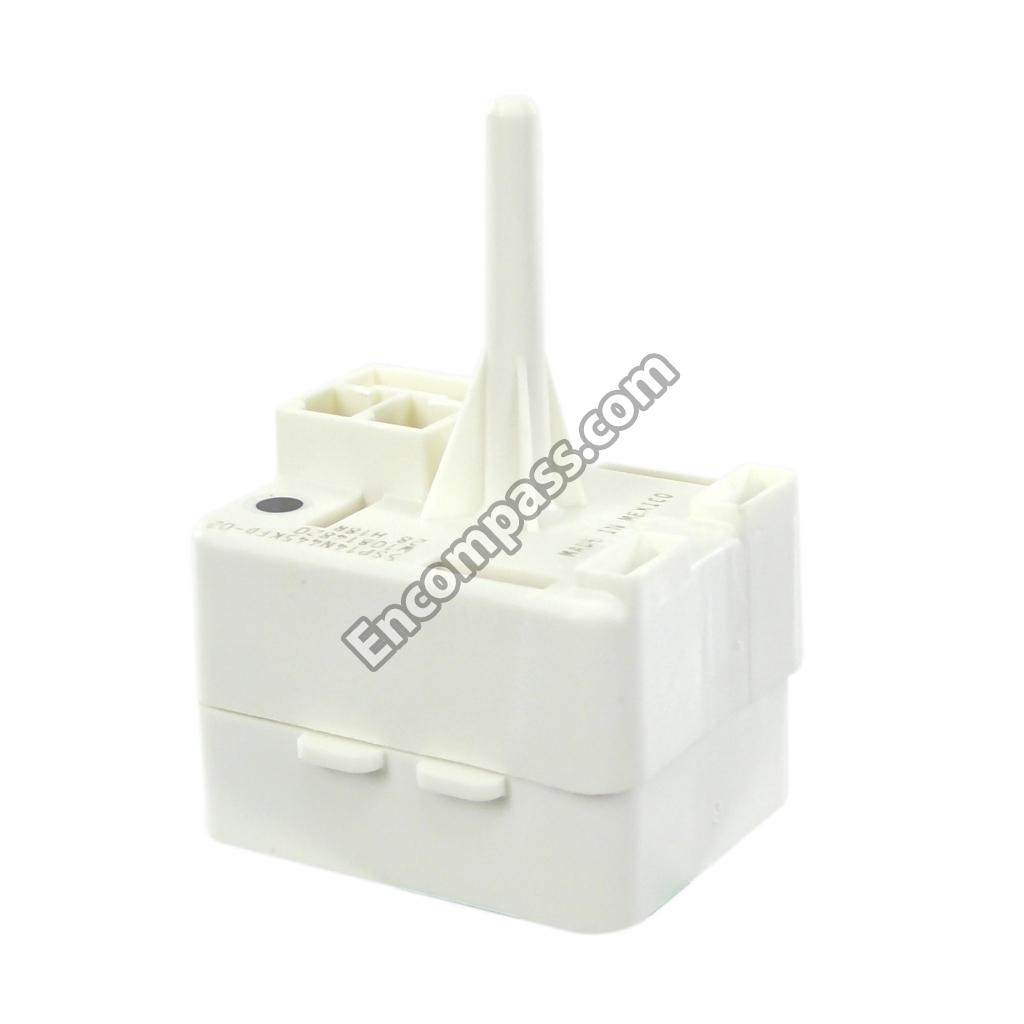

W10896198 W10896198 START-DEV
2223313 2223313 STRAP
WP2196207 WP2196207 STUD-SHELF
4388405 4388405 STUD-SHELF
W11223328 W11223328 STUD-SHELF
WP2196483 WP2196483 STUD-SHELF
4388358 4388358 SUPPORT KIT (CONTAINS RIGHT AND LEFT)
WP2149705 WP2149705 SWITCH
W11457217 W11457217 SWITCH
WP2162361 WP2162361 SWTCH-MICR
W11238399 W11238399 TAPE
WP2198202 WP2198202 THERMOSTAT
2182111 2182111 THERMOSTAT KNOB
WP2182181 WP2182181 THIMBLE
WPW10339879 WPW10339879 TIE-WIRE
W10822278 W10822278 TIMER-DEF
WP1117510 WP1117510 TORX KEY
WP2261449 WP2261449 TRACK
WP2261448 WP2261448 TRACK, BASKET (LEFT SIDE) (2)
WPW10614158 WPW10614158 TRAY-EVAP
2195904K 2195904K TRIM, BASKET
2313198K 2313198K TRIM, DOOR SHELF
2193353T 2193353T TRIM, HANDLE (BISCUIT)
WP2193353W WP2193353W TRIM-HANDL
W11512417 W11512417 TRIVET
2261599 2261599 TUBE, CONDENSER TO HEAT LOOP
8201597 8201597 TUBE, FILTER INLET
2205764 2205764 TUBE, SUCTION
2149718 2149718 UNIT MOUNTING RAIL
4389205 4389205 UNIT, HARNESS
2318600 2318600 USE & CARE GUIDE
WP978025 WP978025 VALVE
978028 978028 VALVE, ACCESS (1/2``)
876764 876764 VALVE, ACCESS (3/16``)
978030 978030 VALVE, ACCESS (3/4``)
978027 978027 VALVE, ACCESS (3/8``)
978026 978026 VALVE, ACCESS (5/16``)
978029 978029 VALVE, ACCESS (5/8``)
WP489235 WP489235 WASHER
489234 489234 WASHER, PLAIN
W10823511 W10823511 WATER TUBE
WPW10350006 WPW10350006 WATER TUBE
2187408 2187408 WIRE ASSEMBLY
W11234406 W11234406 WIRE HARNESS
2311642 2311642 WIRE HARNESS (WHITE)
2311637 2311637 WIRE HARNESS, DUAL CRISPER LIGHT
2311639 2311639 WIRING ASSEMBLY, ICE DISPENSER
