Model Image
Manufacturer

Whirlpool

Model Number

WDE151LVQ01

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3601F373-51 3601F373-51 BAFFLE, RETAINER
4011F371-80 4011F371-80 BOTTOM, BURNER BOX
W10196406RW W10196406RW BOWL-DRIP
WPW10196405 WPW10196405 BOWL-DRIP
WP3801F656-51 WP3801F656-51 BRACKET
3801F881-51 3801F881-51 BRACKET, BURNER BOX
3801F886-51 3801F886-51 BRACKET, GLASS
3801F832-45 3801F832-45 BRACKET, HANDLE (LEFT)
3801F831-45 3801F831-45 BRACKET, HANDLE (RIGHT)
W10190166 W10190166 BRKT-SRVCE
WP7730P011-60 WP7730P011-60 CAMERA LENS- INDI
W10355051 W10355051 CLEANER, COOKTOP
8019P013-60 8019P013-60 CLIP, WIRE
5171P565-60 5171P565-60 COIL, HARNESS (LT)
5700P822-60 5700P822-60 CONDUIT (FLX CABLE)

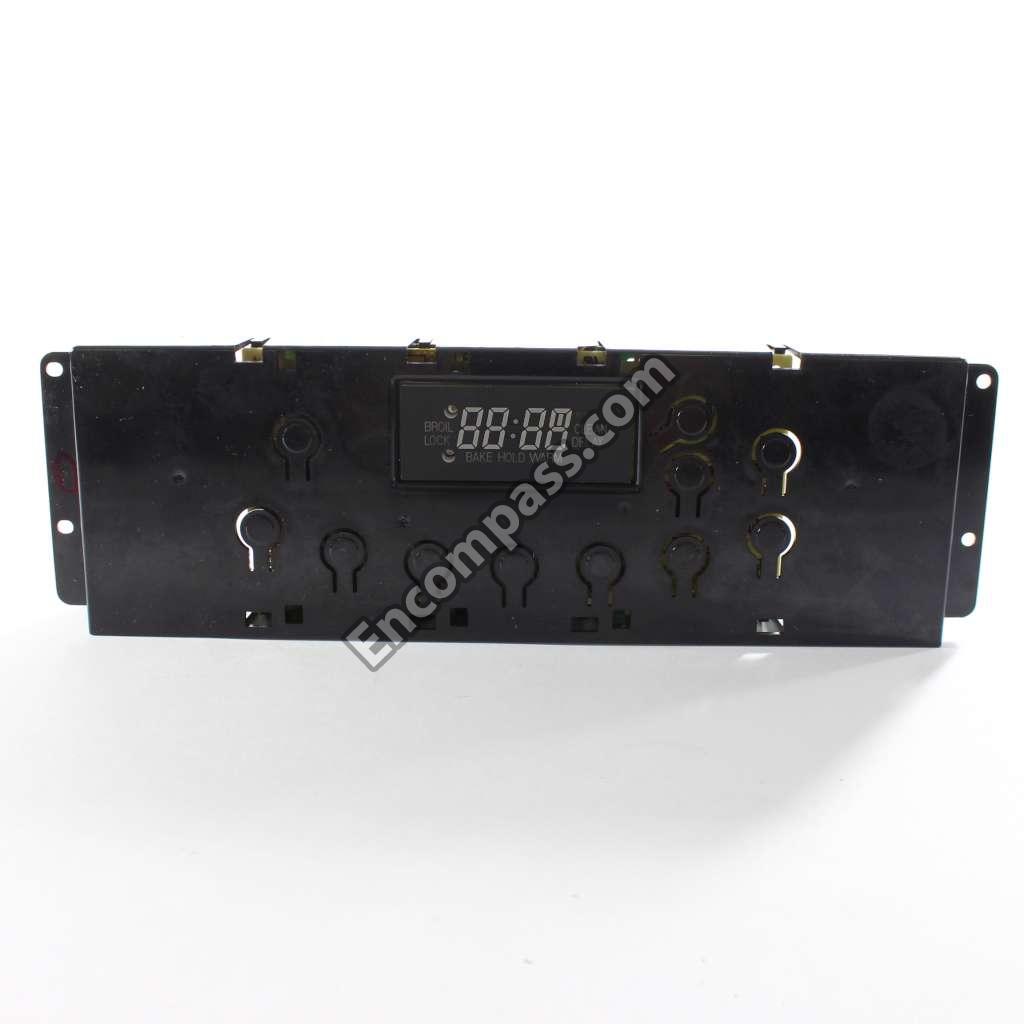

W10769823 W10769823 CONTROL BOARD
2002M200-81 2002M200-81 COOKTOP
4005F810-51 4005F810-51 COVER, MAIN WIRE
WPW10118430 WPW10118430 DOOR HANDLE
74010897 74010897 DOOR LATCH ASSEMBLY
WP3608F116-71 WP3608F116-71 DOOR TRIM
WP3608F117-71 WP3608F117-71 DOOR TRIM
WP3608F141-71 WP3608F141-71 DOOR TRIM
WP7406P218-60 WP7406P218-60 ELMNT-BROL
7726P333-60 7726P333-60 ENDCAP (L.HAND)
7726P332-60 7726P332-60 ENDCAP (R.HAND)
3826F066-51 3826F066-51 EXTENSION, BACK
3826F064-51 3826F064-51 EXTENTION, SHIELD
W10183566 W10183566 EXTRUSION
WPW10586440 WPW10586440 FAN-BLWR
241430 241430 FOIL, ALUMINUM (18`` X 25 )
W11665456 W11665456 FOOT-LEVEL
WPW10162384 WPW10162384 GASKT-DOOR
WPW10176724 WPW10176724 GLASS, DOOR (ORDER ITEMS 13 & 21 WHEN REPLACING DOOR GLASS)
74003645 74003645 GLASS, INNER
74010890 74010890 HARNESS, SENSOR
5175P370-60 5175P370-60 HARNESS, UNITY III COIL TOP
W10183559 W10183559 HARNS-WIRE
74011142 74011142 HINGE, OVEN DOOR
3605F345-51 3605F345-51 HOLDER, VENT TUBE
WP7403P238-60 WP7403P238-60 INFINITE CONTROL SWITCH
8101P336-60 8101P336-60 INSTALLATION INSTRUCTIONS
WPW10208653 WPW10208653 INSULATION
7002P246-60 7002P246-60 INSULATION, DOOR
7002P456-60 7002P456-60 INSULATION, OVEN BOTTOM
74010987 74010987 INSULATION, WRAP
7003P101-60 7003P101-60 INSULATOR, CORD
8255P412-60 8255P412-60 KIT, HARDWARE
7737P415-60 7737P415-60 KNOB
WP7407P182-60 WP7407P182-60 LAMP-ASM
8009 8009 LIGHT BULB
WP74004153 WP74004153 LIGHT- IND
WP2402W312-19 WP2402W312-19 LINER-DOOR
3804F294-51 3804F294-51 MAIN BACK
W10854980 W10854980 NAMEPLATE, LOGO
WP74001574 WP74001574 NUT- SNAP
12001656 12001656 OVEN SENSOR REPLACEMENT (LONG)
799344 799344 PAINT, BULK (1 QT.) (WHITE (CUT))
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
2618F201-51 2618F201-51 PANEL, SHIELD (LEFT)
2618F206-51 2618F206-51 PANEL, SHIELD (RIGHT)
W10159606 W10159606 PANL-CNTRL
W10165724 W10165724 PLATE, SMOKE ELIM.
WPW10282492 WPW10282492 RACK-OVEN
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
4003F067-51 4003F067-51 RETAINER, BOTTOM
WP98008544 WP98008544 SCREW
W11347848 W11347848 SCREW
W11111008 W11111008 SCREW
WP4159193 WP4159193 SCREW
WP7101P434-60 WP7101P434-60 SCREW
WP90767 WP90767 SCREW
2006253 2006253 SCREW, 8-32 X .340
3604W156-71 3604W156-71 SHIELD, VENT WHITE
74010267 74010267 SPACER, RUBBER
WP74005546 WP74005546 SPACER- RU
WP3807F708-71 WP3807F708-71 SUPPORT
3807F601-51 3807F601-51 SUPPORT, CONTROL PANEL
3807F494-45 3807F494-45 SUPPORT, ELEMENT
3807F732-51 3807F732-51 SUPPORT, OVEN (REAR)
WPW10345407 WPW10345407 SURFACE ELEMENT
WP9761346 WP9761346 SURFACE ELEMENT
WP7403P239-60 WP7403P239-60 SWITCH
74008717 74008717 SWITCH, ROCKER (WHT)
WP7450P034-60 WP7450P034-60 SWTCH-LMIT
W10178994 W10178994 SWTCH-MEMB
W10250534 W10250534 TAPE, FOIL
W10250536 W10250536 TAPE, WHITE
3608F130-71 3608F130-71 TRIM, SIDE (L.SIDE)
3608F128-71 3608F128-71 TRIM, SIDE (R.SIDE)
W10165722 W10165722 TUBE, VENT LOWER
8026P085-60 8026P085-60 TUBE, VENT UPPER
W10233479 W10233479 TUBE-VENT
5171P556-60 5171P556-60 U3, HARNESS (RT)
W10175572 W10175572 USE & CARE GUIDE
