Model Image
Manufacturer

Whirlpool

Model Number

WDF130PAHS0

Description

24-inch Front Control Built-in Dishwasher

Interactive Exploded View
Exploded View

Parts List

Part Number Description

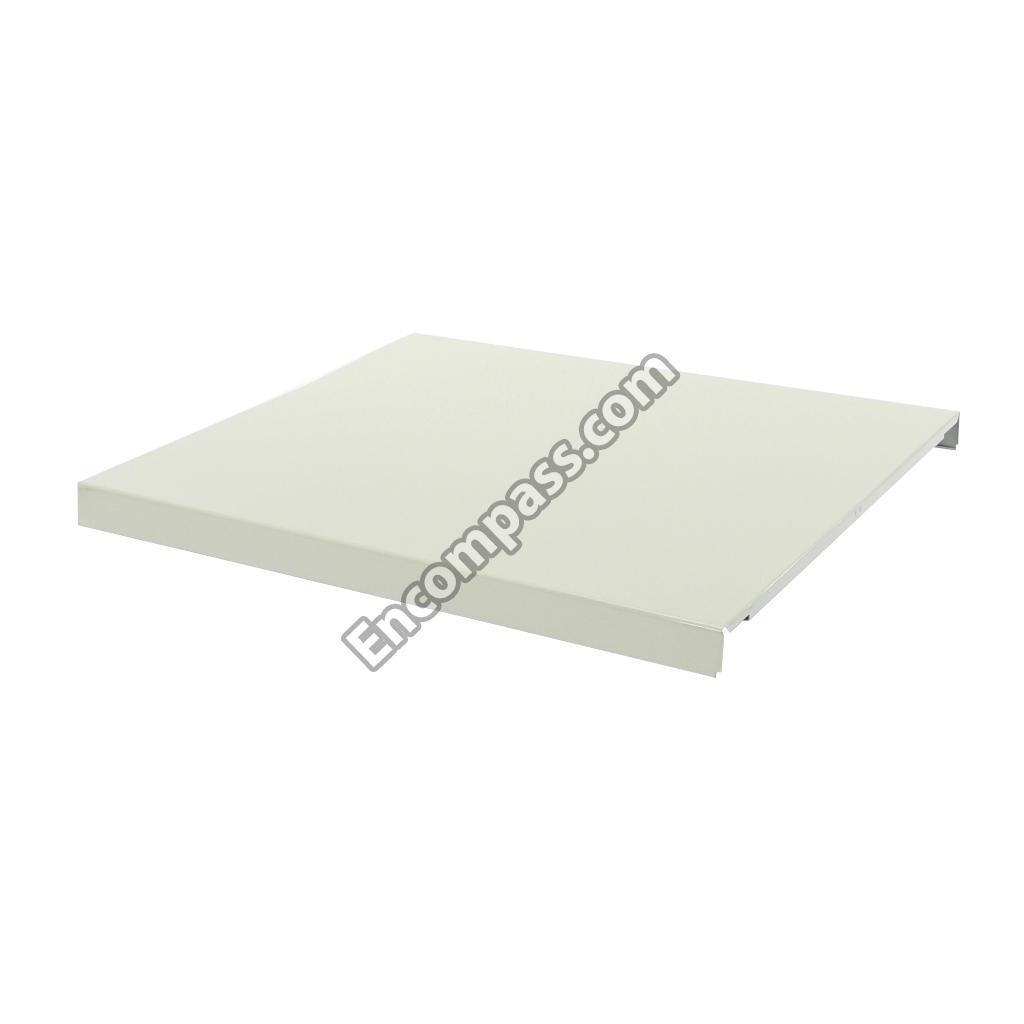

W10441008 W10441008 ACCESS PANEL (BISCUIT/BISQUE)
WPW10441006 WPW10441006 ACCESS PANEL (BLACK)
WPW10441007 WPW10441007 ACCESS PANEL (WHITE)
3385556 3385556 ACCESSORIES, DRAIN HOSE 12 FT.
W10702080 W10702080 ACCESSORIES, HANDLE ASSEMBLY (BLACK)
W10702081 W10702081 ACCESSORIES, HANDLE ASSEMBLY (WHITE)
4396277 4396277 ACCESSORIES, MOISTURE BARRIER KIT
8171658 8171658 ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE)
8171657 8171657 ACCESSORIES, SIDE PANEL KITS (BLACK)
8171659 8171659 ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL)
8171656 8171656 ACCESSORIES, SIDE PANEL KITS (WHITE)
W11398648 W11398648 ACTUATOR, DISPENSER
WP8524471 WP8524471 ACTUATOR, LATCH
8171477 8171477 ANTI-TIP KIT, FLOOR MOUNT KIT
8212560 8212560 ANTI-TIP KIT, SIDE MOUNT KIT
W11613573 W11613573 ARM, HINGE (LEFT HAND)
W11613572 W11613572 ARM, HINGE (RIGHT HAND)
WPW10317197 WPW10317197 ARM-SPRAY
WPW10319027 WPW10319027 ARM-SPRAY
WP8268866 WP8268866 BASKT-WARE
WPW10274884 WPW10274884 BOLT, LATCH
W10874358 W10874358 BOX, CONNECTOR
W10874357 W10874357 BRACE, CONNECTOR
WP8269145 WP8269145 BRCKT-MTG
WP8268990 WP8268990 BUSHING
W10854044 W10854044 BUTTON TREE
WP596669 WP596669 CLAMP
WP285655 WP285655 CLAMP
W10789434 W10789434 CLAMP, HOSE
W10539489 W10539489 CLIP, THERMOSTAT
W11090957 W11090957 CONSOLE ASSEMBLY (INCLUDES INSERT) (BISCUIT/BISQUE)

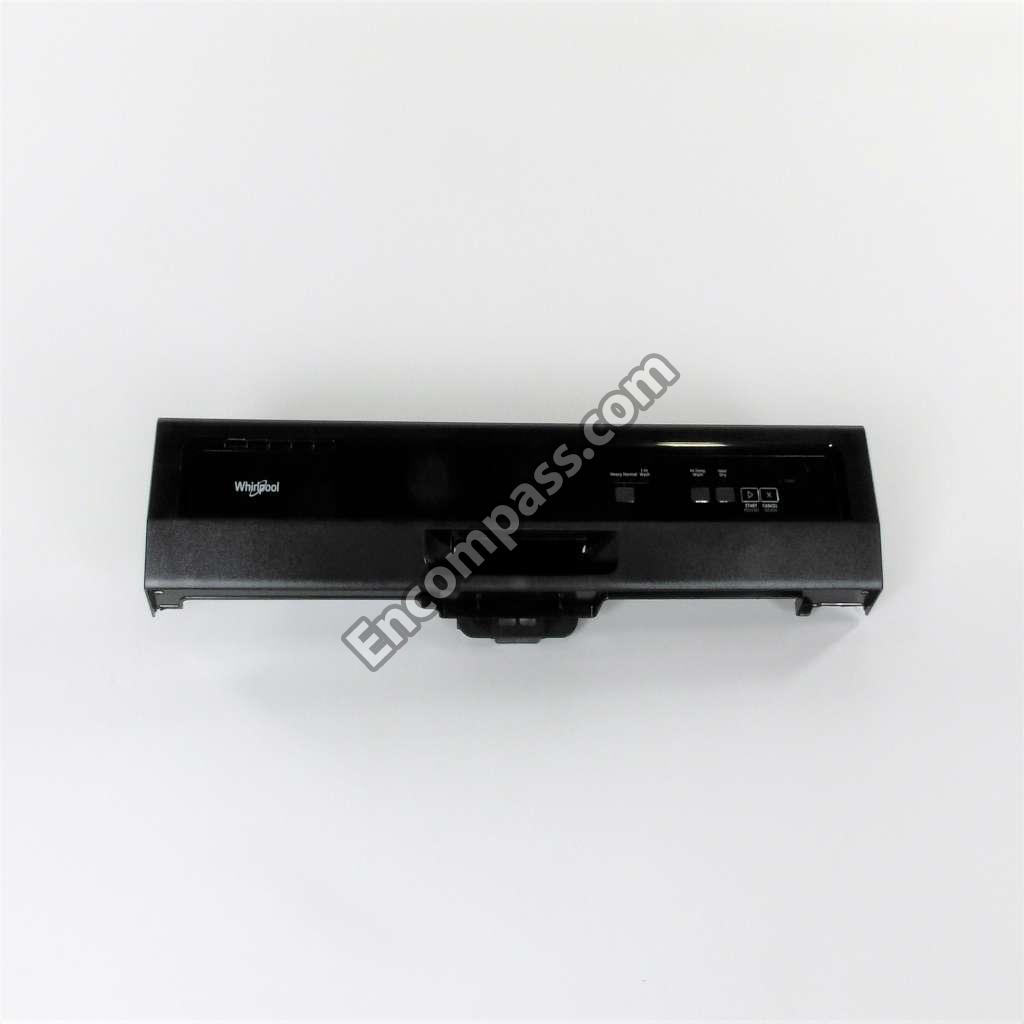

W11090954 W11090954 CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
W11090955 W11090955 CONSOLE ASSEMBLY (INCLUDES INSERT) (WHITE)

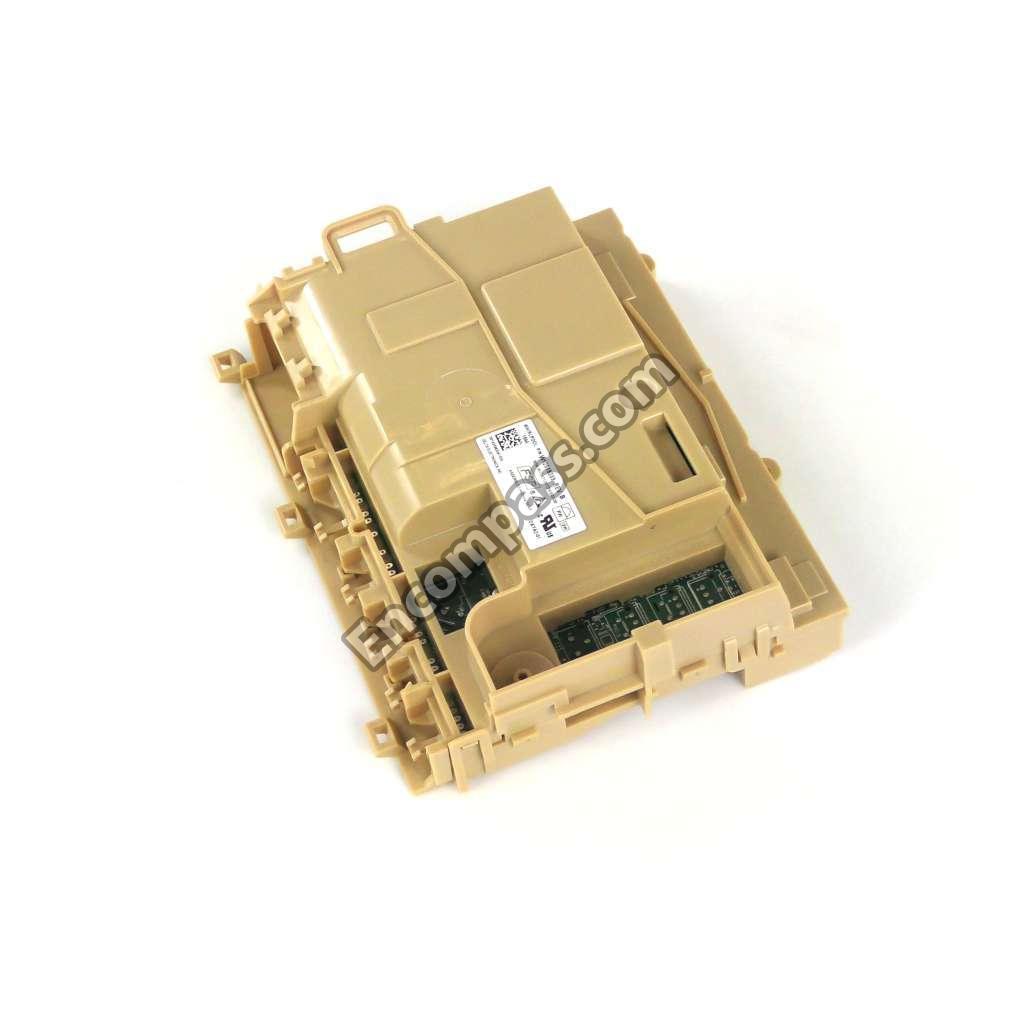

W11305293 W11305293 CONTROL BOARD
W11087225 W11087225 CONTROL, ELECTRONIC
WPW10455271 WPW10455271 COVER
W11651613 W11651613 COVER
W11023776 W11023776 COVER, DISPENSER
WP8268991 WP8268991 COVR-BOX
W10919772 W10919772 DEFLECTOR, VENT (ALSO ORDER ITEM 4)
W11752368 W11752368 DISHRACK
4396853 4396853 DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER ATLANTIS)
W10876537 W10876537 DRAIN PUMP
W11612326 W11612326 DRAIN PUMP
W11236379 W11236379 ENERGY GUIDE
W11048597 W11048597 ENERGY GUIDE
WPW10503550 WPW10503550 FASTENER (BISCUIT/BISQUE)
WPW10503548 WPW10503548 FASTENER (BLACK)
WPW10503549 WPW10503549 FASTENER (WHITE)
W10872845 W10872845 FILTER
WPW10346525 WPW10346525 FLOAT-ASM
W11725437 W11725437 GASKET
WP8531323 WP8531323 GASKET
WPW10254545 WPW10254545 GASKET, VENT
WPW10538166 WPW10538166 GROMMET
W11684608 W11684608 HANDLE, LATCH (BLACK)
W10716686 W10716686 HANDLE, LATCH (WHITE)
W10518394 W10518394 HEATER
W10445975 W10445975 HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
8269144A 8269144A HOSE-DRAIN
WPW10545278 WPW10545278 HOSE-DRAIN
W10878507 W10878507 HOSE-FILL
W11175771 W11175771 INLET VALVE
WPW10195536 WPW10195536 INLET-WATR
W11467573 W11467573 INNER DOOR ASSEMBLY (ALSO ORDER ITEM 4)
W10806908 W10806908 INSTALLATION INSTRUCTIONS
W10254613 W10254613 INSULATION, DOOR
W11229687 W11229687 LATCH, DISPENSER
WPW10195037 WPW10195037 LEVER
8193716 8193716 LEVLER-LEG
W10913666 W10913666 LIGHT PIPE
WPW10340683 WPW10340683 MANIFOLD
WPW10508676 WPW10508676 NUT-TUBE
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10274897 WPW10274897 PANEL FRONT (BISCUIT/BISQUE)
WPW10274895 WPW10274895 PANEL FRONT (BLACK)
WPW10274902 WPW10274902 PANEL FRONT (STAINLESS)
WPW10274896 WPW10274896 PANEL FRONT (WHITE)
WPW10292152 WPW10292152 PARTS-MISC
4317824 4317824 POWER CORD KIT (INCLUDED CORD & MISC. HARDWARE)

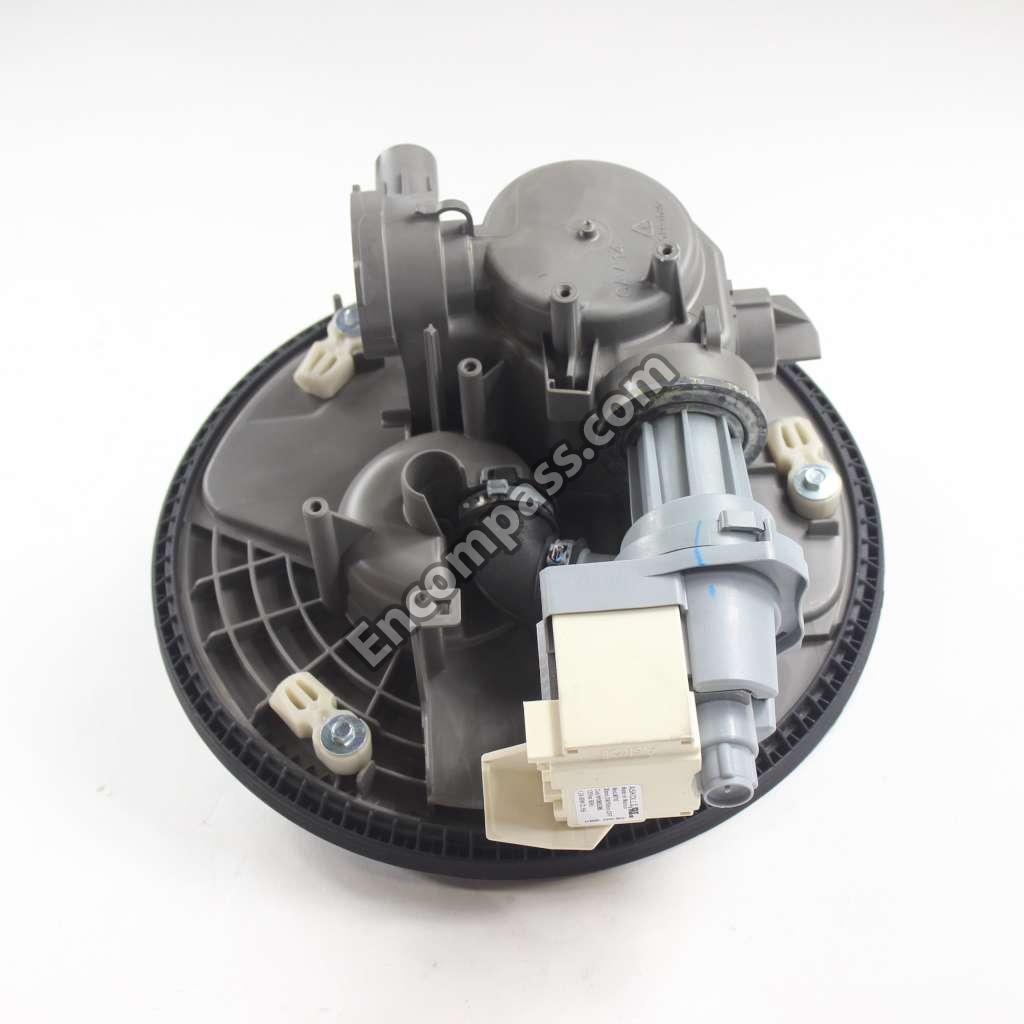

W10888591 W10888591 PUMP & MOTOR
4396840RC 4396840RC RAK KIT
4396838RC 4396838RC RAK KIT
W10544186 W10544186 RETAINER, SOLENOID
WPW10463906 WPW10463906 SCREEN
W10165274 W10165274 SCREW
WPW10348407 WPW10348407 SCREW
WP3400014 WP3400014 SCREW
WP3400892 WP3400892 SCREW
WP308685 WP308685 SCREW
W10817436 W10817436 SCREW
WP304231 WP304231 SCREW
WPW10348409 WPW10348409 SCREW
WPW10109200 WPW10109200 SCREW
WPW10348413 WPW10348413 SCREW
WPW10177098 WPW10177098 SCREW
WP8269296 WP8269296 SEAL, DOOR/CONSOLE
W10321574 W10321574 SHIELD, THERMOSTAT
WP8268961 WP8268961 SLEEVE, FRICTION
W10514359 W10514359 SOLENOID, DISPENSER
WPW10306228 WPW10306228 SPACER
WPW10337934 WPW10337934 SPRING
W10678341 W10678341 SPRING, LATCH
WPW10316267 WPW10316267 STANDPIPE
W10850371 W10850371 STIFFENER, DOOR
WP8565925 WP8565925 STOP
WP8580309 WP8580309 STRIKE
W10482461 W10482461 SUMP ASSEMBLY (ALSO ORDER ITEMS 13 & 16)
W11243394 W11243394 SUPPORT
W11680335 W11680335 SUPPORT
W11027055 W11027055 SUPPRT-HTR
WPW10195039 WPW10195039 SWITCH
WPW10372113 WPW10372113 TAB-SUMP
W10849767 W10849767 TECH SHEET, ENGLISH
W10849768 W10849768 TECH SHEET, FRENCH
WP661566 WP661566 THERMOSTAT
WP3385089 WP3385089 TRACK
W11513977 W11513977 TUB-DISHWR
W11627532 W11627532 TUBE-FEED
WP676455 WP676455 TUCHUP
WP676453 WP676453 TUCHUP
W10667783 W10667783 USE & CARE GUIDE
WP3378128 WP3378128 WASHER
WP8268645 WP8268645 WHEEL
W10888592 W10888592 WHEEL
WP8575897 WP8575897 WHEEL-TUB
W10832776 W10832776 WIRING HARNESS
