Model Image
Manufacturer

Whirlpool

Model Number

WDF560SAFB1

Description

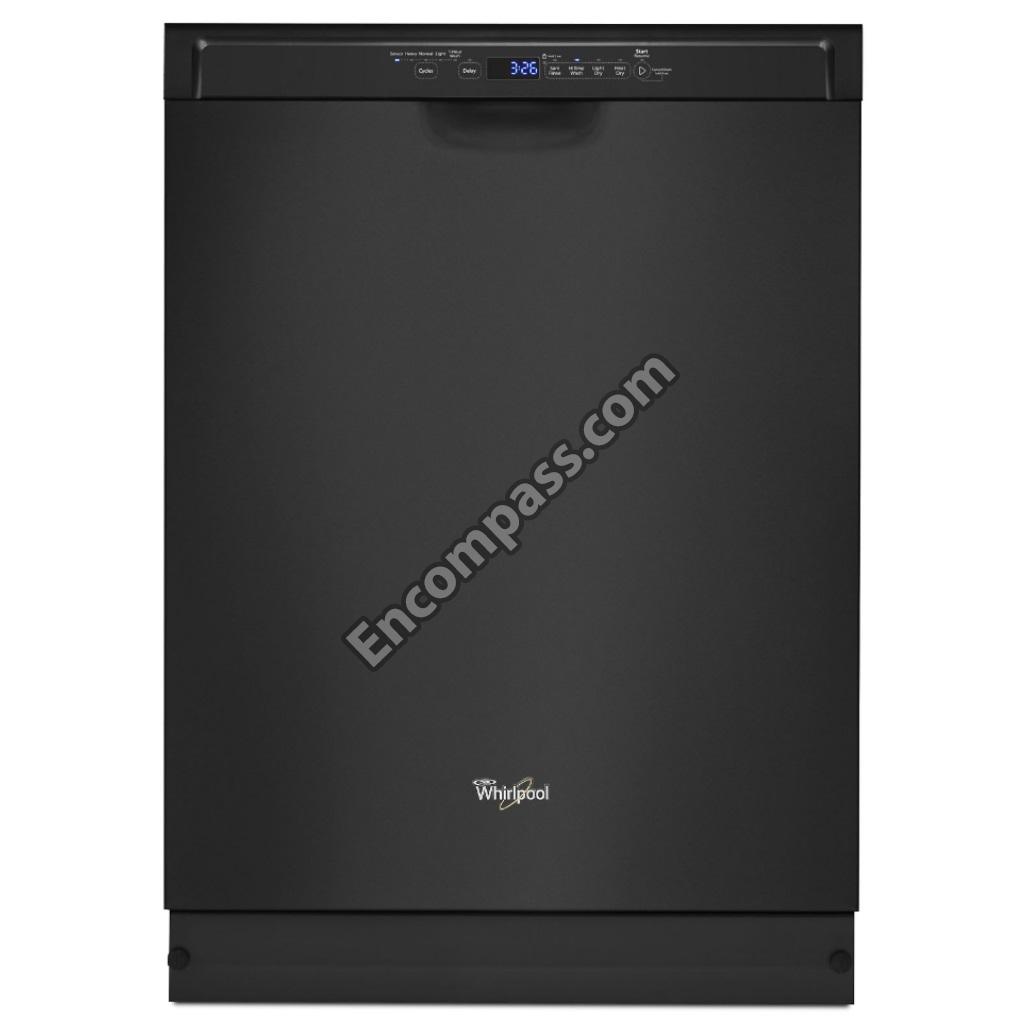

24-inch Built In Full Console Dishwasher Black

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10441008 W10441008 ACCESS PANEL (BISCUIT/BISQUE)
WPW10441006 WPW10441006 ACCESS PANEL (BLACK)
WPW10441007 WPW10441007 ACCESS PANEL (WHITE)
3385556 3385556 ACCESSORIES, DRAIN HOSE 12 FT.
W10702080 W10702080 ACCESSORIES, HANDLE ASSEMBLY (BLACK)
W10702081 W10702081 ACCESSORIES, HANDLE ASSEMBLY (WHITE)
4396277 4396277 ACCESSORIES, MOISTURE BARRIER KIT
8171658 8171658 ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE)
8171657 8171657 ACCESSORIES, SIDE PANEL KITS (BLACK)
8171659 8171659 ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL)
8171656 8171656 ACCESSORIES, SIDE PANEL KITS (WHITE)
8171477 8171477 ANTI-TIP KIT, FLOOR MOUNT KIT
8212560 8212560 ANTI-TIP KIT, SIDE MOUNT KIT
W11612302 W11612302 ARM, HINGE (LEFT HAND)
WP8534853 WP8534853 ARM, HINGE (RIGHT HAND)
W11167239 W11167239 ASSEMBLY, TERMINAL BOX
W10850371 W10850371 BARRIER, VAPOR

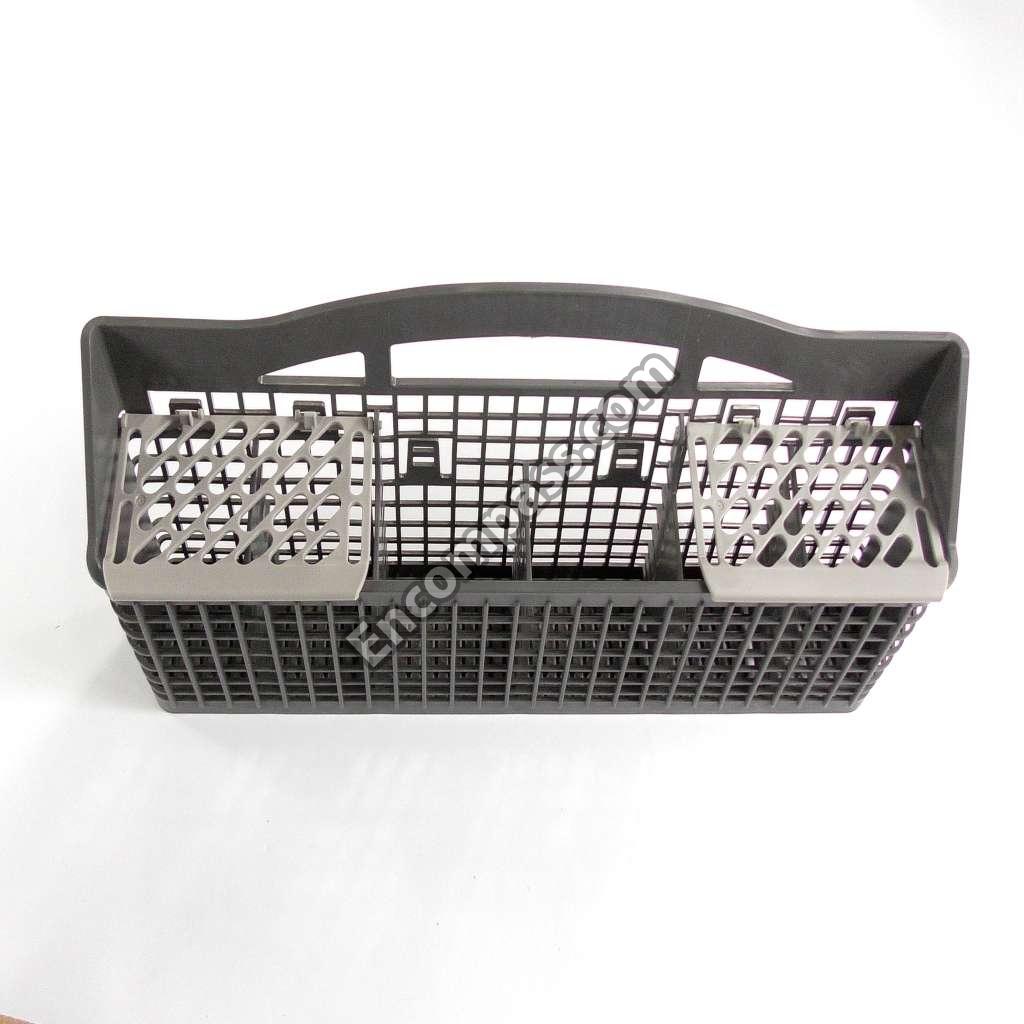

WPW10179397 WPW10179397 BASKET, SILVERWARE
W10783730 W10783730 BOX, CONNECTOR
WPW10194937 WPW10194937 BRACE, CONNECTOR

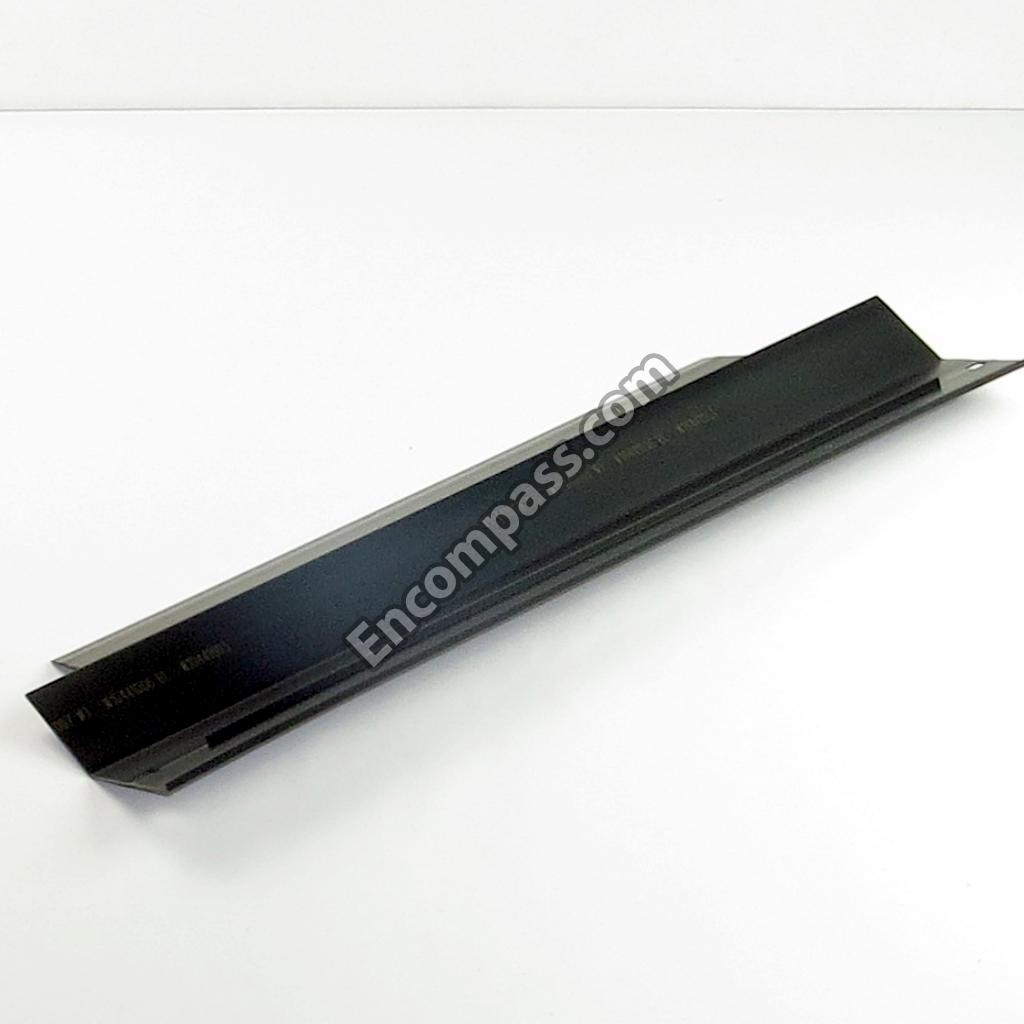

W11116870 W11116870 BRACKET, CONTROL

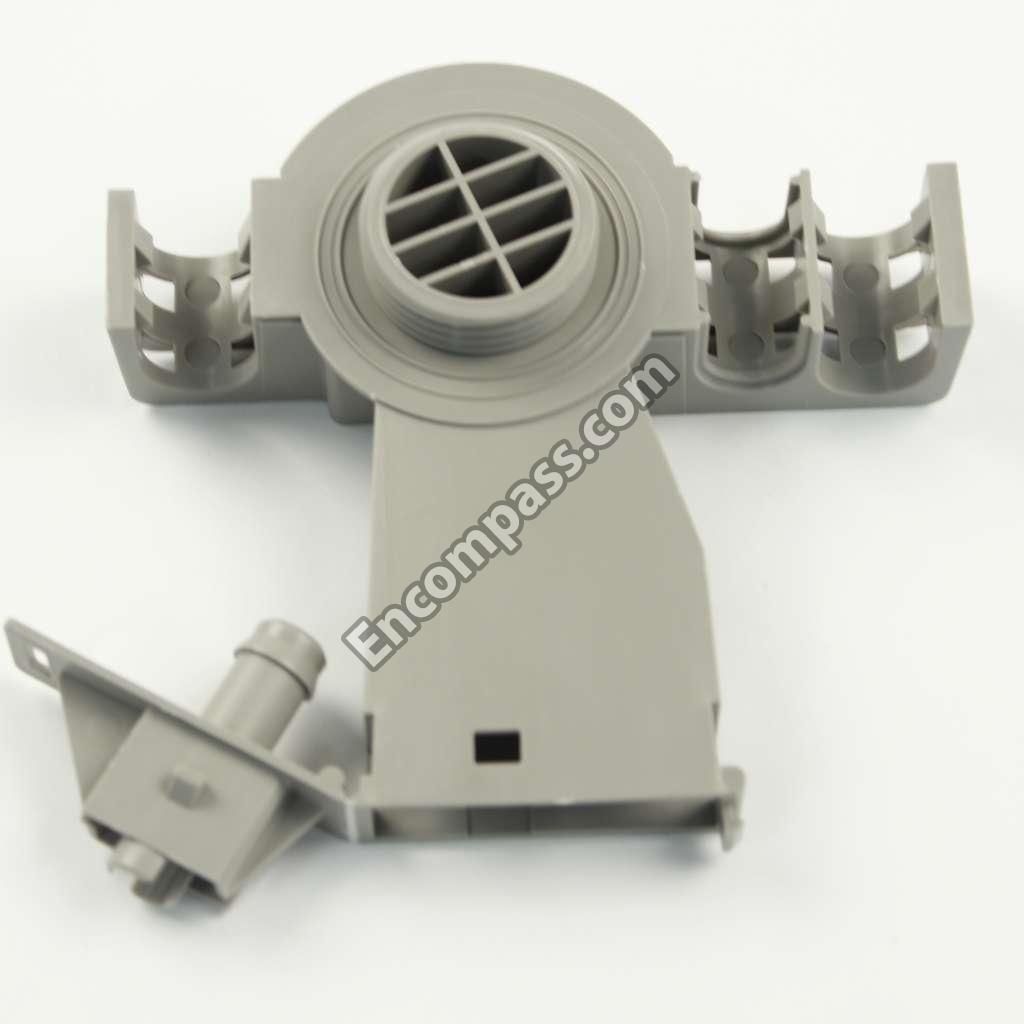

W10837623 W10837623 BRACKET, FEED TUBE
W10300703 W10300703 BRACKET, THERMOSTAT
WP8269145 WP8269145 BRACKET, UNDERCOUNTER

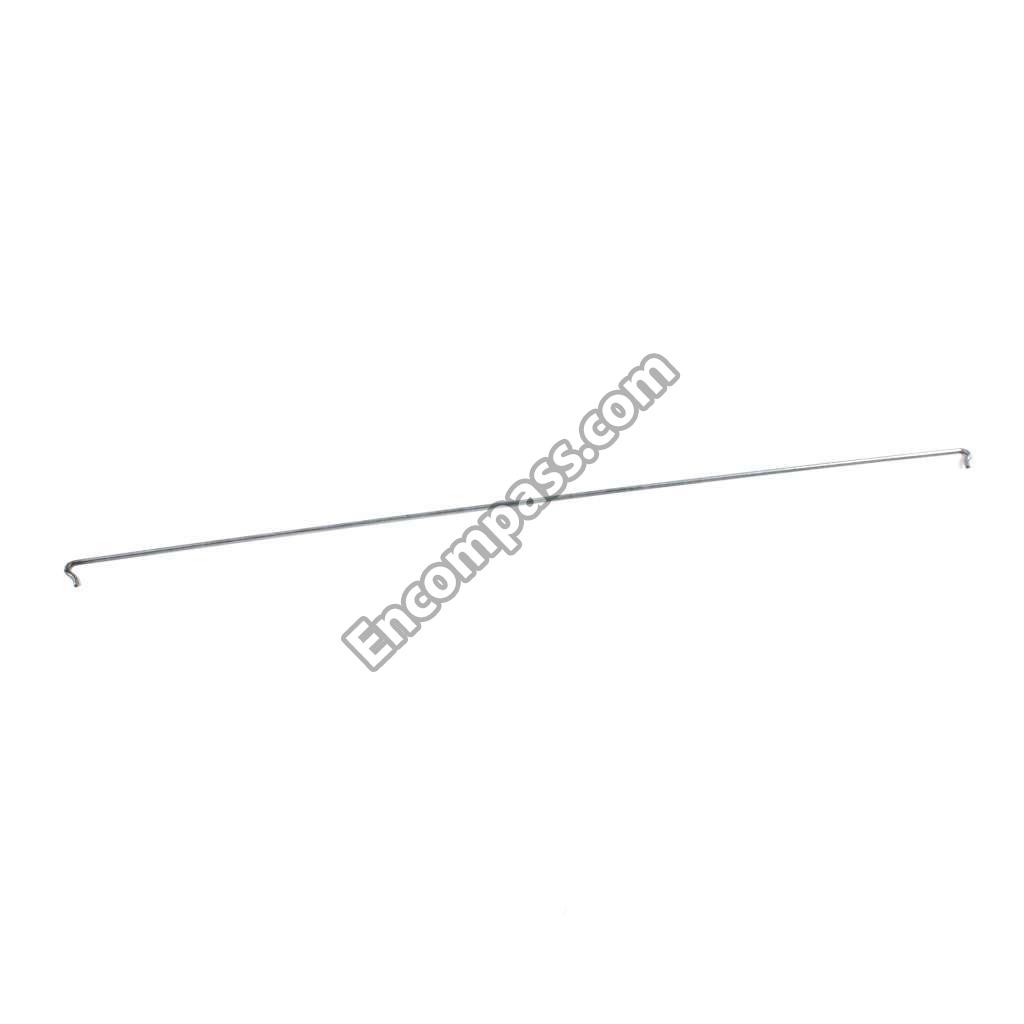

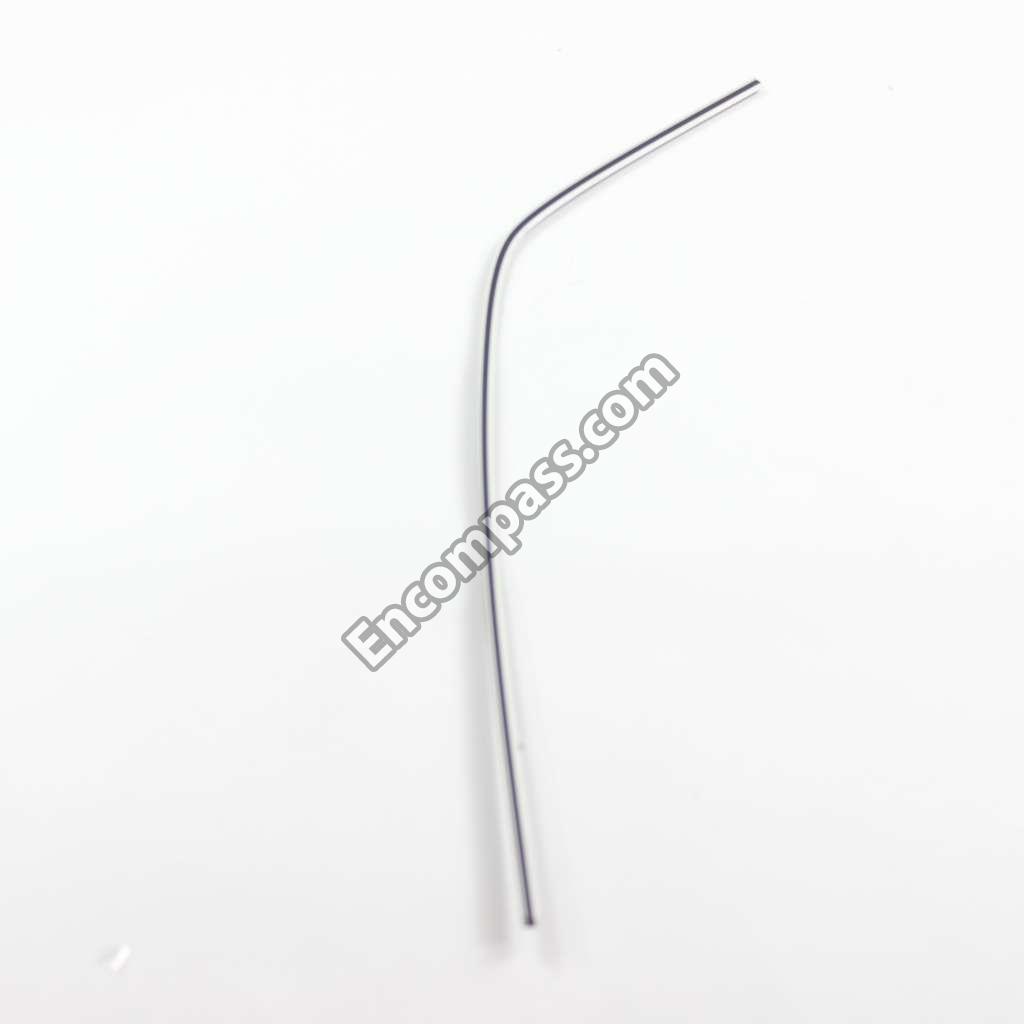

8194001 8194001 CABLE, DOOR
W10789434 W10789434 CLAMP, HOSE
WP596669 WP596669 CLAMP, HOSE
WP285655 WP285655 CLAMP, HOSE

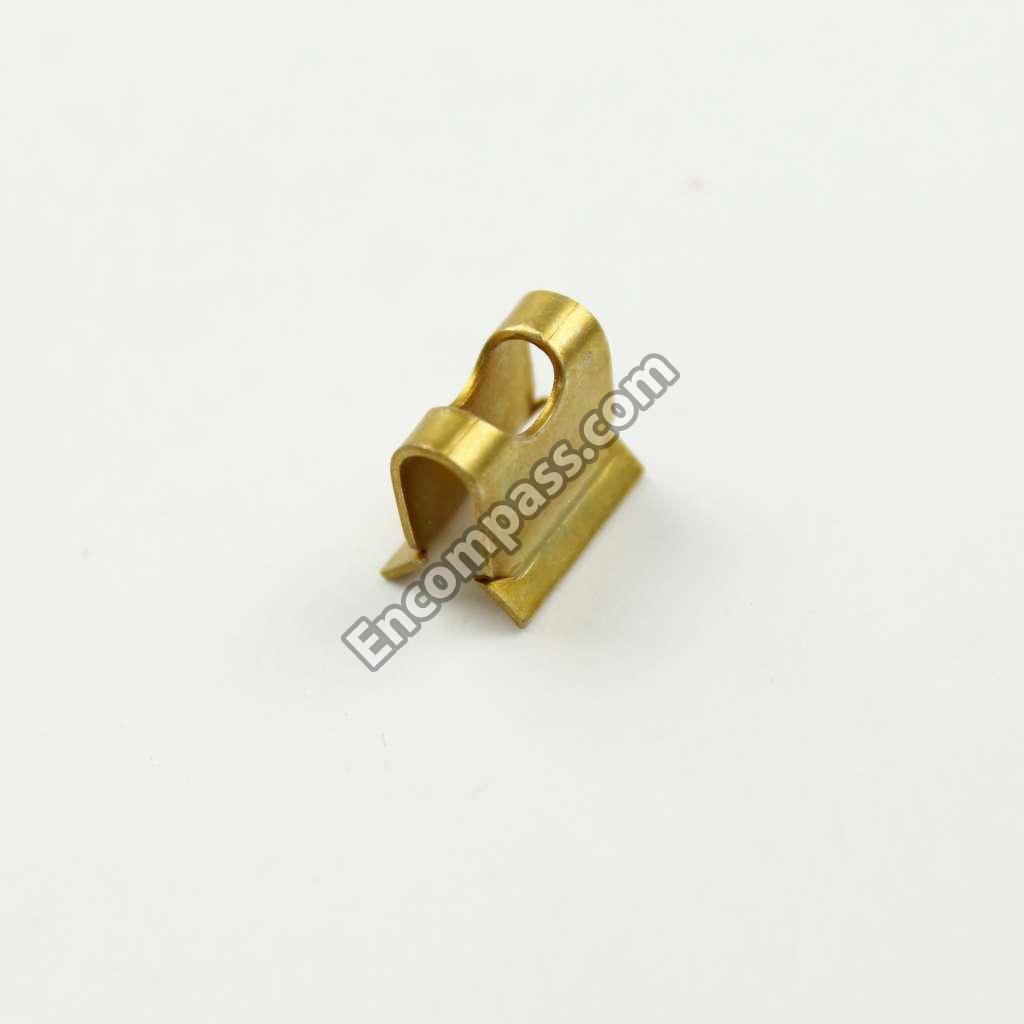

W11256107 W11256107 CLIP, CONTROL

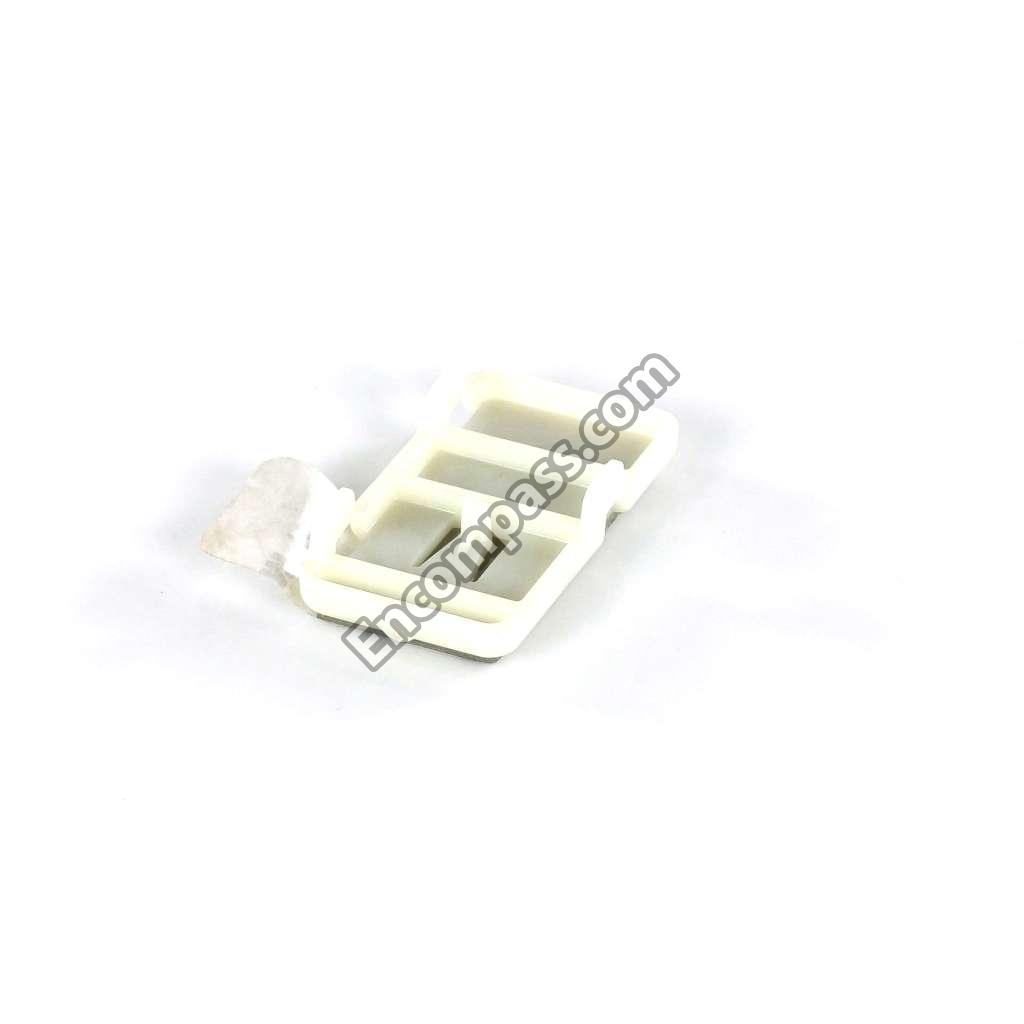

W10815836 W10815836 CLIP, PANEL
W11108140 W11108140 CONSOLE ASSEMBLY (INCLUDES INSERT) (BISCUIT/BISQUE)
W10874369 W10874369 CONSOLE ASSEMBLY (INCLUDES INSERT) (BLACK)
W10874377 W10874377 CONSOLE ASSEMBLY (INCLUDES INSERT) (STAINLESS)

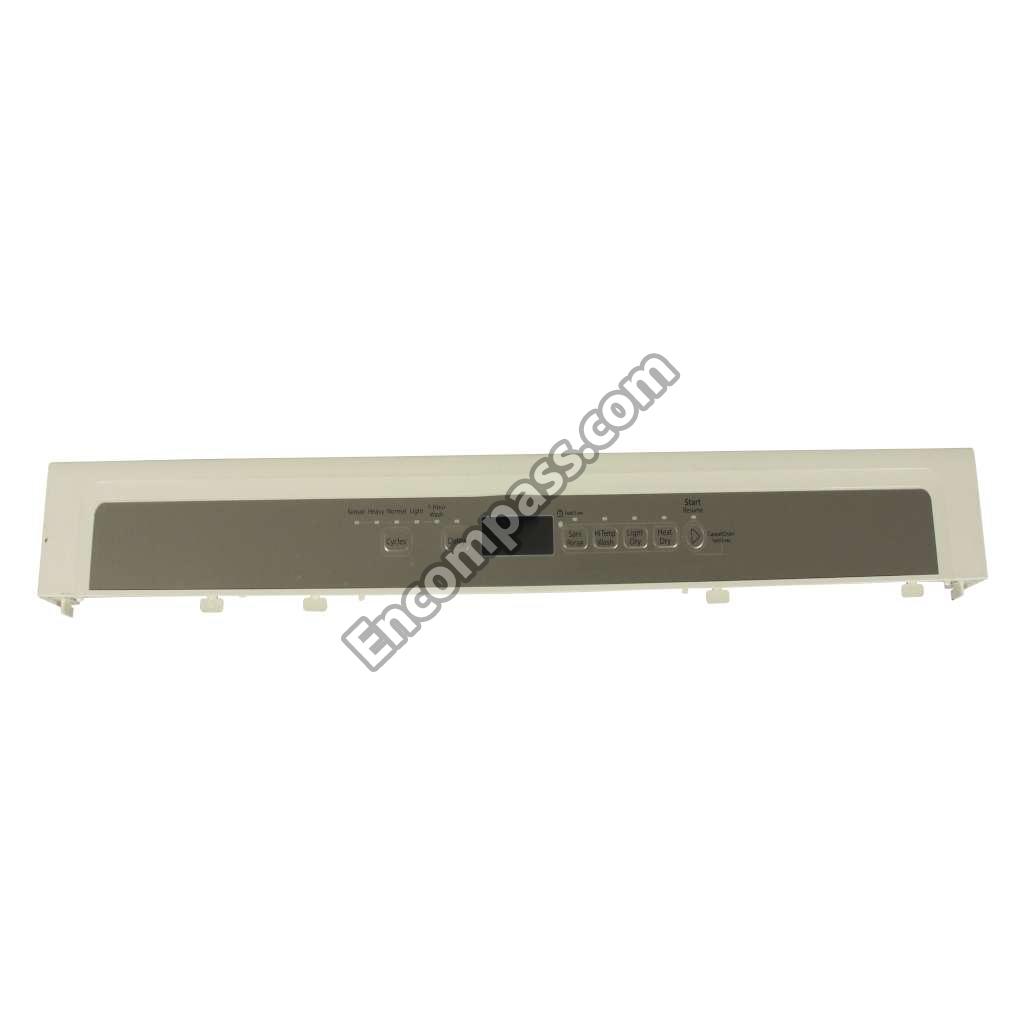

W10874370 W10874370 CONSOLE ASSEMBLY (INCLUDES INSERT) (WHITE)

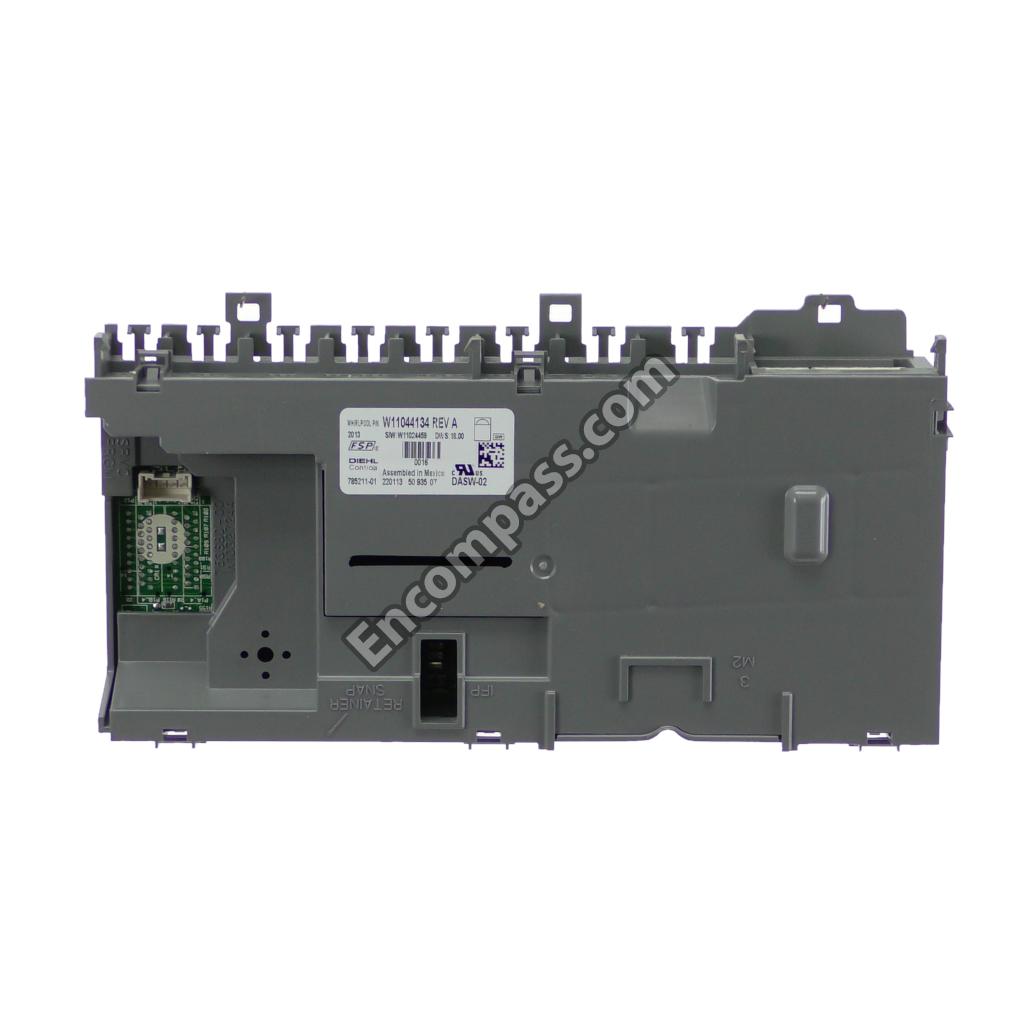

W11108143 W11108143 CONTROL, ELECTRONIC
WPW10455271 WPW10455271 COVER, OUTLET

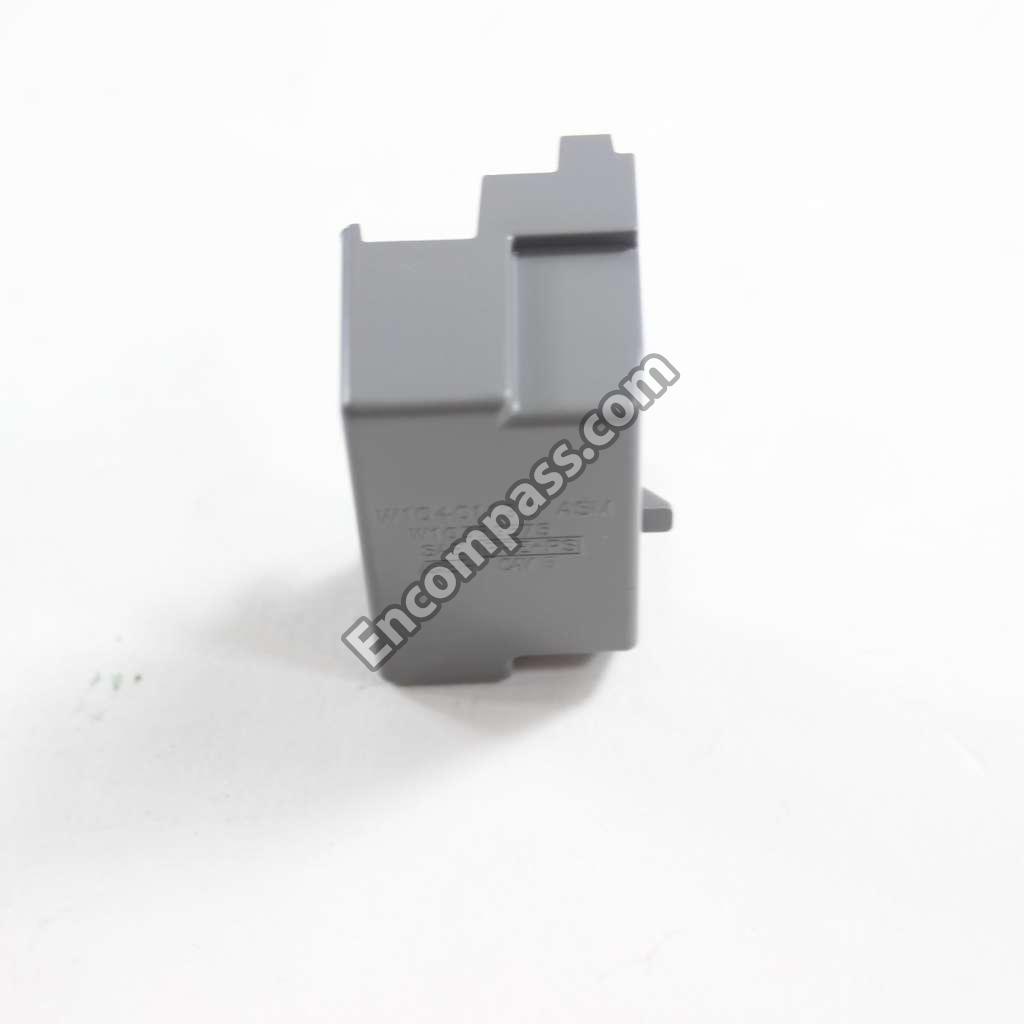

W10847918 W10847918 COVER, TERMINAL BOX
W10350335 W10350335 DAMPER, SUMP ASSEMBLY
WPW10476221 WPW10476221 DISC, DIVERTER
4396853 4396853 DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER ATLANTIS)
W10781857 W10781857 DISHRACK, LOWER
W11169039 W11169039 DISHRACK, UPPER

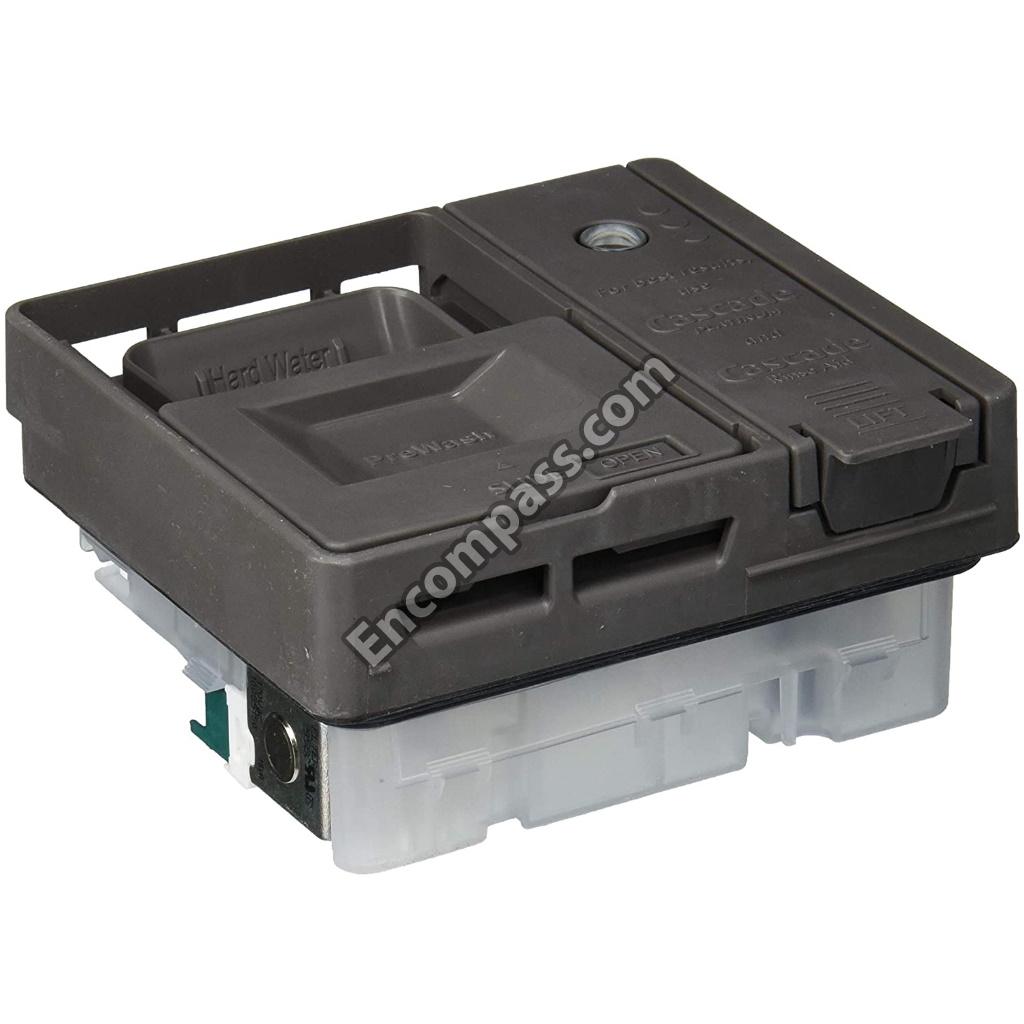

W10861000 W10861000 DISPENSER ASSEMBLY
WPW10084086 WPW10084086 DOOR BALANCE ASSEMBLY
WPW10545278 WPW10545278 DRAIN LOOP WITH CHECK VALVE ASEMBLY
W10921054 W10921054 ENERGY GUIDE
WPW10503550 WPW10503550 FASTENER (BISCUIT/BISQUE)
WPW10503548 WPW10503548 FASTENER (BLACK)

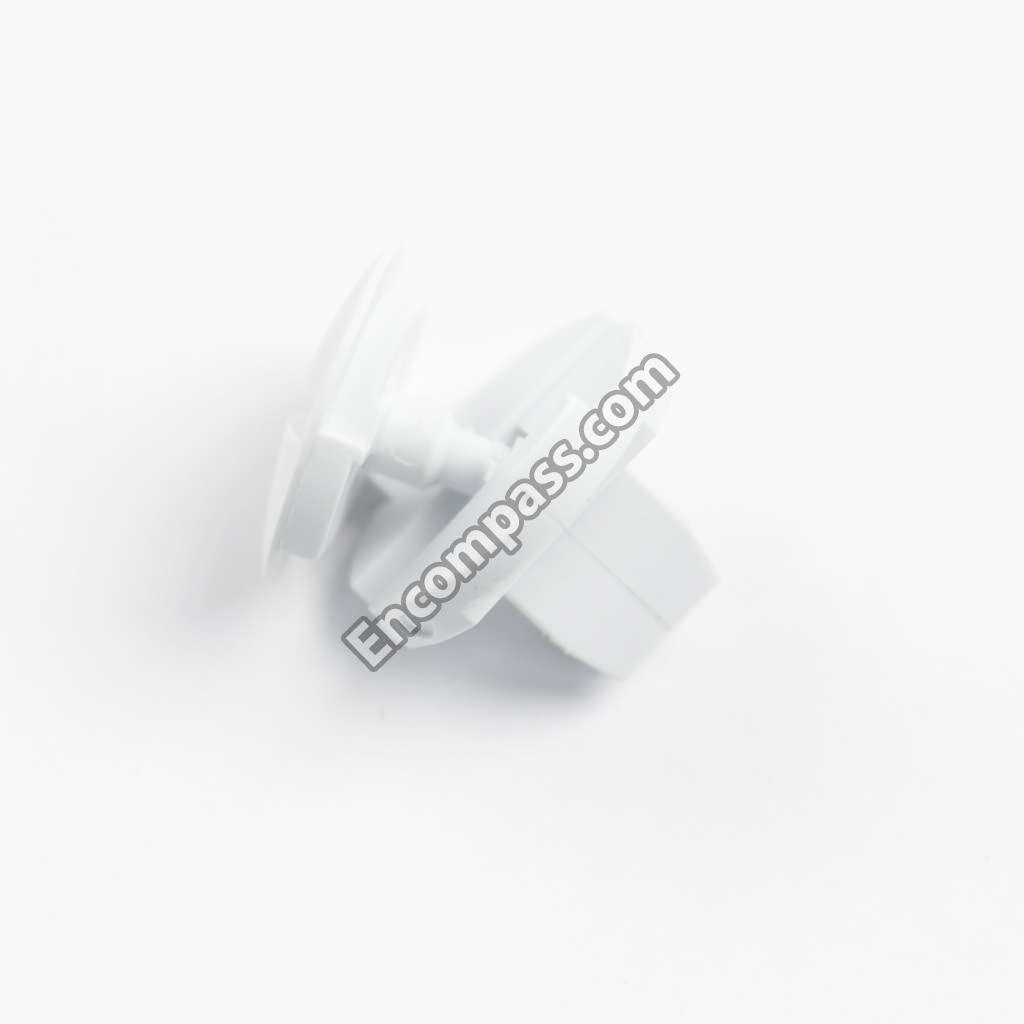

WPW10503549 WPW10503549 FASTENER (WHITE)
WPW10340745 WPW10340745 FEED TUBE ASSEMBLY
WPW10327249 WPW10327249 FILL VALVE ASSEMBLY
W10872845 W10872845 FILTER CUP ASSEMBLY
WPW10195036 WPW10195036 FLOAT & RETAINER ASSEMBLY
WP8531323 WP8531323 GASKET
WP8531743 WP8531743 GASKET, FLAT
WP9743002 WP9743002 GASKET, MOUNTING BRACKET

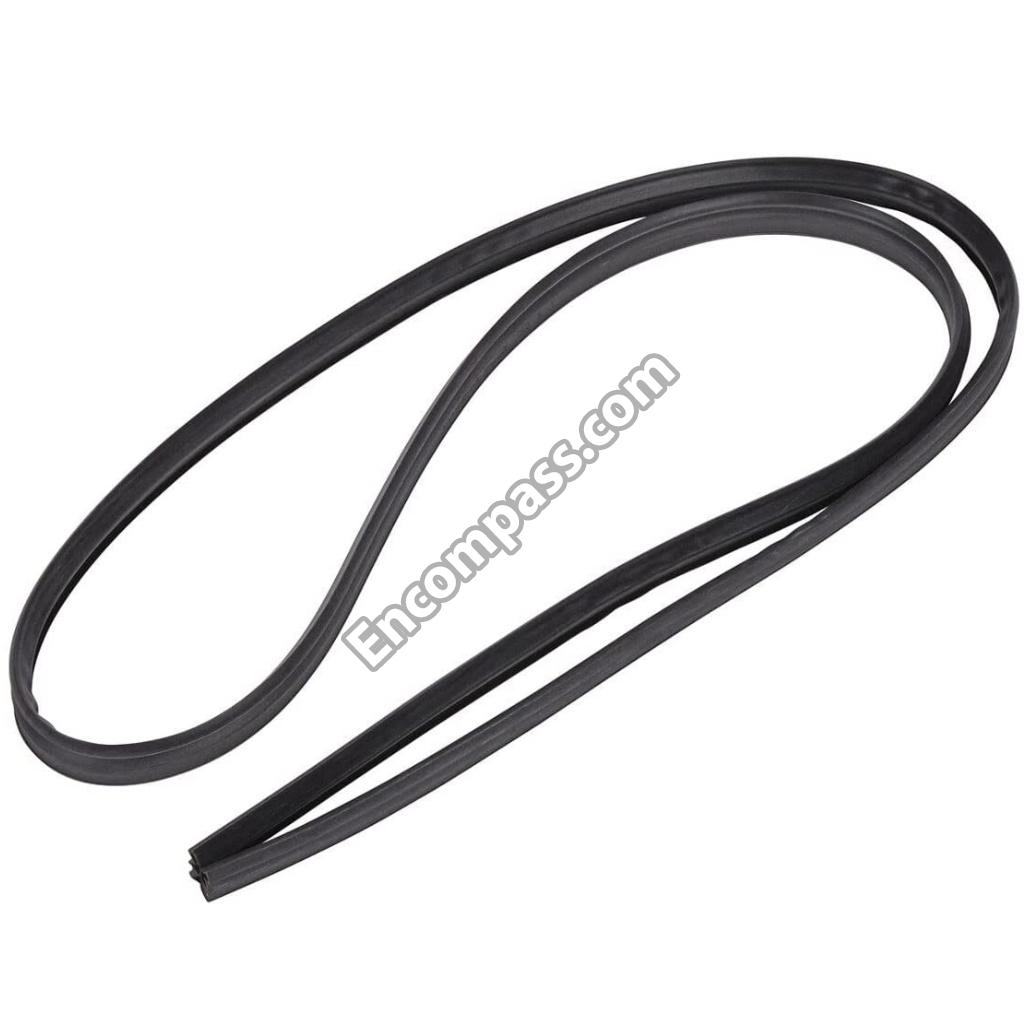

W11177741 W11177741 GASKET, TUB
WPW10538166 WPW10538166 GROMMET
W11568629 W11568629 HANDLE POCKET (BLACK)
W10703867 W10703867 HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
W10878507 W10878507 HOSE
W10445975 W10445975 HOSE ASSEMBLY (INCLUDES 2 CLAMPS)

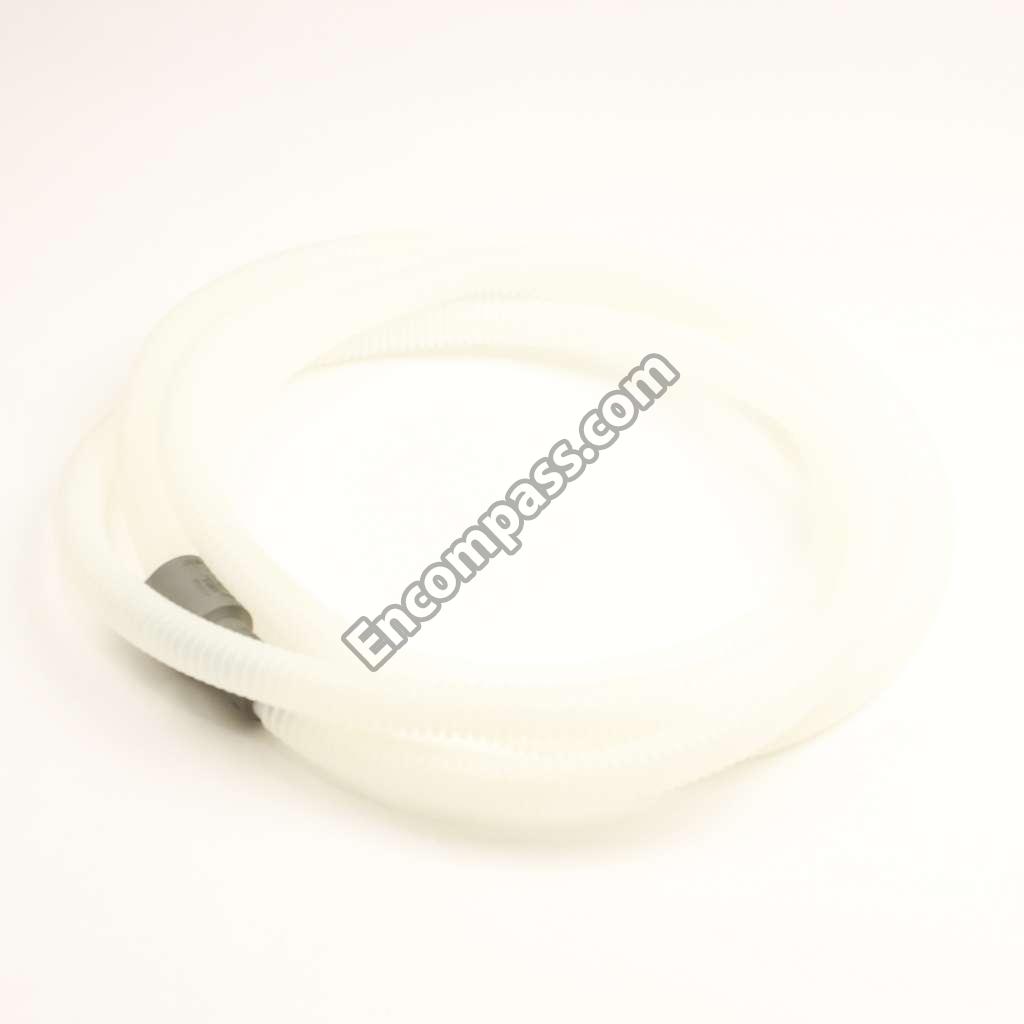

8269144A 8269144A HOSE, DRAIN
W10879260 W10879260 HOUSING ASSEMBLY, USER INTERFACE
W10873429 W10873429 HOUSING, OVERFILL

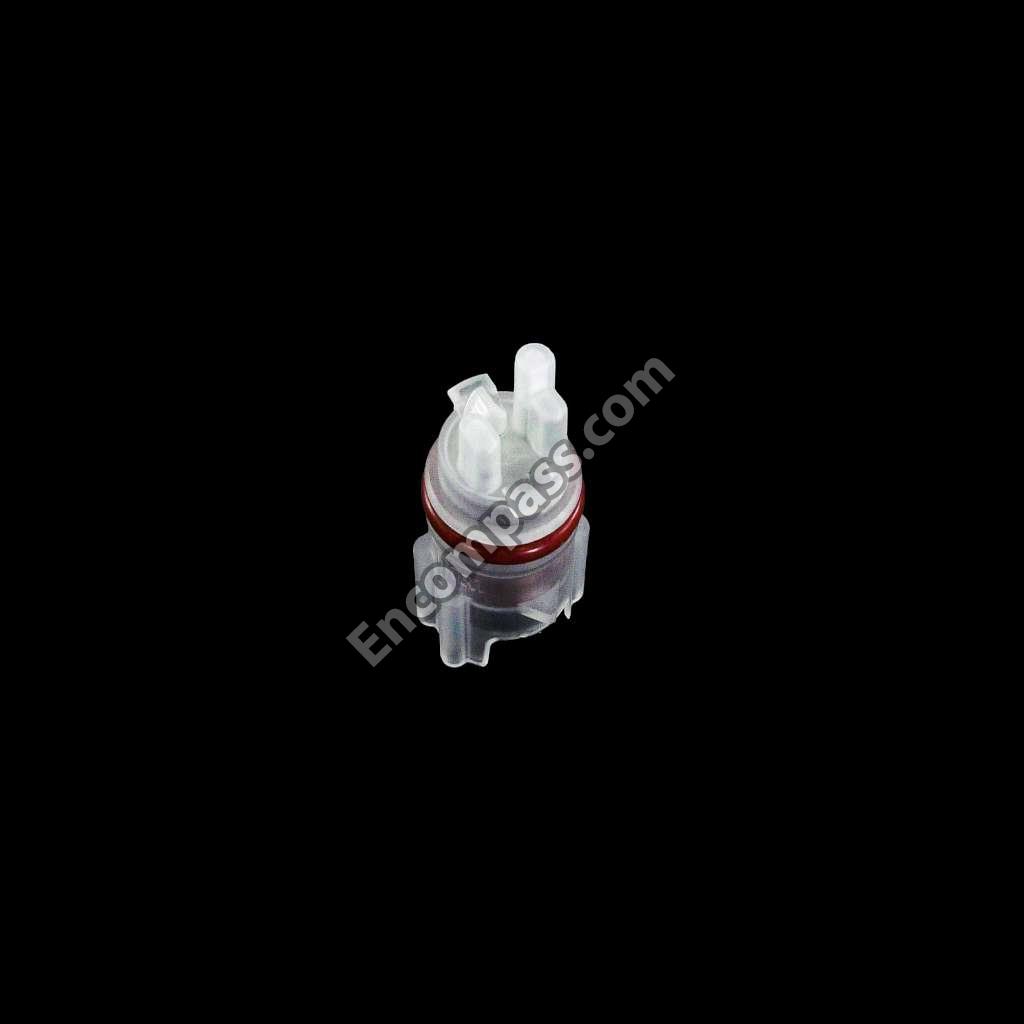

W11084121 W11084121 INDICATOR, OPTICAL WASH
WPW10195536 WPW10195536 INLET, WATER (ALSO ORDER ITEM 4)
W10908291 W10908291 INNER DOOR
W10806906 W10806906 INSTALLATION INSTRUCTIONS

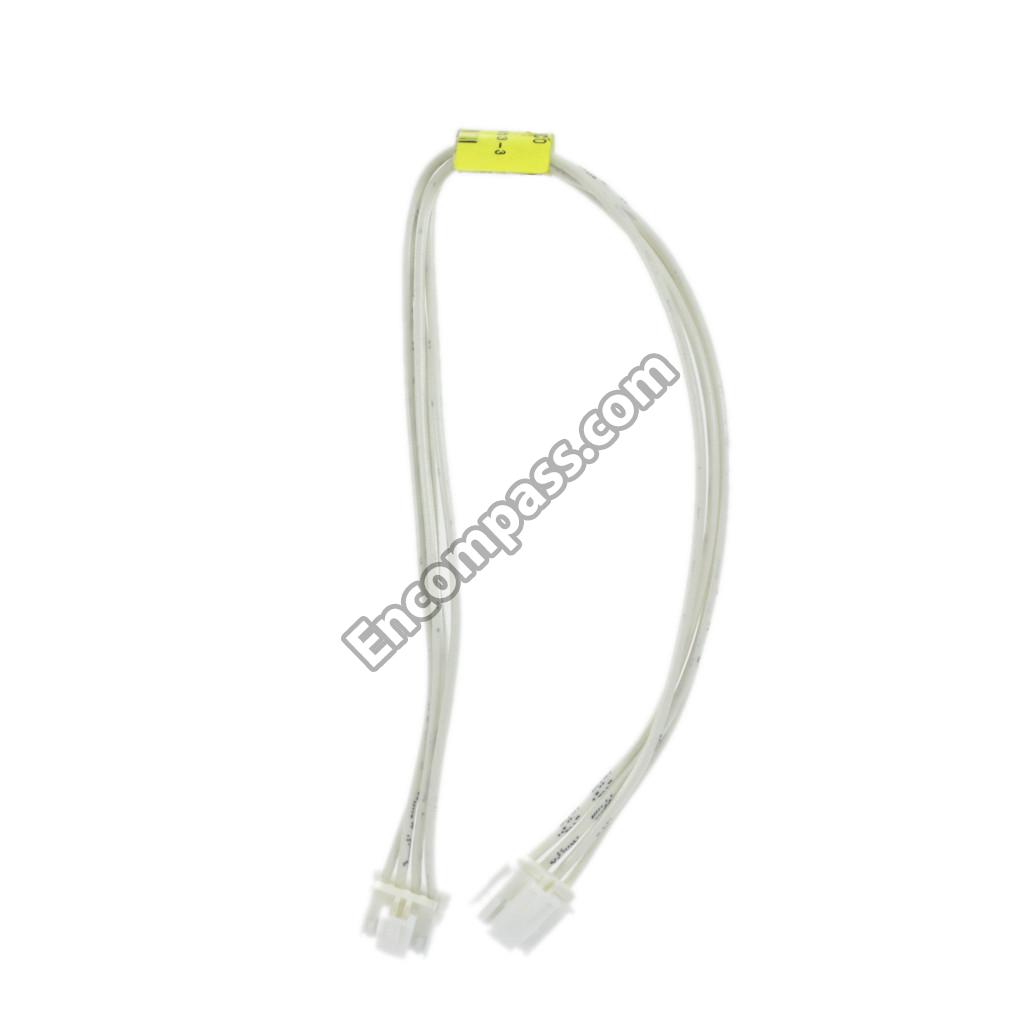

W11028004 W11028004 JUMPER, 4-WIRE
WPW10653840 WPW10653840 LATCH ASSEMBLY (INCLUDES SWITCH) (REPLACES: W10653840)
8193716 8193716 LEVELER, LEG
WPW10195037 WPW10195037 LEVER, OVERFILL SWITCH

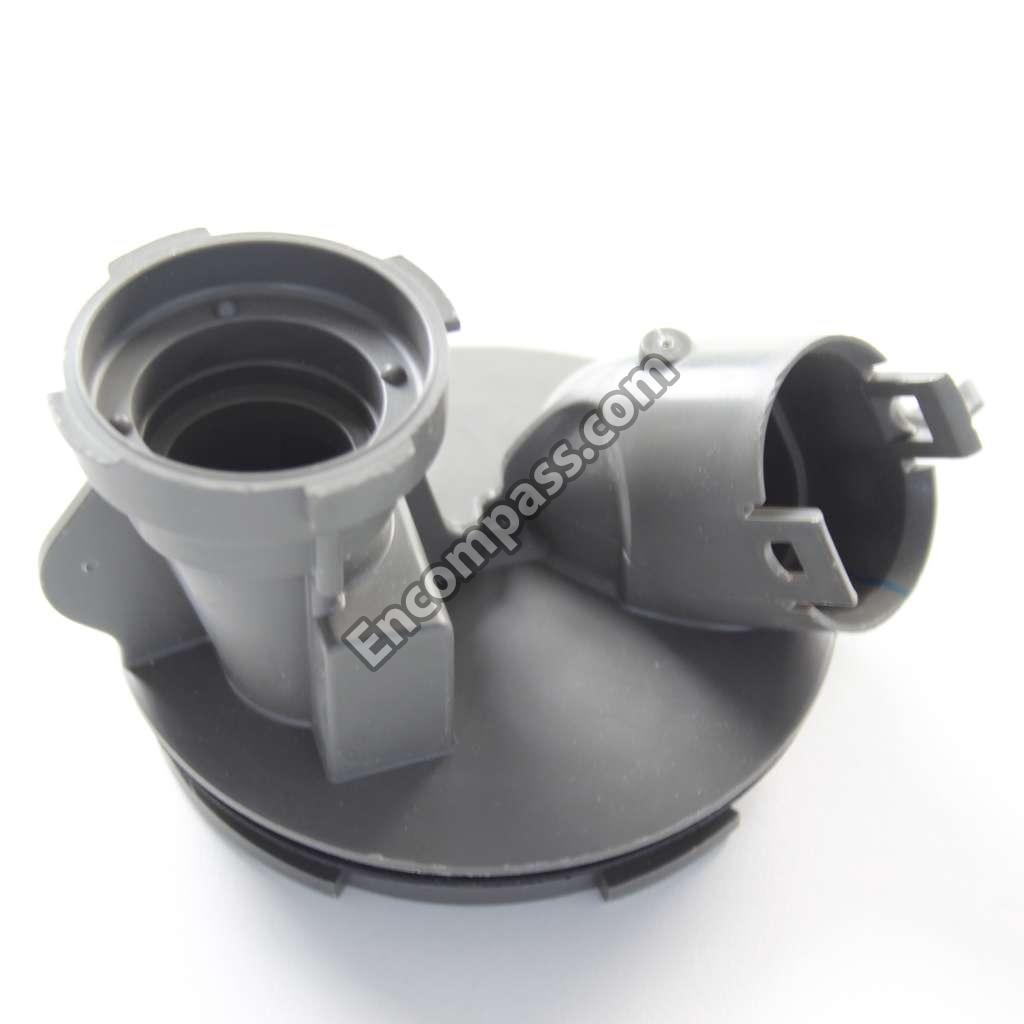

W11607104 W11607104 MANIFOLD
WPW10292152 WPW10292152 MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 CLAMPS, & 2 BRACKETS) (REPLACES: W10292152)
W11032770 W11032770 MOTOR (ALSO ORDER ITEMS 13 & 16)
W10537869 W10537869 MOTOR, DIVERTER
W11243394 W11243394 MOTOR, ISOLATOR

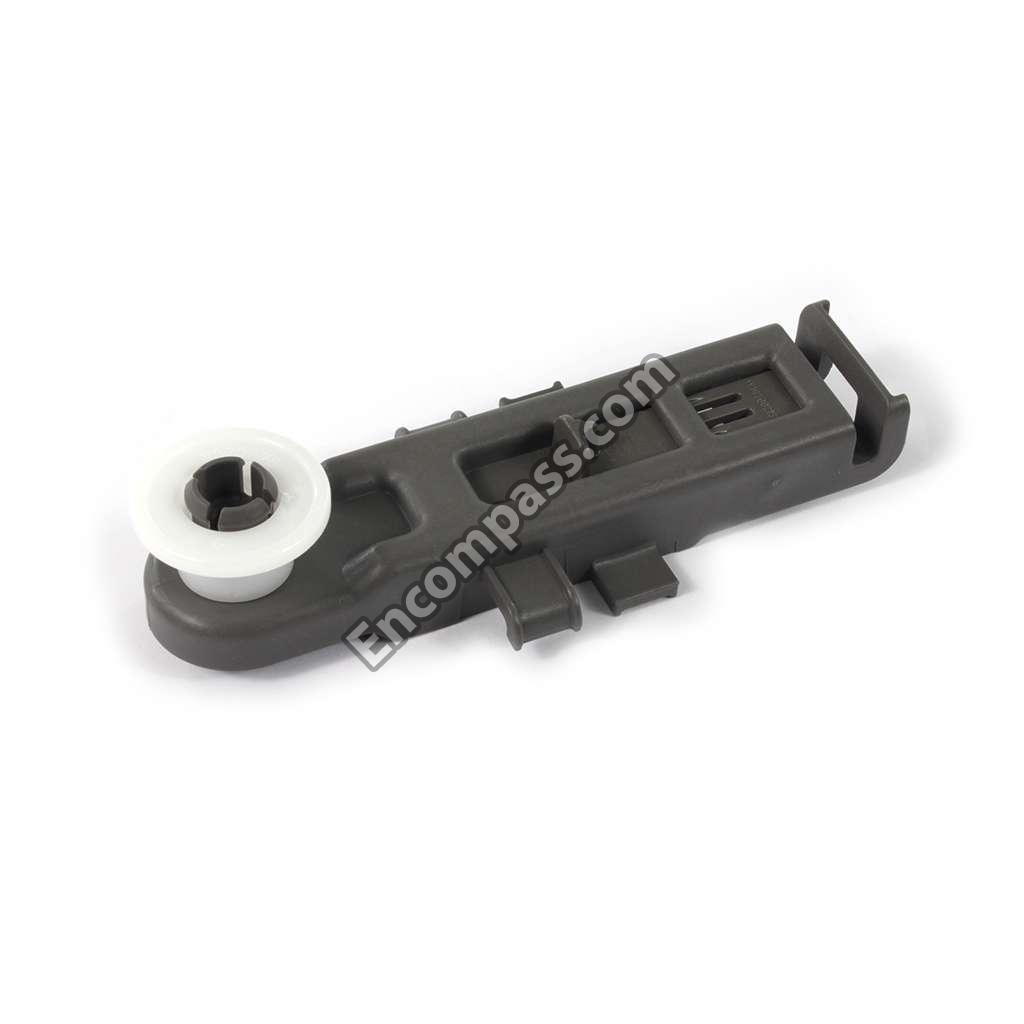

W11240839 W11240839 MOUNT, WHEEL ASSEMBLY
WPW10393264 WPW10393264 NAMEPLATE (GREY)
W11178521 W11178521 NAMEPLATE (WHITE)
WPW10195038 WPW10195038 NUT, STANDPIPE
WPW10213825 WPW10213825 NUT, WATER INLET (ALSO ORDER ITEM 4)
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10839934 W10839934 PANEL, FRONT (INCLUDES NAMEPLATE) (BISCUIT/BISQUE)
W10810488 W10810488 PANEL, FRONT (INCLUDES NAMEPLATE) (BLACK)
WPW10698615 WPW10698615 PANEL, FRONT (INCLUDES NAMEPLATE) (STAINLESS)
W10849693 W10849693 PANEL, FRONT (INCLUDES NAMEPLATE) (WHITE)

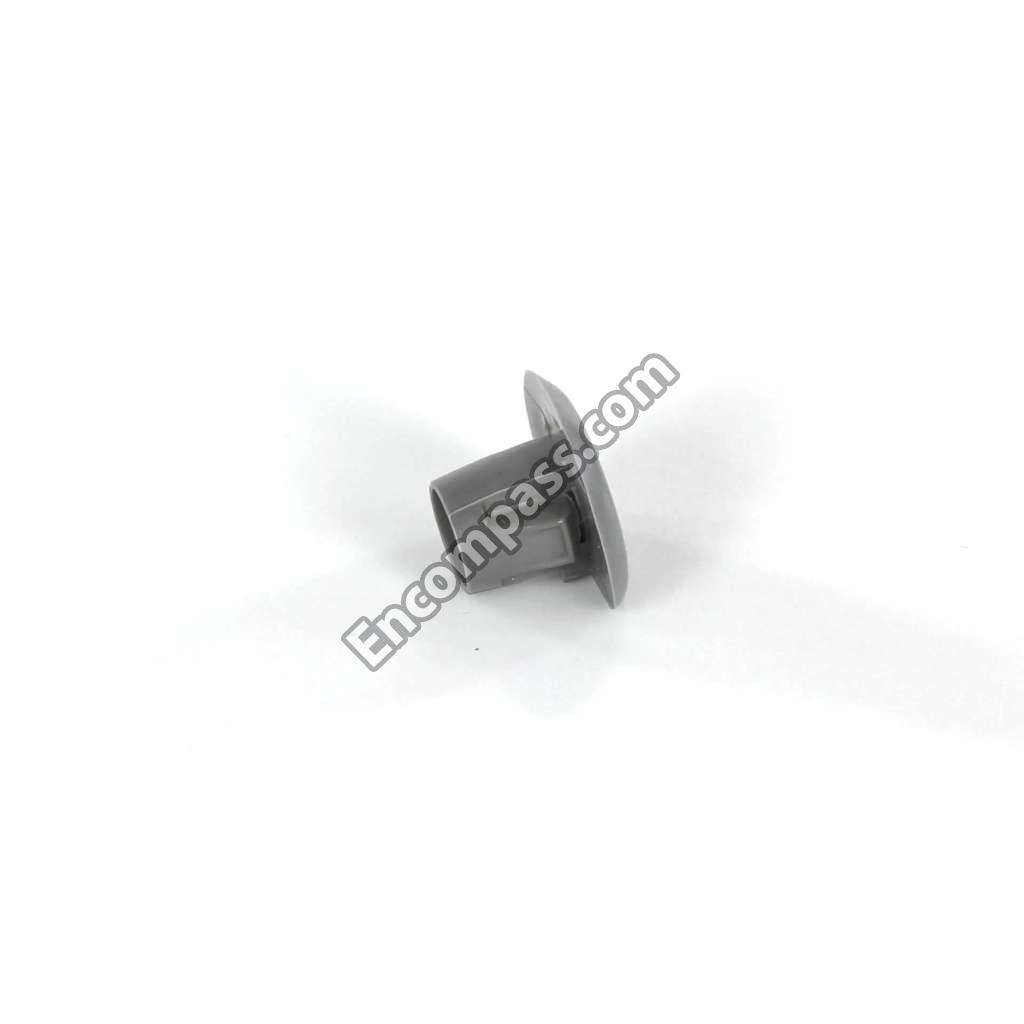

W10795980 W10795980 PLUG, TUB
4317824 4317824 POWER CORD KIT (INCLUDED CORD & MISC. HARDWARE)

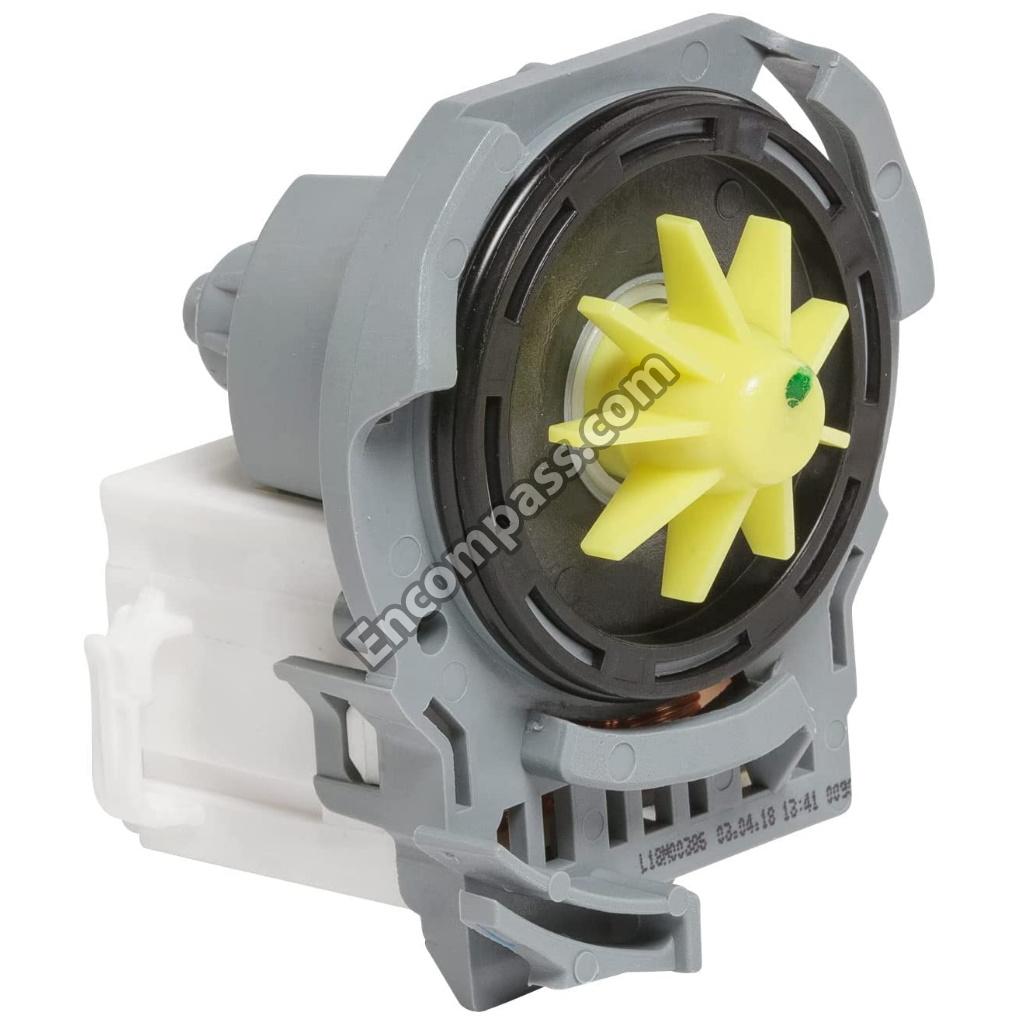

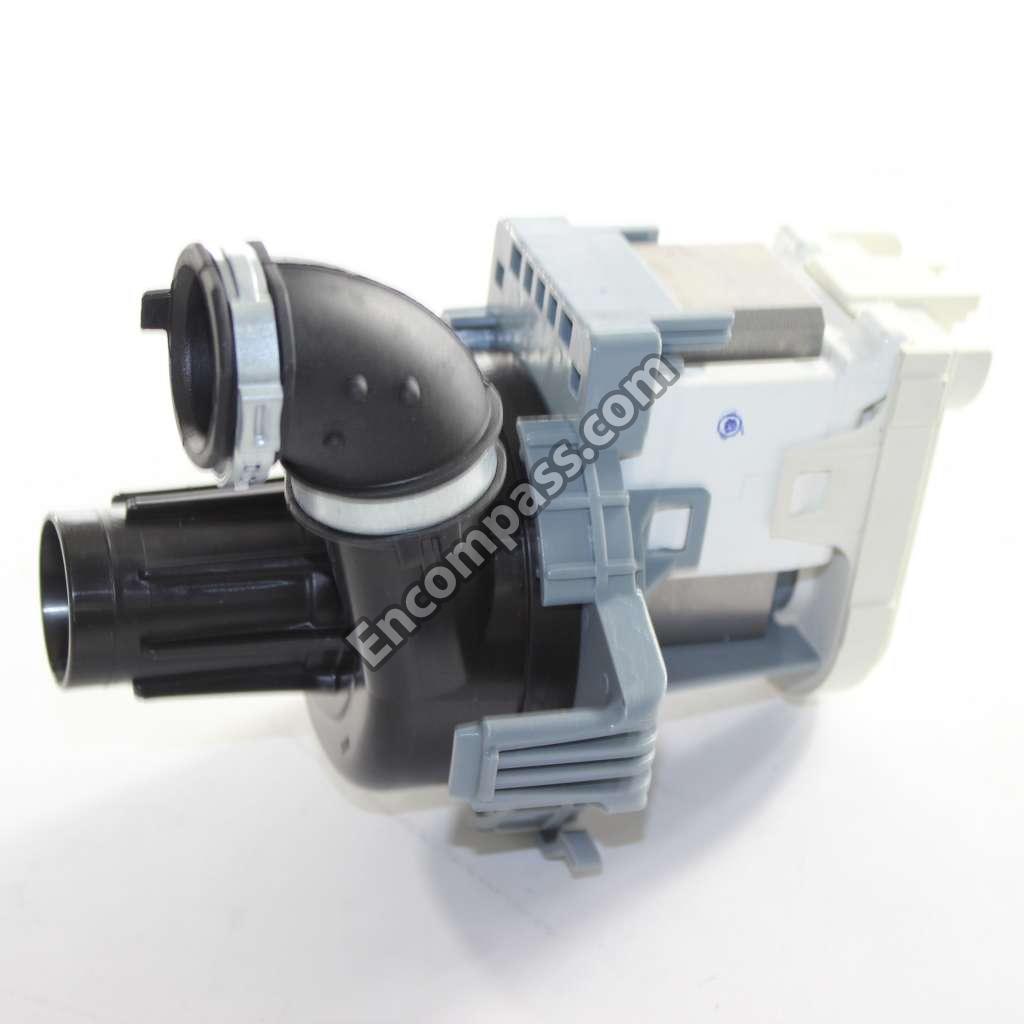

WPW10348269 WPW10348269 PUMP, DRAIN
4396838RC 4396838RC RAK KIT
4396840RC 4396840RC RAK KIT
WP3400918 WP3400918 RETAINER

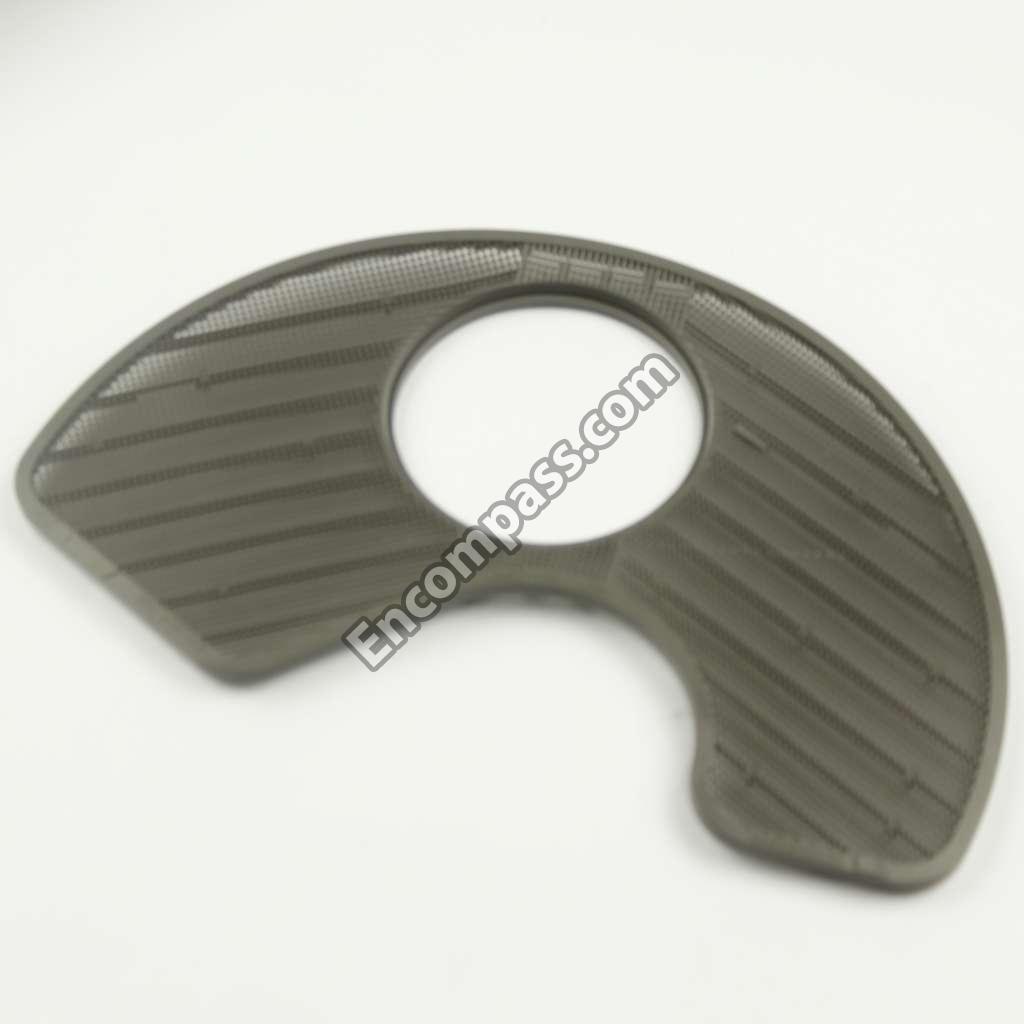

WPW10463906 WPW10463906 SCREEN
WP9741232 WP9741232 SCREW
WPW10348407 WPW10348407 SCREW
WP3400074 WP3400074 SCREW
WPW10348411 WPW10348411 SCREW
WP3400892 WP3400892 SCREW
WP308685 WP308685 SCREW
W11631670 W11631670 SCREW
WPW10309090 WPW10309090 SCREW
WPW10348408 WPW10348408 SCREW
WP3400071 WP3400071 SCREW
WP489069 WP489069 SCREW
WP3400014 WP3400014 SCREW, GROUNDING
W10864081 W10864081 SEAL, CABINET
WPW10195007 WPW10195007 SEAL, CONSOLE/DOOR
W10909089 W10909089 SEAL, DOOR BOTTOM
W10292870 W10292870 SHIELD, THERMOSTAT
W11086533 W11086533 SHIELD, TUB SOUND
W10463662 W10463662 SPACER, CONTROL BRACKET PANEL
W10306230 W10306230 SPACER, TRACK
W10195630 W10195630 SPACER, TUB/BRACE (LEFT HAND)
W10195631 W10195631 SPACER, TUB/BRACE (RIGHT HAND)

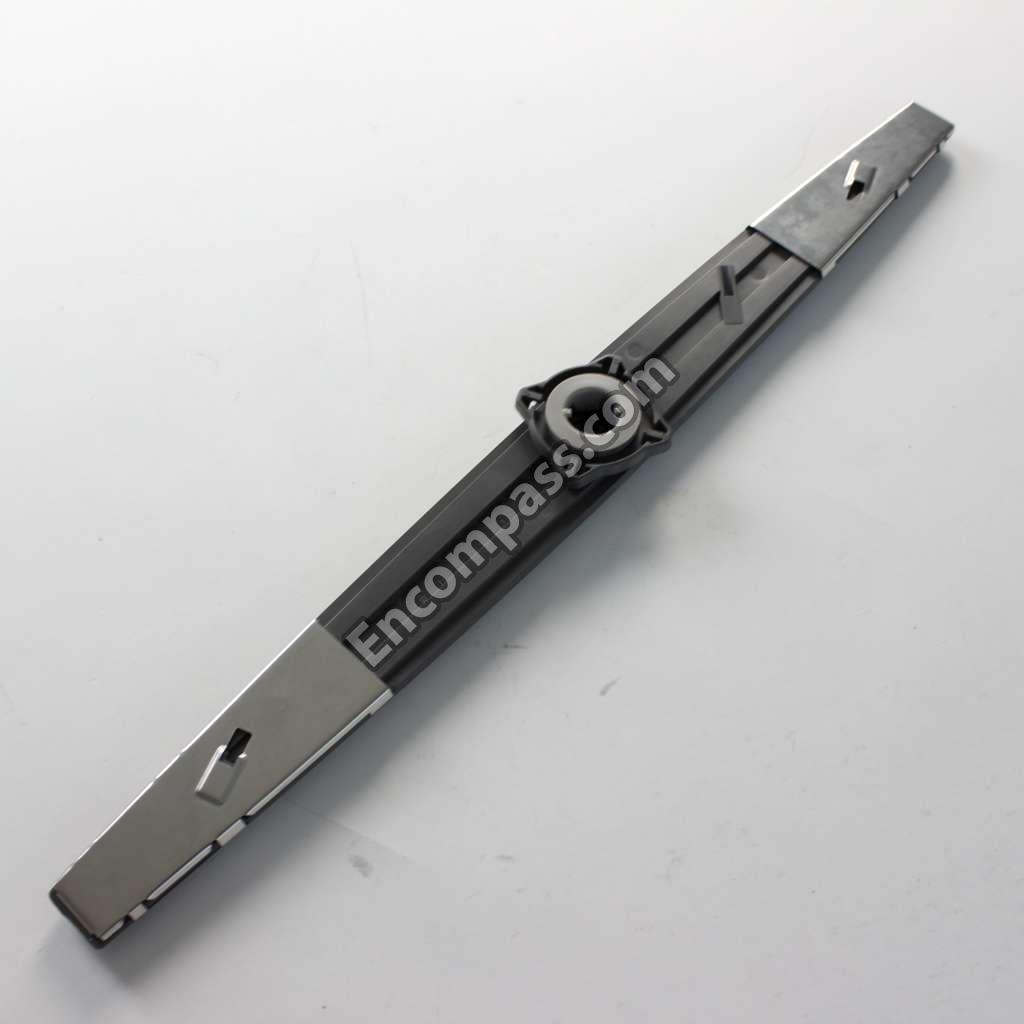

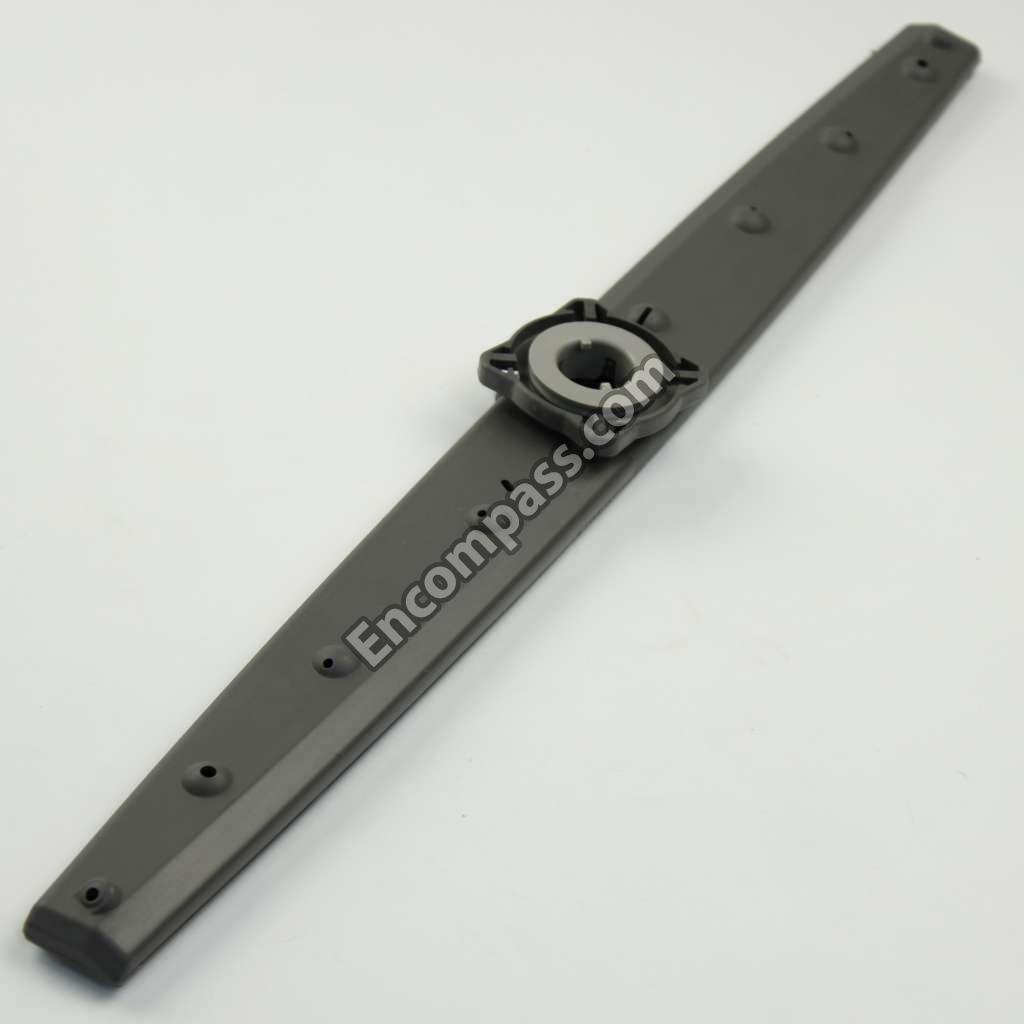

WPW10498900 WPW10498900 SPRAYARM
WPW10491331 WPW10491331 SPRAYARM
WPW10327455 WPW10327455 SPRAYARM, THIRD LEVEL
WP8270020 WP8270020 SPRING, DOOR BALANCE
WP8565925 WP8565925 STOP, TRACK (NON-REMOVABLE)
WPW10544004 WPW10544004 STRIKE, LATCH
WPW10605057 WPW10605057 SUMP & MOTOR ASSEMBLY (ALSO ORDER ITEMS 13 & 16)

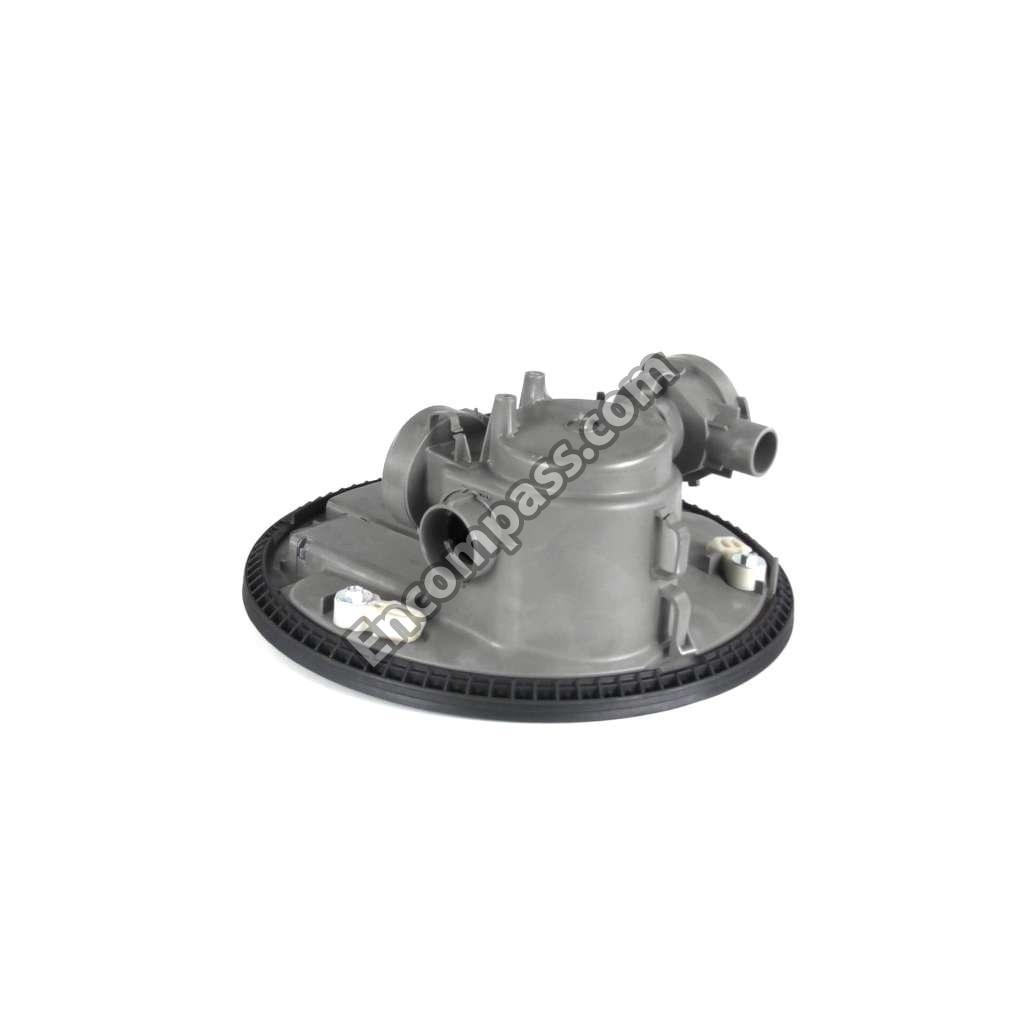

WPW10455268 WPW10455268 SUMP WITH SEAL
WPW10681564 WPW10681564 SUPPORT ASSEMBLY, REAR
WPW10195039 WPW10195039 SWITCH, OVERFILL CONTROL
WPW10372113 WPW10372113 TAB, SUMP
W10880570 W10880570 TECH SHEET, ENGLISH
W10880571 W10880571 TECH SHEET, FRENCH
WPW10195091 WPW10195091 THERMOSTAT
WP3385089 WP3385089 TRACK, DISHRACK

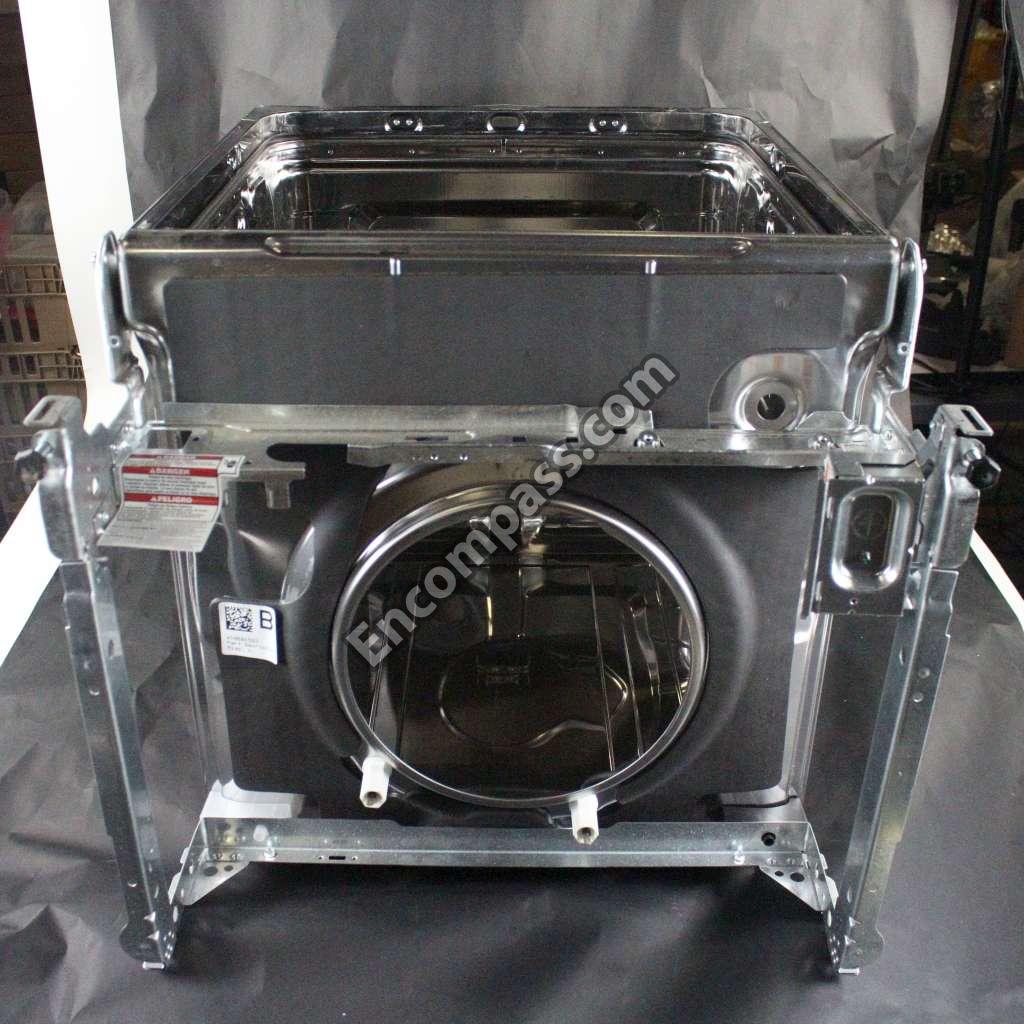

WPW10681507 WPW10681507 TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
WP676453 WP676453 TUCHUP
WP676455 WP676455 TUCHUP
W10852540 W10852540 USE & CARE GUIDE
WP3378128 WP3378128 WASHER, PRONGED CUP

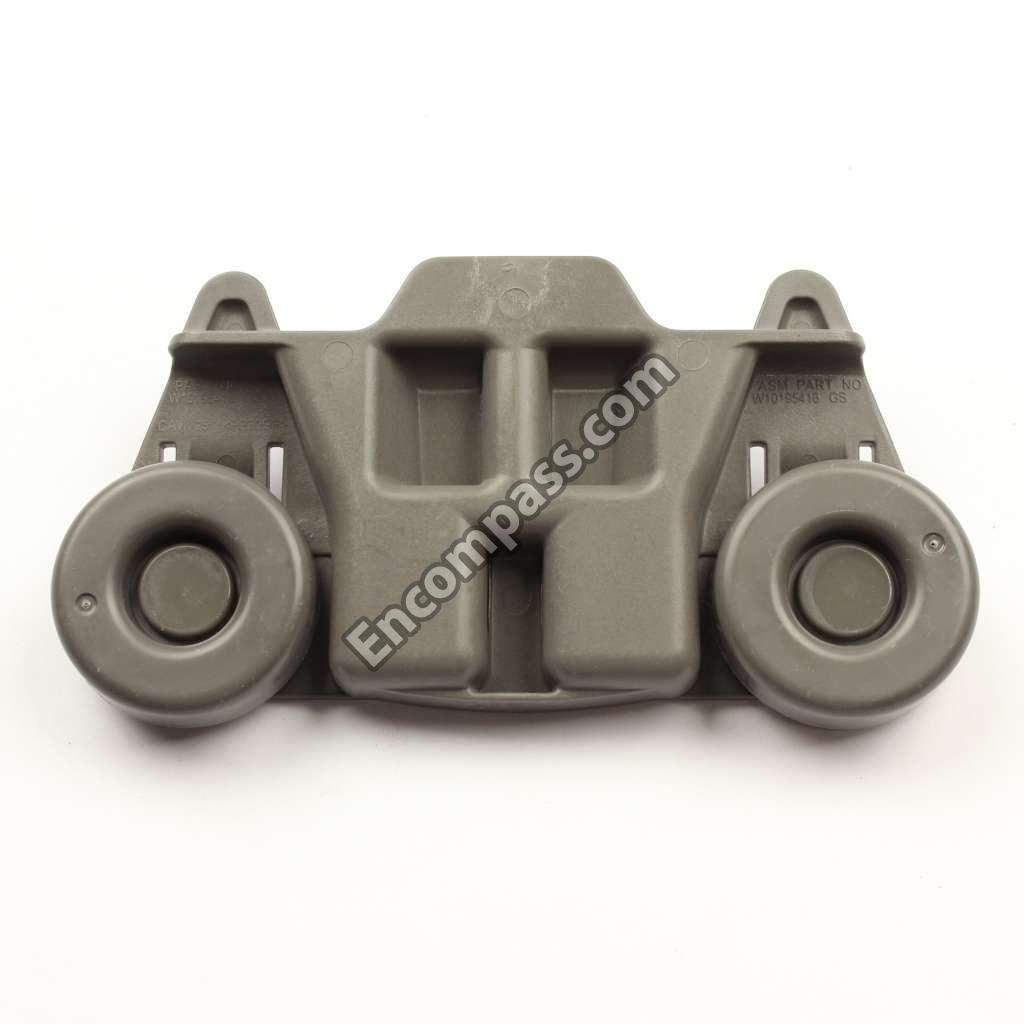

W10195416 W10195416 WHEEL & TRANSPORT ASSEMBLY
WPW10078083 WPW10078083 WHEEL AND MOUNT ASSEMBLY
WPW10190778 WPW10190778 WHEEL LEG
W11243205 W11243205 WIRING HARNESS
