Model Image
Manufacturer

Whirlpool

Model Number

WDP540HAMZ0

Description

24-inch Built-in Dishwasher With Boost Cycle

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10827631 W10827631 ACCESS PANEL & INSULATION ASSEMBLY (BLACK)
W10827632 W10827632 ACCESS PANEL & INSULATION ASSEMBLY (WHITE)
WPW10441006 WPW10441006 ACCESS PANEL (INCLUDES HARDWARE) (BLACK)
WPW10441007 WPW10441007 ACCESS PANEL (INCLUDES HARDWARE) (WHITE)
3385556 3385556 ACCESSORIES, DRAIN HOSE 12 FT.
4396277 4396277 ACCESSORIES, MOISTURE BARRIER KIT
8171657 8171657 ACCESSORIES, SIDE PANEL KITS (BLACK)
8171659 8171659 ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL)
8171656 8171656 ACCESSORIES, SIDE PANEL KITS (WHITE)
8171477 8171477 ANTI-TIP KIT, FLOOR MOUNT KIT
8212560 8212560 ANTI-TIP KIT, SIDE MOUNT KIT
W11612302 W11612302 ARM, HINGE (LEFT HAND)
W11612303 W11612303 ARM, HINGE (RIGHT HAND)
W10692757 W10692757 BARREL NUT, FRONT PANEL
W11305293 W11305293 BOX, CONNECTOR
W11027055 W11027055 BRACKET, HEATER SUPPORT
WP8269145 WP8269145 BRACKET, UNDERCOUNTER
WP8268990 WP8268990 BUSHING, DOOR SPRING
WP8269146 WP8269146 CLAMP
WP285655 WP285655 CLAMP, HOSE
WP596669 WP596669 CLAMP, HOSE
8269146 8269146 CLAMP, HOSE
W11684257 W11684257 CLIP, THERMOSTAT
W11612307 W11612307 CONSOLE ASSEMBLY (BLACK)
W11612309 W11612309 CONSOLE ASSEMBLY (WHITE)
W11637581 W11637581 CONTROL, ELECTRONIC
WPW10455271 WPW10455271 COVER, OUTLET
WP8268991 WP8268991 COVER, TERMINAL BOX
W11390112 W11390112 CUPSHELF, SMALL
W11613487 W11613487 DEFLECTOR, VENT
W10781857 W10781857 DISHRACK, LOWER
W11169039 W11169039 DISHRACK, UPPER
W10861000 W10861000 DISPENSER ASSEMBLY
W11252794 W11252794 DOOR BOTTOM, SEAL
WPW10545278 WPW10545278 DRAIN LOOP WITH CHECK VALVE ASSEMBLY
W11612298 W11612298 ENERGY GUIDE
WPW10503548 WPW10503548 FASTENER (BLACK)
WPW10503549 WPW10503549 FASTENER (WHITE)
W11540183 W11540183 FEED TUBE ASSEMBLY
W11729443 W11729443 FEED TUBE RETAINER
W11175771 W11175771 FILL VALVE ASSEMBLY
W10872845 W10872845 FILTER CUP ASSEMBLY
WPW10346525 WPW10346525 FLOAT & RETAINER ASSEMBLY
W11725437 W11725437 GASKET
WP8531323 WP8531323 GASKET
W11545539 W11545539 GASKET, VENT
WPW10538166 WPW10538166 GROMMET
W10518394 W10518394 HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
W10445975 W10445975 HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
8269144A 8269144A HOSE, DRAIN
W10878507 W10878507 INLET HOSE
WPW10195536 WPW10195536 INLET, WATER (ALSO ORDER ITEM 4)
W11637956 W11637956 INNER DOOR ASSEMBLY
W11126003 W11126003 INSULATION, FRONT PANEL
W10831329 W10831329 INSULATION, TOE PANEL
WPW10653840 WPW10653840 LATCH ASSEMBLY (INCLUDES SWITCH)
8193716 8193716 LEVELER, LEG
WPW10195037 WPW10195037 LEVER, OVERFILL SWITCH
W10193647 W10193647 LID, SIDE
W11504190 W11504190 LIGHT, PIPE
W11607104 W11607104 MANIFOLD
WPW10292152 WPW10292152 MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 CLAMPS, & 2 BRACKETS)
W11612326 W11612326 MOTOR (ALSO ORDER ITEMS 12 & 16)
W11243394 W11243394 MOTOR, ISOLATOR
W11240839 W11240839 MOUNT, WHEEL ASSEMBLY
WPW10508676 WPW10508676 NUT, INLET (ALSO ORDER ITEM 4)
W11532445 W11532445 OWNERS MANUAL
W11747584 W11747584 PAD-INS
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11613482 W11613482 PANEL, FRONT (INCLUDES 8 & 9) (BLACK)
W11613483 W11613483 PANEL, FRONT (INCLUDES 8 & 9) (STAINLESS)
W11613481 W11613481 PANEL, FRONT (INCLUDES 8 & 9) (WHITE)
4317824 4317824 POWER CORD KIT (INCLUDED CORD & MISC. HARDWARE)
W10876537 W10876537 PUMP, DRAIN
WPW10463906 WPW10463906 SCREEN
WP9741232 WP9741232 SCREW
WP3400071 WP3400071 SCREW
WPW10213953 WPW10213953 SCREW
W11096645 W11096645 SCREW
WPW10177098 WPW10177098 SCREW
WPW10348409 WPW10348409 SCREW
W11631670 W11631670 SCREW
WP304231 WP304231 SCREW
W10817436 W10817436 SCREW
W11551549 W11551549 SCREW
WP3400892 WP3400892 SCREW
WPW10277003 WPW10277003 SCREW
WPW10109200 WPW10109200 SCREW
WPW10348407 WPW10348407 SCREW
W10165274 W10165274 SCREW
WP3400014 WP3400014 SCREW, GROUNDING
W11213719 W11213719 SEAL, CONSOLE/DOOR
W11498831 W11498831 SEAL, TUB
W11612329 W11612329 SENSOR, TEMPERATURE
W11684260 W11684260 SHIELD, THERMOSTAT
W10896113 W10896113 SHIELD, TUB SOUND
W11550304 W11550304 SILVERWARE BASKET ASSEMBLY
W11098065 W11098065 SILVERWARE, BASKET
WP8268961 WP8268961 SLEEVE, FRICTION
W10819539 W10819539 SOUND INSULATION, BOTTOM
WPW10491331 WPW10491331 SPRAYARM
WPW10498900 WPW10498900 SPRAYARM
WPW10337934 WPW10337934 SPRING, DOOR BALANCE
WPW10316267 WPW10316267 STANDPIPE, OVERFILL
W10850371 W10850371 STIFFENER, DOOR
WP8565925 WP8565925 STOP, TRACK (NON-REMOVABLE)
WPW10544004 WPW10544004 STRIKE, LATCH
W11613479 W11613479 SUMP & MOTOR ASSEMBLY
WPW10482462 WPW10482462 SUMP WITH SEAL (ALSO ORDER ITEMS 12 & 16)
W11680335 W11680335 SUPPORT, BOTTOM
WPW10195039 WPW10195039 SWITCH, OVERFILL CONTROL
WPW10372113 WPW10372113 TAB, SUMP
W11532444 W11532444 TECH SHEET
WP661566 WP661566 THERMOSTAT
72032 72032 TOUCH-UP PAINT (BLACK)
WP3385089 WP3385089 TRACK, DISHRACK
WPW10306228 WPW10306228 TRACK, SPACER
W10909756 W10909756 TUB ASSEMBLY
W11684259 W11684259 VENT ASSEMBLY
WP3378128 WP3378128 WASHER, PRONGED CUP
WP3385088 WP3385088 WHEEL
WPW10082868 WPW10082868 WHEEL & TRANSPORT ASSEMBLY

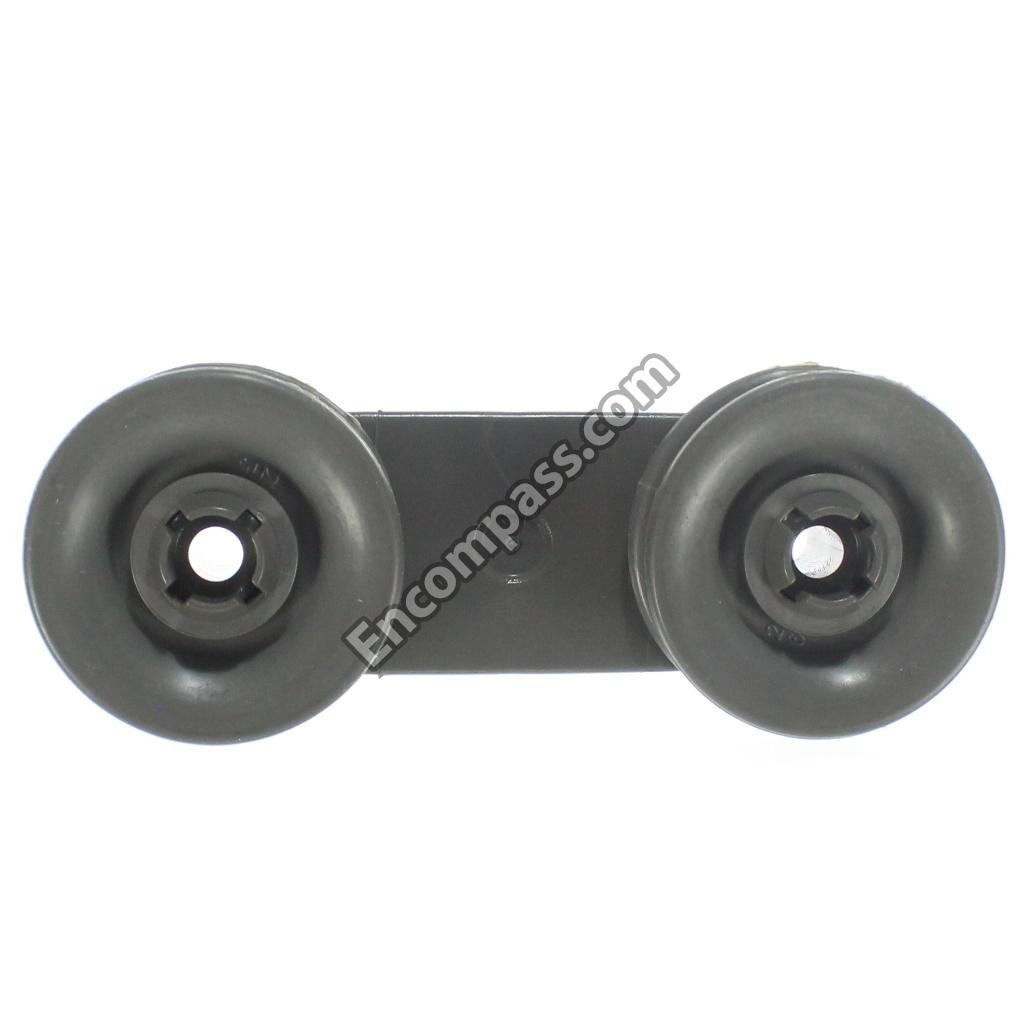

W11458872 W11458872 WHEEL ASSEMBLY
W11697034 W11697034 WIRING HARNESS
