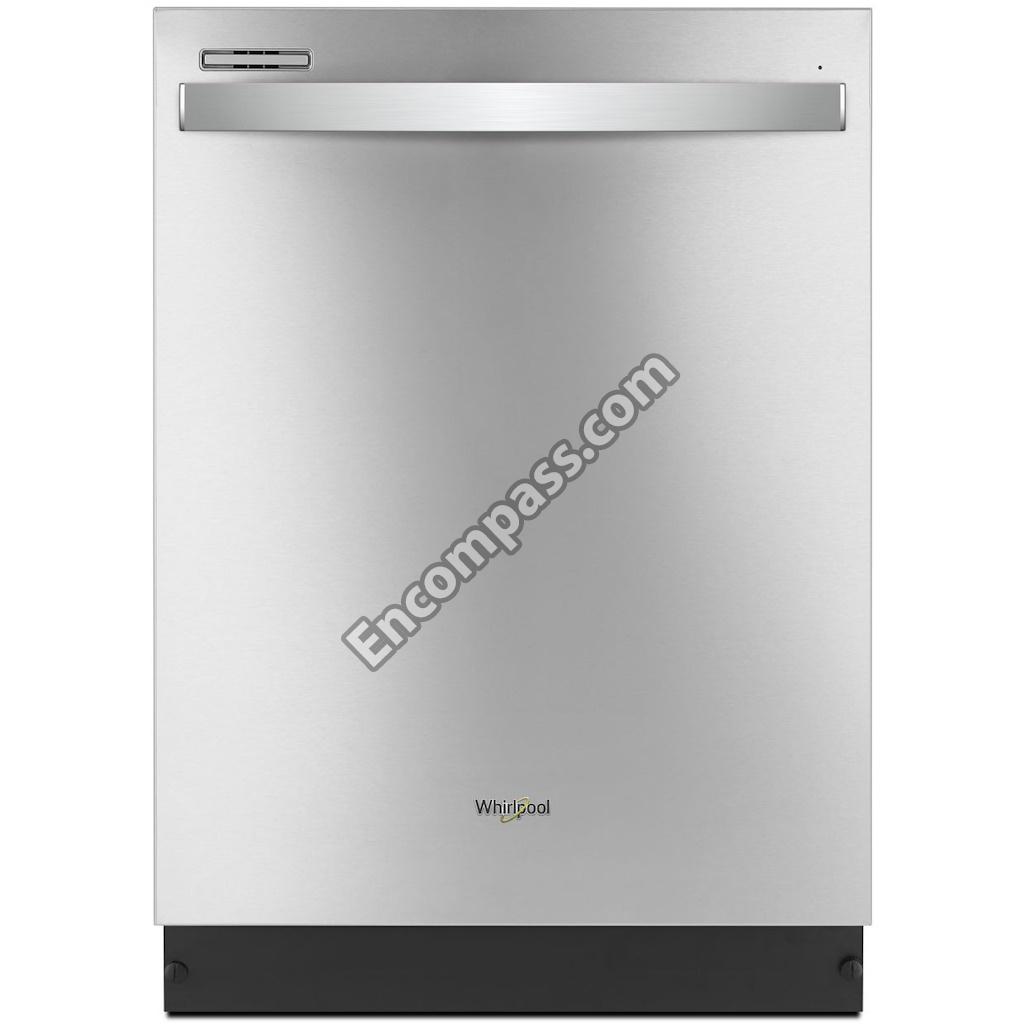

Model Image
Manufacturer

Whirlpool

Model Number

WDT710PAHZ1

Description

24-inch Tall Tub Built-in Dishwasher

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10526114 WPW10526114 ACCESS PANEL (BLACK)
WPW10526115 WPW10526115 ACCESS PANEL (WHITE)
3385556 3385556 ACCESSORIES, DRAIN HOSE 12 FT.
W10702080 W10702080 ACCESSORIES, HANDLE ASSEMBLY (BLACK)
W10702081 W10702081 ACCESSORIES, HANDLE ASSEMBLY (WHITE)
4396277 4396277 ACCESSORIES, MOISTURE BARRIER KIT
8171658 8171658 ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE)
8171657 8171657 ACCESSORIES, SIDE PANEL KITS (BLACK)
8171659 8171659 ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL)
8171656 8171656 ACCESSORIES, SIDE PANEL KITS (WHITE)
8171477 8171477 ANTI-TIP KIT, FLOOR MOUNT KIT
8212560 8212560 ANTI-TIP KIT, SIDE MOUNT KIT
W11613573 W11613573 ARM, HINGE (LEFT HAND)
W11613572 W11613572 ARM, HINGE (RIGHT HAND)
W11178521 W11178521 BADGE
W11305293 W11305293 BOX, CONNECTOR
W10863679 W10863679 BRACKET, CONTROL
WPW10462232 WPW10462232 BRACKET, DISPENSER
W11027055 W11027055 BRACKET, HEATER SUPPORT
WP8269145 WP8269145 BRACKET, UNDERCOUNTER
WP8268990 WP8268990 BUSHING, DOOR SPRING
WPW10524920 WPW10524920 CAP, RINSE AID
WP285655 WP285655 CLAMP, HOSE
WP596669 WP596669 CLAMP, HOSE
W10789434 W10789434 CLAMP, HOSE
W11256107 W11256107 CLIP, CONTROL
WPW10671904 WPW10671904 CLIP, SILVERWARE BASKET
W10539489 W10539489 CLIP, THERMOSTAT
W11116422 W11116422 CONSOLE ASSEMBLY (BLACK)
W11306302 W11306302 CONTROL, ELECTRONIC
WPW10482094 WPW10482094 COVER, DISPENSER
WPW10455271 WPW10455271 COVER, OUTLET
WP8268991 WP8268991 COVER, TERMINAL BOX
W11390112 W11390112 CUPSHELF, SMALL
W11676895 W11676895 DEFLECTOR, VENT (ALSO ORDER ITEM 6)
WPW10476221 WPW10476221 DISC, DIVERTER
4396840RC 4396840RC DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH FOR TWO COMPLETE RACKS) (GREY)
4396838RC 4396838RC DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH FOR TWO COMPLETE RACKS) (WHITE)
WP676455 WP676455 DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY)
4396853 4396853 DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER ATLANTIS)
WP676453 WP676453 DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE)
W10311986 W10311986 DISHRACK, LOWER
W11169039 W11169039 DISHRACK, UPPER
W11705150 W11705150 DISPENSER ASSEMBLY
WPW10545278 WPW10545278 DRAIN LOOP WITH CHECK VALVE ASEMBLY
W11612327 W11612327 DRAIN PUMP
W11046216 W11046216 ENERGY GUIDE
WPW10503548 WPW10503548 FASTENER (BLACK)
WPW10503549 WPW10503549 FASTENER (WHITE)
WPW10340745 WPW10340745 FEED TUBE ASSEMBLY (INCLUDES ITEMS 2 & 3)
W11175771 W11175771 FILL VALVE ASSEMBLY
W10872845 W10872845 FILTER CUP ASSEMBLY
WPW10346525 WPW10346525 FLOAT & RETAINER ASSEMBLY
W11725437 W11725437 GASKET
WP8531323 WP8531323 GASKET
WP8269259 WP8269259 GASKET, VENT
WPW10538166 WPW10538166 GROMMET
W11572098 W11572098 HANDLE ASSEMBLY (BLACK)
W11685315 W11685315 HANDLE ASSEMBLY (STAINLESS)
W11025870 W11025870 HANDLE ASSEMBLY (WHITE)
W10518394 W10518394 HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
W10878507 W10878507 HOSE
W10445975 W10445975 HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
8269144A 8269144A HOSE, DRAIN
W11402115 W11402115 HOUSING ASSEMBLY, USER INTERFACE
W11084121 W11084121 INDICATOR, OPTICAL WASH
WPW10195536 WPW10195536 INLET, WATER (ALSO ORDER ITEM 4)
W11513971 W11513971 INNER DOOR ASSEMBLY (ALSO ORDER ITEM 6)
W10806908 W10806908 INSTALLATION INSTRUCTIONS
W10831329 W10831329 INSULATION, FOUR LAYER
W11126003 W11126003 INSULATION, FRONT PANEL
W11028004 W11028004 JUMPER, 4-WIRE
WPW10653840 WPW10653840 LATCH ASSEMBLY (INCLUDES SWITCH)
8193716 8193716 LEVELER, LEG
WPW10195037 WPW10195037 LEVER, OVERFILL SWITCH
W10629533 W10629533 LID, SILVERWARE BASKET (SIDE)
W10629537 W10629537 LID, SILVERWARE BASKET(CENTER)
W11036316 W11036316 LIGHT, PIPE
W11607104 W11607104 MANIFOLD
WPW10292152 WPW10292152 MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 CLAMPS, & 2 BRACKETS)
W11084656 W11084656 MOTOR (ALSO ORDER ITEMS 12 & 16)
W10537869 W10537869 MOTOR, DIVERTER
W11243394 W11243394 MOTOR, ISOLATOR
W11240839 W11240839 MOUNT, WHEEL ASSEMBLY
WPW10508676 WPW10508676 NUT, INLET (ALSO ORDER ITEM 4)
W11747584 W11747584 PAD-INS
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT AND BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11116418 W11116418 PANEL, FRONT (INCLUDES 6, 7, 9, 15 & 16) (BLACK)
W11116420 W11116420 PANEL, FRONT (INCLUDES 6, 7, 9, 15 & 16) (STAINLESS)
W11116419 W11116419 PANEL, FRONT (INCLUDES 6, 7, 9, 15 & 16) (WHITE)
4317824 4317824 POWER CORD KIT (INCLUDED CORD & MISC. HARDWARE)
W10876537 W10876537 PUMP, DRAIN
WP3400918 WP3400918 RETAINER
WPW10463906 WPW10463906 SCREEN
WPW10109200 WPW10109200 SCREW
W10826179 W10826179 SCREW
W11232015 W11232015 SCREW
WPW10177098 WPW10177098 SCREW
WPW10348413 WPW10348413 SCREW
W11631670 W11631670 SCREW
WP304231 WP304231 SCREW
W10817436 W10817436 SCREW
WP308685 WP308685 SCREW
WP3400892 WP3400892 SCREW
WPW10348407 WPW10348407 SCREW
WP9741232 WP9741232 SCREW
W10165274 W10165274 SCREW
WP3400014 WP3400014 SCREW, GROUNDING
W10907991 W10907991 SCREW, SET
W10837566 W10837566 SEAL, CONSOLE/DOOR
W11498831 W11498831 SEAL, TUB
W10321574 W10321574 SHIELD, THERMOSTAT
W11124383 W11124383 SHIELD, TUB SOUND
W11158802 W11158802 SILVERWARE BASKET ASSEMBLY
WP8268961 WP8268961 SLEEVE, FRICTION
W10819539 W10819539 SOUND INSULATION,BOTTOM
WPW10491331 WPW10491331 SPRAYARM
WPW10498900 WPW10498900 SPRAYARM
WPW10327455 WPW10327455 SPRAYARM, THIRD LEVEL
WPW10337934 WPW10337934 SPRING, DOOR BALANCE
WPW10316267 WPW10316267 STANDPIPE, OVERFILL
W10850371 W10850371 STIFFENER, DOOR
WPW10082861 WPW10082861 STOP
WP8565925 WP8565925 STOP, TRACK (NON-REMOVABLE)
WPW10544004 WPW10544004 STRIKE, LATCH
W11157086 W11157086 STUD, MOUNTING
W11665769 W11665769 SUMP & MOTOR ASSEMBLY
WPW10455268 WPW10455268 SUMP WITH SEAL (ALSO ORDER ITEMS 12 & 16)
W11680335 W11680335 SUPPORT, BOTTOM
WPW10195039 WPW10195039 SWITCH, OVERFILL CONTROL
WPW10372113 WPW10372113 TAB, SUMP
W10904612 W10904612 TECH SHEET
WP661566 WP661566 THERMOSTAT
72032 72032 TOUCH-UP PAINT (BLACK)
WP3385089 WP3385089 TRACK, DISHRACK
WPW10306228 WPW10306228 TRACK, SPACER
W11513977 W11513977 TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
W11049299 W11049299 USE & CARE GUIDE
W11105961 W11105961 VENT (BLACK)
W11105958 W11105958 VENT (SILVER)
W11105960 W11105960 VENT (WHITE)
WPW10428211 WPW10428211 VENT ASSEMBLY (ALSO ORDER ITEM 6)
WP3378128 WP3378128 WASHER, PRONGED CUP
WPW10082868 WPW10082868 WHEEL & TRANSPORT ASSEMBLY
WP8575897 WP8575897 WHEEL ASSEMBLY
W10834761 W10834761 WIRING HARNESS
