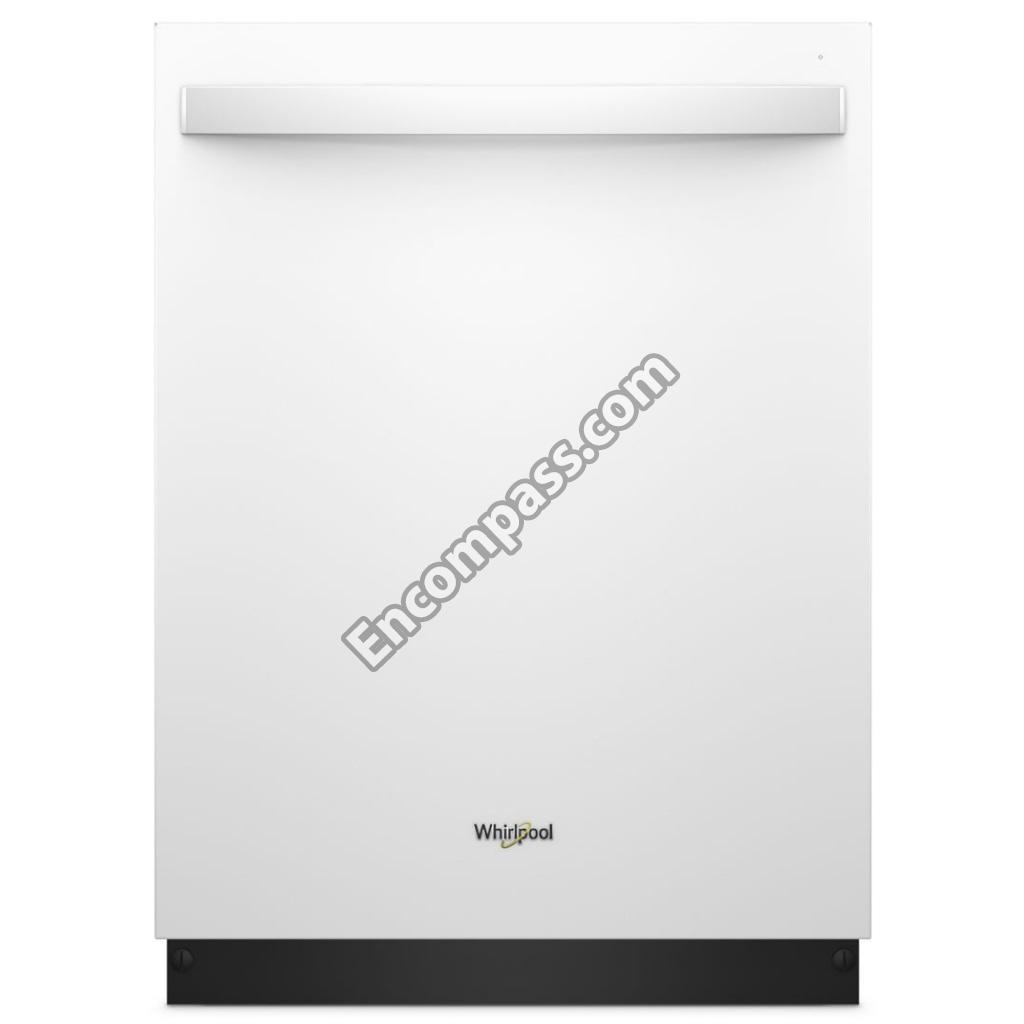

Model Image
Manufacturer

WHI

Model Number

WDT970SAHW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part WPW10526114
Whirlpool
WPW10526114
ACCESS PANEL (BLACK)
Checking…
View Product
Part WPW10526115
Whirlpool
WPW10526115
ACCESS PANEL (WHITE)
Checking…
View Product
Part 3385556
Whirlpool
3385556
ACCESSORIES, DRAIN HOSE 12 FT.
Checking…
View Product
Part W10702080
Whirlpool
W10702080
ACCESSORIES, HANDLE ASSEMBLY (BLACK)
Checking…
View Product
Part W10702081
Whirlpool
W10702081
ACCESSORIES, HANDLE ASSEMBLY (WHITE)
Checking…
View Product
Part 4396277
Whirlpool
4396277
ACCESSORIES, MOISTURE BARRIER KIT
Checking…
View Product
Part 8171658
Whirlpool
8171658
ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE)
Checking…
View Product
Part 8171657
Whirlpool
8171657
ACCESSORIES, SIDE PANEL KITS (BLACK)
Checking…
View Product
Part 8171659
Whirlpool
8171659
ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL)
Checking…
View Product
Part 8171656
Whirlpool
8171656
ACCESSORIES, SIDE PANEL KITS (WHITE)
Checking…
View Product
Part W10712395
Whirlpool
W10712395
ADJUSTER, ARM ASSEMBLY
Checking…
View Product
Part 8171477
Whirlpool
8171477
ANTI-TIP KIT, FLOOR MOUNT KIT
Checking…
View Product
Part 8212560
Whirlpool
8212560
ANTI-TIP KIT, SIDE MOUNT KIT
Checking…
View Product
Part W11612302
Whirlpool
W11612302
ARM, HINGE (LEFT HAND)
Checking…
View Product
Part WP8534853
Whirlpool
WP8534853
ARM, HINGE (RIGHT HAND)
Checking…
View Product
Part W11167239
Whirlpool
W11167239
ASSEMBLY, TERMINAL BOX
Checking…
View Product
Part W10692757
Whirlpool
W10692757
BARREL NUT, FRONT PANEL
Checking…
View Product
Part W10850371
Whirlpool
W10850371
BARRIER, VAPOR
Checking…
View Product
Part W10874358
Whirlpool
W10874358
BOX, CONNECTOR
Checking…
View Product
Part W10874357
Whirlpool
W10874357
BRACE, CONNECTOR
Checking…
View Product
Part W10837623
Whirlpool
W10837623
BRACKET, FEED TUBE
Checking…
View Product
Part W10300703
Whirlpool
W10300703
BRACKET, THERMOSTAT
Checking…
View Product
Part WP8269145
Whirlpool
WP8269145
BRACKET, UNDERCOUNTER
Checking…
View Product
Part 8194001
Whirlpool
8194001
CABLE, DOOR
Checking…
View Product
Part W10789434
Whirlpool
W10789434
CLAMP, HOSE
Checking…
View Product
Part WP8269146
Whirlpool
WP8269146
CLAMP, HOSE
Checking…
View Product
Part WP285655
Whirlpool
WP285655
CLAMP, HOSE
Checking…
View Product
Part WP596669
Whirlpool
WP596669
CLAMP, HOSE
Checking…
View Product
Part WPW10250160
Whirlpool
WPW10250160
CLIP, ADJUSTER
Checking…
View Product
Part WPW10082848
Whirlpool
WPW10082848
CLIP, CUPSHELF
Checking…
View Product
Part W10919676
Whirlpool
W10919676
CLIP, DISPENSER GUARD
Checking…
View Product
Part WPW10082853
Whirlpool
WPW10082853
CLIP, PIVOT
Checking…
View Product
Part WPW10671904
Whirlpool
WPW10671904
CLIP, SILVERWARE BASKET
Checking…
View Product
Part W11192369
Whirlpool
W11192369

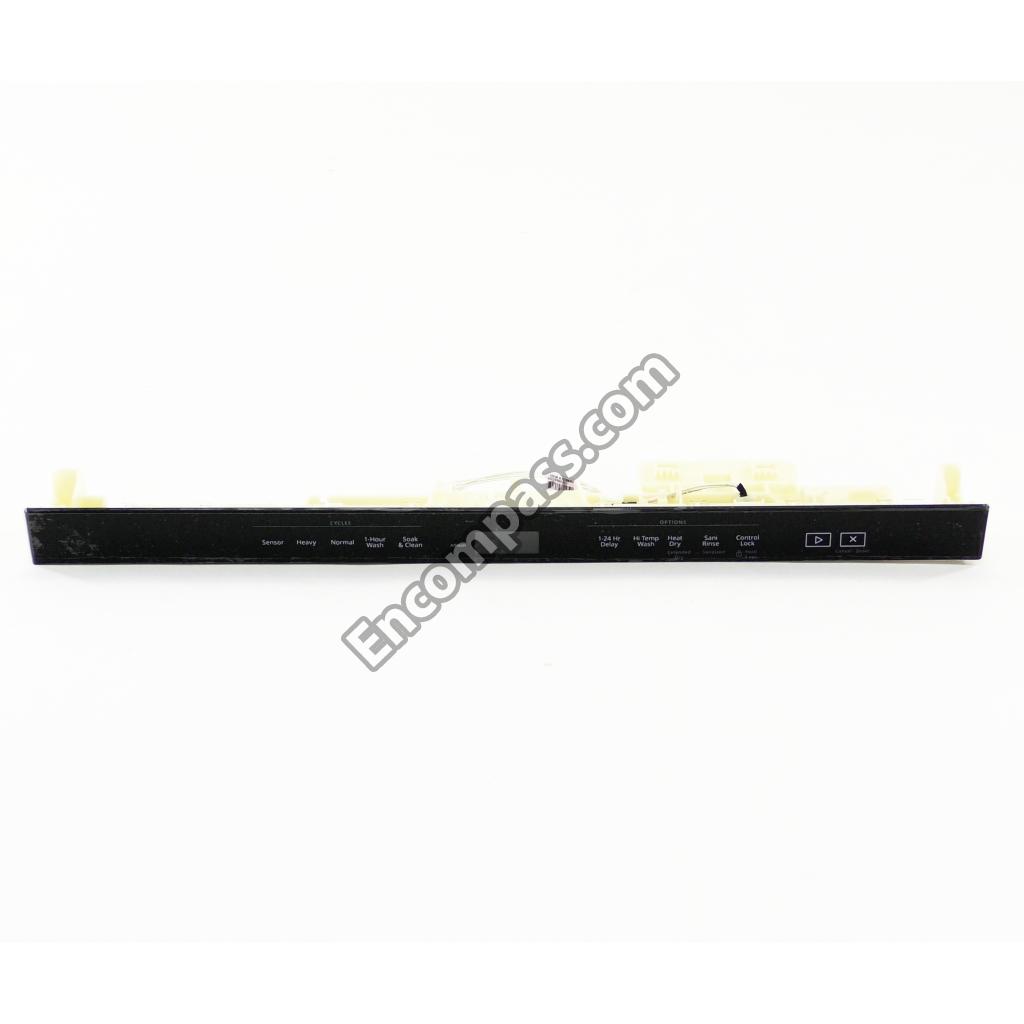

CONSOLE (BLACK)
Checking…
View Product
Part W11305296
Whirlpool
W11305296
CONTROL BOARD
Checking…
View Product
Part W11305293
Whirlpool
W11305293
CONTROL BOARD
Checking…
View Product
Part W11087206
Whirlpool
W11087206
CONTROL, ELECTRONIC
Checking…
View Product
Part WPW10250162
Whirlpool
WPW10250162
COVER, ADJUSTER
Checking…
View Product
Part W11573369
Whirlpool
W11573369
COVER, OUTLET
Checking…
View Product
Part W10847918
Whirlpool
W10847918
COVER, TERMINAL BOX
Checking…
View Product
Part WPW10082649
Whirlpool
WPW10082649
CUPSHELF ASSEMBLY
Checking…
View Product
Part W10350335
Whirlpool
W10350335
DAMPER, SUMP ASSEMBLY
Checking…
View Product
Part WPW10476221
Whirlpool
WPW10476221
DISC, DIVERTER
Checking…
View Product
Part 4396840RC
Whirlpool
4396840RC
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH FOR TWO COMPLETE RACKS) (SILVER ATLANTIS)
Checking…
View Product
Part 4396838RC
Whirlpool
4396838RC
DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH FOR TWO COMPLETE RACKS) (WHITE)
Checking…
View Product
Part WP676455
Whirlpool
WP676455
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY)
Checking…
View Product
Part 4396853
Whirlpool
4396853
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER ATLANTIS)
Checking…
View Product
Part WP676453
Whirlpool
WP676453
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE)
Checking…
View Product
Part W10311986
Whirlpool
W10311986
DISHRACK, LOWER
Checking…
View Product
Part W10728863
Whirlpool
W10728863
DISHRACK, UPPER
Checking…
View Product
Part W10861000
Whirlpool
W10861000
DISPENSER ASSEMBLY
Checking…
View Product
Part WPW10084086
Whirlpool
WPW10084086
DOOR BALANCE ASSEMBLY
Checking…
View Product
Part WPW10545278
Whirlpool
WPW10545278
DRAIN LOOP WITH CHECK VALVE ASEMBLY
Checking…
View Product
Part W11612327
Whirlpool
W11612327
DRAIN PUMP
Checking…
View Product
Part W10900099
Whirlpool
W10900099
ENERGY GUIDE
Checking…
View Product
Part WPW10503548
Whirlpool
WPW10503548
FASTENER (BLACK)
Checking…
View Product
Part WPW10503549
Whirlpool
WPW10503549
FASTENER (WHITE)
Checking…
View Product
Part WPW10340745
Whirlpool
WPW10340745
FEED TUBE ASSEMBLY (INCLUDES ITEMS 2 & 3)
Checking…
View Product
Part WPW10327249
Whirlpool
WPW10327249
FILL VALVE ASSEMBLY
Checking…
View Product
Part W10872845
Whirlpool
W10872845
FILTER CUP ASSEMBLY
Checking…
View Product
Part WPW10195036
Whirlpool
WPW10195036
FLOAT & RETAINER ASSEMBLY
Checking…
View Product
Part WP8531323
Whirlpool
WP8531323
GASKET
Checking…
View Product
Part WP8531743
Whirlpool
WP8531743
GASKET, FLAT
Checking…
View Product
Part WP9743002
Whirlpool
WP9743002
GASKET, MOUNTING BRACKET
Checking…
View Product
Part W11177741
Whirlpool
W11177741
GASKET, TUB
Checking…
View Product
Part WPW10538166
Whirlpool
WPW10538166
GROMMET
Checking…
View Product
Part W11572098
Whirlpool
W11572098
HANDLE
Checking…
View Product
Part W11224292
Whirlpool
W11224292
HANDLE ASSEMBLY (BLACK STAINLESS)
Checking…
View Product
Part W10907189
Whirlpool
W10907189
HANDLE ASSEMBLY (BLACK)
Checking…
View Product
Part W11025870
Whirlpool
W11025870
HANDLE ASSEMBLY (WHITE)
Checking…
View Product
Part W10703867
Whirlpool
W10703867
HEATER ELEMENT ASSEMBLY (INCLUDES HEATER WASHER & NUT)
Checking…
View Product
Part W10878507
Whirlpool
W10878507
HOSE
Checking…
View Product
Part W10445975
Whirlpool
W10445975
HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
Checking…
View Product
Part 8269144A
Whirlpool
8269144A
HOSE, DRAIN
Checking…
View Product
Part WPW10195372
Whirlpool
WPW10195372
HOUSING, ADJUSTER (LEFT HAND)
Checking…
View Product
Part WPW10195373
Whirlpool
WPW10195373
HOUSING, ADJUSTER (RIGHT HAND)
Checking…
View Product
Part W10873429
Whirlpool
W10873429
HOUSING, OVERFILL (ALSO ORDER ITEM 13)
Checking…
View Product
Part W11084121
Whirlpool
W11084121
INDICATOR, OPTICAL WASH
Checking…
View Product
Part WPW10195536
Whirlpool
WPW10195536
INLET, WATER (ALSO ORDER ITEM 4)
Checking…
View Product
Part W11035418
Whirlpool
W11035418
INNER DOOR ASSEMBLY
Checking…
View Product
Part W10806906
Whirlpool
W10806906
INSTALLATION INSTRUCTIONS
Checking…
View Product
Part WPW10073520
Whirlpool
WPW10073520
INSULATION, DOOR
Checking…
View Product
Part W10831329
Whirlpool
W10831329
INSULATION, FOUR LAYER
Checking…
View Product
Part W10750120
Whirlpool
W10750120
INSULATION, U-WRAP
Checking…
View Product
Part W10898167
Whirlpool
W10898167
JUMPER, 4-WIRE
Checking…
View Product
Part WPW10653840
Whirlpool
WPW10653840
LATCH ASSEMBLY (INCLUDES SWITCH) (REPLACES: W10653840)
Checking…
View Product
Part 8193716
Whirlpool
8193716
LEVELER, LEG
Checking…
View Product
Part WPW10195037
Whirlpool
WPW10195037
LEVER, OVERFILL SWITCH
Checking…
View Product
Part W10644279
Whirlpool
W10644279
LID, SILVERWARE BASKET (CENTER)
Checking…
View Product
Part W10644277
Whirlpool
W10644277
LID, SILVERWARE BASKET (SIDE)
Checking…
View Product
Part W10901145
Whirlpool
W10901145
LIGHT PIPE
Checking…
View Product
Part WPW10340542
Whirlpool
WPW10340542
MANIFOLD
Checking…
View Product
Part WPW10292152
Whirlpool
WPW10292152
MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 CLAMPS, & 2 BRACKETS)
Checking…
View Product
Part W11084656
Whirlpool
W11084656
MOTOR (ALSO ORDER ITEMS 5 & 20)
Checking…
View Product
Part W10537869
Whirlpool
W10537869
MOTOR, DIVERTER
Checking…
View Product
Part W11243394
Whirlpool
W11243394
MOTOR, ISOLATOR
Checking…
View Product
Part W11178521
Whirlpool
W11178521
NAMEPLATE
Checking…
View Product
Part WPW10195038
Whirlpool
WPW10195038
NUT, STANDPIPE
Checking…
View Product
Part WPW10213825
Whirlpool
WPW10213825
NUT, WATER INLET (ALSO ORDER ITEM 4)
Checking…
View Product
Part W11747584
Whirlpool
W11747584
PAD-INS
Checking…
View Product
Part 4392900
Whirlpool
4392900
PAINT, BULK (1 QT. BISCUIT/BISQUE)
Checking…
View Product
Part 799344
Whirlpool
799344
PAINT, BULK (1 QT. WHITE (UNCUT))
Checking…
View Product
Part 4392901
Whirlpool
4392901
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
Checking…
View Product
Part 285006
Whirlpool
285006
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
Checking…
View Product
Part 350930
Whirlpool
350930
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
Checking…
View Product
Part 4392899
Whirlpool
4392899
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
Checking…
View Product
Part 72032
Whirlpool
72032
PAINT, TOUCH-UP (1/2OZ. BLACK)
Checking…
View Product
Part 72017
Whirlpool
72017
PAINT, TOUCH-UP (1/2OZ. WHITE)
Checking…
View Product
Part W11087375
Whirlpool
W11087375
PANEL FRONT (INCLUDES 8, 15, 16 & 17) (BLACK STAINLESS)
Checking…
View Product
Part W11087372
Whirlpool
W11087372
PANEL FRONT (INCLUDES 8, 15, 16 & 17) (BLACK)
Checking…
View Product
Part W11087373
Whirlpool
W11087373
PANEL FRONT (INCLUDES 8, 15, 16 & 17) (WHITE)
Checking…
View Product
Part W10795980
Whirlpool
W10795980
PLUG, TUB
Checking…
View Product
Part WPW10195840
Whirlpool
WPW10195840
POSITIONER, ADJUSTER
Checking…
View Product
Part W10803790
Whirlpool
W10803790
POSITIONER, DUAL
Checking…
View Product
Part 4317824
Whirlpool
4317824
POWER CORD KIT (INCLUDED CORD & MISC. HARDWARE)
Checking…
View Product
Part W10876537
Whirlpool
W10876537
PUMP, DRAIN
Checking…
View Product
Part W11027154
Whirlpool
W11027154
RACK, THIRD LEVEL
Checking…
View Product
Part WP3400918
Whirlpool
WP3400918
RETAINER
Checking…
View Product
Part WPW10486051
Whirlpool
WPW10486051
RETAINER
Checking…
View Product
Part WP304666
Whirlpool
WP304666
RETAINER
Checking…
View Product
Part WPW10463906
Whirlpool
WPW10463906
SCREEN
Checking…
View Product
Part WP9741232
Whirlpool
WP9741232
SCREW
Checking…
View Product
Part WPW10348407
Whirlpool
WPW10348407
SCREW
Checking…
View Product
Part WPW10309090
Whirlpool
WPW10309090
SCREW
Checking…
View Product
Part WP3400892
Whirlpool
WP3400892
SCREW
Checking…
View Product
Part WPW10348411
Whirlpool
WPW10348411
SCREW
Checking…
View Product
Part WP3400074
Whirlpool
WP3400074
SCREW
Checking…
View Product
Part WP308685
Whirlpool
WP308685
SCREW
Checking…
View Product
Part W11631670
Whirlpool
W11631670
SCREW
Checking…
View Product
Part WPW10348409
Whirlpool
WPW10348409
SCREW
Checking…
View Product
Part WPW10348408
Whirlpool
WPW10348408
SCREW
Checking…
View Product
Part W10826179
Whirlpool
W10826179
SCREW
Checking…
View Product
Part WP3400071
Whirlpool
WP3400071
SCREW
Checking…
View Product
Part WP489069
Whirlpool
WP489069
SCREW
Checking…
View Product
Part WP3400014
Whirlpool
WP3400014
SCREW, GROUNDING
Checking…
View Product
Part W10907991
Whirlpool
W10907991
SCREW, SET
Checking…
View Product
Part W10864081
Whirlpool
W10864081
SEAL, CABINET
Checking…
View Product
Part W11213719
Whirlpool
W11213719
SEAL, CONSOLE/DOOR
Checking…
View Product
Part W10909089
Whirlpool
W10909089
SEAL, DOOR BOTTOM
Checking…
View Product
Part W10292870
Whirlpool
W10292870
SHIELD, THERMOSTAT
Checking…
View Product
Part W11086533
Whirlpool
W11086533
SHIELD, TUB SOUND
Checking…
View Product
Part W11158804
Whirlpool
W11158804
SILVERWARE BASKET ASSEMBLY
Checking…
View Product
Part W10819539
Whirlpool
W10819539
SOUND INSULATION, BOTTOM
Checking…
View Product
Part W10195630
Whirlpool
W10195630
SPACER, TUB BRACE (LEFT HAND)
Checking…
View Product
Part W10195631
Whirlpool
W10195631
SPACER, TUB BRACE (RIGHT HAND)
Checking…
View Product
Part WPW10498900
Whirlpool
WPW10498900
SPRAYARM
Checking…
View Product
Part W10837249
Whirlpool
W10837249
SPRAYARM, LOWER
Checking…
View Product
Part WPW10327455
Whirlpool
WPW10327455
SPRAYARM, THIRD LEVEL
Checking…
View Product
Part WP8270020
Whirlpool
WP8270020
SPRING, DOOR BALANCE
Checking…
View Product
Part WP8565925
Whirlpool
WP8565925
STOP, TRACK (NON-REMOVABLE)
Checking…
View Product
Part W10337661
Whirlpool
W10337661
STRAIN RELIEF
Checking…
View Product
Part WPW10195839
Whirlpool
WPW10195839
STRAP, TETHER ADJUSTER
Checking…
View Product
Part WPW10544004
Whirlpool
WPW10544004
STRIKE, LATCH
Checking…
View Product
Part W11157086
Whirlpool
W11157086
STUD, MOUNTING
Checking…
View Product
Part W11087376
Whirlpool
W11087376
SUMP & MOTOR ASSEMBLY
Checking…
View Product
Part WPW10455268
Whirlpool
WPW10455268
SUMP WITH SEAL (ALSO ORDER ITEMS 5 & 20)
Checking…
View Product
Part WPW10681564
Whirlpool
WPW10681564
SUPPORT ASSEMBLY, REAR
Checking…
View Product
Part WPW10195039
Whirlpool
WPW10195039
SWITCH, OVERFILL CONTROL
Checking…
View Product
Part WPW10372113
Whirlpool
WPW10372113
TAB, SUMP
Checking…
View Product
Part W10904612
Whirlpool
W10904612
TECH SHEET
Checking…
View Product
Part WPW10195091
Whirlpool
WPW10195091
THERMOSTAT
Checking…
View Product
Part W10727426
Whirlpool
W10727426
TINE ROW, FOLD DOWN
Checking…
View Product
Part W10913628
Whirlpool
W10913628
TRACK ASSEMBLY (LEFT HAND)
Checking…
View Product
Part W10914507
Whirlpool
W10914507
TRACK ASSEMBLY (RIGHT HAND)
Checking…
View Product
Part WP3385089
Whirlpool
WP3385089
TRACK, DISHRACK
Checking…
View Product
Part WPW10681506
Whirlpool
WPW10681506
TUB ASSEMBLY (ALSO INCLUDES HEATER ASSEMBLY)
Checking…
View Product
Part W10901523
Whirlpool
W10901523
USE & CARE GUIDE
Checking…
View Product
Part WP3378128
Whirlpool
WP3378128
WASHER, PRONGED CUP
Checking…
View Product
Part W10195416
Whirlpool
W10195416
WHEEL & TRANSPORT ASSEMBLY
Checking…
View Product
Part WPW10078083
Whirlpool
WPW10078083
WHEEL AND MOUNT ASSEMBLY
Checking…
View Product
Part WPW10190778
Whirlpool
WPW10190778
WHEEL LEG
Checking…
View Product
Part W11458664
Whirlpool
W11458664
WIRING HARNESS
Checking…
View Product
    Main Menu x
