Model Image
Manufacturer

Whirlpool

Model Number

WDTA50SAHW0

Description

24-inch Built-in Dishwasher White

Interactive Exploded View
Exploded View

Parts List

Part Number Description
N_P N_P (INCLUDES HEATER WASHER & NUT)
WPW10526114 WPW10526114 ACCESS PANEL (BLACK)

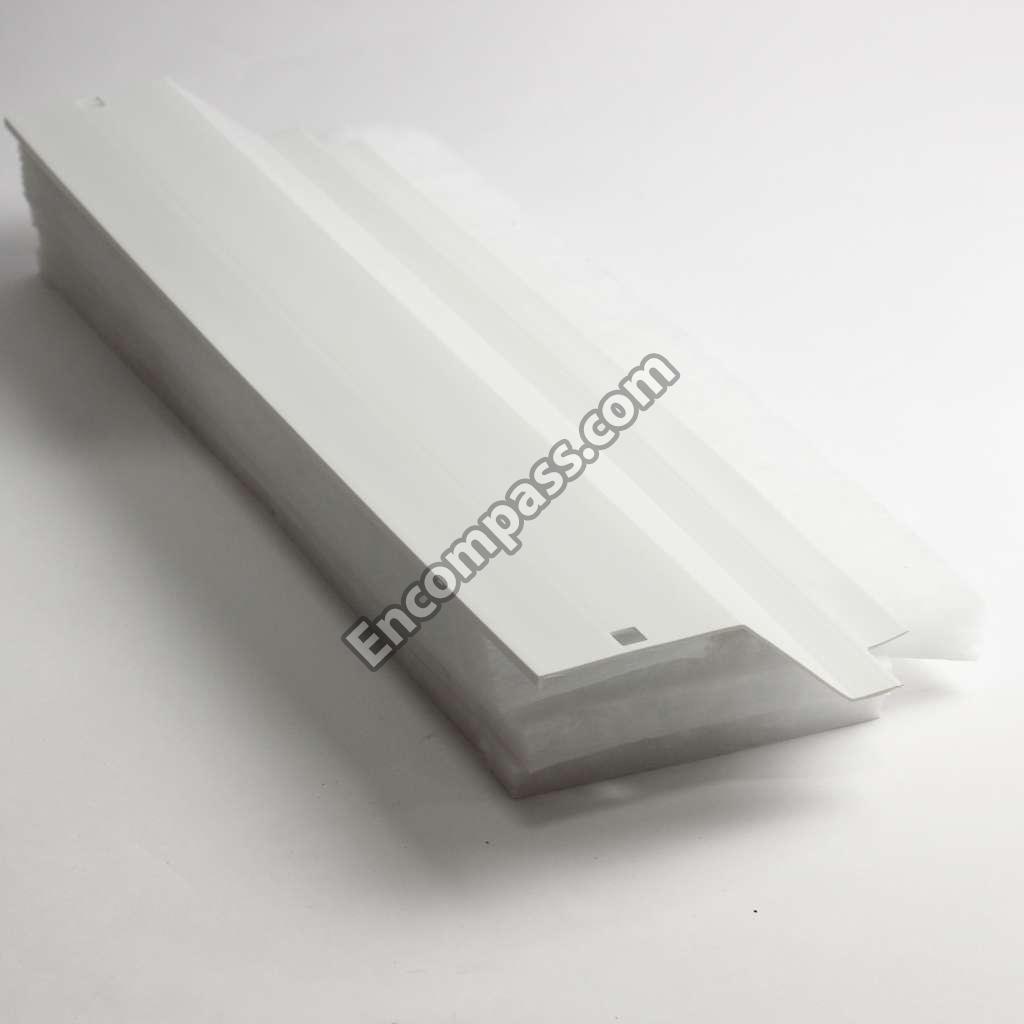

WPW10526115 WPW10526115 ACCESS PANEL (WHITE)
3385556 3385556 ACCESSORIES, DRAIN HOSE 12 FT.
W10702080 W10702080 ACCESSORIES, HANDLE ASSEMBLY (BLACK)
W10702081 W10702081 ACCESSORIES, HANDLE ASSEMBLY (WHITE)
4396277 4396277 ACCESSORIES, MOISTURE BARRIER KIT
8171658 8171658 ACCESSORIES, SIDE PANEL KITS (BISCUIT/BISQUE)
8171657 8171657 ACCESSORIES, SIDE PANEL KITS (BLACK)
8171659 8171659 ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL)
8171656 8171656 ACCESSORIES, SIDE PANEL KITS (WHITE)
W10712395 W10712395 ADJUSTER, ARM ASSEMBLY
8171477 8171477 ANTI-TIP KIT, FLOOR MOUNT KIT
8212560 8212560 ANTI-TIP KIT, SIDE MOUNT KIT
W11612302 W11612302 ARM, HINGE (LEFT HAND)
WP8534853 WP8534853 ARM, HINGE (RIGHT HAND)

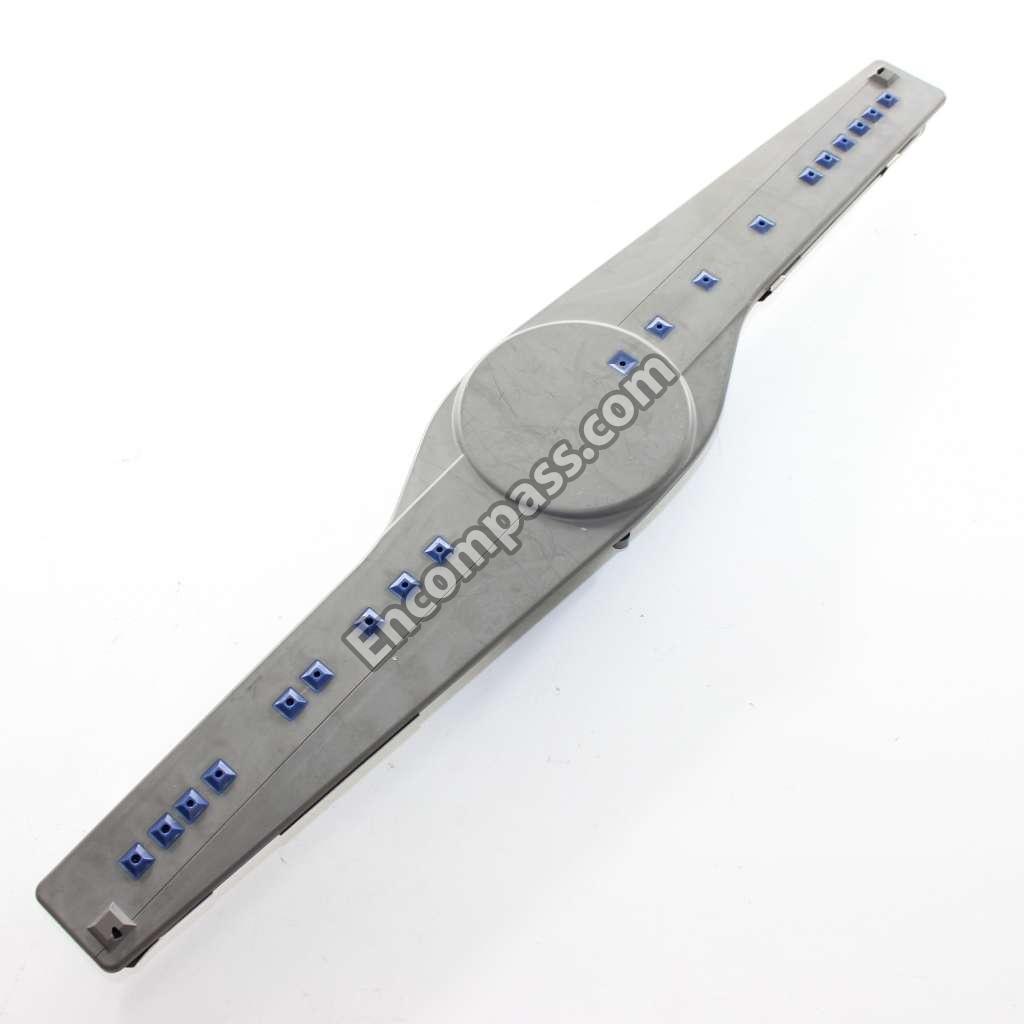

WPW10498900 WPW10498900 ARM-SPRAY
WPW10327455 WPW10327455 ARM-SPRAY
W11167239 W11167239 ASSEMBLY, TERMINAL BOX
W10692757 W10692757 BARREL NUT, FRONT PANEL
W10850371 W10850371 BARRIER, VAPOR
W10874358 W10874358 BOX, CONNECTOR
W10874357 W10874357 BRACE, CONNECTOR
W10837623 W10837623 BRACKET
W10300703 W10300703 BRACKET, THERMOSTAT
WP8269145 WP8269145 BRACKET, UNDERCOUNTER
8194001 8194001 CABLE, DOOR
W10789434 W10789434 CLAMP, HOSE
WP8269146 WP8269146 CLAMP, HOSE
WP285655 WP285655 CLAMP, HOSE
WP596669 WP596669 CLAMP, HOSE
WPW10250160 WPW10250160 CLIP, ADJUSTER
WPW10082848 WPW10082848 CLIP, CUPSHELF
W10919676 W10919676 CLIP, DISPENSER GUARD
WPW10082853 WPW10082853 CLIP, PIVOT
WPW10671904 WPW10671904 CLIP, SILVERWARE BASKET

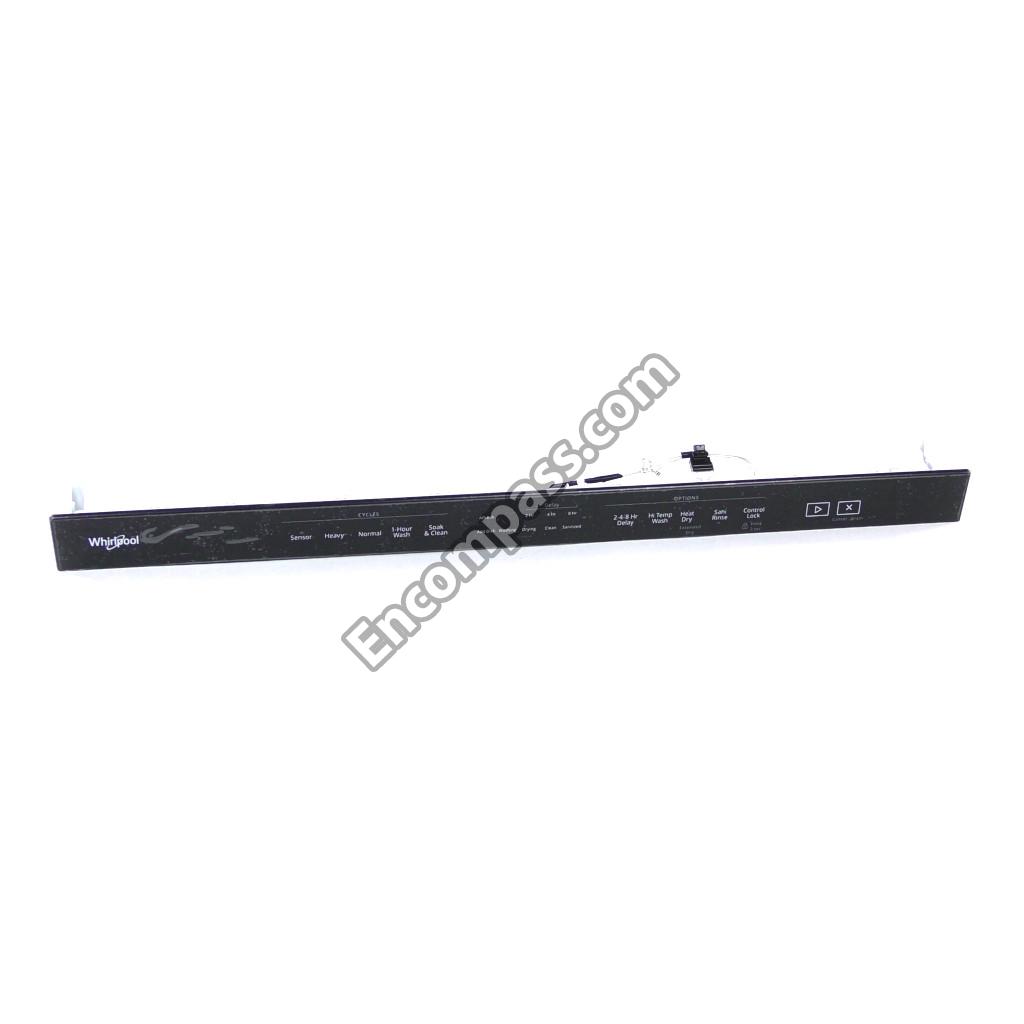

W11157079 W11157079 CONSOLE (BLACK)

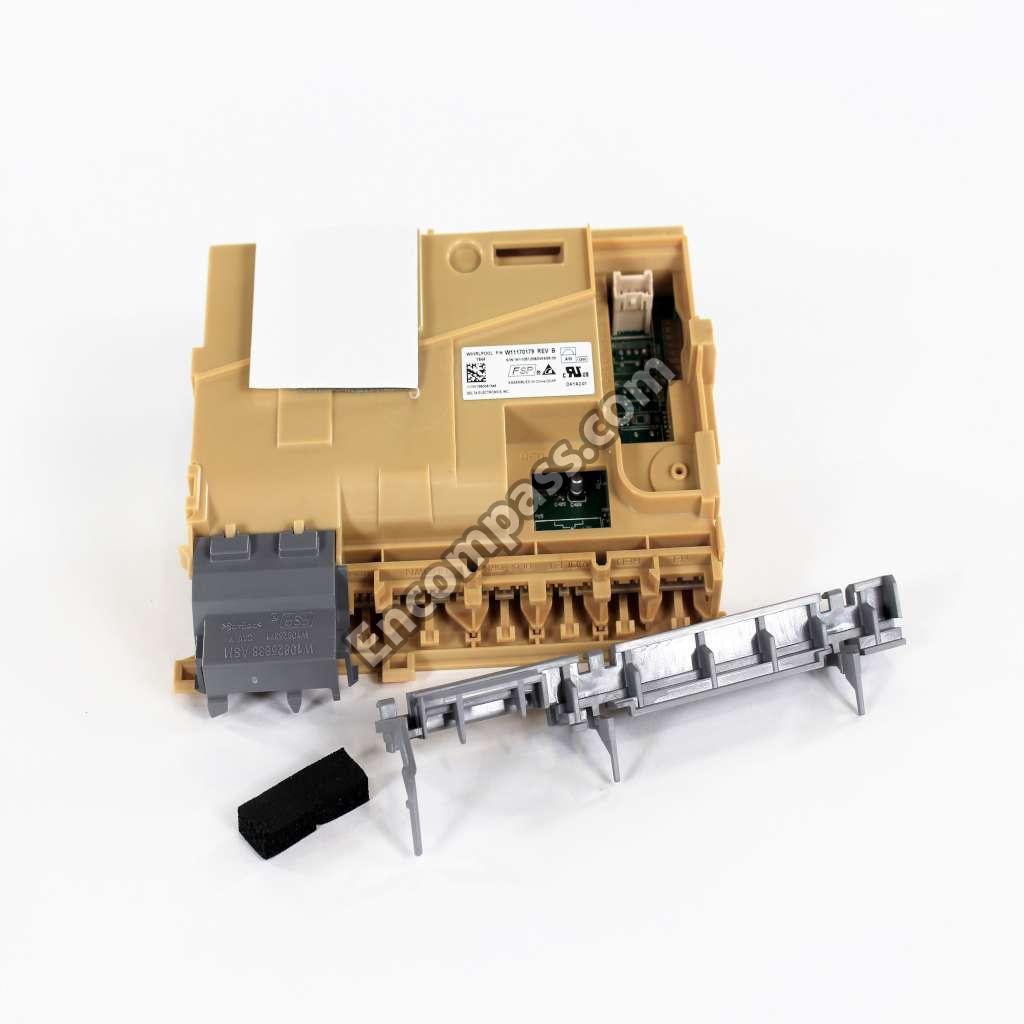

W11305297 W11305297 CONTROL BOARD
W11305293 W11305293 CONTROL BOARD
W11087207 W11087207 CONTROL, ELECTRONIC
WPW10250162 WPW10250162 COVER, ADJUSTER
W11573369 W11573369 COVER, OUTLET
W10847918 W10847918 COVER, TERMINAL BOX
WPW10082649 WPW10082649 CUPSHELF ASSEMBLY
W10350335 W10350335 DAMPER, SUMP ASSEMBLY
WPW10476221 WPW10476221 DISC, DIVERTER
4396840RC 4396840RC DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH FOR TWO COMPLETE RACKS) (SILVER ATLANTIS)
4396838RC 4396838RC DISHRACK REPAIR, TINE TIP REPAIR KIT (ENOUGH FOR TWO COMPLETE RACKS) (WHITE)
WP676455 WP676455 DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY)
4396853 4396853 DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER ATLANTIS)
WP676453 WP676453 DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE)
W10311986 W10311986 DISHRACK, LOWER
W10727422 W10727422 DISHRACK, UPPER
W10861000 W10861000 DISPENSER ASSEMBLY
WPW10084086 WPW10084086 DOOR BALANCE ASSEMBLY
WPW10545278 WPW10545278 DRAIN LOOP WITH CHECK VALVE ASSEMBLY
W11612327 W11612327 DRAIN PUMP
W10900099 W10900099 ENERGY GUIDE
WPW10503548 WPW10503548 FASTENER (BLACK)
WPW10503549 WPW10503549 FASTENER (WHITE)
WPW10327249 WPW10327249 FILL VALVE ASSEMBLY
W10872845 W10872845 FILTER CUP ASSEMBLY
WPW10195036 WPW10195036 FLOAT & RETAINER ASSEMBLY
W11087929 W11087929 FRONT PANEL (INCLUDES 8, 10, 11 & 12) (BLACK STAINLESS)
W11087926 W11087926 FRONT PANEL (INCLUDES 8, 10, 11 & 12) (BLACK)
W10860941 W10860941 FRONT PANEL (INCLUDES 8, 10, 11 & 12) (STAINLESS)
W11087927 W11087927 FRONT PANEL (INCLUDES 8, 10, 11 & 12) (WHITE)
WP8531323 WP8531323 GASKET
WP8531743 WP8531743 GASKET, FLAT
WP9743002 WP9743002 GASKET, MOUNTING BRACKET
W11177741 W11177741 GASKET, TUB
WPW10538166 WPW10538166 GROMMET
W10703867 W10703867 HEATER ELEMENT ASSEMBLY
W10878507 W10878507 HOSE
W10445975 W10445975 HOSE ASSEMBLY (INCLUDES 2 CLAMPS)
8269144A 8269144A HOSE, DRAIN
WPW10195372 WPW10195372 HOUSING, ADJUSTER (LEFT HAND)
WPW10195373 WPW10195373 HOUSING, ADJUSTER (RIGHT HAND)
W10873429 W10873429 HOUSING, OVERFILL (ALSO ORDER ITEM 13)
W11084121 W11084121 INDICATOR, OPTICAL WASH
WPW10195536 WPW10195536 INLET, WATER (ALSO ORDER ITEM 4)
W11035418 W11035418 INNER DOOR ASSEMBLY
W10806906 W10806906 INSTALLATION INSTRUCTIONS
WPW10073520 WPW10073520 INSULATION, DOOR
W10831329 W10831329 INSULATION, FOUR LAYER
W10750120 W10750120 INSULATION, U-WRAP
W11662069 W11662069 JUMPER, 4-WIRE
WPW10653840 WPW10653840 LATCH ASSEMBLY (INCLUDES SWITCH) (REPLACES: W10653840)
8193716 8193716 LEVELER, LEG
WPW10195037 WPW10195037 LEVER, OVERFILL SWITCH
W10644279 W10644279 LID, SILVERWARE BASKET (CENTER)
W10644277 W10644277 LID, SILVERWARE BASKET (SIDE)
W10901145 W10901145 LIGHT PIPE

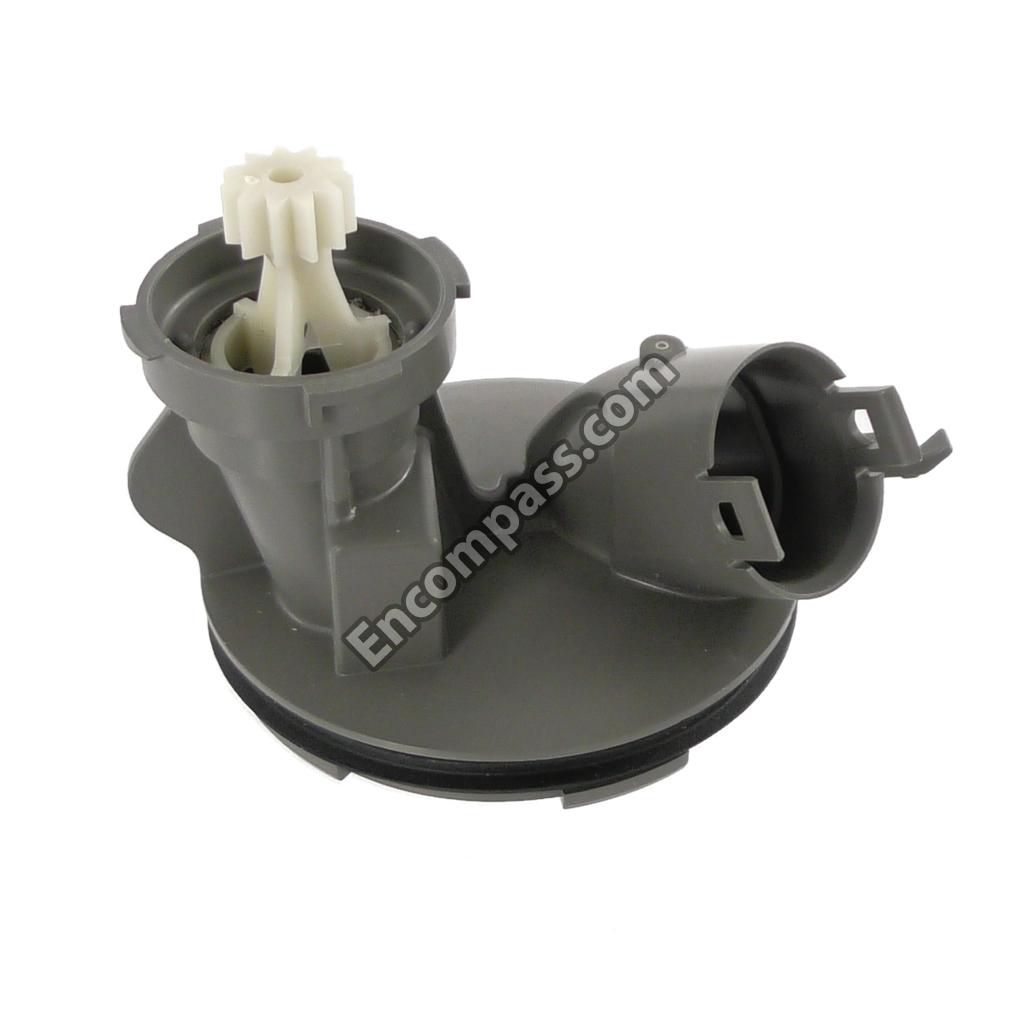

WPW10340542 WPW10340542 MANIFOLD
WPW10292152 WPW10292152 MISCELLANEOUS PARTS BAG (CONTAINS 2 SCREWS, 2 CLAMPS, & 2 BRACKETS) (REPLACES: W10292152)
W11084656 W11084656 MOTOR (ALSO ORDER ITEMS 5 & 20)
W10537869 W10537869 MOTOR, DIVERTER
W11243394 W11243394 MOTOR, ISOLATOR
WPW10195038 WPW10195038 NUT, STANDPIPE
WPW10213825 WPW10213825 NUT, WATER INLET (ALSO ORDER ITEM 4)
W11747584 W11747584 PAD-INS
4392900 4392900 PAINT, BULK (1 QT. BISCUIT/BISQUE)
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQUE)
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11087928 W11087928 PANEL
W10795980 W10795980 PLUG, TUB
WPW10195840 WPW10195840 POSITIONER, ADJUSTER
W10803790 W10803790 POSITIONER, DUAL
4317824 4317824 POWER CORD KIT (INCLUDED CORD & MISC. HARDWARE)
W10876537 W10876537 PUMP, DRAIN
WP3400918 WP3400918 RETAINER
WPW10486051 WPW10486051 RETAINER
WP304666 WP304666 RETAINER
WPW10463906 WPW10463906 SCREEN
WP9741232 WP9741232 SCREW
WPW10348407 WPW10348407 SCREW
WPW10309090 WPW10309090 SCREW
WP3400892 WP3400892 SCREW
WPW10348411 WPW10348411 SCREW
WP3400074 WP3400074 SCREW
WP308685 WP308685 SCREW
W11631670 W11631670 SCREW
WPW10348409 WPW10348409 SCREW
WPW10348408 WPW10348408 SCREW
WP3400071 WP3400071 SCREW
WP489069 WP489069 SCREW
WP3400014 WP3400014 SCREW, GROUNDING
W10864081 W10864081 SEAL, CABINET
W11213719 W11213719 SEAL, CONSOLE/DOOR
W10909089 W10909089 SEAL, DOOR BOTTOM
W10292870 W10292870 SHIELD, THERMOSTAT
W11086533 W11086533 SHIELD, TUB SOUND
W11158804 W11158804 SILVERWARE BASKET ASSEMBLY
W10819539 W10819539 SOUND INSULATION, BOTTOM
W10195630 W10195630 SPACER, TUB BRACE (LEFT HAND)
W10195631 W10195631 SPACER, TUB BRACE (RIGHT HAND)
W10837249 W10837249 SPRAYARM, LOWER
WP8270020 WP8270020 SPRING, DOOR BALANCE
WP8565925 WP8565925 STOP, TRACK (NON-REMOVABLE)
W10337661 W10337661 STRAIN RELIEF
WPW10195839 WPW10195839 STRAP, TETHER ADJUSTER
WPW10544004 WPW10544004 STRIKE, LATCH
W11087376 W11087376 SUMP & MOTOR ASSEMBLY
WPW10455268 WPW10455268 SUMP WITH SEAL (ALSO ORDER ITEMS 5 & 20)
WPW10681564 WPW10681564 SUPPORT ASSEMBLY, REAR
WPW10195039 WPW10195039 SWITCH, OVERFILL CONTROL
WPW10372113 WPW10372113 TAB, SUMP
W10904612 W10904612 TECH SHEET
WPW10195091 WPW10195091 THERMOSTAT
W10727426 W10727426 TINE ROW, FOLD DOWN
WP3385089 WP3385089 TRACK, DISHRACK
W11087930 W11087930 TRIM, HANDLE
WPW10681507 WPW10681507 TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY)
WPW10340745 WPW10340745 TUBE-FEED
W10901523 W10901523 USE & CARE GUIDE
WP3378128 WP3378128 WASHER, PRONGED CUP
W10195416 W10195416 WHEEL & TRANSPORT ASSEMBLY
WPW10078083 WPW10078083 WHEEL AND MOUNT ASSEMBLY
WPW10190778 WPW10190778 WHEEL LEG
W11690649 W11690649 WIRING HARNESS
