Model Image
Manufacturer

Whirlpool

Model Number

WEC310S0LS1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
4396923 4396923 ACCESSORY PARTS, BROILER PAN AND GRID
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN AND ROASTING
W11217187 W11217187 ANCHOR-TIP
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11502257 W11502257 ANCHOR-TIP
W11122085 W11122085 ASSEMBLY, FLUE
W10853400 W10853400 BAFFLE, UPPER CHASSIS
WPW10245259 WPW10245259 BLOCK-TERM
WPW10196406 WPW10196406 BOWL-DRIP
WPW10196405 WPW10196405 BOWL-DRIP
W10162253 W10162253 BRACE, CORNER (LEFT)
W10162252 W10162252 BRACE, CORNER (RIGHT)
W10814305 W10814305 BRACKET, CONSOLE (CENTER)
W10547960 W10547960 BRACKET, CONSOLE (LEFT)
W10547961 W10547961 BRACKET, CONSOLE (RIGHT)
W10462909 W10462909 BRACKET, MOUNTING
W11728255 W11728255 BRKT-SRVCE
W11502236 W11502236 BRKT-SUPRT
W11690600 W11690600 BUMPER
W10536273 W10536273 BURNER BOX
W10162241 W10162241 CHANNEL, REAR
W10841090 W10841090 CLIP
16515 16515 CLIP, HARNESS
W10664316 W10664316 CLIP, HARNESS (COOKTOP)
W10404688 W10404688 CLIP, OVEN SUPPORT
W10137382 W10137382 CLIP, PANEL
W10866583 W10866583 CLIP-PANEL, RATCHETING
WPW10281322 WPW10281322 CONNECTOR
W11542161 W11542161 CONTROL BOARD
W11542183 W11542183 CONTROL PANEL
W10894124 W10894124 CONTROL PANEL
W11499868 W11499868 COOKTOP (BLACK)
W11379354 W11379354 COVER, BACK
W10162248 W10162248 COVER, WIRE
WPW10107820 WPW10107820 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
W11398742 W11398742 DOOR HANDLE
WPW10440013 WPW10440013 DOOR HINGE
WPW10388635 WPW10388635 DOOR HINGE
W10761014 W10761014 DOOR TRIM
W10761018 W10761018 DOOR TRIM
WP8523177 WP8523177 DOOR TRIM
W10813962 W10813962 DRAWR-UTIL
W11447783 W11447783 ELMNT-BAKE
WPW10583047 WPW10583047 ELMNT-BROL
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10341186 WPW10341186 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WP3196548 WP3196548 FUSE-THRML
W11744482 W11744482 GASKET
W10802457 W10802457 GASKET
W10802441 W10802441 GASKET
W10702912 W10702912 GASKET, SWITCH STEM
WP71002569 WP71002569 GASKET- IN
W11542153 W11542153 GASKT-DOOR
W11702167 W11702167 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR
W10807828 W10807828 GLIDE-DRWR
W10807823 W10807823 GLIDE-DRWR
W10800451 W10800451 HARNESS, CONSOLE
W11190435 W11190435 HARNESS, COOKTOP
W11453734 W11453734 HARNESS, MAIN
W10647259 W10647259 HINGE-RECV

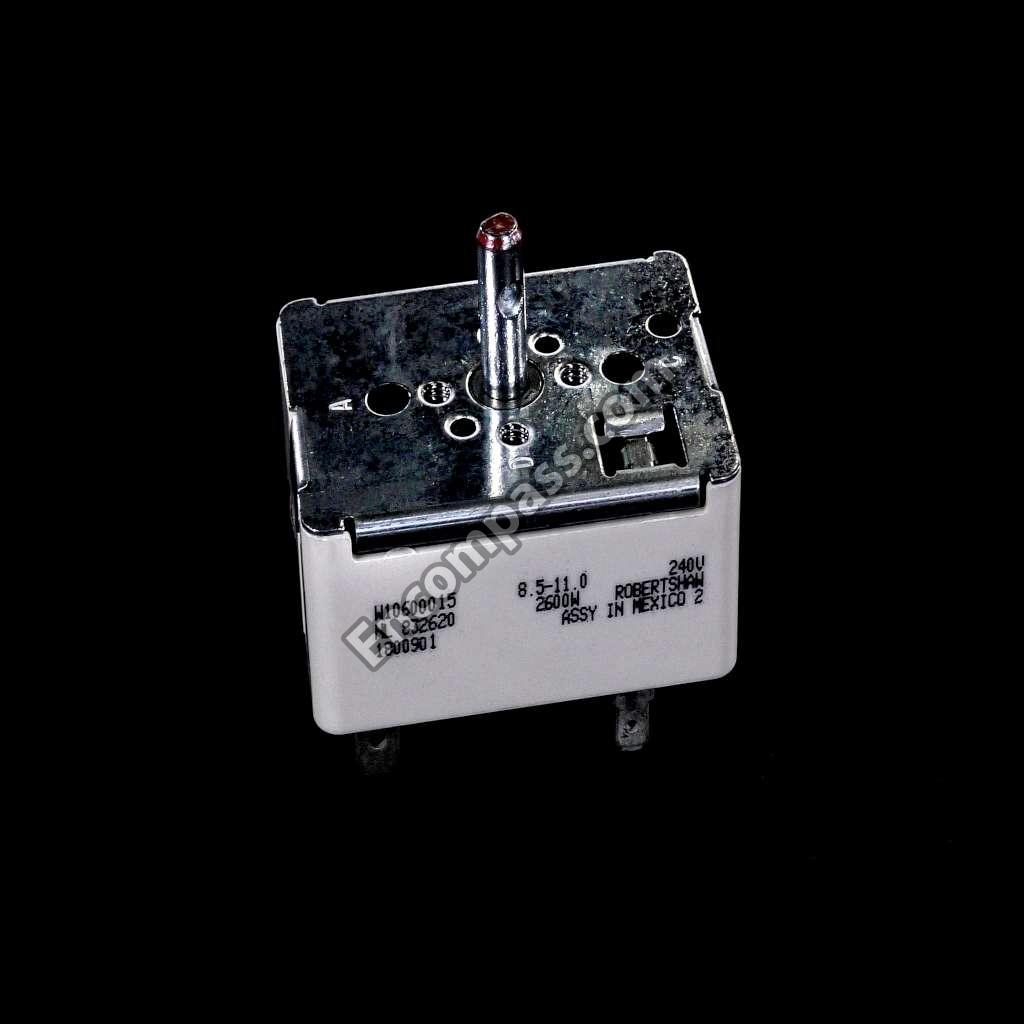

W11162115 W11162115 INFINITE CONTROL SWITCH
W11661906 W11661906 INFINITE CONTROL SWITCH
WPW10208653 WPW10208653 INSULATION
WPW10278991 WPW10278991 INSULATION
W11688416 W11688416 INSULATION
W11684775 W11684775 INSULATION
W11688573 W11688573 INSULATION

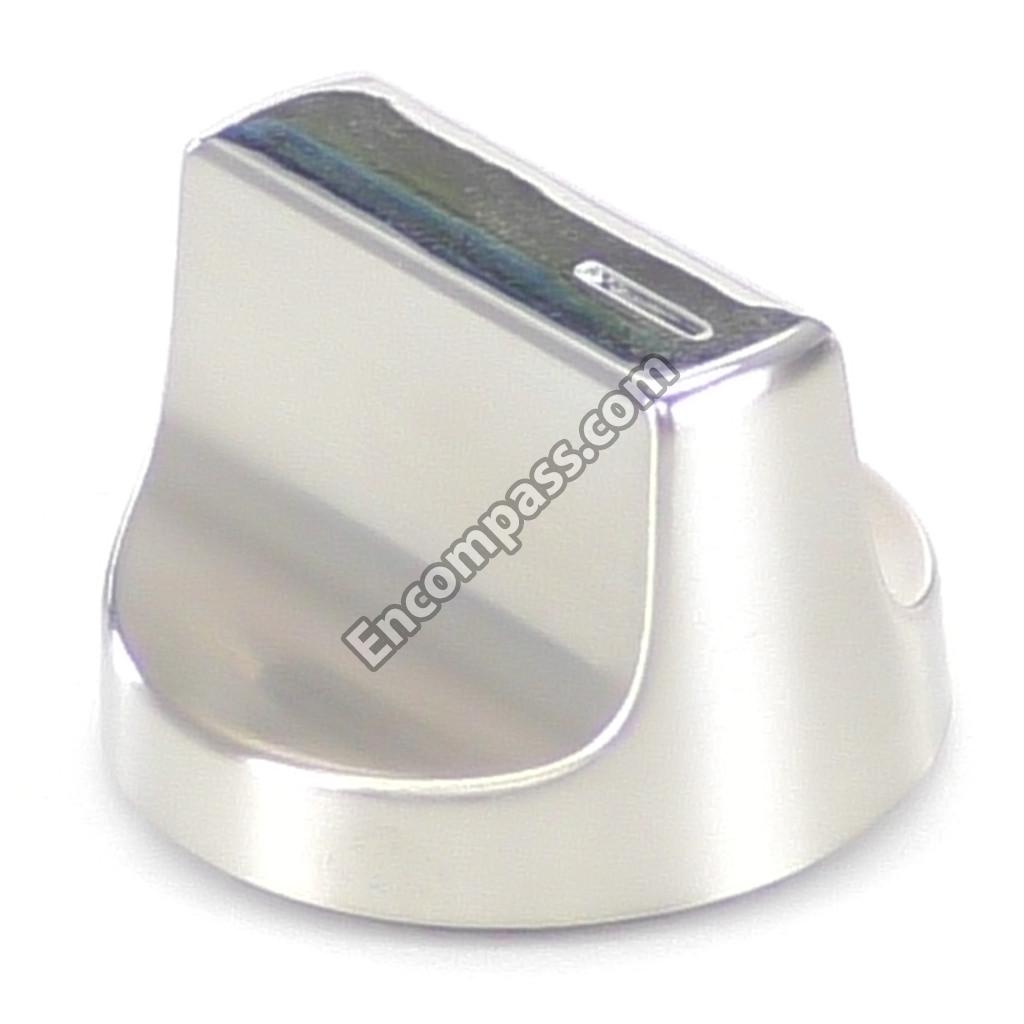

W11517331 W11517331 KNOB
WPW10571723 WPW10571723 LIGHT BULB
WP9761344 WP9761344 LINER-DOOR
W11178521 W11178521 NAMEPLATE
WP3400029 WP3400029 NUT
W11509605 W11509605 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ. BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11256444 W11256444 PANEL-DRWR
WPW10162245 WPW10162245 PANEL-SIDE
W11508915 W11508915 QUICK START GUIDE
W11520287 W11520287 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
814399 814399 RECEPTACLE, ELEMENT
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11539580 W11539580 RETAINER
W11379353 W11379353 RETAINER, INSULATION (LEFT)
W11379943 W11379943 RETAINER, INSULATION (RIGHT)
9757239 9757239 ROD, DOOR SWITCH
W10078370 W10078370 ROD, PUSH DOOR LATCH
W11268772 W11268772 SCREEN
WP355214 WP355214 SCREW
W10831019 W10831019 SCREW
WPW10200660 WPW10200660 SCREW
WPW10031790 WPW10031790 SCREW
W11169708 W11169708 SCREW
3196172 3196172 SCREW
W11684512 W11684512 SCREW
WP3196154 WP3196154 SCREW
WPW10067840 WPW10067840 SCREW
W10777162 W10777162 SCREW
W10674068 W10674068 SCREW
W11233072 W11233072 SCREW
W10516115 W10516115 SCREW
WP3196557 WP3196557 SCREW
W11245710 W11245710 SCREW
W11135756 W11135756 SCREW-TORX
W10833885 W10833885 SENSOR
W10655441 W10655441 SHIELD, POWER CORD
W11594170 W11594170 SOCKT-LITE
W10877054 W10877054 SPACER
W10814303 W10814303 SUPPORT, COOKTOP (LEFT)
W10814304 W10814304 SUPPORT, COOKTOP (RIGHT)
W10814301 W10814301 SUPPORT, UPPER CHASSIS
W11396790 W11396790 SURFACE ELEMENT
W11396792 W11396792 SURFACE ELEMENT
WP9757262 WP9757262 SWTCH-LITE
W11508780 W11508780 TECH SHEET
72032 72032 TOUCH-UP PAINT (BLACK)
W10312471 W10312471 TRAY, INSULATION
WPW10310922 WPW10310922 TRIM-VENT
W11240519 W11240519 TRIM-VENT
511873 511873 WHITE PORCELAIN (2 OZ.)
