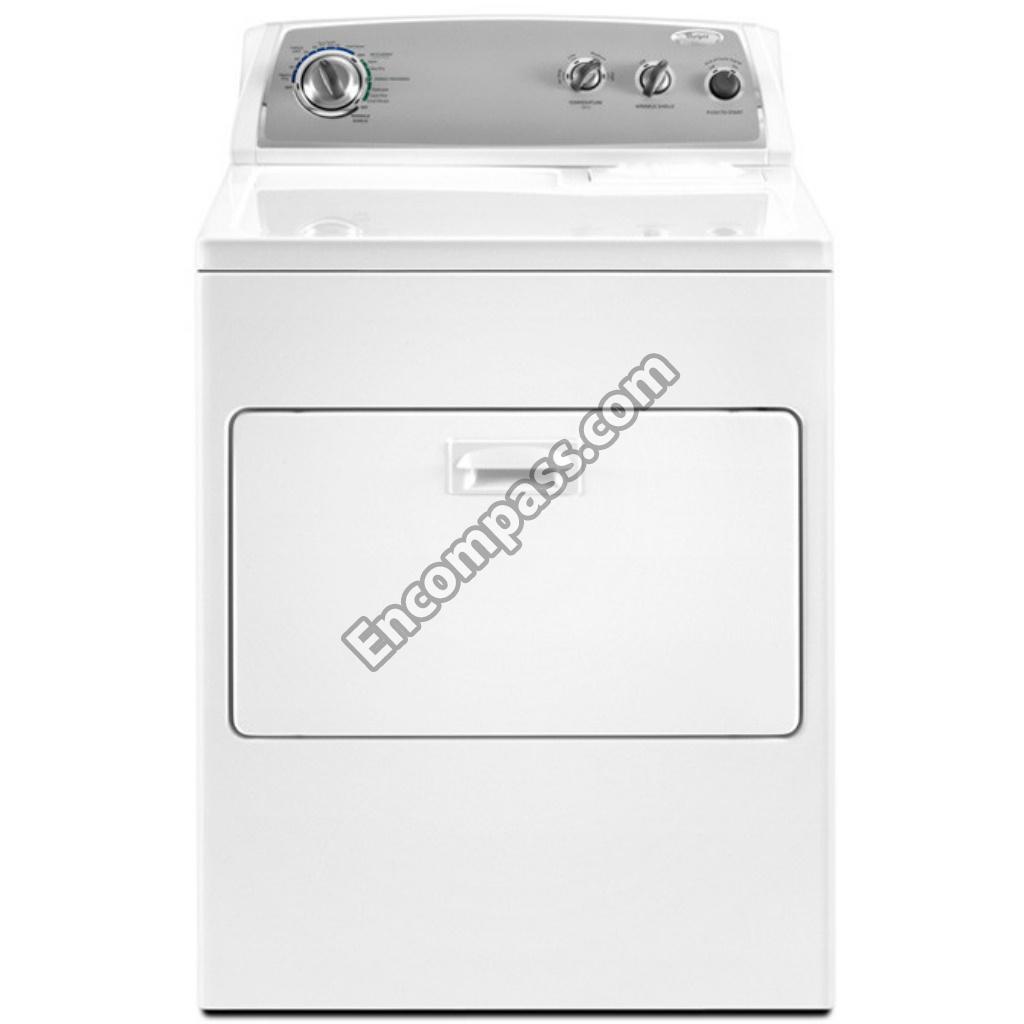

Model Image
Manufacturer

Whirlpool

Model Number

WED4900XW0

Description

29 Inch Electric Dryer With 7.0 Cu. Ft. Capacity

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
W10899578 W10899578 ASSEMBLY, DRUM (COMPLETE)
WP692490 WP692490 BAFFLE-DRM
WP3403636 WP3403636 BAFFLE-DRM
WP348780 WP348780 BASE
341241 341241 BELT, DRIVE
WP3397659 WP3397659 BLOCK-TERM
3400500 3400500 BOLT, 5/16-18 X 3/4
WP8541818 WP8541818 BOX
W11684613 W11684613 BRACKET
W10236073 W10236073 BRACKET
3977373 3977373 BRACKET, DRUM LIGHT
W11035878 W11035878 BRNG&SEAL
W10828905 W10828905 BULKHEAD
WP694419 WP694419 BUZZER-ADJ
8533643 8533643 CABINET
W11226088 W11226088 CAMERA LENS
WP3389441 WP3389441 CATCH
W11117429 W11117429 CHUTE
WPW10121316 WPW10121316 CLAMP
WP3404162 WP3404162 CLAMP
WP90296 WP90296 CLIP
279771 279771 CLIP
W11252547 W11252547 CLIP
279220 279220 CLIP
W10854425 W10854425 CLIP
WP3394427 WP3394427 CLIP
WP8312709 WP8312709 CLIP
WP8536939 WP8536939 CLIP
3391885 3391885 CONNECTOR, EDGE
WPW10476828 WPW10476828 CONTROL BOARD
WPW10295263 WPW10295263 CONTROL PANEL
W11736322 W11736322 COVER
WP3393549 WP3393549 DOOR
WP695737 WP695737 DOOR
WP8066056 WP8066056 DOOR HINGE
WP8066057 WP8066057 DOOR HINGE
279570 279570 DOOR LATCH
279827 279827 DRIVE MOTOR
8066086 8066086 DRUM HOLE PLUG
3406839 3406839 DRY RACK
279838 279838 ELEMENT
W11087440 W11087440 ENDCAP
49621 49621 FEET-LVLNG
WP3392519 WP3392519 FUSE-THRML
W10877261 W10877261 HANDLE
W10113080 W10113080 HARNS-WIRE
WP8066217 WP8066217 HINGE
WP8577230 WP8577230 HOUSING
W10096987 W10096987 INSTRUCTION INSTALLATION
4392065 4392065 KIT, DRYER REPAIR
279816 279816 KIT, THERMAL CUT OFF (INCLUDES THERMOSTAT)
WPW10034750 WPW10034750 KNOB
WPW10034380 WPW10034380 KNOB
WP22002263 WP22002263 LIGHT BULB
WP18776 WP18776 LOCK
WP3359452 WP3359452 NUT
WP98234 WP98234 NUT
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
279443 279443 PANEL
W10103406 W10103406 PANEL, REAR (CONSOLE)
280043 280043 PANEL-REAR
WP691362 WP691362 PULLEY-IDR
WP691366 WP691366 PULLEY-IDR
WP8066184 WP8066184 PULLEY-MTR
WP3977767 WP3977767 RANGE THERMOSTAT
WP8318268 WP8318268 RANGE THERMOSTAT
WPW10117655 WPW10117655 RELAY-PTS
WPW10512946 WPW10512946 RING
279441 279441 RING, BEARING
W11607443 W11607443 SCREEN
WPW10109200 WPW10109200 SCREW
WP489463 WP489463 SCREW
WP488729 WP488729 SCREW
W10850756 W10850756 SCREW
WP694091 WP694091 SCREW
WP308685 WP308685 SCREW
WP3395530 WP3395530 SCREW
WP3390631 WP3390631 SCREW
WP90767 WP90767 SCREW
WP681414 WP681414 SCREW
W11693756 W11693756 SCREW
WP693995 WP693995 SCREW
486146 486146 SCREW, 10-24 X 1/2
3400859 3400859 SCREW, 8-18 X 7/32
W10612022 W10612022 SEAL
WP339956 WP339956 SEAL
W11415783 W11415783 SEAL
W10906683 W10906683 SEAL-DOOR
W10816105 W10816105 SENSOR
WPW10359269 WPW10359269 SHAFT
WPW10359270 WPW10359270 SHAFT
W11233063 W11233063 SHIELD
W11700522 W11700522 SOCKET
WPW10041960 WPW10041960 SPRNG-DOOR
349241T 349241T SUPPORT
WP3405156 WP3405156 SWITCH
WP3406107 WP3406107 SWITCH-DOR
WP8578354 WP8578354 SWTCH-TEMP
WP94614 WP94614 TERMINAL
279393 279393 TERMINAL BLOCK KIT (FOR TERMINAL BLOCK)
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 39)
WP3391018 WP3391018 TIE-WIRE
WP8566184 WP8566184 TIMER
WP8563663 WP8563663 TOP
W10096986 W10096986 USE & CARE GUIDE
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
WP694089 WP694089 WHEEL
W10071280 W10071280 WIRE HARNESS
279457 279457 WIRE KIT, TERMINAL (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
8578889 8578889 WIRING DIAGRAM
