Model Image
Manufacturer

Whirlpool

Model Number

WED4985EW0

Description

7.0 Cu. Ft. Electric Dryer - White

Interactive Exploded View
Exploded View

Parts List

Part Number Description
3406839 3406839 ACCESSORY PARTS, DRY RACK
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
WPW10557237 WPW10557237 ASSEMBLY, CONSOLE (WHITE)
W10756270 W10756270 ASSEMBLY, CONTROL KNOB (WHITE/METALLIC)
W11429587 W11429587 ASSEMBLY, DOOR CATCH
WPW10362431 WPW10362431 ASSEMBLY, HINGE AND PIN
W10663967 W10663967 ASSEMBLY, SEAL AND BEARING
WPW10185982 WPW10185982 ASSEMBLY, TIMER (60 HZ.)

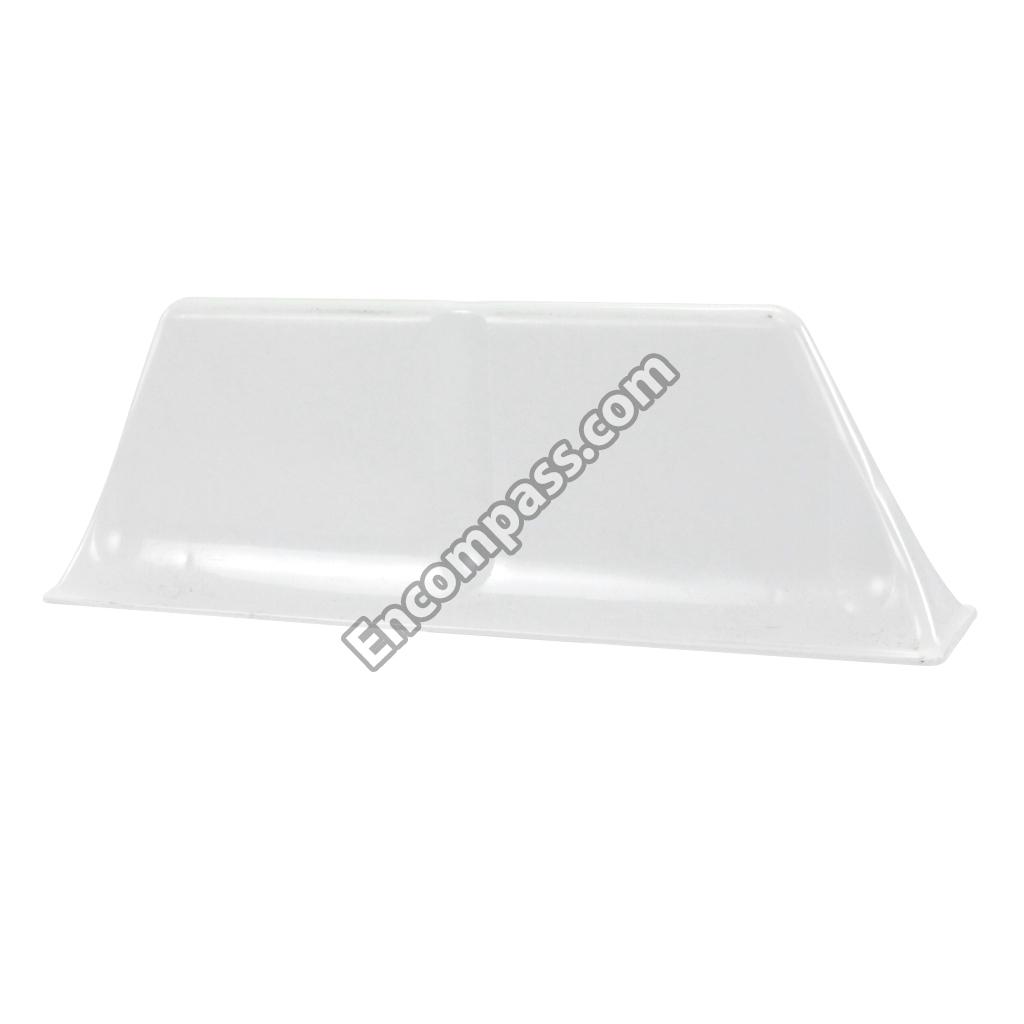

8565688 8565688 BAFFLE, DRUM
3401801 3401801 BASE, MOTOR
279441 279441 BEARING, RING
661570 661570 BELT, DRIVE
WPW10529197 WPW10529197 BEZEL, DOOR CATCH
WP3397659 WP3397659 BLOCK, TERMINAL
3400500 3400500 BOLT
WP8541818 WP8541818 BOX, HEATER
W10556828 W10556828 BRACKET, CONTROL
8578825 8578825 BRACKET, DRUM LIGHT
W10112578 W10112578 BRACKET, HARNESS
3401805 3401805 BRACKET, IDLER
W11684613 W11684613 BRACKET, SUPPORT
WP22002263 WP22002263 BULB, LIGHT
W10828911 W10828911 BULKHEAD
WP694419 WP694419 BUZZER, MINI
8533643 8533643 CABINET (WHITE)
WPW10121316 WPW10121316 CLAMP, MOTOR MOUNT
WP8312709 WP8312709 CLIP, CONSOLE
279220 279220 CLIP, FELT PAD
W10854425 W10854425 CLIP, FRONT PANEL
WP98234 WP98234 CLIP, GROUND
8066155 8066155 CLIP, HEATER BOX
WP8536939 WP8536939 CLIP, SPRING
W11173656 W11173656 COVER, DOOR CATCH
W11298298 W11298298 COVER, TERMINAL BLOCK
W10861224 W10861224 DOOR, FRONT (WHITE)
WPW10463967 WPW10463967 DOOR, INNER
W10502620 W10502620 DRUM ASSEMBLY
279838 279838 ELEMENT, HEATER
WPW10520782 WPW10520782 END CAP (LEFT) (WHITE)
WPW10520780 WPW10520780 END CAP (RIGHT) (WHITE)
W11025920 W11025920 FOOT, DRYER
49621 49621 FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) (NOT INCLUDED)
WP3392519 WP3392519 FUSE, THERMAL (91C)
W10861225 W10861225 HANDLE, DOOR (WHITE)
W10740198 W10740198 HARNESS, WIRING
WP8066217 WP8066217 HINGE, TOP
WP8577230 WP8577230 HOUSING, BLOWER
WP691366 WP691366 IDLER ASSEMBLY
W10617663 W10617663 INSTALLATION INSTRUCTIONS
4392065 4392065 KIT, DRYER REPAIR
W11226088 W11226088 LENS, DRUM LIGHT
279505 279505 LINT CHUTE ASSEMBLY
W10874409 W10874409 LINT SCREEN (WHITE)
WP8066092 WP8066092 LOCK, FRONT TOP

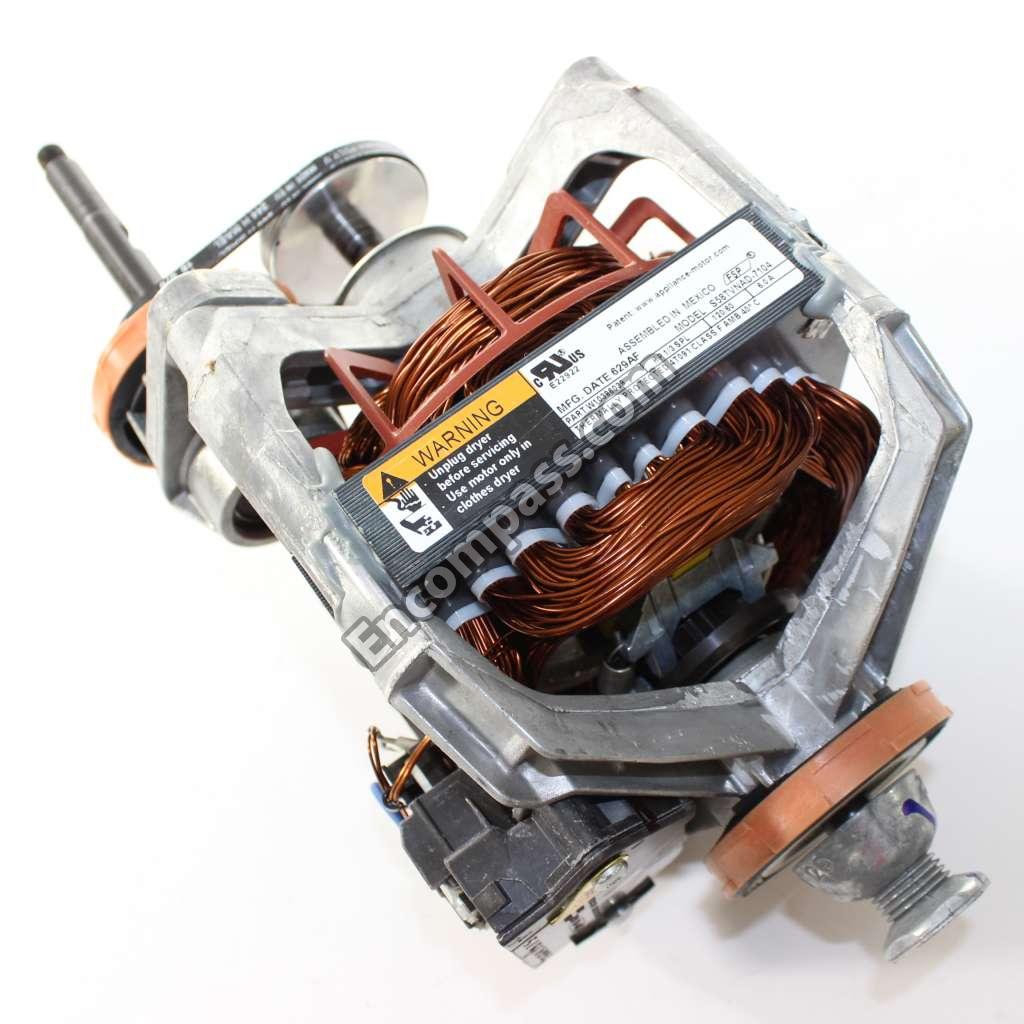

WPW10396039 WPW10396039 MOTOR ASSEMBLY 60 HZ.
W11113654 W11113654 MOTOR, SOUND PAD
W11229607 W11229607 NUT, HEX
WP90296 WP90296 NUT,, PUSH ON
W11230156 W11230156 PAD, POWER CORD
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10806345 W10806345 PANEL, FRONT (WHITE)

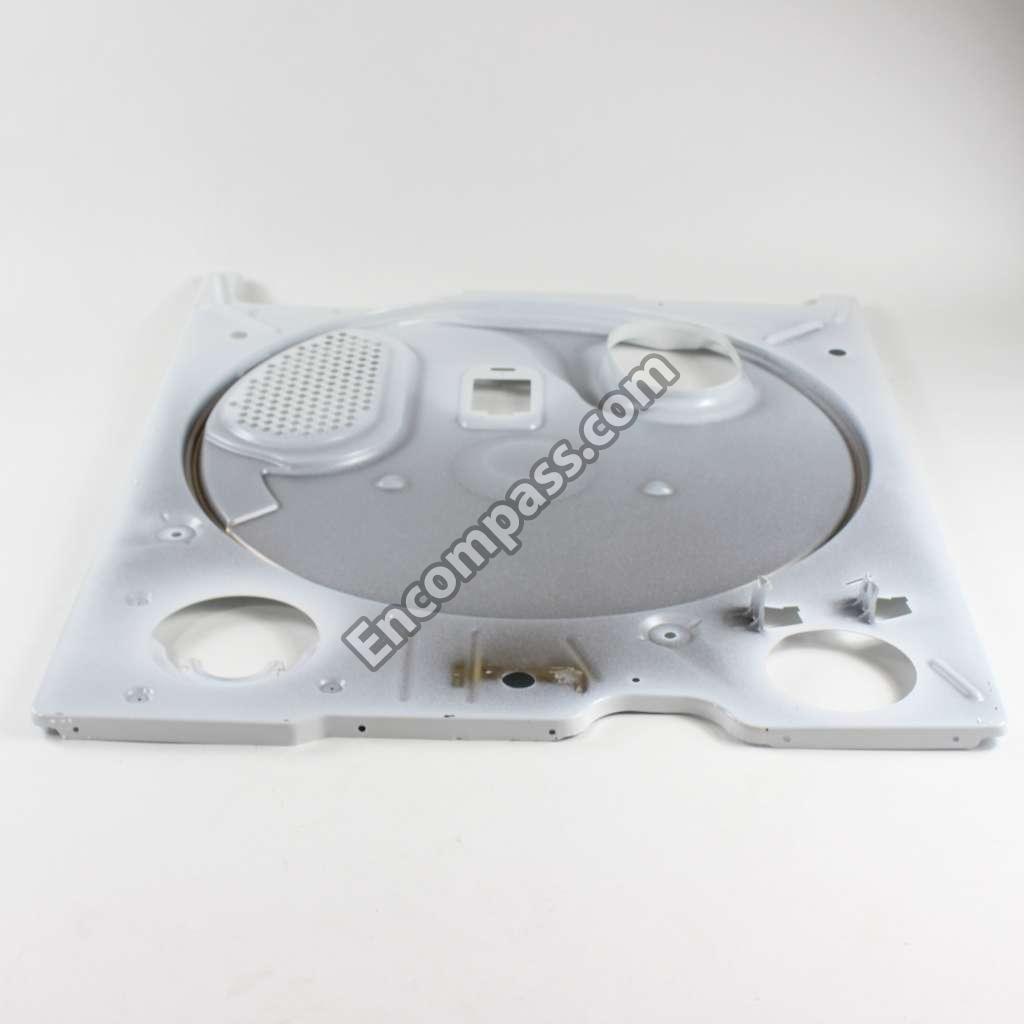

W10539962 W10539962 PANEL, REAR
W10556829 W10556829 PANEL, REAR (CONSOLE)
WP3404413 WP3404413 PLUG, HOLE
W11684591 W11684591 PLUG, STRIKE
WP8066184 WP8066184 PULLEY, MOTOR
WPW10314173 WPW10314173 ROLLER, SUPPORT
WP681414 WP681414 SCREW
WP693995 WP693995 SCREW
W11693756 W11693756 SCREW
WP3400818 WP3400818 SCREW
636T091P05 636T091P05 SCREW
WP90767 WP90767 SCREW
WP3390631 WP3390631 SCREW
W10850756 W10850756 SCREW
WP3395530 WP3395530 SCREW
WP488627 WP488627 SCREW
WP488729 WP488729 SCREW
WP489463 WP489463 SCREW
W10853898 W10853898 SCREW
279393 279393 SCREW KIT, TERMINAL BLOCK
WP339956 WP339956 SEAL
W10861521 W10861521 SEAL, DOOR
W10316616 W10316616 SEAL, FOAM
W10112603 W10112603 SEAL, HARNESS
W11415783 W11415783 SEAL, LINT CHUTE
W10612022 W10612022 SEAL, REAR DRUM
WPW10224768 WPW10224768 SEAL, SPILL GUARD
WPW10359270 WPW10359270 SHAFT, DRUM ROLLER - LEFT HAND THREAD
WPW10359269 WPW10359269 SHAFT, DRUM ROLLER - RIGHT HAND THREAD
3401800 3401800 SHIELD, BELT ASSEMBLY
W10475158 W10475158 SHIELD, DRYER EXHAUST
W11222979 W11222979 SOCKET, LIGHT
W11429589 W11429589 STRIKE, DOOR
WP3406107 WP3406107 SWITCH, DOOR
WPW10117655 WPW10117655 SWITCH, PUSH TO START
WP3399640 WP3399640 SWITCH, TEMPERATURE
279457 279457 TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
279816 279816 THERMAL CUT-OFF
WP3387134 WP3387134 THERMOSTAT
WP3977767 WP3977767 THERMOSTAT, 221 F (105 C)
WP8563663 WP8563663 TOP (WHITE)
W10562352 W10562352 USE AND CARE GUIDE
WP3388703 WP3388703 WASHER
WP348197 WP348197 WASHER
WPW10512946 WPW10512946 WASHER, TRI RING

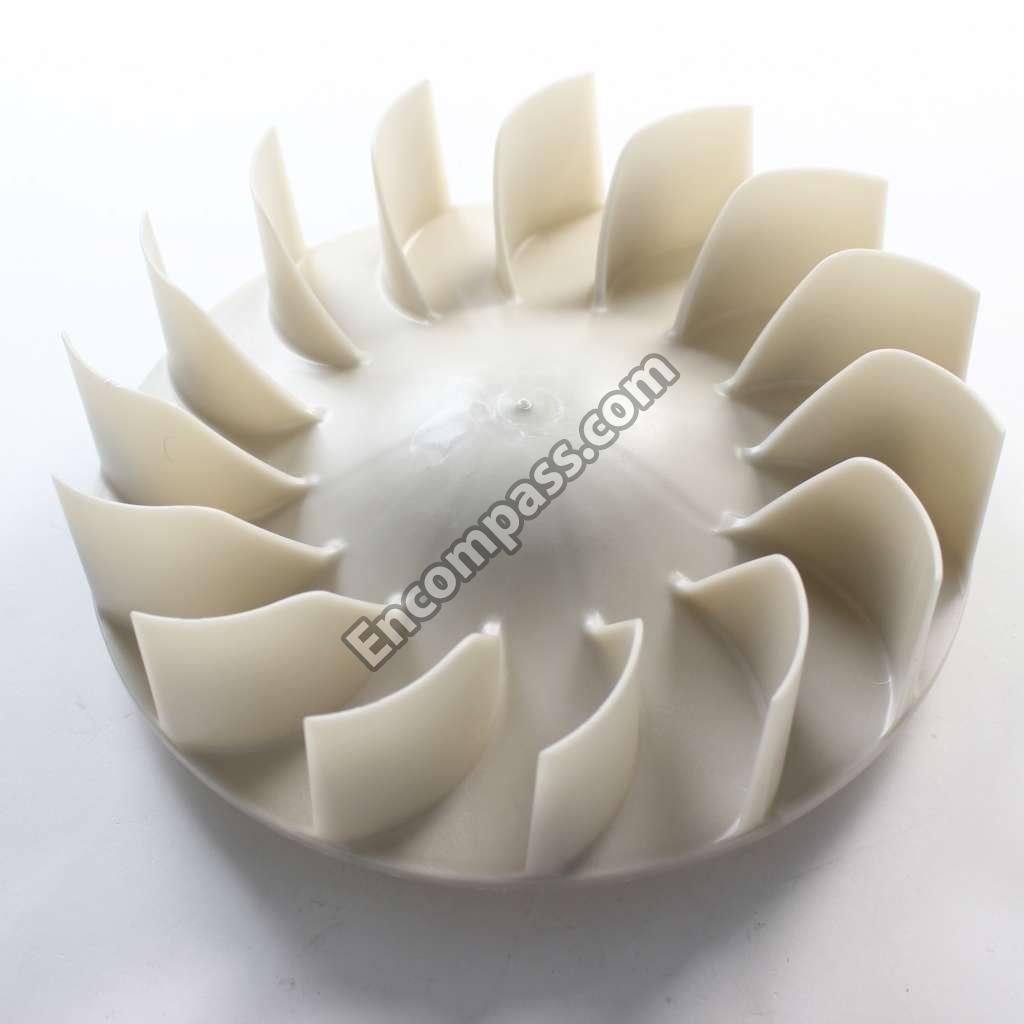

W10801999 W10801999 WHEEL, BLOWER
