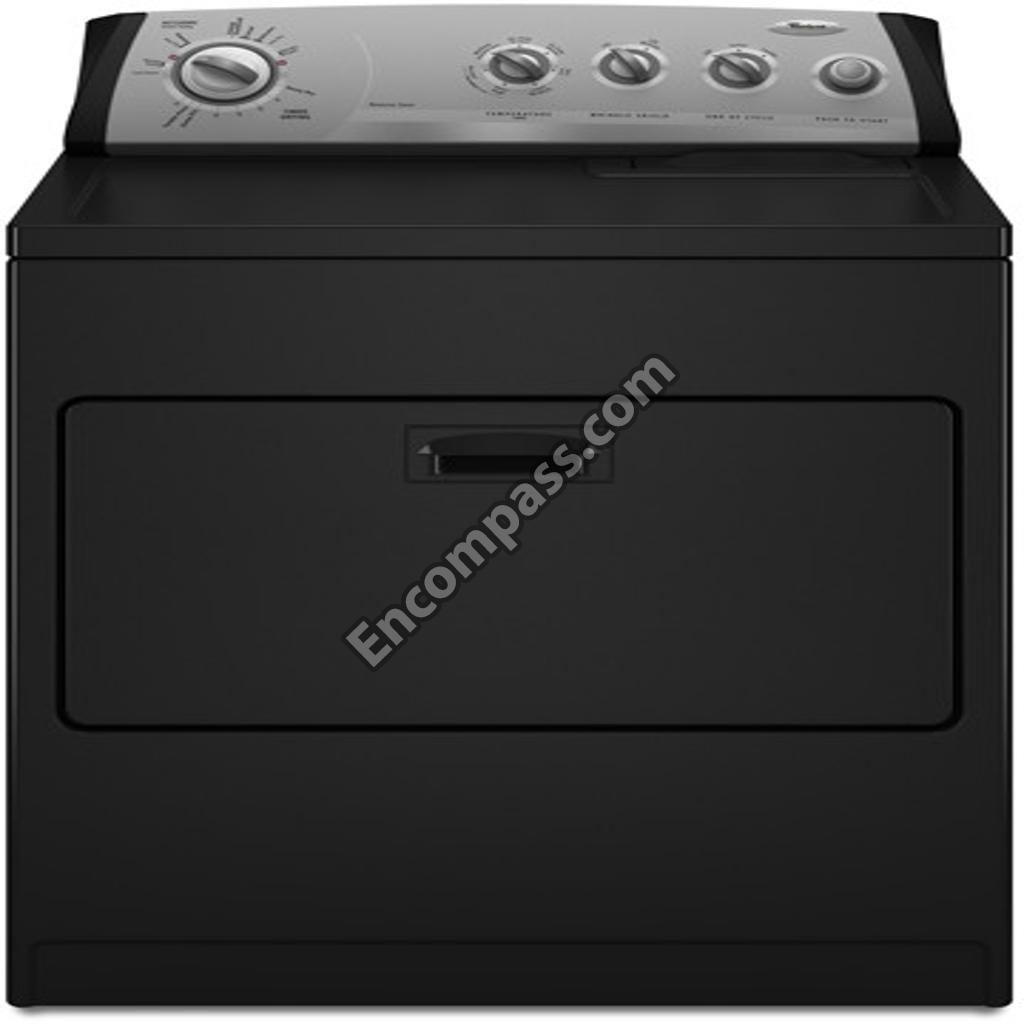

Model Image
Manufacturer

Whirlpool

Model Number

WED5900SB0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
W10899578 W10899578 ASSEMBLY, DRUM (COMPLETE)
WP3403636 WP3403636 BAFFLE-DRM
WP692490 WP692490 BAFFLE-DRM
WP348780 WP348780 BASE
341241 341241 BELT, DRIVE
WP3397659 WP3397659 BLOCK-TERM
3400500 3400500 BOLT, 5/16-18 X 3/4
WP8541818 WP8541818 BOX
W11684613 W11684613 BRACKET
8541400 8541400 BRACKET, CABINET
8566052 8566052 BRACKET, CONTROL
3977373 3977373 BRACKET, DRUM LIGHT
W11035878 W11035878 BRNG&SEAL
W10828905 W10828905 BULKHEAD
8533643 8533643 CABINET
8530605 8530605 CABINET (INCLUDES ILLUS. 4) (BLACK)
W11226088 W11226088 CAMERA LENS
8565959 8565959 CAP, END (L.H.) (BLACK)
8565956 8565956 CAP, END (R.H.) (BLACK)
WP3389441 WP3389441 CATCH
W11117429 W11117429 CHUTE
WP3404162 WP3404162 CLAMP
WP660658 WP660658 CLAMP
WP90296 WP90296 CLIP
279771 279771 CLIP
WP8312709 WP8312709 CLIP
WP3394427 WP3394427 CLIP
WP8536939 WP8536939 CLIP
W11252547 W11252547 CLIP
279220 279220 CLIP
W10854425 W10854425 CLIP
WPW10041960 WPW10041960 CLIP, DOOR SPRING
3936144 3936144 CONNECTOR
3395683 3395683 CONNECTOR (MOTOR)
3347243 3347243 CONNECTOR 6-CIRCUIT
3936150 3936150 CONNECTOR, 7-CIRCUIT
3397269 3397269 CONNECTOR, TIMER
WPW10116566 WPW10116566 CONTROL BOARD
W11736322 W11736322 COVER
677818L 677818L DIY
WP3393549 WP3393549 DOOR
WP695737 WP695737 DOOR
WP8066056 WP8066056 DOOR HINGE
WP8066057 WP8066057 DOOR HINGE
279570 279570 DOOR LATCH
WP3403110 WP3403110 DOOR, FRONT (BLACK)
279827 279827 DRIVE MOTOR
8066086 8066086 DRUM HOLE PLUG
3406839 3406839 DRY RACK

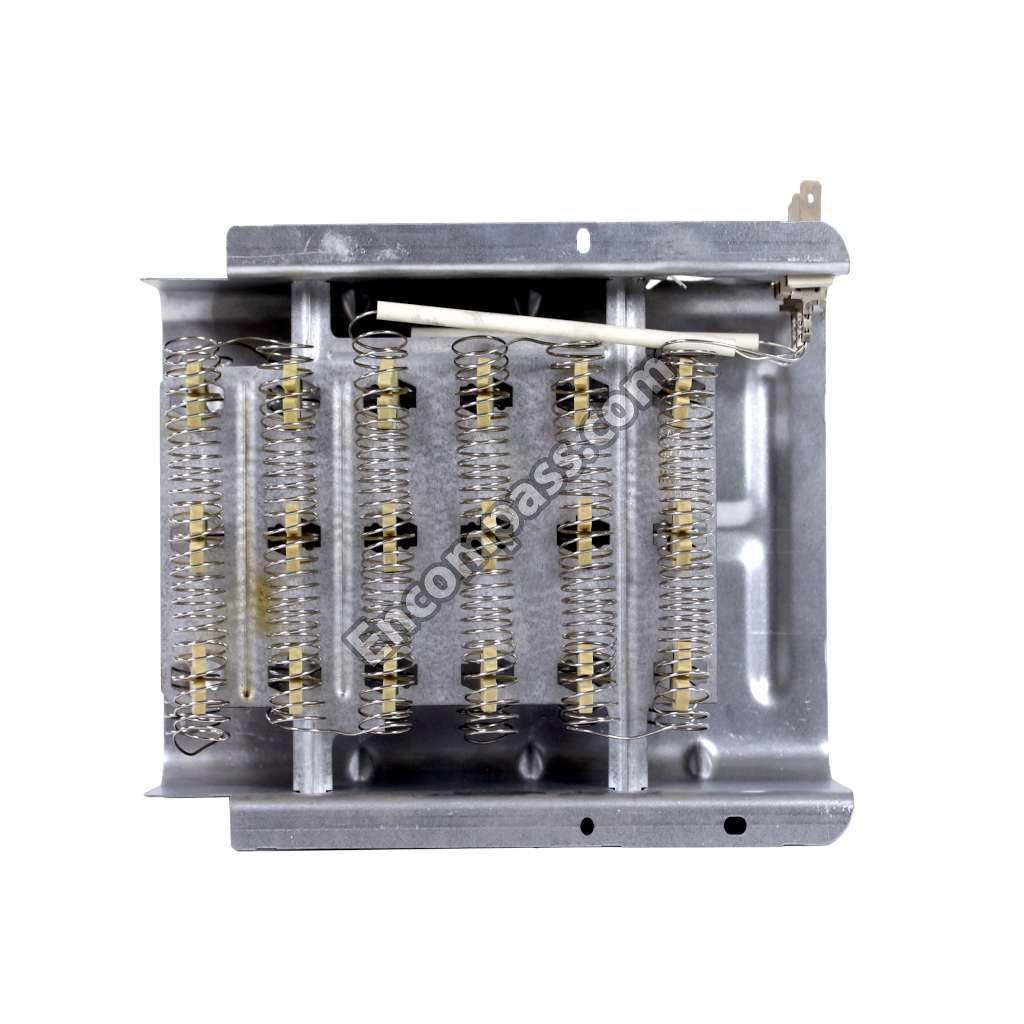

WP3401338 WP3401338 ELEMENT
W11087440 W11087440 ENDCAP
49621 49621 FEET-LVLNG
100000 100000 FOLLOWING MAY BE PURCHASED DO-IT-YOURSELF REPAIR MANUALS
WP3390719 WP3390719 FUSE-THRML
W10877261 W10877261 HANDLE
W10095200 W10095200 HANDLE
8283135 8283135 HARNESS, CONSOLE
8299897 8299897 HARNESS, WIRING
WP8066217 WP8066217 HINGE
8577231 8577231 HOUSING, BLOWER
8577188 8577188 INSTALLATION INSTRUCTIONS
4392065 4392065 KIT, DRYER REPAIR
279816 279816 KIT, THERMAL CUT OFF (INCLUDES THERMOSTAT)
WPW10034750 WPW10034750 KNOB
WPW10034380 WPW10034380 KNOB
W10034770 W10034770 KNOB
WP22002263 WP22002263 LIGHT BULB
98669 98669 LOCATOR, TOP
WP18776 WP18776 LOCK
WP3359452 WP3359452 NUT
WP98234 WP98234 NUT
18849 18849 PAD, TOP HINGE
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786032 786032 PAINT, BULK (1 QT.) (BLACK)
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
786020 786020 PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GREY)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
280041 280041 PANEL
279443 279443 PANEL
8566077 8566077 PANEL, CONTROL (INCLUDES ILLUS. 20) (SILVER)
W10103406 W10103406 PANEL, REAR (CONSOLE)
280043 280043 PANEL-REAR
WP691366 WP691366 PULLEY-IDR
WP8066184 WP8066184 PULLEY-MTR
WP3404153 WP3404153 RANGE THERMOSTAT
WP8566493 WP8566493 RELAY
WP3405281 WP3405281 RELAY
WPW10512946 WPW10512946 RING
279441 279441 RING, BEARING
W11607443 W11607443 SCREEN
8557859 8557859 SCREEN, LINT (BLACK)
WPW10109200 WPW10109200 SCREW
WP489463 WP489463 SCREW
WP488729 WP488729 SCREW
WP3388228 WP3388228 SCREW
WP90767 WP90767 SCREW
W11693756 W11693756 SCREW
WP388326 WP388326 SCREW
W10850756 W10850756 SCREW
WP694091 WP694091 SCREW
WP308685 WP308685 SCREW
WP3395530 WP3395530 SCREW
WP693995 WP693995 SCREW
WP681414 WP681414 SCREW
486146 486146 SCREW, 10-24 X 1/2
3400859 3400859 SCREW, 8-18 X 7/32
WP339956 WP339956 SEAL
W10612022 W10612022 SEAL
W11415783 W11415783 SEAL
W10906683 W10906683 SEAL-DOOR
W10816105 W10816105 SENSOR
WPW10359269 WPW10359269 SHAFT
WPW10359270 WPW10359270 SHAFT
W10042910 W10042910 SHEET, CYCLE FEATURE
W10042920 W10042920 SHEET, FEATURE RESOURCE SAVER
W11233063 W11233063 SHIELD
W11700522 W11700522 SOCKET
8540021 8540021 SPRING, DOOR (2)
349241T 349241T SUPPORT
3405151 3405151 SWITCH, SIGNAL
8299970 8299970 SWITCH, TEMPERATURE
3405152 3405152 SWITCH, WRINKLE SHIELD
WP3406107 WP3406107 SWITCH-DOR
WP3977456 WP3977456 SWITCH-PTS
W10042930 W10042930 TECH SHEET
WP94614 WP94614 TERMINAL
279393 279393 TERMINAL BLOCK KIT (FOR TERMINAL BLOCK)
279457 279457 TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 TERMINAL, TINNED & BRASS (3) (INCLUDES ILLUS. 34)
WP8577274 WP8577274 THERMISTOR
WP8299771 WP8299771 TIMER
W10028870 W10028870 TOP
W10028890 W10028890 TOP
8578183 8578183 USE & CARE GUIDE
WP348197 WP348197 WASHER
WP3388703 WP3388703 WASHER
487596 487596 WASHER (TOP/CHUTE)
WP694089 WP694089 WHEEL
