Model Image
Manufacturer

Whirlpool

Model Number

WED8100BW0

Description

Cabrio Platinum 7.6 Cu. Ft. Electric Dryer

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
49611 49611 ACCESSORY PARTS, KIT, SIDE VENTING
8544730 8544730 ASSEMBLY, AIR DUCT
8563860 8563860 BAFFLE, DRUM
WP8544742 WP8544742 BELT
WP8547157 WP8547157 BELT
WP3397659 WP3397659 BLOCK-TERM
WP8544769 WP8544769 BOX
WP8544770 WP8544770 BOX
W10211337 W10211337 BRACKET
8544741 8544741 BRACKET, BLOWER HOUSING
8558863 8558863 BRACKET, CONSOLE
3977373 3977373 BRACKET, DRUM LIGHT
8544729 8544729 BRACKET, HEATER BOX
8547158 8547158 BRACKET, MOTOR
WP8557244 WP8557244 BULKHEAD
WP8557234 WP8557234 BULKHEAD
W10564793 W10564793 CABINET
W11226088 W11226088 CAMERA LENS
WPW10111905 WPW10111905 CATCH
WP660658 WP660658 CLAMP
W10854425 W10854425 CLIP
W10112673 W10112673 CLIP
W10303825 W10303825 CLIP
8573070 8573070 CLIP, LINT DUCT
WPW10562305 WPW10562305 CONSOLE
WPW10532428 WPW10532428 CONTROL BOARD
WPW10566876 WPW10566876 CONTROL BOARD
PT220L PT220L CORD-POWER
PT600L PT600L CORD-POWER
PT400L PT400L CORD-POWER
WP8544719 WP8544719 COVER
WPW10110241 WPW10110241 COVER
8564265 8564265 COVER, REAR- USER INTERFACE
W11222846 W11222846 DOOR
WP8571365 WP8571365 DOOR
8571357 8571357 DOOR, INNER
WPW10448896 WPW10448896 DRIVE MOTOR
W10549614 W10549614 DRUM
WP8544718 WP8544718 DUCT, INLET BLOWER
WP8544786 WP8544786 DUCT-LINT
WP3387223 WP3387223 ELECTRODE
WP8544772 WP8544772 ELEMENT
8544761A 8544761A EXTEN-EXHT
W11025920 W11025920 FEET-LVLNG
8544776 8544776 FLANGE, HEATER BOX
3350013 3350013 FOAM
WP3390719 WP3390719 FUSE-THRML
W10076050 W10076050 GASKET
WP8558846 WP8558846 GLASS, INNER DOOR
W11117302 W11117302 GRILL-OUT
W10562333 W10562333 GUIDE, USE AND CARE

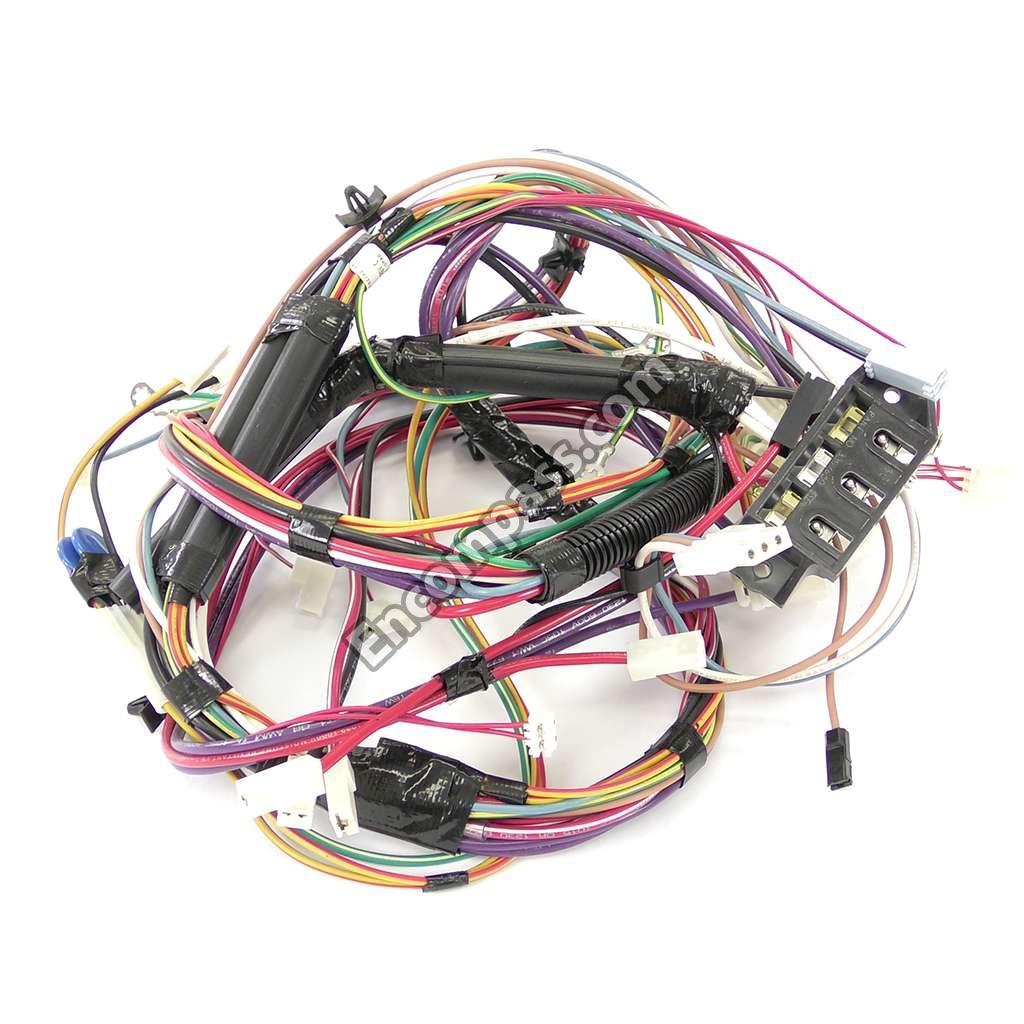

W10393459 W10393459 HARNS-WIRE
WP8066217 WP8066217 HINGE
WP8565018 WP8565018 HINGE
WPW10256512 WPW10256512 HOUSING
W11129408 W11129408 HOUSNG-OUT
W10562335 W10562335 INSTRUCTIONS, INSTALLATION
279973 279973 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
WPW10576632 WPW10576632 KNOB
WP22002263 WP22002263 LIGHT BULB
WP8576625 WP8576625 LOCK
WP8568303 WP8568303 LOCK
WPW10393264 WPW10393264 NAMEPLATE
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
WP308499 WP308499 NUT
WP98234 WP98234 NUT
799344 799344 PAINT, BULK (1 QT. WHITE)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12OZ. GRAY PRIMER)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10594753 WPW10594753 PANEL
WP8558830 WP8558830 PANEL-REAR
WPW10533417 WPW10533417 PIPE, EXHAUST
WPW10111888 WPW10111888 PLATE
WPW10144494 WPW10144494 PLUG
8544743 8544743 PULLEY, BLOWER
WPW10547292 WPW10547292 PULLEY-IDR
WP8544739 WP8544739 PULLEY-MTR
WP8547171 WP8547171 PULLEY-MTR
WP8557403 WP8557403 RANGE THERMOSTAT
4392067 4392067 REPAIR-DYR
WPW10512946 WPW10512946 RING
WP3393657 WP3393657 RSTRNR-BLT
W10120998 W10120998 SCREEN
WP488729 WP488729 SCREW
W10853898 W10853898 SCREW
3350424 3350424 SCREW
WP3387230 WP3387230 SCREW
WP90767 WP90767 SCREW
WP308685 WP308685 SCREW
WP3400805 WP3400805 SCREW
W10850756 W10850756 SCREW
WP3389420 WP3389420 SCREW
WP488627 WP488627 SCREW
WP693995 WP693995 SCREW
WP3390631 WP3390631 SCREW
WP33001882 WP33001882 SCREW
W10131402 W10131402 SCREW
WP4449745 WP4449745 SCREW
279393 279393 SCREW KIT, TERMINAL BLOCK
280140 280140 SEAL
WP8573068 WP8573068 SEAL
WP8544721 WP8544721 SEAL
WP697813 WP697813 SEAL
W10044490 W10044490 SEAL
W10185554 W10185554 SEAL
W10645577 W10645577 SEAL, USER INTERFACE
W10239307 W10239307 SEAL-DOOR
WPW10157932 WPW10157932 SEAL-FOAM
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W10475158 W10475158 SHIELD
W11222979 W11222979 SOCKET
W10123956 W10123956 SOUND ABSR
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING
W10295405 W10295405 STRIKE
WPW10314173 WPW10314173 SUPPORT
WPW10411937 WPW10411937 SWITCH
WPW10350907 WPW10350907 SWITCH-DOR
W10403269 W10403269 TECH SHEET
279457 279457 TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
WP8577274 WP8577274 THERMISTOR
WPW10613794 WPW10613794 TOP
W11236646 W11236646 WASHER
WP8544737 WP8544737 WHEEL
WP8578931 WP8578931 WINDOW, OUTER DOOR
W10393445 W10393445 WIRING DIAGRAM
