Model Image
Manufacturer

Whirlpool

Model Number

WED8300SB1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
W10865330 W10865330 ASSEMBLY, DRUM (COMPLETE)
W10854980 W10854980 BADGE ASSEMBLY
W10852390 W10852390 BAFFLE-DRM
W11215531 W11215531 BASE
WP3387118 WP3387118 BASE
661570 661570 BELT
WP3397659 WP3397659 BLOCK-TERM
WP8544770 WP8544770 BOX
WP8544769 WP8544769 BOX
WP8563727 WP8563727 BRACKET
W10837240 W10837240 BRACKET
WP8565237 WP8565237 BRACKET
8578825 8578825 BRACKET, DRUM LIGHT
8066099 8066099 BRACKET, HEATER BOX
W10118337 W10118337 BRACKET-BULKHEAD UPPER MOUNTING
W11299301 W11299301 BULKHEAD
8565061 8565061 BULKHEAD, FRONT
W11226088 W11226088 CAMERA LENS
WPW10266747 WPW10266747 CHANNEL
W10118335 W10118335 CHANNEL BRACKET, REAR BULKHEAD (2)
WP660658 WP660658 CLAMP
WP8066208 WP8066208 CLIP
W11684573 W11684573 CLIP
W11295573 W11295573 CLIP
WP3394427 WP3394427 CLIP
3395683 3395683 CONNECTOR (MOTOR)
353424 353424 CONNECTOR, SENSOR

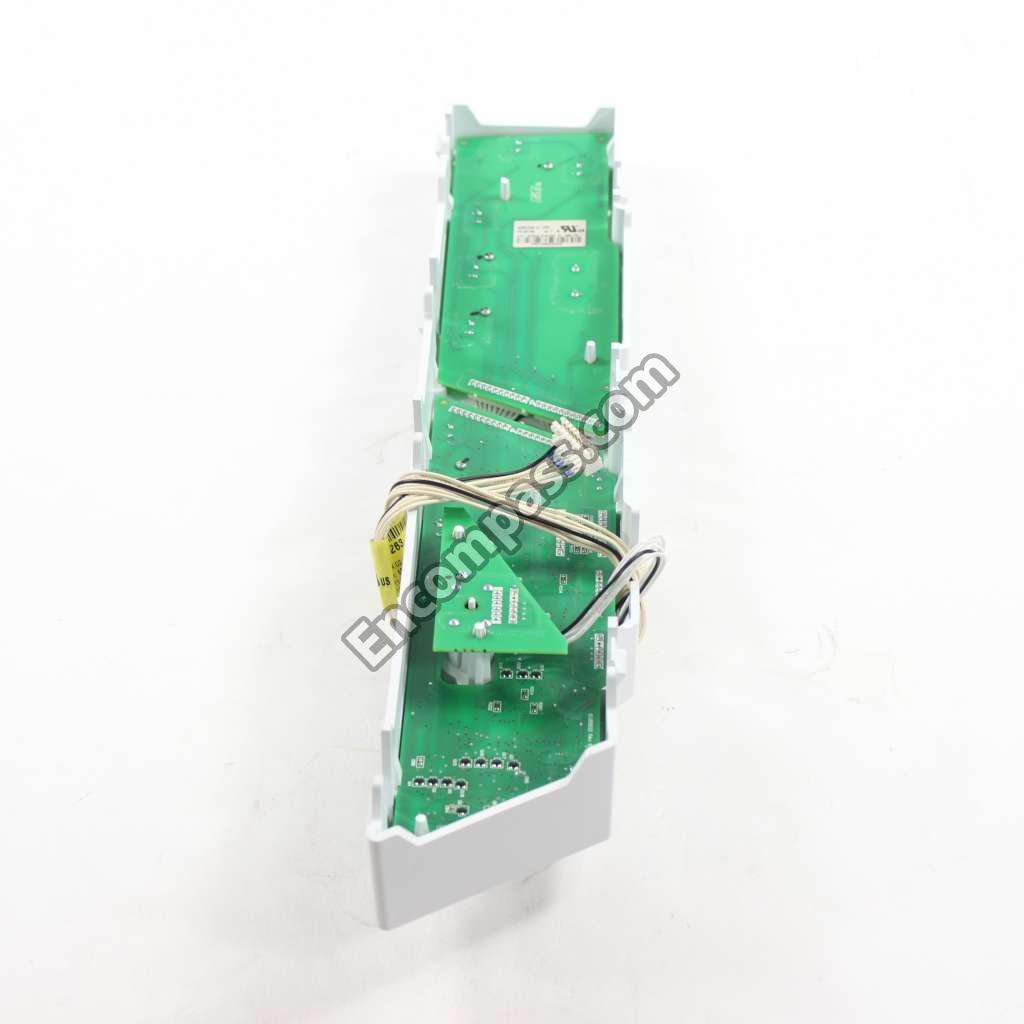

WPW10111606 WPW10111606 CONTROL BOARD
WP8571955 WP8571955 CONTROL BOARD
WPW10354249 WPW10354249 COVER
W10129722 W10129722 COVER
8571839 8571839 COVER, HINGE (WHITE)
WPW10119283 WPW10119283 COVER-TERM
WPW10164062 WPW10164062 DOOR
WP8571836 WP8571836 DOOR
W11222846 W11222846 DOOR
W10129706 W10129706 DOOR
WPW10044180 WPW10044180 DOOR INTERMEDIATE (OUTER)
279570 279570 DOOR LATCH
279787 279787 DRIVE MOTOR
8212450A 8212450A DRY RACK
WP3387911 WP3387911 DUCT-AIR
WPW10128606 WPW10128606 DUCT-LINT
WPW10416072 WPW10416072 ELBOW
WP3387223 WP3387223 ELECTRODE
WP8544771 WP8544771 ELEMENT
49621 49621 FEET-LVLNG
8544776 8544776 FLANGE, HEATER BOX
8571818 8571818 FRONT PANEL (INCLUDES ILLUS. 44) (WHITE)
WP3392519 WP3392519 FUSE-THRML
W11086603 W11086603 GRILL-OUT
W11219327 W11219327 GRILL-OUT
8578904 8578904 GUIDE, QUICK START
W10110972 W10110972 HARNS-WIRE
WPW10304672 WPW10304672 HINGE
W10888146 W10888146 HOUSING
346764A 346764A KIT, HOLD DOWN
8572546 8572546 KIT, STACK ASSEMBLY
279973 279973 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)

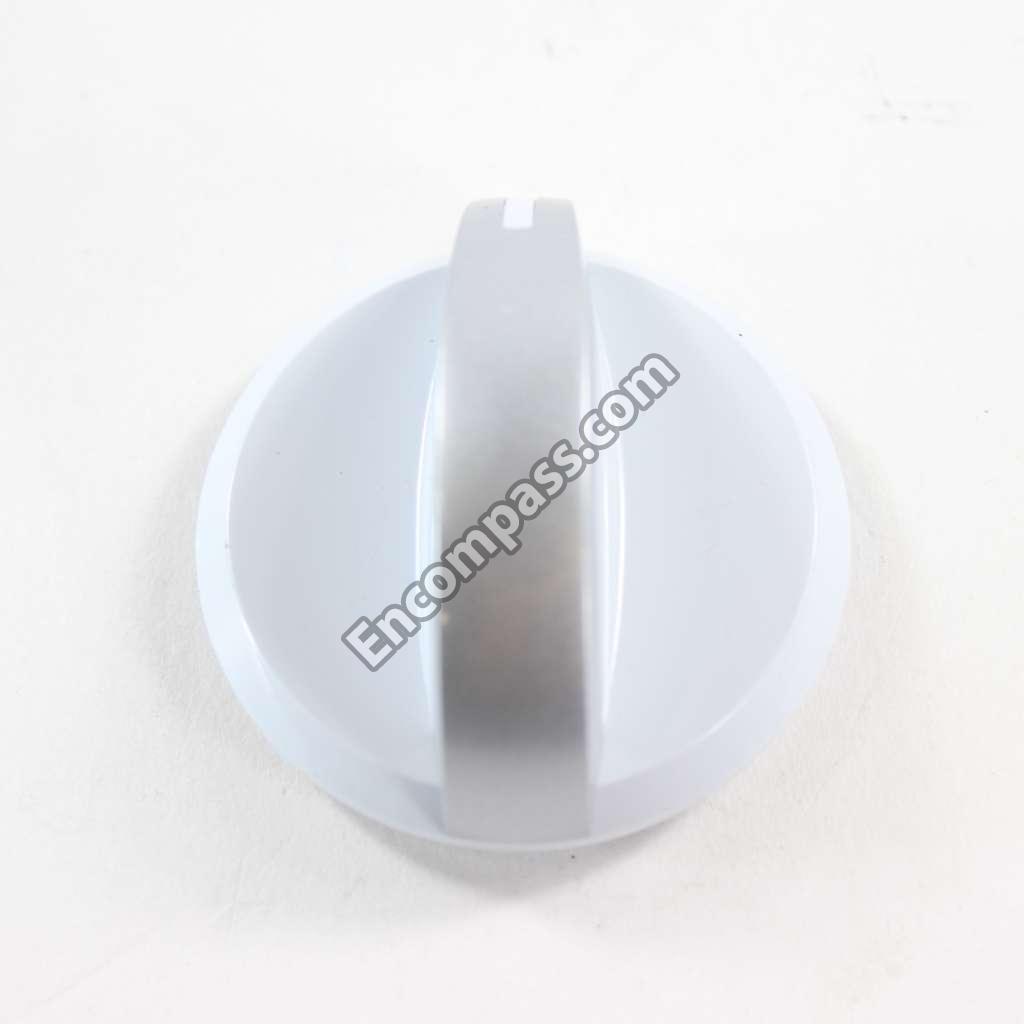

WP8574963 WP8574963 KNOB

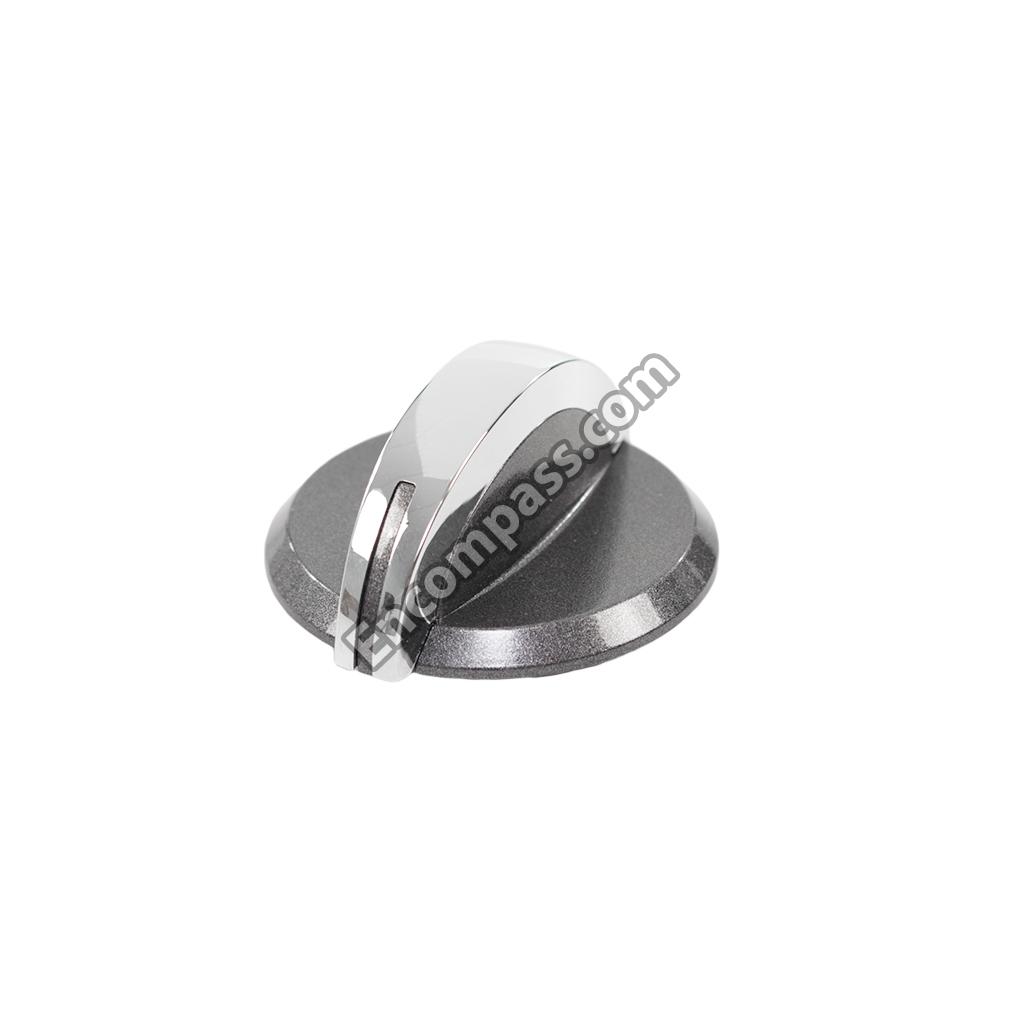

W10129067 W10129067 KNOB
WP8066120 WP8066120 LEVER
WP22002263 WP22002263 LIGHT BULB
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
100000 100000 OPTIONAL PARTS NOT INCLUDED
786302 786302 PAINT, BULK (1 QT.) (BLACK (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
786020 786020 PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GREY)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
72302 72302 PAINT, TOUCH-UP (1/2OZ.) (BLACK)
W10112963 W10112963 PANEL
W10129648 W10129648 PANEL
W10112962 W10112962 PANEL

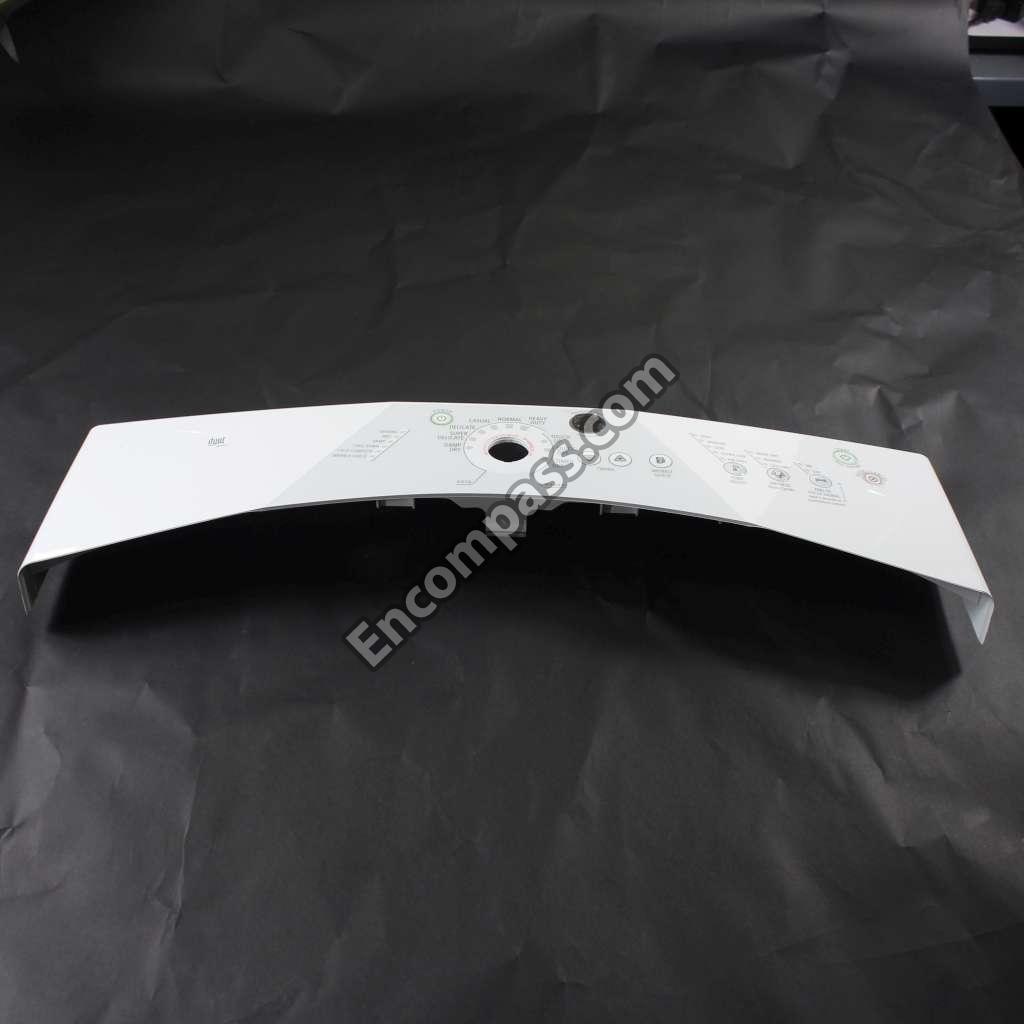

W10099631 W10099631 PANEL, CONSOLE (BLACK)
WPW10099598 WPW10099598 PANEL, CONSOLE (WHITE)
8565059 8565059 PANEL, REAR
W10542714 W10542714 PANEL, SIDE (WHITE)
WP8563728 WP8563728 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563747 WP8563747 PIPE-EXHST
8565119 8565119 PLUG STRIP
8565043 8565043 PLUG, FRONT PANEL
8529007 8529007 PLUG, REAR BULKHEAD
3936144 3936144 PLUG, TERMINAL
279640 279640 PULLEY-IDR
W10837625 W10837625 PULLEY-MTR
8580015 8580015 RAMP, DOOR (WHITE)
WP3391914 WP3391914 RANGE THERMOSTAT
4392067 4392067 REPAIR-DYR
W10822054 W10822054 RETAINER
8519356 8519356 RETAINER, UPPER
WPW10512946 WPW10512946 RING
W10120998 W10120998 SCREEN
WP8534022 WP8534022 SCREW
WP3373329 WP3373329 SCREW
WP355515 WP355515 SCREW
W11116979 W11116979 SCREW
WP3387230 WP3387230 SCREW
WP489463 WP489463 SCREW
WPW10109200 WPW10109200 SCREW
WP693995 WP693995 SCREW
WP98129 WP98129 SCREW
W10850756 W10850756 SCREW
WP681414 WP681414 SCREW
WP308685 WP308685 SCREW
WP3389420 WP3389420 SCREW
WP90767 WP90767 SCREW
WP488729 WP488729 SCREW
3400238 3400238 SCREW, 2-28 X 1/2
280203 280203 SCREW-KIT
W11706993 W11706993 SEAL
WP697770 WP697770 SEAL
280114 280114 SEAL
WP697813 WP697813 SEAL
WP3387242 WP3387242 SEAL
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W11700522 W11700522 SOCKET
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING
WP8565122 WP8565122 STRIKE
WPW10314173 WPW10314173 SUPPORT
WPW10318609 WPW10318609 SWITCH, APPLIANCE DOOR
279782 279782 SWITCH-PLG
8572759 8572759 TECH SHEET
WP596797 WP596797 TERMINAL
WP94614 WP94614 TERMINAL
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
279457 279457 TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 TERMINAL, BRASS & TINNED (3) (INCLUDES ILLUS. 33)
WP8577274 WP8577274 THERMISTOR
WP8540621 WP8540621 TOEPNL
W10112964 W10112964 TOEPNL
WPW10336080 WPW10336080 TOP
WPW10129703 WPW10129703 TOP (BLACK)
8578899 8578899 USE & CARE GUIDE
W10470674 W10470674 VENT KIT
W11236646 W11236646 WASHER
WPW10121334 WPW10121334 WASHER
WP697772 WP697772 WHEEL
WPW10286878 WPW10286878 WINDOW
W10129704 W10129704 WINDOW
W10108900 W10108900 WINDOW
3394081 3394081 WIRE, BELT SWITCH
3398948 3398948 WIRE, JUMPER (BROKEN BELT SWITCH)
