Model Image
Manufacturer

Whirlpool

Model Number

WED9200SQ0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10318609 WPW10318609 Whirlpool ASSEMBLY, DOOR SWITCH
W10854980 W10854980 Whirlpool BADGE
WPW10113136 WPW10113136 Whirlpool BAFFLE-DRM
WPW10239098 WPW10239098 Whirlpool BASE
WP3387118 WP3387118 Whirlpool BASE
661570 661570 Whirlpool BELT
WP3397659 WP3397659 Whirlpool BLOCK-TERM
WP8544770 WP8544770 Whirlpool BOX
WP8544769 WP8544769 Whirlpool BOX
WP8563727 WP8563727 Whirlpool BRACKET
W10837240 W10837240 Whirlpool BRACKET
W10215656 W10215656 Whirlpool BRACKET, CONSOLE (INCLUDES NO.12)
3977373 3977373 Whirlpool BRACKET, DRUM LIGHT
8066099 8066099 Whirlpool BRACKET, HEATER BOX
W10118337 W10118337 Whirlpool BRACKET-BULKHEAD UPPER MOUNTING
WPW10250634 WPW10250634 Whirlpool BULKHEAD
W11299301 W11299301 Whirlpool BULKHEAD
W11226088 W11226088 Whirlpool CAMERA LENS
W10118335 W10118335 Whirlpool CHANNEL BRACKET, REAR BULKHEAD (2)
WP660658 WP660658 Whirlpool CLAMP
WPW10129065 WPW10129065 Whirlpool CLIP
WP8066208 WP8066208 Whirlpool CLIP
W11684573 W11684573 Whirlpool CLIP
W11295573 W11295573 Whirlpool CLIP
WP3394427 WP3394427 Whirlpool CLIP
W10112268 W10112268 Whirlpool CLIP
62825 62825 Whirlpool CLIP-S TYPE
3395683 3395683 Whirlpool CONNECTOR (MOTOR)
2203186 2203186 Whirlpool CONNECTOR, 5-CIRCUIT
3936150 3936150 Whirlpool CONNECTOR, 7-CIRCUIT
353424 353424 Whirlpool CONNECTOR, SENSOR

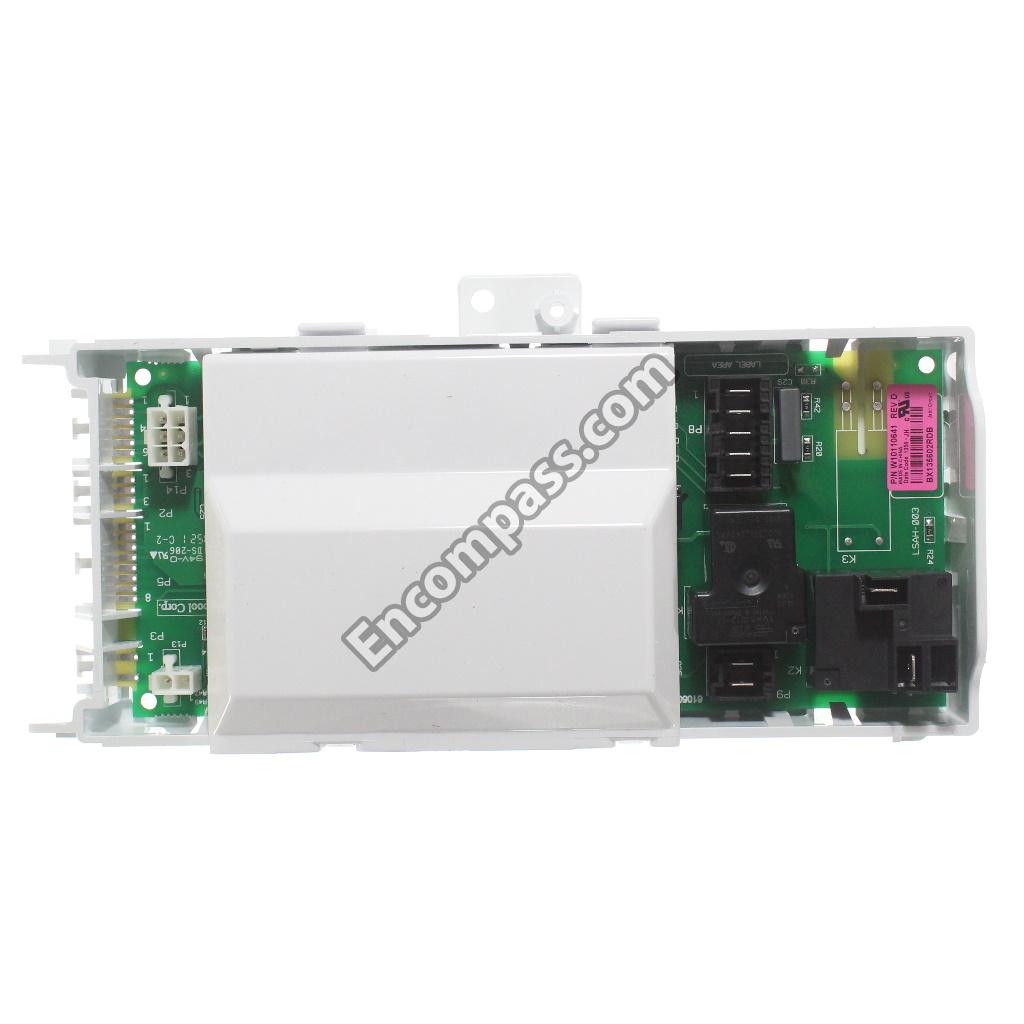

WPW10110641 WPW10110641 Whirlpool CONTROL BOARD
WP3407228 WP3407228 Whirlpool CONTROL BOARD
W10909036 W10909036 Whirlpool COVER
WPW10354249 WPW10354249 Whirlpool COVER
W10118470 W10118470 Whirlpool COVER
W10181197 W10181197 Whirlpool COVER-HINGE (R.H.)
WPW10119283 WPW10119283 Whirlpool COVER-TERM
W10110976 W10110976 Whirlpool CUBE, CABLE
WP8578229 WP8578229 Whirlpool DOOR
W11222846 W11222846 Whirlpool DOOR
8578151 8578151 Whirlpool DOOR ASSEMBLY (OUTER)
279570 279570 Whirlpool DOOR LATCH
8578156 8578156 Whirlpool DOOR MASK
W10171571 W10171571 Whirlpool DOOR SCREEN
W10180118 W10180118 Whirlpool DOOR-INTERMEDIATE
279787 279787 Whirlpool DRIVE MOTOR
W10545924 W10545924 Whirlpool DRUM
8212450A 8212450A Whirlpool DRY RACK
WP3387911 WP3387911 Whirlpool DUCT-AIR
WPW10128606 WPW10128606 Whirlpool DUCT-LINT
WPW10416072 WPW10416072 Whirlpool ELBOW
WP3387223 WP3387223 Whirlpool ELECTRODE
WP8544771 WP8544771 Whirlpool ELEMENT
W10012480 W10012480 Whirlpool ENCODER, WHEEL KIT. (INCLUDES ITEM: 17, 18, & 20 )
280230 280230 Whirlpool ENCODER, WHEEL KIT. (INCLUDES ITEM: 23, 24, & 26)
49621 49621 Whirlpool FEET-LVLNG
8544776 8544776 Whirlpool FLANGE, HEATER BOX
8578388 8578388 Whirlpool FRONT PANEL
8579662 8579662 Whirlpool GASKET, WINDOW
W11086603 W11086603 Whirlpool GRILL-OUT
W10111226 W10111226 Whirlpool GUIDE, QUICK START
8578154 8578154 Whirlpool HANDLE-RING & PAD ASSEMBLY

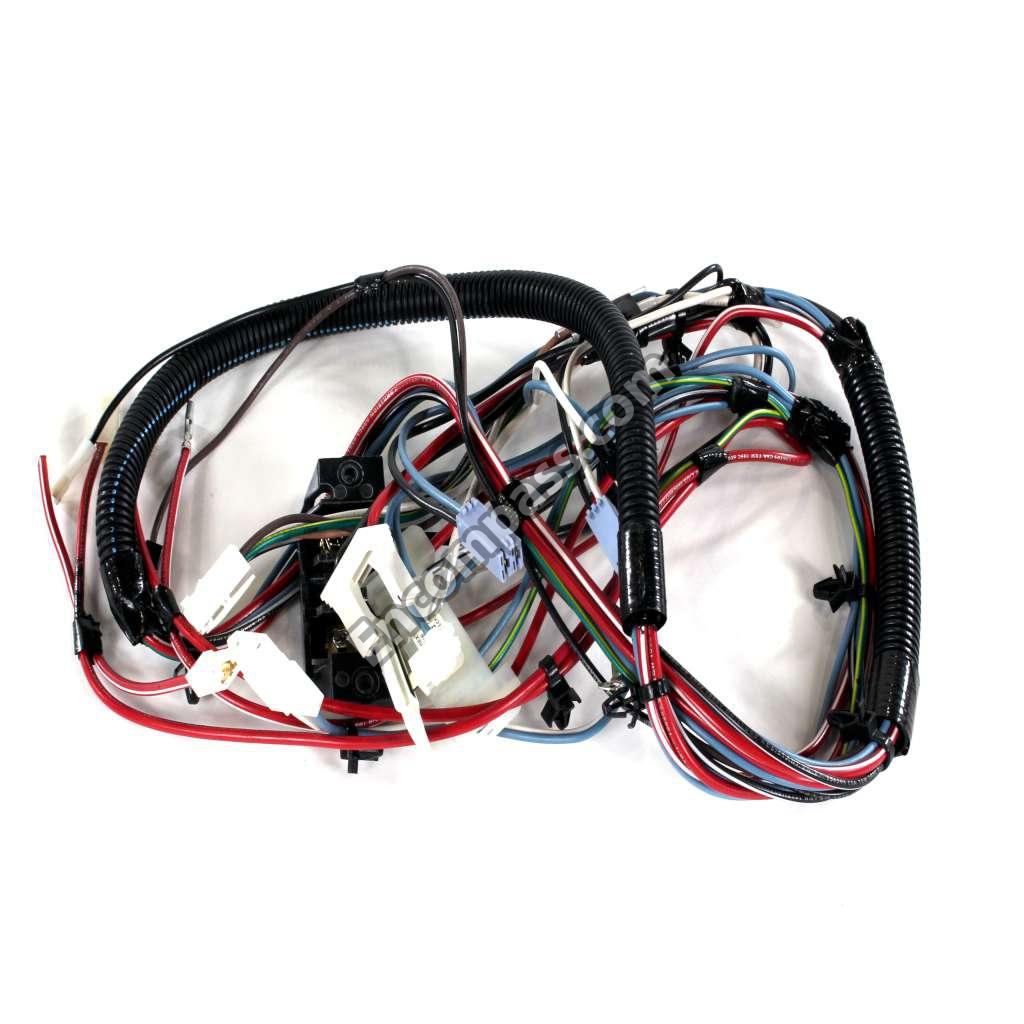

W10181463 W10181463 Whirlpool HARNESS, DIGITAL INTERFACE
8579739 8579739 Whirlpool HARNESS, MAIN
W10095960 W10095960 Whirlpool HARNS-WIRE
WPW10310366 WPW10310366 Whirlpool HINGE
W10888146 W10888146 Whirlpool HOUSING
W11129408 W11129408 Whirlpool HOUSNG-OUT
W10739618 W10739618 Whirlpool KIT
346764A 346764A Whirlpool KIT, HOLD DOWN
8541503 8541503 Whirlpool KIT, STACK ASSEMBLY
280148 280148 Whirlpool KIT, THERMAL CUT-OFF
8579666ARP 8579666ARP Whirlpool KIT-DOOR
WPW10116701 WPW10116701 Whirlpool KNOB, CONTROL (INCLUDES: ILLUS. 21)
W10085210 W10085210 Whirlpool LABEL
WP8066120 WP8066120 Whirlpool LEVER
WP22002263 WP22002263 Whirlpool LIGHT BULB
WPW10080190 WPW10080190 Whirlpool NUT
WPW10080210 WPW10080210 Whirlpool NUT
100000 100000 Whirlpool OPTIONAL PARTS NOT INCLUDED
W10121607 W10121607 Whirlpool PAD, DOOR HANDLE
4392900 4392900 Whirlpool PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
786302 786302 Whirlpool PAINT, BULK (1 QT.) (BLACK (UNCUT))
799344 799344 Whirlpool PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
786020 786020 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK)
350938 350938 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GREY)
72017 72017 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 Whirlpool PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
72302 72302 Whirlpool PAINT, TOUCH-UP (1/2OZ.) (BLACK)
W10116694 W10116694 Whirlpool PANEL, CONSOLE (INCLUDES ITEMS: 20,21,22,27,28)
WPW10117272 WPW10117272 Whirlpool PANEL, SIDE (L.H.)
WPW10117273 WPW10117273 Whirlpool PANEL, SIDE (R.H.)
280036 280036 Whirlpool PANEL-REAR
279936 279936 Whirlpool PIPE-EXHST
WP8563749 WP8563749 Whirlpool PIPE-EXHST
WPW10331278 WPW10331278 Whirlpool PIPE-EXHST
WP8563747 WP8563747 Whirlpool PIPE-EXHST
WPW10404617 WPW10404617 Whirlpool PLUG
W10048910 W10048910 Whirlpool PLUG
8529007 8529007 Whirlpool PLUG, REAR BULKHEAD
3936144 3936144 Whirlpool PLUG, TERMINAL
279640 279640 Whirlpool PULLEY-IDR
W10837625 W10837625 Whirlpool PULLEY-MTR
8529053 8529053 Whirlpool RAMP, DOOR
WP8557403 WP8557403 Whirlpool RANGE THERMOSTAT
4392067 4392067 Whirlpool REPAIR-DYR
W10822054 W10822054 Whirlpool RETAINER
WPW10012440 WPW10012440 Whirlpool RETAINER
8519356 8519356 Whirlpool RETAINER, WINDOW (UPPER)
WPW10512946 WPW10512946 Whirlpool RING
WPW10012410 WPW10012410 Whirlpool RING
W10120998 W10120998 Whirlpool SCREEN
WP3373329 WP3373329 Whirlpool SCREW
WP355515 WP355515 Whirlpool SCREW
W10850046 W10850046 Whirlpool SCREW
WP3387230 WP3387230 Whirlpool SCREW
WPW10109200 WPW10109200 Whirlpool SCREW
WP489463 WP489463 Whirlpool SCREW
WP98129 WP98129 Whirlpool SCREW
WP681414 WP681414 Whirlpool SCREW
WP3389420 WP3389420 Whirlpool SCREW
WP308685 WP308685 Whirlpool SCREW
W10850756 W10850756 Whirlpool SCREW
WP90767 WP90767 Whirlpool SCREW
WP488729 WP488729 Whirlpool SCREW
WP3400224 WP3400224 Whirlpool SCREW, 10-16 X 1/2
8281225 8281225 Whirlpool SCREW, 8-18 X 1/2
280203 280203 Whirlpool SCREW-KIT
WP697770 WP697770 Whirlpool SEAL
280114 280114 Whirlpool SEAL
WP697813 WP697813 Whirlpool SEAL
WP3387242 WP3387242 Whirlpool SEAL
W10112267 W10112267 Whirlpool SEAL
W10118614 W10118614 Whirlpool SEAL
WPW10139457 WPW10139457 Whirlpool SEAL-DOOR
WPW10359272 WPW10359272 Whirlpool SHAFT
WPW10359271 WPW10359271 Whirlpool SHAFT
W10180120 W10180120 Whirlpool SHIELD
W11700522 W11700522 Whirlpool SOCKET
8564134 8564134 Whirlpool SOUND PANEL
3389682 3389682 Whirlpool SPACE-TOE PANEL
WP3394986 WP3394986 Whirlpool SPRING
WPW10446781 WPW10446781 Whirlpool SPRING
WPW10314173 WPW10314173 Whirlpool SUPPORT
279782 279782 Whirlpool SWITCH-PLG
WPW10180493 WPW10180493 Whirlpool TEAR-DROP TRIM & CLIP ASSEMBLY
W10110638 W10110638 Whirlpool TECH SHEET
WP596797 WP596797 Whirlpool TERMINAL
WP94614 WP94614 Whirlpool TERMINAL
279393 279393 Whirlpool TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
279457 279457 Whirlpool TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 Whirlpool TERMINAL, BRASS & TINNED (3) (INCLUDES ILLUS. 33)
WP8577274 WP8577274 Whirlpool THERMISTOR
WP3391018 WP3391018 Whirlpool TIE-WIRE
WPW10246269 WPW10246269 Whirlpool TOEPNL
WPW10117263 WPW10117263 Whirlpool TOP
W10110850 W10110850 Whirlpool USE & CARE GUIDE

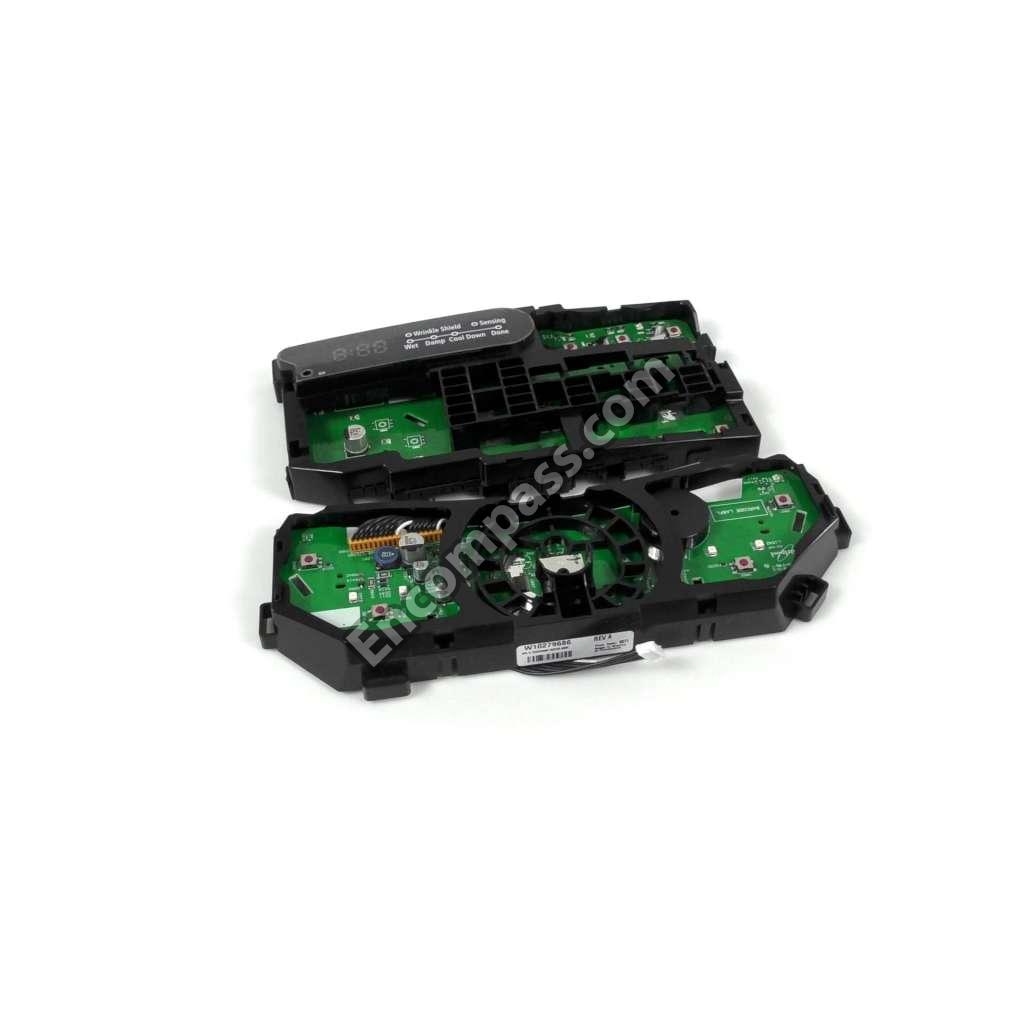

W10031410 W10031410 Whirlpool USER INTERFACE (CENTER) (INCLUDES ITEM 13)
W10470674 W10470674 Whirlpool VENT KIT
W11236646 W11236646 Whirlpool WASHER
WPW10121334 WPW10121334 Whirlpool WASHER
WP697772 WP697772 Whirlpool WHEEL
W10012430 W10012430 Whirlpool WHEEL
WP8566254 WP8566254 Whirlpool WINDOW
WP3406653 WP3406653 Whirlpool WIRE HARNESS
3394081 3394081 Whirlpool WIRE, BELT SWITCH
3398948 3398948 Whirlpool WIRE, JUMPER (BROKEN BELT SWITCH)
