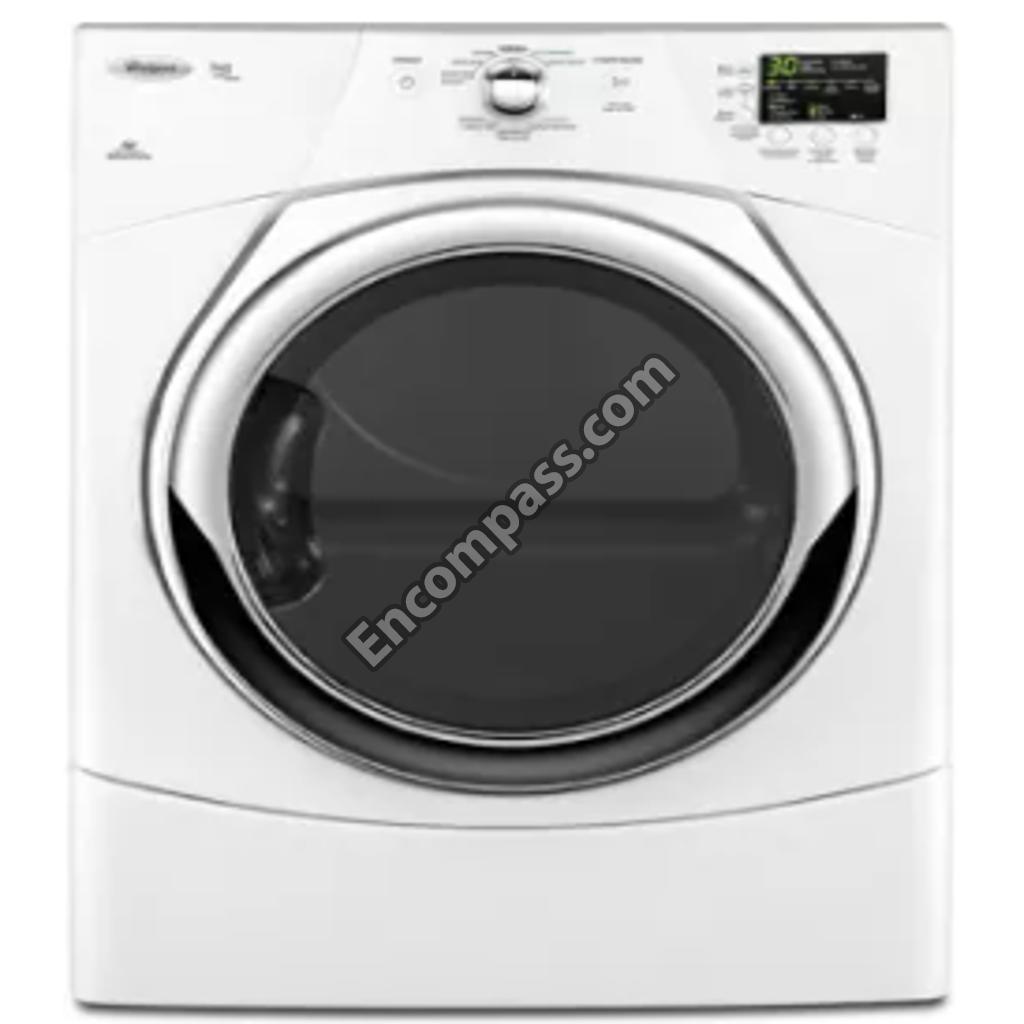

Model Image
Manufacturer

Whirlpool

Model Number

WED9371YW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10044609A W10044609A ACCESSORY PARTS, KIT, DRYER - STEAM HOSE (INCLUDES (1) 3' HOSE, (1) 5' HOSE, (1) Y ADAPTER AND (4) RUBBER WASHERS.)
W11224254 W11224254 ACCESSORY PARTS, KIT, FRONT LOAD DRYER VENT TESTING
W10865330 W10865330 ASSEMBLY, DRUM (COMPLETE)
W10410317 W10410317 ASSEMBLY, NOZZLE AND HOSE
W10854980 W10854980 BADGE ASSEMBLY
W10852390 W10852390 BAFFLE-DRM
W11215531 W11215531 BASE
661570 661570 BELT
WP3397659 WP3397659 BLOCK-TERM
8565087 8565087 BOLT, 1/4-28
WP8544769 WP8544769 BOX
WP8544770 WP8544770 BOX
W10837240 W10837240 BRACKET
W11481730 W11481730 BRACKET
WP8563727 WP8563727 BRACKET
WP8565237 WP8565237 BRACKET
W10346402 W10346402 BRACKET
8578825 8578825 BRACKET, DRUM LIGHT
8066099 8066099 BRACKET, HEATER BOX
W10133857 W10133857 BULKHEAD
8565061 8565061 BULKHEAD, FRONT
W11226088 W11226088 CAMERA LENS
WPW10266747 WPW10266747 CHANNEL
WP660658 WP660658 CLAMP
WP8066208 WP8066208 CLIP
W11684573 W11684573 CLIP
W11295573 W11295573 CLIP
WP8536939 WP8536939 CLIP
W10044599 W10044599 CLIP
WPW10269488 WPW10269488 CONNECTOR
W10755980 W10755980 CONSOLE
W10755981 W10755981 CONSOLE
WPW10405846 WPW10405846 CONTROL BOARD
WPW10387234 WPW10387234 CONTROL BOARD
PT400L PT400L CORD-POWER
PT600L PT600L CORD-POWER
PT220L PT220L CORD-POWER
W10859554 W10859554 COUPLER
WPW10354249 WPW10354249 COVER
W10184825 W10184825 COVER
W10215766 W10215766 COVER
W10215825 W10215825 COVER
WPW10119283 WPW10119283 COVER-TERM
WPW10371561 WPW10371561 DOOR
W11222846 W11222846 DOOR
W10215757 W10215757 DOOR
W10431338 W10431338 DOOR
W11690171 W11690171 DOOR
W10270216 W10270216 DOOR
WPW10371562 WPW10371562 DOOR ASSEMBLY OUTER (MERCURY)
279570 279570 DOOR LATCH
279787 279787 DRIVE MOTOR
WP3387911 WP3387911 DUCT-AIR
WPW10128606 WPW10128606 DUCT-LINT
WPW10416072 WPW10416072 ELBOW
WP3387223 WP3387223 ELECTRODE
WP8544771 WP8544771 ELEMENT
49621 49621 FEET-LVLNG
8544776 8544776 FLANGE, HEATER BOX
WP8580257 WP8580257 FRONT PANEL (INCLUDES ITEM. 44 ) (WHITE)
WP3392519 WP3392519 FUSE-THRML
W11086603 W11086603 GRILL-OUT
W11219327 W11219327 GRILL-OUT
W10278759 W10278759 HARNS-WIRE
WPW10304672 WPW10304672 HINGE
346764A 346764A HOLD DOWN KIT
W10348579 W10348579 HOSE, NYLON (NOT SERVICABLE) (INCLUDED WITH ITEM. 53 )
WP89503 WP89503 HOSE-FILL
49583 49583 HOSE-FILL
W10888146 W10888146 HOUSING
W11129408 W11129408 HOUSNG-OUT
W10385103 W10385103 INSTALLATION GUIDE
8572546 8572546 KIT, STACKING
279973 279973 KIT, THERMAL CUT-OFF (INCLUDES THERMOSTAT)
WPW10251394 WPW10251394 KNOB
WPW10256915 WPW10256915 LABEL
WPW10085230 WPW10085230 LABEL
W10085210 W10085210 LABEL
WP22002263 WP22002263 LIGHT BULB
WPW10277503 WPW10277503 NOZZLE
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
W10044628 W10044628 NUT
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10251202 W10251202 PANEL
W10542715 W10542715 PANEL
W10542714 W10542714 PANEL, SIDE (WHITE)
W10281297 W10281297 PANEL-REAR
WP8563728 WP8563728 PIPE-EXHST
WP8563749 WP8563749 PIPE-EXHST
WPW10331278 WPW10331278 PIPE-EXHST
WP8563747 WP8563747 PIPE-EXHST
WPW10404617 WPW10404617 PLUG
W10665050 W10665050 PLUG
W10331132 W10331132 PLUG
279640 279640 PULLEY-IDR
W10837625 W10837625 PULLEY-MTR
8580015 8580015 RAMP, DOOR
WP3391914 WP3391914 RANGE THERMOSTAT
4392067 4392067 REPAIR-DYR
W10822054 W10822054 RETAINER
8519356 8519356 RETAINER, UPPER
WPW10512946 WPW10512946 RING
W10120998 W10120998 SCREEN
N_P N_P SCREEN, DOOR (NOT SERVICEABLE SPERATELY, ORDER ITEM. 19 )
W10850046 W10850046 SCREW
WP3373329 WP3373329 SCREW
WP355515 WP355515 SCREW
WPW10159996 WPW10159996 SCREW
W11116979 W11116979 SCREW
WP489463 WP489463 SCREW
WP3387230 WP3387230 SCREW
W10853898 W10853898 SCREW
WP693995 WP693995 SCREW
W10850756 W10850756 SCREW
WP681414 WP681414 SCREW
WP308685 WP308685 SCREW
WP3389420 WP3389420 SCREW
WP90767 WP90767 SCREW
WP488729 WP488729 SCREW
W11706993 W11706993 SEAL
280114 280114 SEAL
WP697770 WP697770 SEAL
WP697813 WP697813 SEAL
WP3387242 WP3387242 SEAL
W10645577 W10645577 SEAL, USER INTERFACE
WPW10163915 WPW10163915 SEAL-DOOR
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
W11222979 W11222979 SOCKET
WP3394986 WP3394986 SPRING
WPW10446781 WPW10446781 SPRING
WP8565122 WP8565122 STRIKE
WPW10314173 WPW10314173 SUPPORT
WPW10411937 WPW10411937 SWITCH
WPW10318609 WPW10318609 SWITCH, APPLIANCE DOOR
W10386307 W10386307 TECH SHEET
279393 279393 TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
279457 279457 TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 TERMINAL, BRASS & TINNED (INCLUDES, ITEM. 33 )
WP8577274 WP8577274 THERMISTOR
WP3391018 WP3391018 TIE-WIRE
WP8540621 WP8540621 TOEPNL
W10251210 W10251210 TOEPNL
WPW10336080 WPW10336080 TOP
WPW10336091 WPW10336091 TOP
W10215823 W10215823 TRIM
W10268217 W10268217 TUCHUP
W10385092 W10385092 USE & CARE GUIDE
W10815373 W10815373 VALVE
WP16123 WP16123 WASHER
W11236646 W11236646 WASHER
WPW10121334 WPW10121334 WASHER
W10044579 W10044579 WASHER
WP697772 WP697772 WHEEL
WPW10286878 WPW10286878 WINDOW
W10215764 W10215764 WINDOW
W10212742 W10212742 WINDOW
WP3406653 WP3406653 WIRE HARNESS
