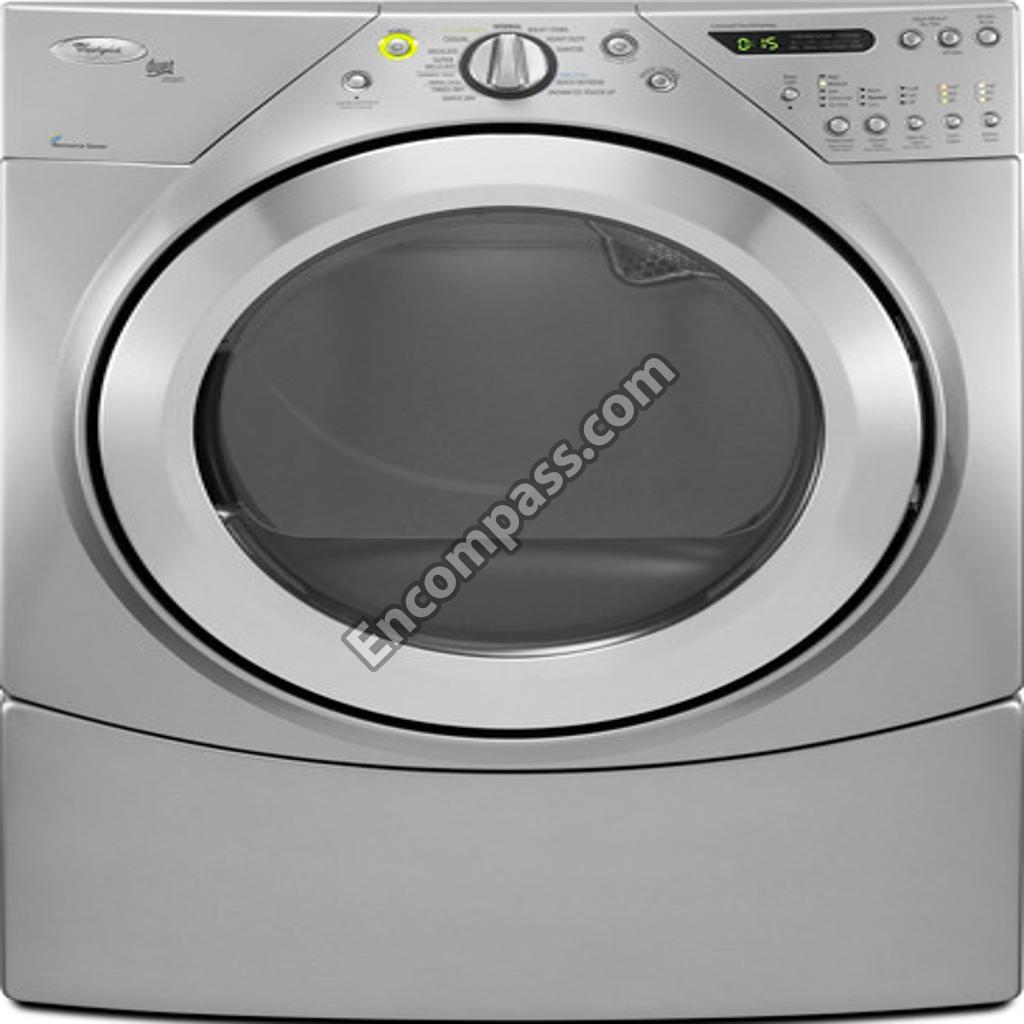

Model Image
Manufacturer

Whirlpool

Model Number

WED9550WL0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10044609A W10044609A Whirlpool ACCESSORY PARTS, KIT, DRYER - STEAM HOSE (INCLUDES (1) 3' HOSE, (1) 5' HOSE, (1) Y ADAPTER AND (4) RUBBER WASHERS.)
WPW10318609 WPW10318609 Whirlpool ASSEMBLY, DOOR SWITCH
W10854980 W10854980 Whirlpool BADGE
WPW10113136 WPW10113136 Whirlpool BAFFLE-DRM
WP3387118 WP3387118 Whirlpool BASE
WPW10239098 WPW10239098 Whirlpool BASE
661570 661570 Whirlpool BELT
WP3397659 WP3397659 Whirlpool BLOCK-TERM
WP8544770 WP8544770 Whirlpool BOX
WP8544769 WP8544769 Whirlpool BOX
WP8563727 WP8563727 Whirlpool BRACKET
W10837240 W10837240 Whirlpool BRACKET
W10215656 W10215656 Whirlpool BRACKET
W10044597 W10044597 Whirlpool BRACKET
8578825 8578825 Whirlpool BRACKET, DRUM LIGHT
8066099 8066099 Whirlpool BRACKET, HEATER BOX
WPW10250634 WPW10250634 Whirlpool BULKHEAD
W10133857 W10133857 Whirlpool BULKHEAD
W11226088 W11226088 Whirlpool CAMERA LENS
WPW10121316 WPW10121316 Whirlpool CLAMP
WP8066208 WP8066208 Whirlpool CLIP
W11684573 W11684573 Whirlpool CLIP
W11295573 W11295573 Whirlpool CLIP
W10112268 W10112268 Whirlpool CLIP
W10044599 W10044599 Whirlpool CLIP
62825 62825 Whirlpool CLIP-S TYPE
3395683 3395683 Whirlpool CONNECTOR (MOTOR)
2203186 2203186 Whirlpool CONNECTOR, 5-CIRCUIT
3936150 3936150 Whirlpool CONNECTOR, 7-CIRCUIT
WPW10169969 WPW10169969 Whirlpool CONTROL BOARD
W10294712 W10294712 Whirlpool CONTROL BOARD
W10859554 W10859554 Whirlpool COUPLER
WPW10354249 WPW10354249 Whirlpool COVER
W10184825 W10184825 Whirlpool COVER
W10909036 W10909036 Whirlpool COVER
W10181197 W10181197 Whirlpool COVER
WPW10119283 WPW10119283 Whirlpool COVER-TERM
WP8578229 WP8578229 Whirlpool DOOR
W11222846 W11222846 Whirlpool DOOR
W10180118 W10180118 Whirlpool DOOR
279570 279570 Whirlpool DOOR LATCH
W10171571 W10171571 Whirlpool DOOR SCREEN
279787 279787 Whirlpool DRIVE MOTOR
W10545924 W10545924 Whirlpool DRUM
8212450A 8212450A Whirlpool DRY RACK
WP3387911 WP3387911 Whirlpool DUCT-AIR
WPW10128606 WPW10128606 Whirlpool DUCT-LINT
WPW10416072 WPW10416072 Whirlpool ELBOW
WP3387223 WP3387223 Whirlpool ELECTRODE
WP8544771 WP8544771 Whirlpool ELEMENT
W10012480 W10012480 Whirlpool ENCODER, WHEEL KIT. (INCLUDES ITEM: 17, 18, & 20 )
280230 280230 Whirlpool ENCODER, WHEEL KIT. (INCLUDES ITEM: 23, 24, & 26)
49621 49621 Whirlpool FEET-LVLNG
8544776 8544776 Whirlpool FLANGE, HEATER BOX
WP3392519 WP3392519 Whirlpool FUSE-THRML
8579662 8579662 Whirlpool GASKET, WINDOW
W11086603 W11086603 Whirlpool GRILL-OUT
WPW10180115 WPW10180115 Whirlpool HANDLE, RING DOOR
W10238916 W10238916 Whirlpool HARNS-WIRE
W10095960 W10095960 Whirlpool HARNS-WIRE
W10181463 W10181463 Whirlpool HARNS-WIRE
WPW10310366 WPW10310366 Whirlpool HINGE
WPW10179730 WPW10179730 Whirlpool HOSE
WP76314 WP76314 Whirlpool HOSE-FILL
W10044603 W10044603 Whirlpool HOSE-FILL
W10888146 W10888146 Whirlpool HOUSING
W11129408 W11129408 Whirlpool HOUSNG-OUT
W10224585 W10224585 Whirlpool INSTALLATION, INSTRUCTION
346764A 346764A Whirlpool KIT, HOLD DOWN
8541503 8541503 Whirlpool KIT, STACK ASSEMBLY
8579666ARP 8579666ARP Whirlpool KIT-DOOR
W10190685 W10190685 Whirlpool KNOB
W10085210 W10085210 Whirlpool LABEL
WP8066120 WP8066120 Whirlpool LEVER
WP22002263 WP22002263 Whirlpool LIGHT BULB
49586 49586 Whirlpool MIXER
303776 303776 Whirlpool NO DESCRIPTION AVALIABLE
W10044629 W10044629 Whirlpool NOZZLE
WPW10080190 WPW10080190 Whirlpool NUT
WPW10080210 WPW10080210 Whirlpool NUT
W10044628 W10044628 Whirlpool NUT
799344 799344 Whirlpool PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350938 350938 Whirlpool PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, GRAY)
72017 72017 Whirlpool PAINT, TOUCH-UP (1/2OZ. WHITE)
WPW10180423 WPW10180423 Whirlpool PANEL
WPW10249725 WPW10249725 Whirlpool PANEL
W11233548 W11233548 Whirlpool PANEL
W10250670 W10250670 Whirlpool PANEL
W10249726 W10249726 Whirlpool PANEL
W10249727 W10249727 Whirlpool PANEL
W10249769 W10249769 Whirlpool PANEL
W10249768 W10249768 Whirlpool PANEL
WPW10251598 WPW10251598 Whirlpool PANEL, CONSOLE (INCLUDES ITEMS: 20,21,22,27,28 & 29) (MERCURY)
WPW10251606 WPW10251606 Whirlpool PANEL, CONSOLE (INCLUDES ITEMS: 20,21,22,27,28 & 29) (RED)
WPW10246596 WPW10246596 Whirlpool PANEL, CONSOLE (INCLUDES ITEMS: 20,21,22,27,28 & 29) (WHITE)
W10202864 W10202864 Whirlpool PANEL-REAR
279936 279936 Whirlpool PIPE-EXHST
WP8563749 WP8563749 Whirlpool PIPE-EXHST
WPW10331278 WPW10331278 Whirlpool PIPE-EXHST
WP8563747 WP8563747 Whirlpool PIPE-EXHST
WPW10404617 WPW10404617 Whirlpool PLUG
W10665050 W10665050 Whirlpool PLUG
W10048910 W10048910 Whirlpool PLUG
3936144 3936144 Whirlpool PLUG, TERMINAL
279640 279640 Whirlpool PULLEY-IDR
W10837625 W10837625 Whirlpool PULLEY-MTR
8529053 8529053 Whirlpool RAMP, DOOR
WP8557403 WP8557403 Whirlpool RANGE THERMOSTAT
4392067 4392067 Whirlpool REPAIR-DYR
W10822054 W10822054 Whirlpool RETAINER
WPW10012440 WPW10012440 Whirlpool RETAINER
8519356 8519356 Whirlpool RETAINER, WINDOW (UPPER)
WPW10512946 WPW10512946 Whirlpool RING
W10250089 W10250089 Whirlpool RING
W10120998 W10120998 Whirlpool SCREEN
WP3373329 WP3373329 Whirlpool SCREW
WP355515 WP355515 Whirlpool SCREW
W10850046 W10850046 Whirlpool SCREW
WPW10159996 WPW10159996 Whirlpool SCREW
WP3387230 WP3387230 Whirlpool SCREW
W10853898 W10853898 Whirlpool SCREW
WP489463 WP489463 Whirlpool SCREW
WP98129 WP98129 Whirlpool SCREW
WP681414 WP681414 Whirlpool SCREW
WP3389420 WP3389420 Whirlpool SCREW
WP308685 WP308685 Whirlpool SCREW
W10850756 W10850756 Whirlpool SCREW
WP90767 WP90767 Whirlpool SCREW
WP488729 WP488729 Whirlpool SCREW
WP697770 WP697770 Whirlpool SEAL
280114 280114 Whirlpool SEAL
WP697813 WP697813 Whirlpool SEAL
WP3387242 WP3387242 Whirlpool SEAL
W10112267 W10112267 Whirlpool SEAL
WPW10139457 WPW10139457 Whirlpool SEAL-DOOR
WPW10359272 WPW10359272 Whirlpool SHAFT
WPW10359271 WPW10359271 Whirlpool SHAFT
W11257251 W11257251 Whirlpool SHIELD
W10180120 W10180120 Whirlpool SHIELD
W11700522 W11700522 Whirlpool SOCKET
8564134 8564134 Whirlpool SOUND PANEL
WP3394986 WP3394986 Whirlpool SPRING
WPW10446781 WPW10446781 Whirlpool SPRING
WPW10314173 WPW10314173 Whirlpool SUPPORT
279782 279782 Whirlpool SWITCH-PLG
W10251193 W10251193 Whirlpool TECH SHEET
WP596797 WP596797 Whirlpool TERMINAL
WP94614 WP94614 Whirlpool TERMINAL
279393 279393 Whirlpool TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK)
279457 279457 Whirlpool TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 Whirlpool TERMINAL, BRASS & TINNED (3) (INCLUDES ILLUS. 33)
280148 280148 Whirlpool THERMAL CUT-OFF (INCLUDES ILLUS. 48)
WP8577274 WP8577274 Whirlpool THERMISTOR
WP3391018 WP3391018 Whirlpool TIE-WIRE
W10139322 W10139322 Whirlpool TIP SHEET DRYER STEAM
WPW10259607 WPW10259607 Whirlpool TOE PANEL (RED)
WPW10246269 WPW10246269 Whirlpool TOEPNL
WPW10259606 WPW10259606 Whirlpool TOEPNL
WPW10117263 WPW10117263 Whirlpool TOP
WPW10249739 WPW10249739 Whirlpool TOP (MERCURY)
WPW10249738 WPW10249738 Whirlpool TOP (RED)
W10246600 W10246600 Whirlpool TRIM
W10249765 W10249765 Whirlpool TRIM
W10249767 W10249767 Whirlpool TRIM
W10218247 W10218247 Whirlpool TUCHUP
W10244607 W10244607 Whirlpool USE & CARE GUIDE
W10110658 W10110658 Whirlpool USER INTERFACE (CENTER) (INCLUDES ILLUS. 13)
WPW10044608 WPW10044608 Whirlpool VALVE
W10470674 W10470674 Whirlpool VENT KIT
WP16123 WP16123 Whirlpool WASHER
W11236646 W11236646 Whirlpool WASHER
WPW10121334 WPW10121334 Whirlpool WASHER
W10044579 W10044579 Whirlpool WASHER
WP697772 WP697772 Whirlpool WHEEL
W10012430 W10012430 Whirlpool WHEEL
WP8566254 WP8566254 Whirlpool WINDOW
W10180117 W10180117 Whirlpool WINDOW
W10111020 W10111020 Whirlpool WIRE
W10167612 W10167612 Whirlpool WIRE
WP3406653 WP3406653 Whirlpool WIRE HARNESS
3398948 3398948 Whirlpool WIRE, JUMPER (BROKEN BELT SWITCH)
