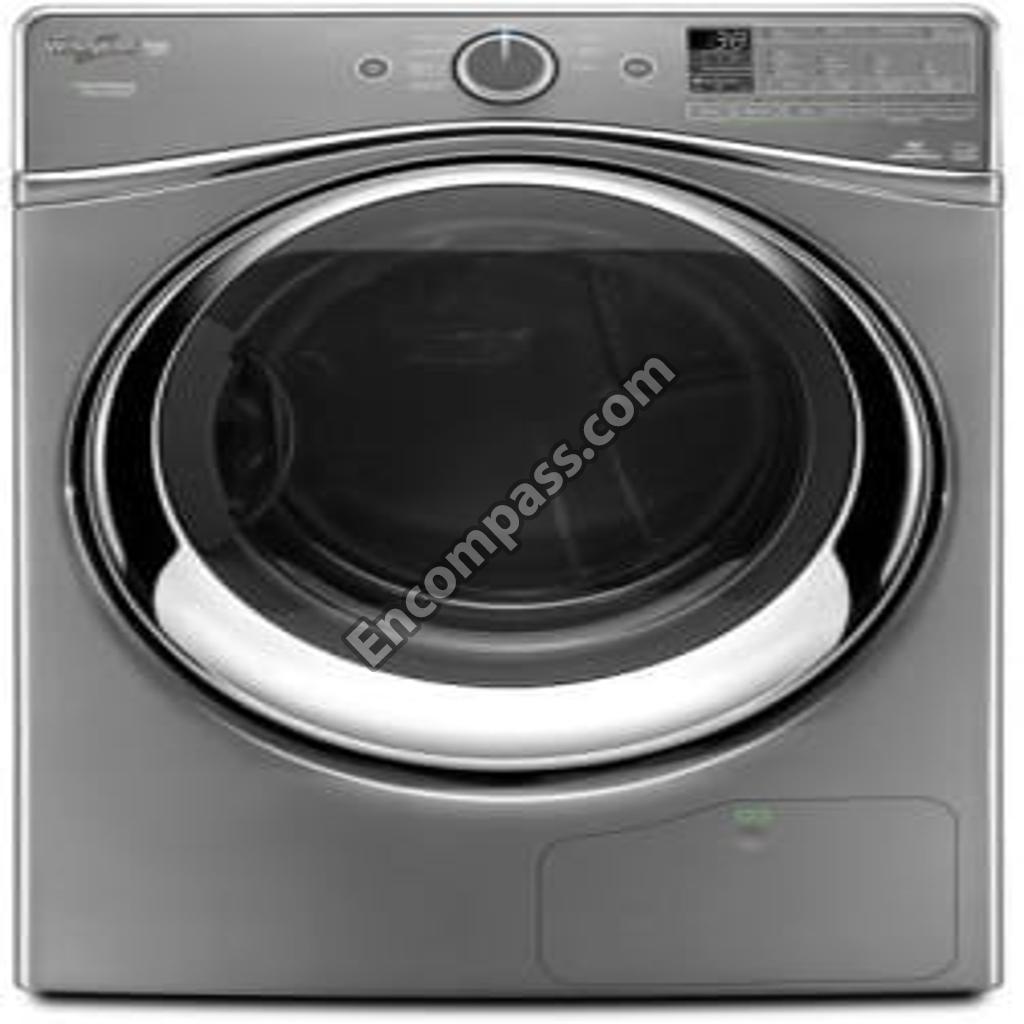

Model Image
Manufacturer

Whirlpool

Model Number

WED99HEDC0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
346764A 346764A ACCESSORY PARTS, KIT, HOLD DOWN
W10670373 W10670373 ASSEMBLY, DOOR HOUSING OUTLET
W10673059 W10673059 ASSEMBLY, HANDLE - SECONDARY LINT
W10510982 W10510982 BADGE (GREY)
W10510981 W10510981 BADGE (WHITE)
W10280771 W10280771 BAFFLE-DRM
W10578065 W10578065 BASE
W10735112 W10735112 BASE
661570 661570 BELT
W10739602 W10739602 BEZEL-CNTL
W10739601 W10739601 BEZEL-CNTL
WP3397659 WP3397659 BLOCK-TERM
W10837240 W10837240 BRACKET
WPW10208382 WPW10208382 BRACKET
W10259611 W10259611 BRACKET
W11480682 W11480682 BRACKET
W10668463 W10668463 BRACKET
W10208218 W10208218 BRACKET, DOOR HINGE
W10574749 W10574749 BRACKET, THERMISTER
W10645092 W10645092 BRACKET, VALVE
W11299300 W11299300 BULKHEAD
W10679712 W10679712 BULKHEAD
W10673491 W10673491 BULKHEAD, FRONT
WPW10208398 WPW10208398 CAP
W10442513 W10442513 CAPACITOR
W10724414 W10724414 CAPACITOR
W10724418 W10724418 CAPACITOR, COMPRESSOR
WPW10208254 WPW10208254 CATCH
W11240283 W11240283 CATCH
WPW10653575 WPW10653575 CHANNEL
WPW10121316 WPW10121316 CLAMP
W11501419 W11501419 CLIP
WP8536939 WP8536939 CLIP
W10540767 W10540767 COMPRESSOR
W11406521 W11406521 CONDENSER
W11307123 W11307123 CONNECTOR
WPW10463687 WPW10463687 CONSOLE
WPW10446407 WPW10446407 CONSOLE
W11038309 W11038309 CONTROL BOARD
WPW10652285 WPW10652285 CONTROL BOARD
PT220L PT220L CORD-POWER
PT600L PT600L CORD-POWER
PT400L PT400L CORD-POWER
W10772469 W10772469 COVER
W10739597 W10739597 COVER
W11168387 W11168387 COVER
W10574747 W10574747 COVER ASSEMBLY, COVER
W10608831 W10608831 COVER, HEAT EXCHANGE
WPW10316167 WPW10316167 COVER-TERM
W11676807 W11676807 CUTOFF-TML
W10853454 W10853454 DOOR
W11188529 W11188529 DOOR
W11156832 W11156832 DOOR
W10267837 W10267837 DOOR
W10636276 W10636276 DOOR
W10772471 W10772471 DOOR, TRIM RING
W10541657 W10541657 DRUM
W10660495 W10660495 DUCT-AIR
W10642437 W10642437 DUCT-LINT
WP3387223 WP3387223 ELECTRODE
W11678121 W11678121 ELEMENT
W11406520 W11406520 EVAPORATOR
W10665784 W10665784 FAN
W11342035 W11342035 FAN-BLADE
49621 49621 FEET-LVLNG
W11715723 W11715723 FILTER
W10585594 W10585594 FILTER, DRYER
W11573366 W11573366 FLYWHEEL
W10333355 W10333355 FOOT, OPTIONAL (EXTENDED LENGTH) (NOT INCLUDED)
W10208411 W10208411 HANDLE
W10635057 W10635057 HARNS-WIRE
WPW10208415 WPW10208415 HINGE
W11051465 W11051465 HINGE
W11169712 W11169712 HOSE
W10683172 W10683172 HOSE, CROSS FLOW (BLACK)
WP89503 WP89503 HOSE-FILL
W10819173 W10819173 HOSE-FILL
W10044609A W10044609A HOSE-KIT
W10646942 W10646942 HOUSING, AUXILLARY FAN
W10897401 W10897401 HOUSNG-OUT
W10897399 W10897399 HOUSNG-OUT
W11211470 W11211470 HOUSNG-OUT
W10679043 W10679043 INSTALLATION INSTRUCTIONS
W10323246 W10323246 KIT-EXHST
W10869845 W10869845 KIT-STACK
WPW10631127 WPW10631127 KNOB
W10875909 W10875909 KNOB
W10460935 W10460935 LIGHT
W11209428 W11209428 MOTOR-DRIVEE
W10834236 W10834236 NTC SENSOR
WPW10080190 WPW10080190 NUT
WPW10080210 WPW10080210 NUT
W10759923 W10759923 NUT
W10684400 W10684400 OUTLET GRILL
W10678945 W10678945 OWNERS MANUAL
W11409002 W11409002 PAD
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350938 350938 PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
W10446202 W10446202 PAINT, TOUCH-UP (1/2OZ. CHROME SHADOW)
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W11103937 W11103937 PANEL
W11315726 W11315726 PANEL
W11233548 W11233548 PANEL
W10682653 W10682653 PANEL
W10750363 W10750363 PANEL-CNTL
W10750364 W10750364 PANEL-CNTL
W10524494 W10524494 PANEL-REAR
WPW10208419 WPW10208419 PLATE
W10903190 W10903190 PUMP
W10678965 W10678965 QUICKSTART GUIDE
W10322470A W10322470A RACK-DRY
4392067 4392067 REPAIR-DYR
W10208252 W10208252 RETAINER
W10688000 W10688000 RETAINER
WPW10512946 WPW10512946 RING
W11199484 W11199484 SCREEN
W11483547 W11483547 SCREEN
W10850046 W10850046 SCREW
WP3387230 WP3387230 SCREW
W10709795 W10709795 SCREW
WP90767 WP90767 SCREW
WP3389420 WP3389420 SCREW
WP3390631 WP3390631 SCREW
W11661566 W11661566 SCREW
WP308685 WP308685 SCREW
W10850756 W10850756 SCREW
WP489463 WP489463 SCREW
W10853898 W10853898 SCREW
WP488729 WP488729 SCREW
WP693995 WP693995 SCREW
279393 279393 SCREW KIT, TERMINAL BLOCK
280114 280114 SEAL
WP3387242 WP3387242 SEAL
W11676493 W11676493 SEAL
W10608849 W10608849 SEAL
W10652607 W10652607 SEAL
W10686117 W10686117 SEAL
W11193479 W11193479 SEAL
W11126230 W11126230 SEAL
W10459416 W10459416 SEAL STRIP
WPW10359272 WPW10359272 SHAFT
WPW10359271 WPW10359271 SHAFT
WPW10446781 WPW10446781 SPRING
W10834437 W10834437 SPRING, LINT SCREEN DOOR
WPW10208250 WPW10208250 STRIKE
W10585598 W10585598 SUCTION TUBE, COMPRESSOR/EVAPORATOR
WPW10314173 WPW10314173 SUPPORT
W10709255 W10709255 SUPPORT
W10651558 W10651558 SWITCH, LINT SCREEN
WPW10350906 WPW10350906 SWITCH-DOR
W10678947 W10678947 TECH SHEET
279457 279457 TERMINAL WIRE KIT (FOR HEATER ELEMENT WIRING HARNESS REPAIR)
279318 279318 TERMINAL, BRASS AND TINNED (INCLUDES TERMINAL BLOCK SCREW KIT)
WP8577274 WP8577274 THERMISTOR
W10834235 W10834235 THERMO-SWITCH ASSEMBLY
WP3391018 WP3391018 TIE-WIRE
WPW10460919 WPW10460919 TOP
WPW10208383 WPW10208383 TOP
W10872117 W10872117 TUBE
W10268217 W10268217 TUCHUP
W10731738 W10731738 VALVE
WP16123 WP16123 WASHER
W11236646 W11236646 WASHER
WPW10208270 WPW10208270 WINDOW
W11310036 W11310036 WINDOW
WPW10298258 WPW10298258 WIRE HARNESS
W11110114 W11110114 WIRE HARNESS
W10837344 W10837344 WIRE HARNESS
