Model Image
Manufacturer

Whirlpool

Model Number

WEE510SAGS0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
31617A 31617A ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN
4396923 4396923 ACCESSORY PARTS, GRID, BROILER PAN AND
W10123240 W10123240 ACCESSORY PARTS, RACK, BROILER PAN & ROASTING
W11217187 W11217187 ANCHOR-TIP
WP7101P485-60 WP7101P485-60 ANCHOR-TIP
W11502257 W11502257 ANCHOR-TIP
W11122085 W11122085 ASSEMBLY, FLUE
W10853401 W10853401 BAFFLE, UPPER CHASSIS
WPW10245259 WPW10245259 BLOCK-TERM
W10162253 W10162253 BRACE, CORNER (LEFT)
W10162252 W10162252 BRACE, CORNER (RIGHT)
W10814305 W10814305 BRACKET, CONSOLE (CENTER)
W10547960 W10547960 BRACKET, CONSOLE (LEFT)
W10547961 W10547961 BRACKET, CONSOLE (RIGHT)
W11175271 W11175271 BRACKET, RADIANT
W11039147 W11039147 BRACKET, TOE PANEL
W11728255 W11728255 BRKT-SRVCE
W11502236 W11502236 BRKT-SUPRT
W11312197 W11312197 BRKT-SUPRT
W11690600 W11690600 BUMPER
W10162241 W10162241 CHANNEL, REAR
W10814301 W10814301 CHASSIS, SUPPORT UPPER
W10841090 W10841090 CLIP
16515 16515 CLIP, HARNESS
W10664316 W10664316 CLIP, HARNESS (COOKTOP)
W10404688 W10404688 CLIP, OVEN SUPPORT
W10137382 W10137382 CLIP, PANEL
WPW10281322 WPW10281322 CONNECTOR

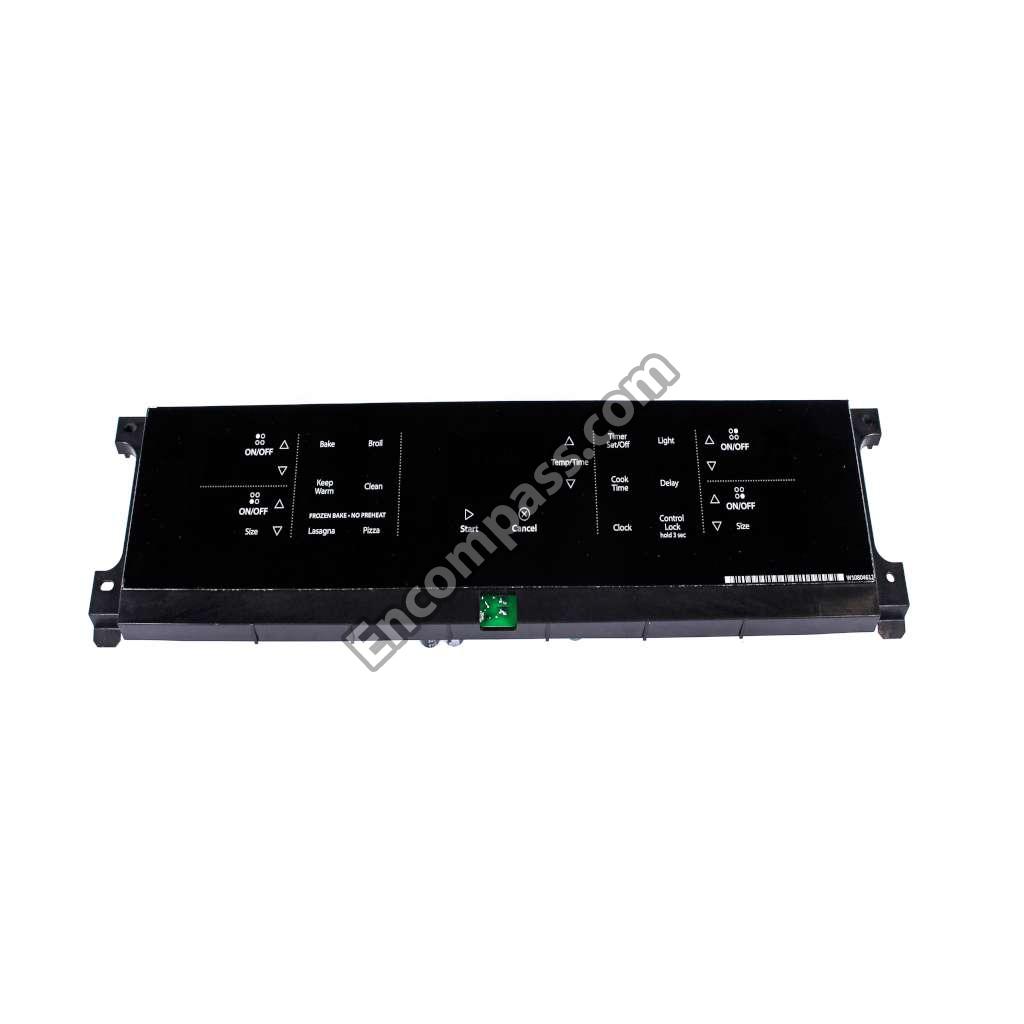

W10894098 W10894098 CONTROL BOARD
W10893947 W10893947 CONTROL PANEL
W10894124 W10894124 CONTROL PANEL
W11040044 W11040044 COOKTOP
W11379354 W11379354 COVER, BACK
W10162248 W10162248 COVER, WIRE
WPW10107820 WPW10107820 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
WPW10618239 WPW10618239 DOOR HANDLE
WPW10440013 WPW10440013 DOOR HINGE
WPW10388635 WPW10388635 DOOR HINGE
W10761014 W10761014 DOOR TRIM
W10761018 W10761018 DOOR TRIM
W11447783 W11447783 ELMNT-BAKE
WPW10583047 WPW10583047 ELMNT-BROL
N_P N_P FOLLOWING PARTS NOT ILLUSTRATED
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10341186 WPW10341186 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WP3196548 WP3196548 FUSE-THRML
W11744482 W11744482 GASKET
W10802457 W10802457 GASKET
W10802441 W10802441 GASKET
W11542153 W11542153 GASKT-DOOR
W11219379 W11219379 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR
W11172419 W11172419 HARNESS, CONSOLE
W10800463 W10800463 HARNESS, COOKTOP
W10647259 W10647259 HINGE-RECV
W11097823 W11097823 INSTRUCTIONS, INSTALLATION
WPW10208653 WPW10208653 INSULATION
WPW10278991 WPW10278991 INSULATION
W11688416 W11688416 INSULATION
W11684775 W11684775 INSULATION
W11688573 W11688573 INSULATION
8009 8009 LIGHT BULB
WP9761344 WP9761344 LINER-DOOR
W11096901 W11096901 MOUNTING BRACKET, TOE PANEL (LEFT)
W11096902 W11096902 MOUNTING BRACKET, TOE PANEL (RIGHT)
W11178521 W11178521 NAMEPLATE
WP3400029 WP3400029 NUT
799344 799344 PAINT, BULK (1 QT. WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
72032 72032 PAINT, TOUCH-UP (1/2OZ. BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10536275 W10536275 PAN, RADIANT
W10866583 W10866583 PANEL, CLIP
W11305080 W11305080 PANEL-SIDE
W11305079 W11305079 PANEL-SIDE
W11200111 W11200111 PLATE-COVR
W11520287 W11520287 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11539580 W11539580 RETAINER
9761449 9761449 RETAINER, INSULATION (LEFT)
9761448 9761448 RETAINER, INSULATION (RIGHT)
9757239 9757239 ROD, DOOR SWITCH
W10078370 W10078370 ROD, PUSH DOOR LATCH
W11268772 W11268772 SCREEN
W11739957 W11739957 SCREW
WPW10200660 WPW10200660 SCREW
W10896982 W10896982 SCREW
WPW10031790 WPW10031790 SCREW
W11169708 W11169708 SCREW
3196172 3196172 SCREW
W11684512 W11684512 SCREW
WP355214 WP355214 SCREW
WPW10067840 WPW10067840 SCREW
W10777162 W10777162 SCREW
W11244557 W11244557 SCREW
W11233072 W11233072 SCREW
W10516115 W10516115 SCREW
WP3196557 WP3196557 SCREW
W11245710 W11245710 SCREW
W11135756 W11135756 SCREW-TORX
W10833885 W10833885 SENSOR
W10655441 W10655441 SHIELD, POWER CORD
W11594027 W11594027 SOCKT-LITE
W10857933 W10857933 SPACER
WPW10410341 WPW10410341 SPACER
W10877054 W10877054 SPACER
WPW10225448 WPW10225448 SPRING
W10814303 W10814303 SUPPORT, COOKTOP (LEFT)
W10814304 W10814304 SUPPORT, COOKTOP (RIGHT)
W11517959 W11517959 SURFACE ELEMENT
W11171119 W11171119 SURFACE ELEMENT
WP9757262 WP9757262 SWTCH-LITE
W10842033 W10842033 TECH SHEET
W10312471 W10312471 TRAY, INSULATION
WPW10310922 WPW10310922 TRIM-VENT
W11240519 W11240519 TRIM-VENT
W11103604 W11103604 USE AND CARE GUIDE
W11568999 W11568999 WIRE HARNESS
W10842029 W10842029 WIRING DIAGRAM
