Model Number

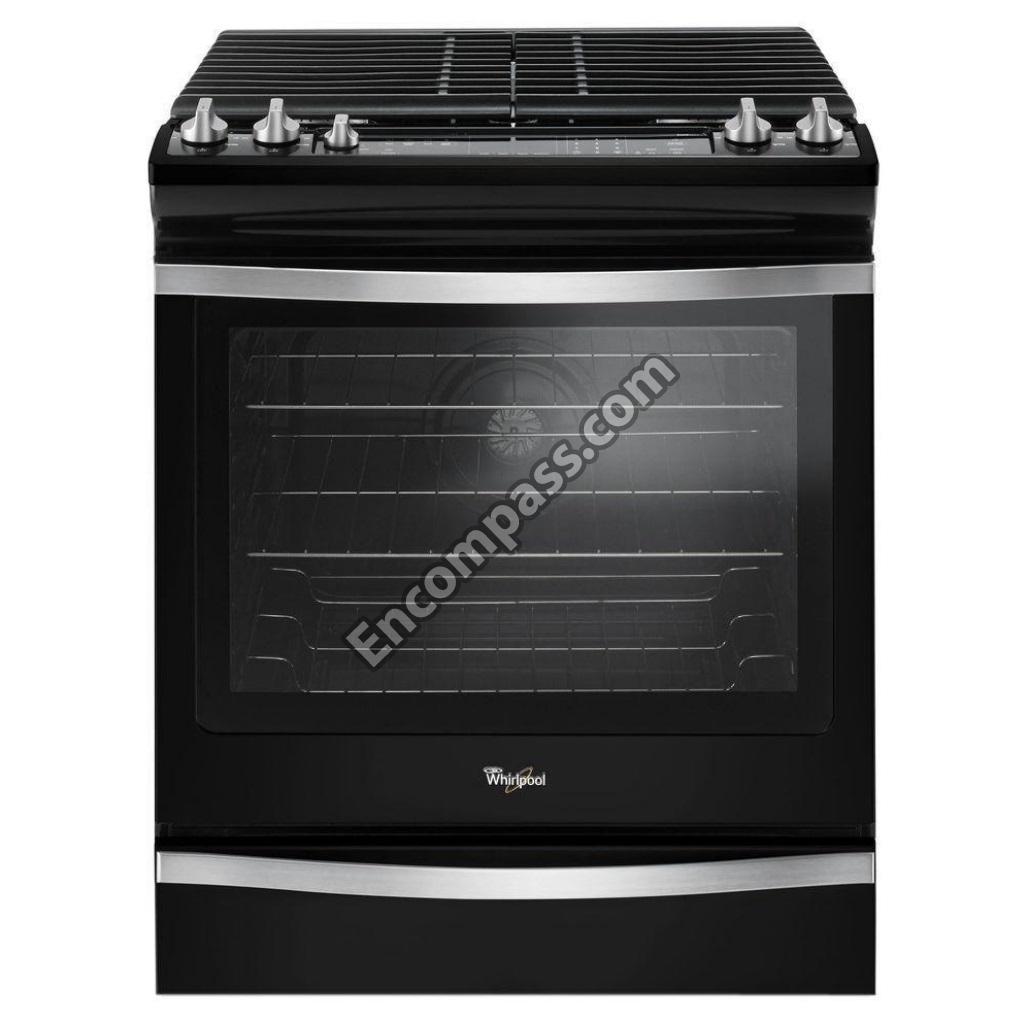

WEG745H0FE0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part W10731886
Whirlpool
W10731886
"ACCESSORY PARTS, ASSEMBLY, TRIM (1 1/8"") (BLACK)"
Checking…
View Product
Part W10731887
Whirlpool
W10731887
"ACCESSORY PARTS, ASSEMBLY, TRIM (1 1/8"") (STAINLESS)"
Checking…
View Product
Part W10731885
Whirlpool
W10731885
"ACCESSORY PARTS, ASSEMBLY, TRIM (1 1/8"") (WHITE)"
Checking…
View Product
Part W10675026
Whirlpool
W10675026
"ACCESSORY PARTS, ASSEMBLY, TRIM (5/8"") (BLACK)"
Checking…
View Product
Part WPW10675028
Whirlpool
WPW10675028
"ACCESSORY PARTS, ASSEMBLY, TRIM (5/8"") (STAINLESS)"
Checking…
View Product
Part W11430922
Whirlpool
W11430922
"ACCESSORY PARTS, ASSEMBLY, TRIM (5/8"") (WHITE)"
Checking…
View Product
Part W10750011
Whirlpool
W10750011
ACCESSORIES, CLEANER, OVEN (AQUALIFT TECH)
Checking…
View Product
Part W10655449
Whirlpool
W10655449
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (BLACK)
Checking…
View Product
Part W10655450
Whirlpool
W10655450
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (STAINLESS)
Checking…
View Product
Part W10655448
Whirlpool
W10655448
ACCESSORY PARTS, ASSEMBLY, BACKSPLASH (WHITE)
Checking…
View Product
Part W10355051
Whirlpool
W10355051
ACCESSORY PARTS, CLEANER, COOKTOP
Checking…
View Product
Part W10275756
Whirlpool
W10275756
ACCESSORY PARTS, CLEANER, GRANITE
Checking…
View Product
Part 31617A
Whirlpool
31617A
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN
Checking…
View Product
Part W11042467
Whirlpool
W11042467
ACCESSORY PARTS, CLEANER, STAINLESS STEEL
Checking…
View Product
Part 4396923
Whirlpool
4396923
ACCESSORY PARTS, GRID, BROILER PAN AND
Checking…
View Product
Part 242905
Whirlpool
242905
ACCESSORY PARTS, KIT, CANNING UNIT
Checking…
View Product
Part W10432545
Whirlpool
W10432545
ACCESSORY PARTS, KIT, GRILL
Checking…
View Product
Part W10391473
Whirlpool
W10391473
ACCESSORY PARTS, PAD, COOKTOP CLEANING
Checking…
View Product
Part 31463A
Whirlpool
31463A
ACCESSORY PARTS, PROTECTANT, COOKTOP
Checking…
View Product
Part W10123240
Whirlpool
W10123240
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING
Checking…
View Product
Part WA906B
Whirlpool
WA906B
ACCESSORY PARTS, SCRAPER, COOKTOP
Checking…
View Product
Part W10355049
Whirlpool
W10355049
ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEANING
Checking…
View Product
Part W10728529
Whirlpool
W10728529
ASSEMBLY, ACTIVE OVERLAY (BLACK (FOR STAINLESS MODELS))
Checking…
View Product
Part W10728523
Whirlpool
W10728523
ASSEMBLY, ACTIVE OVERLAY (STAINLESS (FOR BLACK MODELS))
Checking…
View Product
Part W10728522
Whirlpool
W10728522
ASSEMBLY, ACTIVE OVERLAY (WHITE)
Checking…
View Product
Part WPW10306546
Whirlpool
WPW10306546
ASSEMBLY, BASE RAIL (LEFT)
Checking…
View Product
Part W11441001
Whirlpool
W11441001
ASSEMBLY, CONVECTION
Checking…
View Product
Part W11107275
Whirlpool
W11107275
ASSEMBLY, COOLING FAN
Checking…
View Product
Part WPW10603098
Whirlpool
WPW10603098
ASSEMBLY, DISPLAY
Checking…
View Product
Part W10614920
Whirlpool
W10614920
ASSEMBLY, FLUE
Checking…
View Product
Part W11243157
Whirlpool
W11243157
ASSEMBLY, FLUE (UPPER)
Checking…
View Product
Part WPW10341186
Whirlpool
WPW10341186
ASSEMBLY, FRONT FOOT
Checking…
View Product
Part W11594027
Whirlpool
W11594027
ASSEMBLY, LIGHT
Checking…
View Product
Part W10885072
Whirlpool
W10885072
ASSEMBLY, MANIFOLD
Checking…
View Product
Part W10885071
Whirlpool
W10885071
ASSEMBLY, ORIFICE (CENTER)
Checking…
View Product
Part W10552128
Whirlpool
W10552128
ASSEMBLY, ORIFICE (LEFT FRONT)
Checking…
View Product
Part W10552127
Whirlpool
W10552127
ASSEMBLY, ORIFICE (LEFT REAR)
Checking…
View Product
Part W10552126
Whirlpool
W10552126
ASSEMBLY, ORIFICE (RIGHT FRONT)
Checking…
View Product
Part W10552125
Whirlpool
W10552125
ASSEMBLY, ORIFICE (RIGHT REAR)
Checking…
View Product
Part W10289166
Whirlpool
W10289166
BACK, MAIN
Checking…
View Product
Part W11178521
Whirlpool
W11178521
BADGE (GREY)
Checking…
View Product
Part 3601P356-45
Whirlpool
3601P356-45
BAFFLE, BAKE BURNER
Checking…
View Product
Part 3601P336-45
Whirlpool
3601P336-45
BAFFLE, BROIL BURNER
Checking…
View Product
Part WPW10211368
Whirlpool
WPW10211368
BOTTOM, OVEN
Checking…
View Product
Part W10558276
Whirlpool
W10558276
BOX, BURNER
Checking…
View Product
Part W10289168
Whirlpool
W10289168
BOX, BURNER
Checking…
View Product
Part W10162253
Whirlpool
W10162253
BRACE, CORNER (LEFT)
Checking…
View Product
Part W10162252
Whirlpool
W10162252
BRACE, CORNER (RIGHT)
Checking…
View Product
Part W10224921
Whirlpool
W10224921
BRACKET, AEGIS
Checking…
View Product
Part W11502257
Whirlpool
W11502257
BRACKET, ANTI-TIP
Checking…
View Product
Part W10598048
Whirlpool
W10598048
BRACKET, CONSOLE (CENTER)
Checking…
View Product
Part W10547960
Whirlpool
W10547960
BRACKET, CONSOLE (LEFT)
Checking…
View Product
Part W10547961
Whirlpool
W10547961
BRACKET, CONSOLE (RIGHT)
Checking…
View Product
Part W10558372
Whirlpool
W10558372
BRACKET, CONTROL
Checking…
View Product
Part W10294853
Whirlpool
W10294853
BRACKET, GLASS LINER
Checking…
View Product
Part WPW10318026
Whirlpool
WPW10318026
BRACKET, MOUNTING
Checking…
View Product
Part W10273002
Whirlpool
W10273002
BRACKET, OVEN SUPPORT
Checking…
View Product
Part W10949105
Whirlpool
W10949105
BRACKET, SADDLE VALVE
Checking…
View Product
Part 8009
Whirlpool
8009
BULB, OVEN LIGHT
Checking…
View Product
Part W11104127
Whirlpool
W11104127
BUMPER
Checking…
View Product
Part W10764654
Whirlpool
W10764654
BURNER, BAKE
Checking…
View Product
Part W11676566
Whirlpool
W11676566
BURNER, BROILER
Checking…
View Product
Part W11131701
Whirlpool
W11131701
BUSHING (BLACK)
Checking…
View Product
Part W10162241
Whirlpool
W10162241
CHANNEL, REAR
Checking…
View Product
Part W10336909
Whirlpool
W10336909
CLEANER
Checking…
View Product
Part 16515
Whirlpool
16515
CLIP, HARNESS
Checking…
View Product
Part W10137382
Whirlpool
W10137382
CLIP, PANEL
Checking…
View Product
Part W11190173
Whirlpool
W11190173
CLIP, SPRING ELECTRODE
Checking…
View Product
Part 3400964
Whirlpool
3400964
CLIP, WIRE
Checking…
View Product
Part W10866583
Whirlpool
W10866583
CLIP-PANEL, RATCHETING
Checking…
View Product
Part W10728507
Whirlpool
W10728507
CONSOLE (BLACK)
Checking…
View Product
Part W10885068
Whirlpool
W10885068
CONSOLE (STAINLESS)
Checking…
View Product
Part W10728505
Whirlpool
W10728505
CONSOLE (WHITE)
Checking…
View Product
Part W11218703
Whirlpool
W11218703
CONSOLE, LOWER PANEL (BLACK)
Checking…
View Product
Part W10570528
Whirlpool
W10570528
CONSOLE, LOWER PANEL (WHITE)
Checking…
View Product
Part W11122852
Whirlpool
W11122852
CONTROL BOARD
Checking…
View Product
Part W10885066
Whirlpool
W10885066
COOKTOP (INCLUDES HINGES) (BLACK)
Checking…
View Product
Part W10885067
Whirlpool
W10885067
COOKTOP (INCLUDES HINGES) (WHITE)
Checking…
View Product
Part W11582239
Whirlpool
W11582239
CORD, POWER
Checking…
View Product
Part W11379354
Whirlpool
W11379354
COVER, BACK
Checking…
View Product
Part WPW10346154
Whirlpool
WPW10346154
COVER, CONVECTION
Checking…
View Product
Part W10162249
Whirlpool
W10162249
COVER, WIRE
Checking…
View Product
Part W10844275
Whirlpool
W10844275
DIAGRAM, WIRING
Checking…
View Product
Part W10323077
Whirlpool
W10323077
DIFFUSER, FLAME
Checking…
View Product
Part W10813962
Whirlpool
W10813962
DRAWER, STORAGE
Checking…
View Product
Part W10162257
Whirlpool
W10162257
DUCT, COOKTOP
Checking…
View Product
Part W10162254
Whirlpool
W10162254
DUCT, COOLING
Checking…
View Product
Part W10162255
Whirlpool
W10162255
DUCT, COVER
Checking…
View Product
Part W11611678
Whirlpool
W11611678
ELECTRODE (LEFT FRONT)
Checking…
View Product
Part W11050467
Whirlpool
W11050467
ELECTRODE (LEFT REAR)
Checking…
View Product
Part W11447374
Whirlpool
W11447374
ELECTRODE (RIGHT FRONT & CENTER)
Checking…
View Product
Part W11220383
Whirlpool
W11220383
ELECTRODE (RIGHT REAR)
Checking…
View Product
Part WPW10333842
Whirlpool
WPW10333842
ELECTRODE, BROIL
Checking…
View Product
Part W10885069
Whirlpool
W10885069
ELECTRONIC, CONTROL MRC2
Checking…
View Product
Part W10583216
Whirlpool
W10583216
FITTING, BROIL BURNER
Checking…
View Product
Part WPW10058460
Whirlpool
WPW10058460
FOOT, LEVELING
Checking…
View Product
Part W10802457
Whirlpool
W10802457
GASKET, CONSOLE
Checking…
View Product
Part W11744482
Whirlpool
W11744482
GASKET, CONSOLE SHORT
Checking…
View Product
Part W10802441
Whirlpool
W10802441
GASKET, CONSOLE/ COOKTOP
Checking…
View Product
Part W11562931
Whirlpool
W11562931
GASKET, DOOR
Checking…
View Product
Part WPW10300487
Whirlpool
WPW10300487
GLASS, INNER
Checking…
View Product
Part WPW10289142
Whirlpool
WPW10289142
GLASS, OUTER (BLACK)
Checking…
View Product
Part W10909032
Whirlpool
W10909032
GLASS, OUTER (STAINLESS (INCLUDES BADGE))
Checking…
View Product
Part WPW10289141
Whirlpool
WPW10289141
GLASS, OUTER (WHITE)
Checking…
View Product
Part W11189172
Whirlpool
W11189172
GLIDE, MAIN TOP
Checking…
View Product
Part W10655451
Whirlpool
W10655451
GUARD, SPLASH
Checking…
View Product
Part W10400066
Whirlpool
W10400066
GUIDE, QUICK START (ENGLISH)
Checking…
View Product
Part W10400067
Whirlpool
W10400067
GUIDE, QUICK START (FRENCH)
Checking…
View Product
Part W11123992
Whirlpool
W11123992
GUIDE, USE AND CARE
Checking…
View Product
Part W10841340
Whirlpool
W10841340
GUIDE, USE AND CARE
Checking…
View Product
Part WPW10618239
Whirlpool
WPW10618239
HANDLE, DOOR (STAINLESS)
Checking…
View Product
Part W11198972
Whirlpool
W11198972
HARNESS, BAKE/BROIL
Checking…
View Product
Part W11176109
Whirlpool
W11176109
HARNESS, DISPLAY
Checking…
View Product
Part W11025616
Whirlpool
W11025616
HARNESS, KEYPAD
Checking…
View Product
Part W10908899
Whirlpool
W10908899
HARNESS, MAIN
Checking…
View Product
Part W10580230
Whirlpool
W10580230
HARNESS, MAIN
Checking…
View Product
Part W11677625
Whirlpool
W11677625
HARNESS, SPARK SWITCH
Checking…
View Product
Part WPW10440013
Whirlpool
WPW10440013
HINGE, DOOR (ACTIVE)
Checking…
View Product
Part N/P
Whirlpool
N/P
HINGE, GRATE (NOT SERVICED)
Checking…
View Product
Part WPW10324262
Whirlpool
WPW10324262
IGNITER, BAKE
Checking…
View Product
Part W11124007
Whirlpool
W11124007
INSTRUCTIONS, INSTALLATION
Checking…
View Product
Part WPW10208653
Whirlpool
WPW10208653
INSULATION
Checking…
View Product
Part W11688363
Whirlpool
W11688363
INSULATION, BACK
Checking…
View Product
Part W11684889
Whirlpool
W11684889
INSULATION, BURNER BOX
Checking…
View Product
Part W10841090
Whirlpool
W10841090
INSULATION, CLAMP, WIRE
Checking…
View Product
Part W11688565
Whirlpool
W11688565
INSULATION, DOOR
Checking…
View Product
Part 4820F015-59
Whirlpool
4820F015-59
INSULATION, STRAP
Checking…
View Product
Part W11688567
Whirlpool
W11688567
INSULATION, WRAP
Checking…
View Product
Part W11161846
Whirlpool
W11161846
KIT, BURNER CAP (BLACK)
Checking…
View Product
Part W11381339
Whirlpool
W11381339
KIT, GRATE (BLACK)
Checking…
View Product
Part W11087486
Whirlpool
W11087486
KIT, LP CONVERSION (BAKE/BROIL)
Checking…
View Product
Part W11126047
Whirlpool
W11126047
KIT, LP CONVERSION (BURNERS)
Checking…
View Product
Part W11211501
Whirlpool
W11211501
KNOB (MINI) (STAINLESS)
Checking…
View Product
Part W11517334
Whirlpool
W11517334
KNOB (STAINLESS)
Checking…
View Product
Part WPW10297318
Whirlpool
WPW10297318
LINER, DOOR
Checking…
View Product
Part W10860916
Whirlpool
W10860916
MODULE, SPARK (0+2)
Checking…
View Product
Part WPW10475149
Whirlpool
WPW10475149
MODULE, SPARK (5+0)
Checking…
View Product
Part W10657947
Whirlpool
W10657947
ORIFICE (8K) (CENTER)
Checking…
View Product
Part W10256129
Whirlpool
W10256129
ORIFICE (9.2K) (CENTER)
Checking…
View Product
Part W11690133
Whirlpool
W11690133
ORIFICE (LEFT FRONT)
Checking…
View Product
Part W10756981
Whirlpool
W10756981
ORIFICE (LEFT REAR)
Checking…
View Product
Part W10821182
Whirlpool
W10821182
ORIFICE (RIGHT FRONT)
Checking…
View Product
Part W10657949
Whirlpool
W10657949
ORIFICE (RIGHT REAR)
Checking…
View Product
Part 799344
Whirlpool
799344
PAINT, BULK (1 QT. WHITE (UNCUT))
Checking…
View Product
Part 350930
Whirlpool
350930
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
Checking…
View Product
Part 285006
Whirlpool
285006
PAINT, PRESSURIZED SPRAY (12OZ. BLACK)
Checking…
View Product
Part 350942
Whirlpool
350942
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER)
Checking…
View Product
Part 72032
Whirlpool
72032
PAINT, TOUCH-UP (1/2OZ. BLACK)
Checking…
View Product
Part 511873
Whirlpool
511873
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
Checking…
View Product
Part 72017
Whirlpool
72017
PAINT, TOUCH-UP (1/2OZ. WHITE)
Checking…
View Product
Part W11379356
Whirlpool
W11379356
PAN, BAKE
Checking…
View Product
Part W11449686
Whirlpool
W11449686
PANEL, DRAWER FRONT (BLACK)
Checking…
View Product
Part W10859916
Whirlpool
W10859916
PANEL, DRAWER FRONT (STAINLESS)
Checking…
View Product
Part W11449681
Whirlpool
W11449681
PANEL, DRAWER FRONT (WHITE)
Checking…
View Product
Part WPW10162245
Whirlpool
WPW10162245
PANEL, SIDE (BLACK)
Checking…
View Product
Part WPW10575396
Whirlpool
WPW10575396
PANEL, SIDE (WHITE)
Checking…
View Product
Part WPW10531060
Whirlpool
WPW10531060
RACK, OVEN
Checking…
View Product
Part WPW10289145
Whirlpool
WPW10289145
RACK, OVEN (GULL-WING)
Checking…
View Product
Part W11116956
Whirlpool
W11116956
RAIL, DOOR
Checking…
View Product
Part W10647259
Whirlpool
W10647259
RECEIVER, HINGE
Checking…
View Product
Part 8212471
Whirlpool
8212471
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
Checking…
View Product
Part W10273192
Whirlpool
W10273192
ROD, DOOR SWITCH
Checking…
View Product
Part WPW10317886
Whirlpool
WPW10317886
SCREW
Checking…
View Product
Part W11396735
Whirlpool
W11396735
SCREW
Checking…
View Product
Part W11676349
Whirlpool
W11676349
SCREW
Checking…
View Product
Part WPW10067840
Whirlpool
WPW10067840
SCREW
Checking…
View Product
Part W10516115
Whirlpool
W10516115
SCREW
Checking…
View Product
Part W11244557
Whirlpool
W11244557
SCREW
Checking…
View Product
Part W11241230
Whirlpool
W11241230
SCREW
Checking…
View Product
Part WP3368921
Whirlpool
WP3368921
SCREW
Checking…
View Product
Part W11233072
Whirlpool
W11233072
SCREW
Checking…
View Product
Part W10777162
Whirlpool
W10777162
SCREW
Checking…
View Product
Part W11666001
Whirlpool
W11666001
SCREW
Checking…
View Product
Part W11684507
Whirlpool
W11684507
SCREW
Checking…
View Product
Part WP3400016
Whirlpool
WP3400016
SCREW
Checking…
View Product
Part WP3400882
Whirlpool
WP3400882
SCREW
Checking…
View Product
Part WP355214
Whirlpool
WP355214
SCREW
Checking…
View Product
Part WPW10031790
Whirlpool
WPW10031790
SCREW
Checking…
View Product
Part WP3196557
Whirlpool
WP3196557
SCREW
Checking…
View Product
Part WP7101P485-60
Whirlpool
WP7101P485-60
SCREW, ANTI-TIP KIT
Checking…
View Product
Part W10140571
Whirlpool
W10140571
SEAL, SWITCH SHAFT
Checking…
View Product
Part W10833885
Whirlpool
W10833885
SENSOR
Checking…
View Product
Part W10844271
Whirlpool
W10844271
SHEET, TECH
Checking…
View Product
Part W10541959
Whirlpool
W10541959
SHIELD, BAKE
Checking…
View Product
Part W11117035
Whirlpool
W11117035
SHIELD, WIRE
Checking…
View Product
Part W10655485
Whirlpool
W10655485
SHIELD, WIRE
Checking…
View Product
Part WPW10441804
Whirlpool
WPW10441804
SLIDE, DRAWER (LEFT)
Checking…
View Product
Part WPW10441805
Whirlpool
WPW10441805
SLIDE, DRAWER (RIGHT)
Checking…
View Product
Part W10877054
Whirlpool
W10877054
SPACER, DOOR
Checking…
View Product
Part W11162114
Whirlpool
W11162114
SPREADER, FLAME (CENTER)
Checking…
View Product
Part WPW10256028
Whirlpool
WPW10256028
SPREADER, FLAME (LEFT FRONT & RIGHT FRONT)
Checking…
View Product
Part W10836467
Whirlpool
W10836467
SPREADER, FLAME (LEFT REAR)
Checking…
View Product
Part WPW10256025
Whirlpool
WPW10256025
SPREADER, FLAME (RIGHT REAR)
Checking…
View Product
Part W11752198
Whirlpool
W11752198
SPUD-ORFCE
Checking…
View Product
Part WPW10410341
Whirlpool
WPW10410341
STANDOFF, HANDLE (BLACK)
Checking…
View Product
Part WPW10429492
Whirlpool
WPW10429492
STANDOFF, HANDLE (WHITE)
Checking…
View Product
Part W10289170
Whirlpool
W10289170
SUPPORT, COOKTOP (LEFT)
Checking…
View Product
Part W10289169
Whirlpool
W10289169
SUPPORT, COOKTOP (RIGHT)
Checking…
View Product
Part W10035900
Whirlpool
W10035900
SUPPORT, OVEN BOTTOM
Checking…
View Product
Part WP9757262
Whirlpool
WP9757262
SWITCH, DOOR
Checking…
View Product
Part 9762761
Whirlpool
9762761
TIPS, SAFE COOKING (ENGLISH)
Checking…
View Product
Part W10065852
Whirlpool
W10065852
TIPS, SAFE COOKING (FRENCH)
Checking…
View Product
Part W10334031
Whirlpool
W10334031
TRIM, DOOR BOTTOM (BLACK)
Checking…
View Product
Part WPW10333990
Whirlpool
WPW10333990
TRIM, DOOR BOTTOM (WHITE)
Checking…
View Product
Part W10334004
Whirlpool
W10334004
TRIM, DOOR SIDE (BLACK)
Checking…
View Product
Part W10334003
Whirlpool
W10334003
TRIM, DOOR SIDE (WHITE)
Checking…
View Product
Part W11256338
Whirlpool
W11256338
TRIM, VENT (BLACK)
Checking…
View Product
Part W10294855
Whirlpool
W10294855
TRIM, VENT (BLACK)
Checking…
View Product
Part W10335333
Whirlpool
W10335333
TRIM, VENT (STAINLESS)
Checking…
View Product
Part W10577780
Whirlpool
W10577780
TRIM, VENT (WHITE)
Checking…
View Product
Part WPW10335331
Whirlpool
WPW10335331
TRIM, VENT (WHITE)
Checking…
View Product
Part W11205076
Whirlpool
W11205076
TRIM-VENT
Checking…
View Product
Part W10552140
Whirlpool
W10552140
TUBE, SUPPLY
Checking…
View Product
Part W10306050
Whirlpool
W10306050
TUBING (BROILER FITTING TO VALVE)
Checking…
View Product
Part W10850893
Whirlpool
W10850893
VALVE, GAS (CENTER)
Checking…
View Product
Part W11223016
Whirlpool
W11223016
VALVE, GAS (LEFT FRONT & RIGHT FRONT)
Checking…
View Product
Part W11672512
Whirlpool
W11672512
VALVE, GAS (LEFT REAR)
Checking…
View Product
Part W11163975
Whirlpool
W11163975
VALVE, GAS (RIGHT REAR)
Checking…
View Product
Part W10861656
Whirlpool
W10861656
VALVE, REGULATOR
Checking…
View Product
Part W10580229
Whirlpool
W10580229
WIRE, GROUND
Checking…
View Product
    Main Menu x
