Model Image
Manufacturer

Whirlpool

Model Number

WETLV27HW2

Description

Laundry Center/combo

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11685943 W11685943 8-18 X .375
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT, 1-QT (WHITE)
WP488729 WP488729 APPLIANCE SCREW
WP8533928 WP8533928 APPLIANCE SCREW
WP681414 WP681414 APPLIANCE SCREW, 10-16 X 1/2-IN
350938 350938 APPLIANCE SPRAY PAINT (GRAY PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
W11341565 W11341565 BACK PANEL A
W11100260 W11100260 BASE BRACKET
W11107897 W11107897 BASE-DRYER-E
WP3952374 WP3952374 BEARING
W11661767 W11661767 BRACE
W11712680 W11712680 BRACE, CABINET TOP - REAR
W11179188 W11179188 BRACKET
3393721 3393721 BRACKET
W10878109 W10878109 BRACKET
3389648 3389648 BRACKET
W11193957 W11193957 BRACKET
W11028409 W11028409 BRACKET FSOU
W10760374 W10760374 BRACKET, ROLLER ASSEMBLY
W11609859 W11609859 BRACKET, TERMINAL BLOCK
W11561937 W11561937 BRKT ANGLE
W11049351 W11049351 BUTTON - PTS
W11026516 W11026516 CHANNEL ASSEMBLY
W11026515 W11026515 CHANNEL ASSEMBLY
W10005430 W10005430 CLAMP
W10210799 W10210799 CLIP
3389231 3389231 CLIP
W11040441 W11040441 CNSL SHIELD
WPW10269488 WPW10269488 CONNECTOR

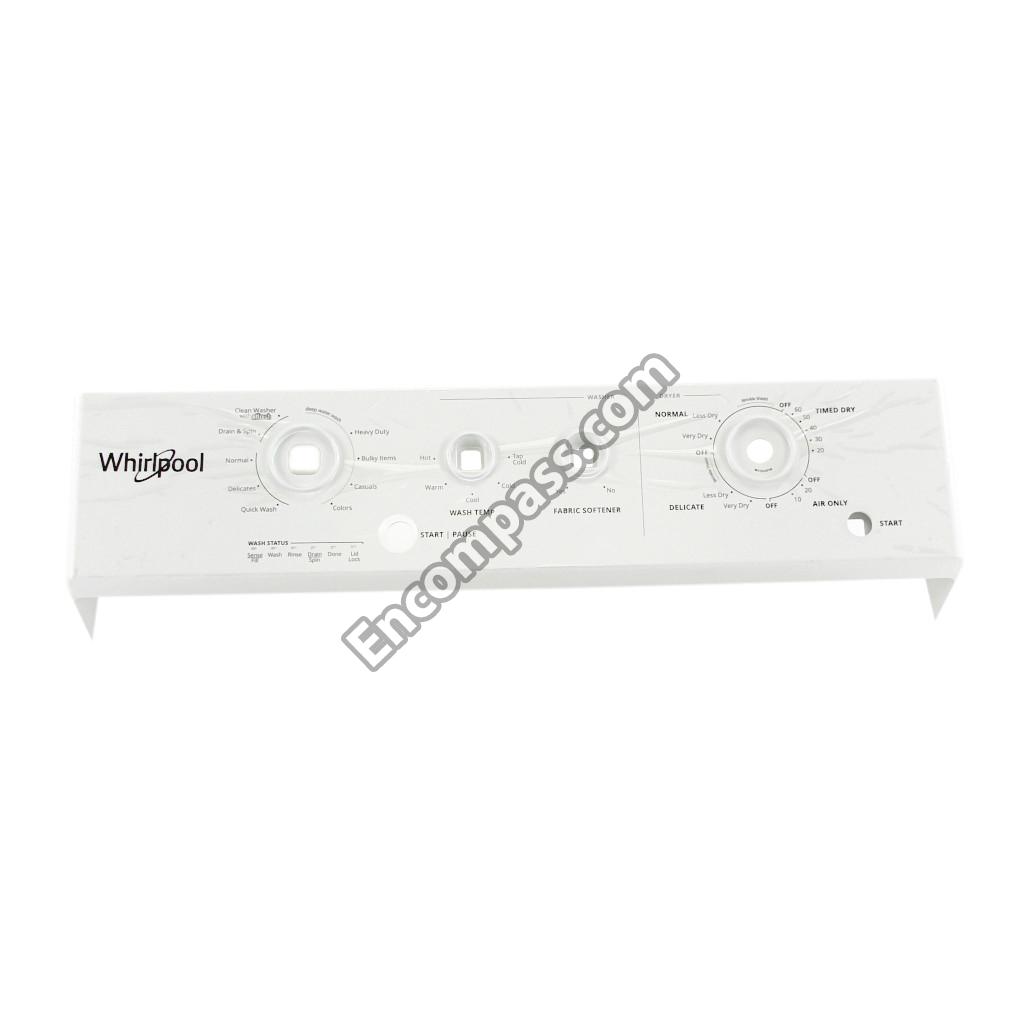

W11364933 W11364933 CONSOLE ASM,
W10585084 W10585084 COUPLING, PRESSURE HOSE
W11176116 W11176116 COVER
279780 279780 COVER PLATE
W11168256 W11168256 CYCLE SWITCH
WP9740848 WP9740848 DISHWASHER SCREW
W11663440 W11663440 DOOR
W10888146 W10888146 DRYER BLOWER HOUSING
WP697770 WP697770 DRYER BLOWER HOUSING SEAL
WPW10349492 WPW10349492 DRYER BLOWER WHEEL
W11299300 W11299300 DRYER BULKHEAD
WP98234 WP98234 DRYER CABINET CLIP
3390935 3390935 DRYER CLIP
W10756270 W10756270 DRYER CONTROL KNOB
W11429587 W11429587 DRYER DOOR CATCH
WPW10529197 WPW10529197 DRYER DOOR CATCH BEZEL

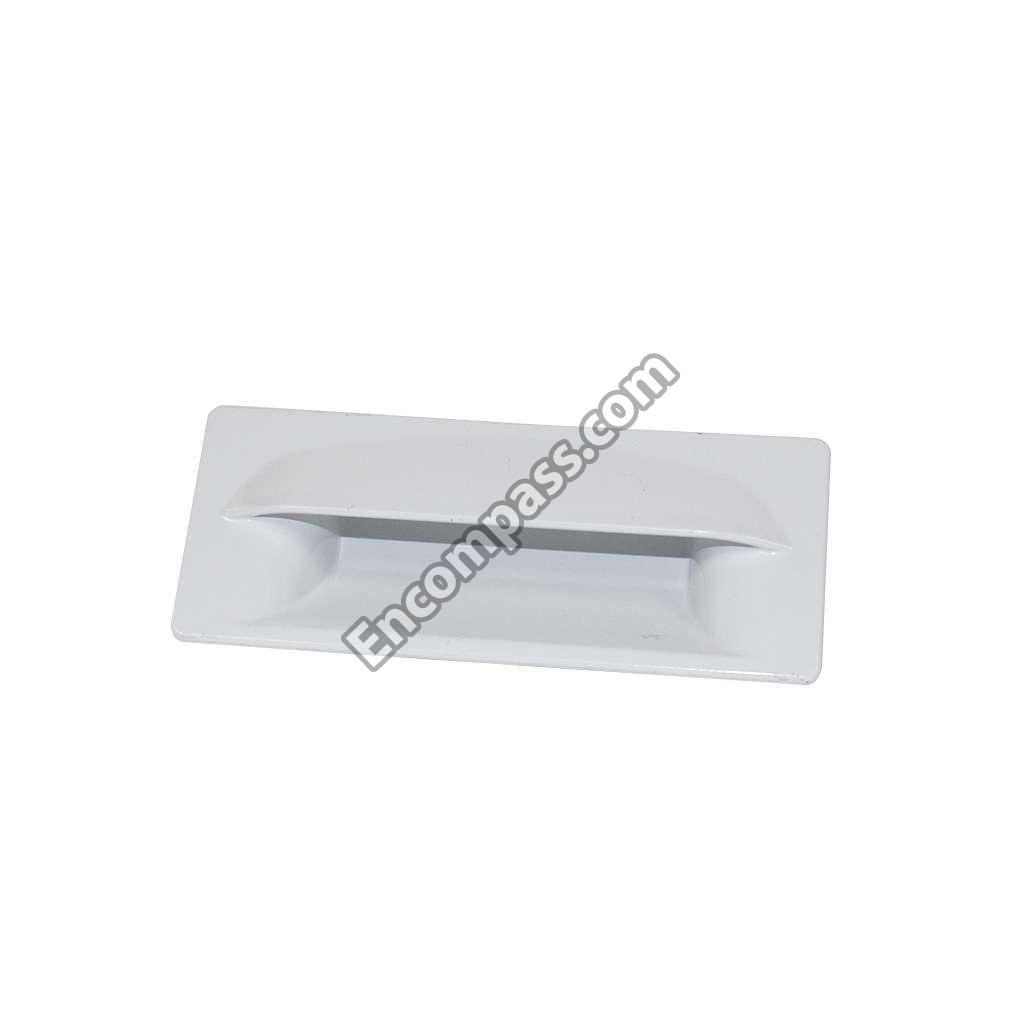

W10877261 W10877261 DRYER DOOR HANDLE
W10823582 W10823582 DRYER DOOR SEAL
W10518375 W10518375 DRYER DRUM
279982 279982 DRYER DRUM BAFFLE
341241 341241 DRYER DRUM BELT
WP3387242 WP3387242 DRYER DRUM FELT SEAL
WPW10314173 WPW10314173 DRYER DRUM SUPPORT ROLLER
WPW10359271 WPW10359271 DRYER DRUM SUPPORT ROLLER SHAFT
WPW10359272 WPW10359272 DRYER DRUM SUPPORT ROLLER SHAFT
WP697557 WP697557 DRYER FRONT BULKHEAD
WP3387911 WP3387911 DRYER HEAT DUCT
WP3387749 WP3387749 DRYER HEATING ELEMENT
279457 279457 DRYER HEATING ELEMENT WIRE KIT
WP3390291 WP3390291 DRYER HIGH-LIMIT THERMOSTAT
279640 279640 DRYER IDLER PULLEY
WPW10446781 WPW10446781 DRYER IDLER SPRING
279700 279700 DRYER LINT CHUTE ASSEMBLY
WP3389644 WP3389644 DRYER LINT SCREEN
W11086603 W11086603 DRYER LINT SCREEN GRILLE
W11129408 W11129408 DRYER LINT SCREEN HOUSING
WP3387223 WP3387223 DRYER MOISTURE SENSOR
WPW10476828 WPW10476828 DRYER MOISTURE SENSOR CONTROL BOARD
WPW10121316 WPW10121316 DRYER MOTOR CLAMP
WPW10080210 WPW10080210 DRYER NUT
WPW10080190 WPW10080190 DRYER NUT, 3/8-IN
WP3387134 WP3387134 DRYER OPERATING THERMOSTAT

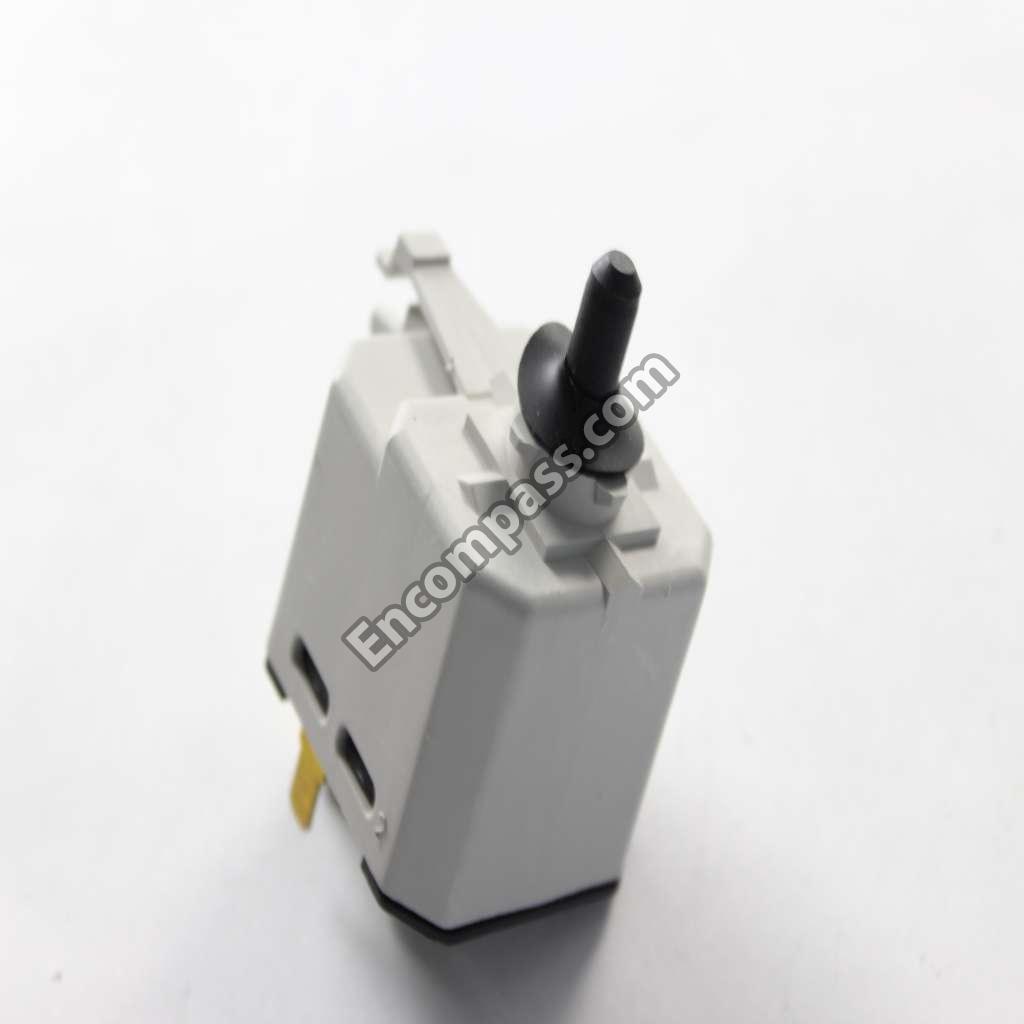

WPW10563095 WPW10563095 DRYER PUSH-TO-START SWITCH
4392065 4392065 DRYER REPAIR KIT
WP3387230 WP3387230 DRYER SCREW
WPW10109200 WPW10109200 DRYER SCREW
W11590579 W11590579 DRYER SCREW, #10-24 X 0.813-IN
279393 279393 DRYER TERMINAL BLOCK SCREW AND NUT SET
279318 279318 DRYER TERMINAL BLOCK WIRE SET
279769 279769 DRYER THERMAL CUT-OFF FUSE KIT, 352-DEGREE F
WP3392519 WP3392519 DRYER THERMAL FUSE, 195-DEGREE F
WP3388229 WP3388229 DRYER TOE PANEL CLIP
WPW10512946 WPW10512946 DRYER TRI-RING RETAINER
W11224254 W11224254 DRYER VENT TESTER

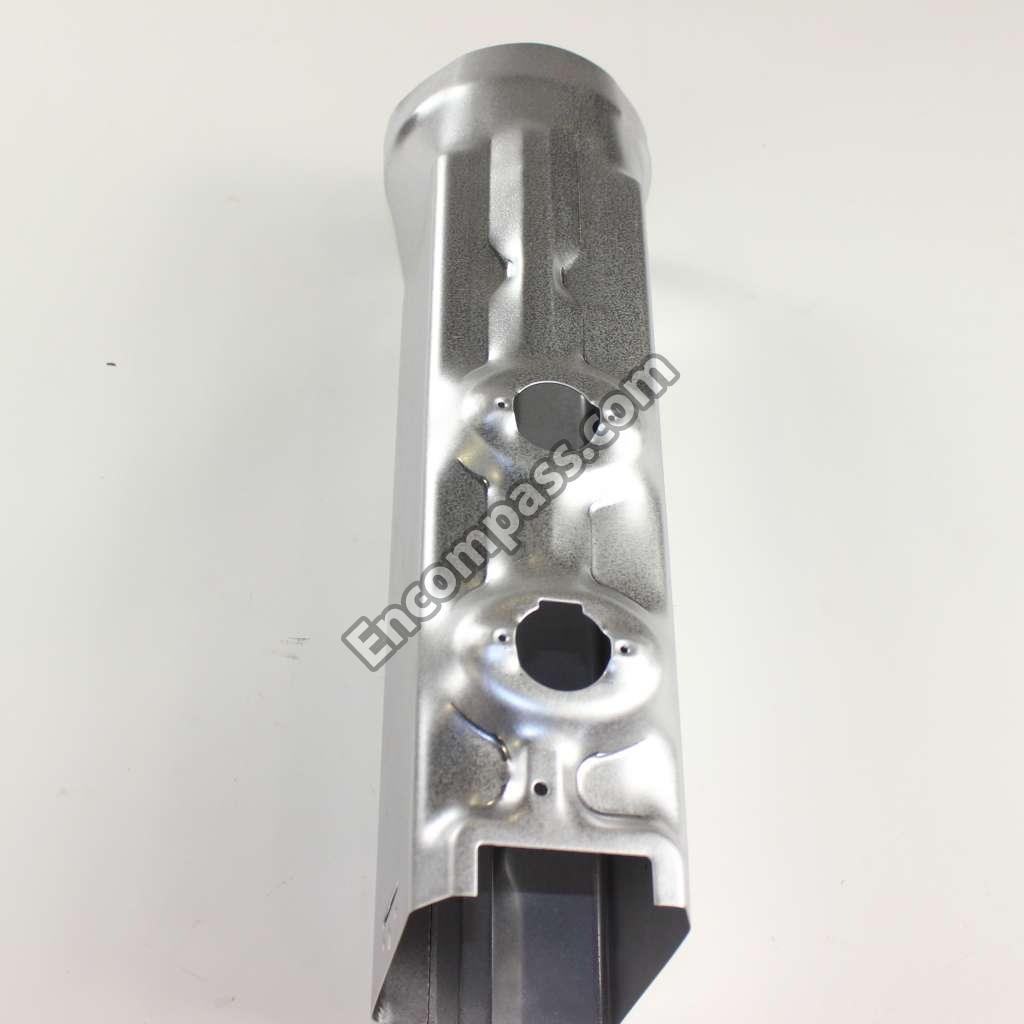

W10907639 W10907639 DUCT-TRANS
279704 279704 DUCT-TRANS
W11129508 W11129508 ENERGY GUIDE
WP8563748 WP8563748 EXTEN-EXHT
W11735636 W11735636 FOOT ASSEMBLY, LEVELING
W11085935 W11085935 FRT PNL-FSOU
W11417071 W11417071 HARN LWR WAS
W11491459 W11491459 HARN MAIN EL
W11662155 W11662155 HARN UPPER W
W10694669 W10694669 HARNESS_UPPE
W10608822 W10608822 HEATER BOX
3389453 3389453 HINGE
WPW10279703 WPW10279703 HINGE
WP356138 WP356138 HOSE CLAMP
W11425717 W11425717 INSTALLATION INSTRUCTIONS
W11222849 W11222849 IVVB, ASSEMB
WP688805 WP688805 LAUNDRY APPLIANCE CONTROL KNOB CLIP
W11568617 W11568617 LAUNDRY APPLIANCE SCREW, #8-18 X 1/2-IN
279823 279823 LAUNDRY CENTER DRYER SIDE EXHAUST EXTENSION KIT

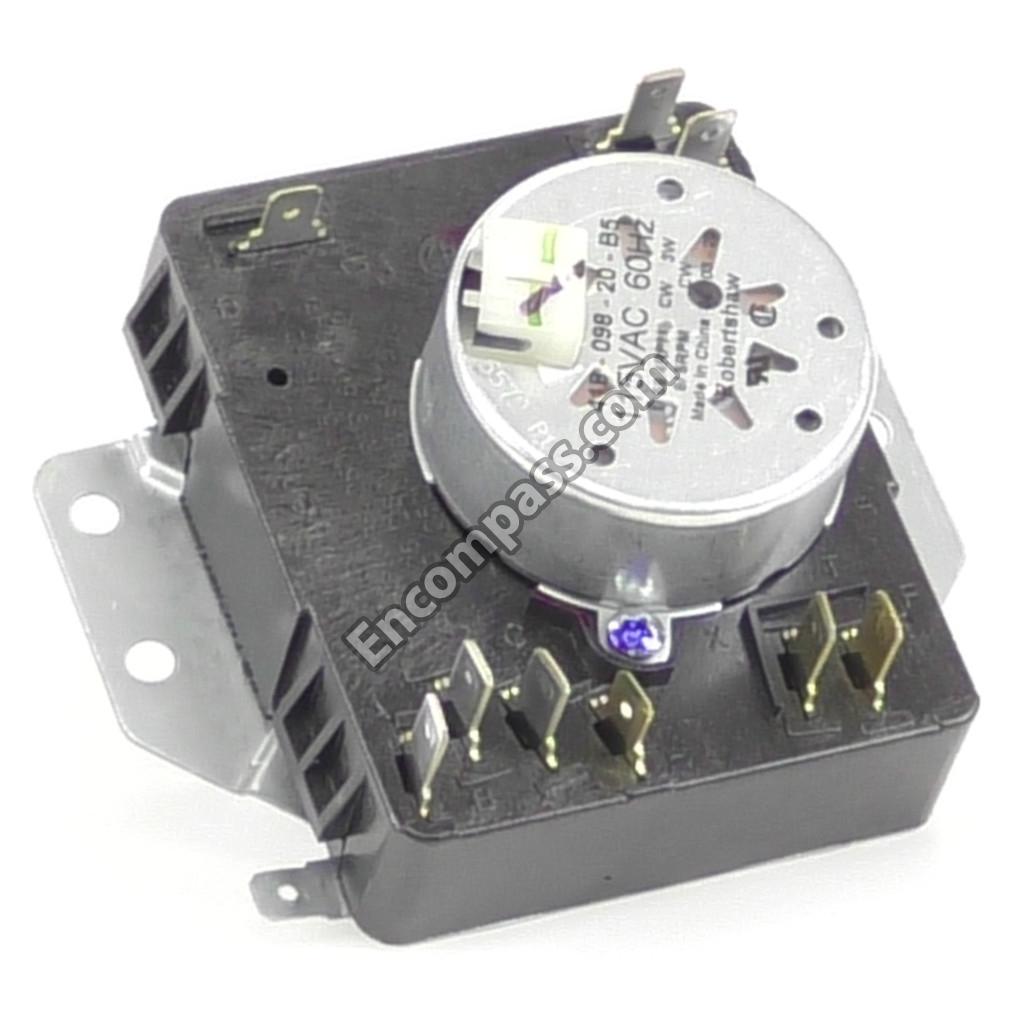

W11409801 W11409801 LAUNDRY CENTER DRYER TIMER
WP8566209 WP8566209 LAUNDRY CENTER DRYER TRANSITION DUCT SEAL
W11629601 W11629601 LAUNDRY CENTER WASHER ELECTRONIC CONTROL BOARD
W11028744 W11028744 MAGNET ASSEMBLY
W11107901 W11107901 MOTOR BRACKET
W10918858 W10918858 MOTOR PULLEY
W11094983 W11094983 MOTOR-DRVE
3388958 3388958 PANEL
3389272 3389272 PANEL
8066086 8066086 PLUG
WP308685 WP308685 RANGE SCREW
W10850756 W10850756 RANGE SCREW
W11042299 W11042299 REAR INLET-H
W10892491 W10892491 REAR PANEL
W11486091 W11486091 REAR PANEL-V
WP488627 WP488627 REFRIGERATOR SCREW
W11685857 W11685857 SCREW
WP3395530 WP3395530 SCREW
WP693304 WP693304 SCREW
W10853898 W10853898 SCREW
WPW10249633 WPW10249633 SCREW
W11596033 W11596033 SCREW, 6-32 X 1.00
W11229602 W11229602 SEAL
W11108179 W11108179 SHEILD-THERM
W11108181 W11108181 SHIELD-FRONT
W11043388 W11043388 SIDE PANEL
W11043381 W11043381 SIDE PANEL
3389682 3389682 SPACER WASHER
W11751471 W11751471 STRIKE
W10663313 W10663313 STRIKE
W11092677 W11092677 SWITCH

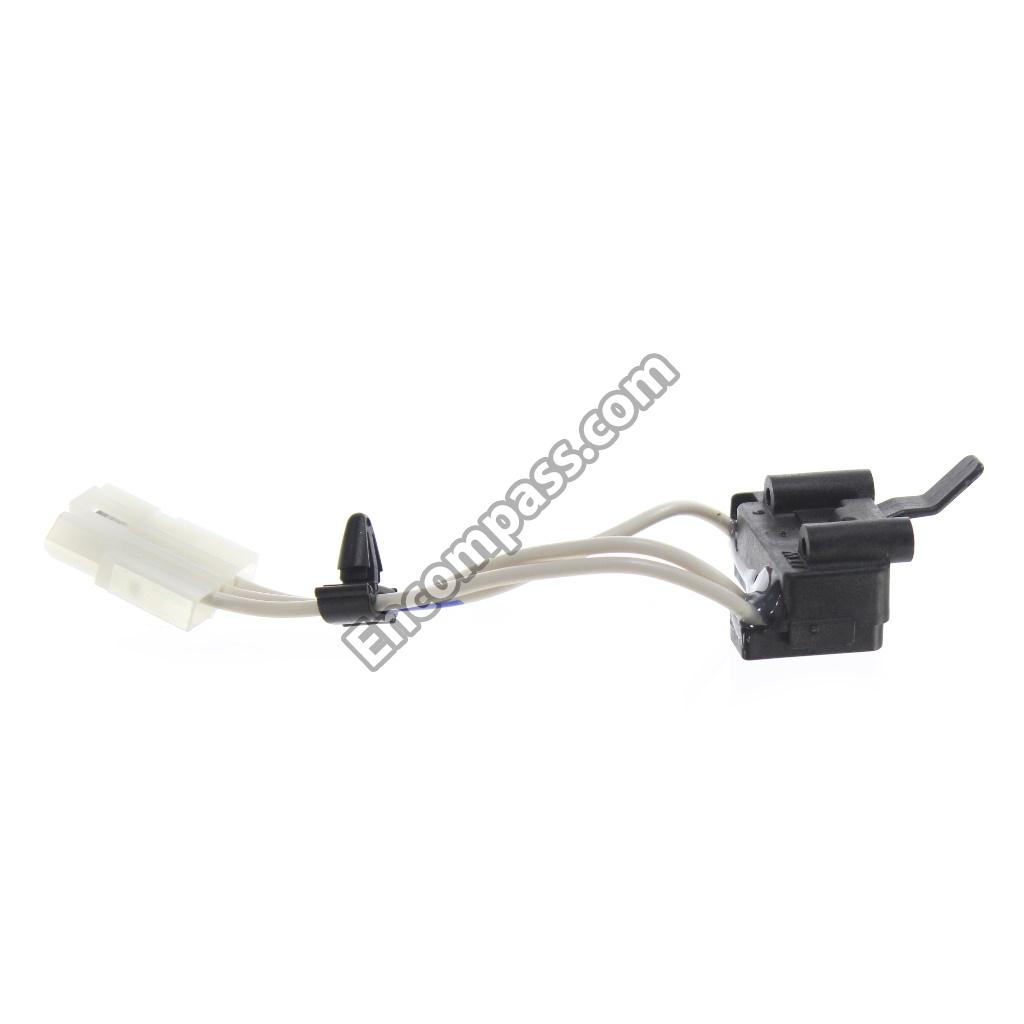

W11189162 W11189162 SWITCH-DOR
W11082888 W11082888 TECHNICAL SHEET
W11176111 W11176111 TOP
W11096834 W11096834 TOP ASM, DRY
W11028710 W11028710 USE AND CARE GUIDE
WP3357450 WP3357450 WASHER
W10913953 W10913953 WASHER ACTUATOR
285565 285565 WASHER AGITATOR
WP3951744 WP3951744 WASHER AGITATOR
WP3951632 WP3951632 WASHER AGITATOR
WP3363003 WP3363003 WASHER AGITATOR AUGER
285809 285809 WASHER AGITATOR CAM REPAIR KIT
WPW10074580 WPW10074580 WASHER AGITATOR CAP
80040 80040 WASHER AGITATOR DOG SET
WP3951608 WP3951608 WASHER AGITATOR THRUST WASHER
WPW10192089 WPW10192089 WASHER BLEACH DISPENSER ASSEMBLY
W10596395 W10596395 WASHER CABINET
W11695476 W11695476 WASHER CABINET REINFORCEMENT BRACKET
WPW10339879 WPW10339879 WASHER CABLE TIE
WP89503 WP89503 WASHER COLD/HOT WATER FILL HOSE, 5-FT
W10182109 W10182109 WASHER COUNTERWEIGHT BOLT KIT
W10859568 W10859568 WASHER CYCLE SELECTOR SWITCH
W11281268 W11281268 WASHER DRAIN HOSE
3363920A 3363920A WASHER DRAIN HOSE ADAPTER
285835 285835 WASHER DRAIN HOSE COUPLING KIT
DRNEXT4 DRNEXT4 WASHER DRAIN HOSE EXTENSION KIT
285863 285863 WASHER DRAIN HOSE EXTENSION, 4-FT
WPW10280024 WPW10280024 WASHER DRAIN HOSE U-BEND BRACKET
W10919003 W10919003 WASHER DRAIN PUMP
WPW10215093 WPW10215093 WASHER DRAIN PUMP FILTER
W11239857 W11239857 WASHER DRIVE BELT
WP389140 WP389140 WASHER DRIVE BLOCK
W10890624 W10890624 WASHER DRIVE MOTOR
W10721967 W10721967 WASHER DRIVE PULLEY
8575076A 8575076A WASHER FABRIC SOFTENER DISPENSER CUP
285452A 285452A WASHER FILL HOSE SEAL AND SCREEN
W11454741 W11454741 WASHER GEAR CASE
WP285655 WP285655 WASHER HOSE CLAMP
W10860912 W10860912 WASHER LID
WP9724509 WP9724509 WASHER LID BUMPER
WP91770 WP91770 WASHER LID HINGE
WP21258 WP21258 WASHER LID HINGE BEARING

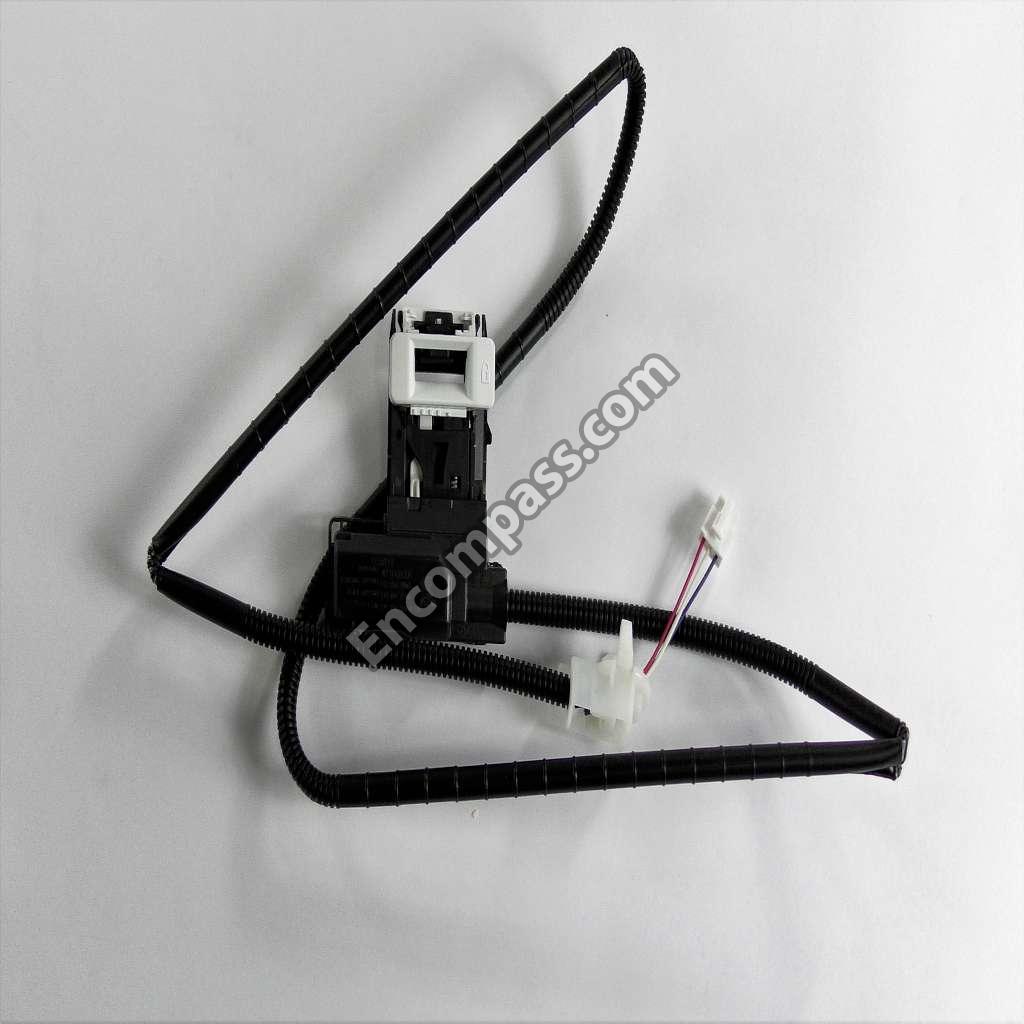

W11176112 W11176112 WASHER LID LOCK ASSEMBLY
W10837741 W10837741 WASHER LID STRIKE
WPW10072840 WPW10072840 WASHER O-RING
W10371566 W10371566 WASHER OUTER TUB
WPW10427633 WPW10427633 WASHER PULLEY SHIELD
WP692400 WP692400 WASHER PUSH NUT
WP90767 WP90767 WASHER SCREW
WP273556 WP273556 WASHER SCREW
WP3389420 WP3389420 WASHER SCREW
WP693995 WP693995 WASHER SCREW
WPW10119828 WPW10119828 WASHER SCREW
WPW10273971 WPW10273971 WASHER SCREW
W10772621 W10772621 WASHER SCREW
WPW10004910 WPW10004910 WASHER SCREW
W11573574 W11573574 WASHER SCREW
WP3390631 WP3390631 WASHER SCREW, #10-16 X 3/8-IN
W10846509 W10846509 WASHER SCREW, #10-32 X 5/8-IN
285834 285834 WASHER SIPHON BREAK KIT
WP21366 WP21366 WASHER SPANNER NUT
W10554251 W10554251 WASHER SPIN BASKET
W11158830 W11158830 WASHER START/RUN CAPACITOR
W10780045 W10780045 WASHER SUSPENSION ROD KIT
WPW10531289 WPW10531289 WASHER TUB RING
W10899966 W10899966 WASHER TUB-TO-PUMP HOSE
WP90016 WP90016 WASHER WIRE HARNESS RETAINER
WP3949550 WP3949550 WASHING MACHINE WASHER
WP16123 WP16123 WASHING MACHINE WASHER
W10676061 W10676061 WIRE SHIELD
W11097402 W11097402 WIRING DIAGRAM
