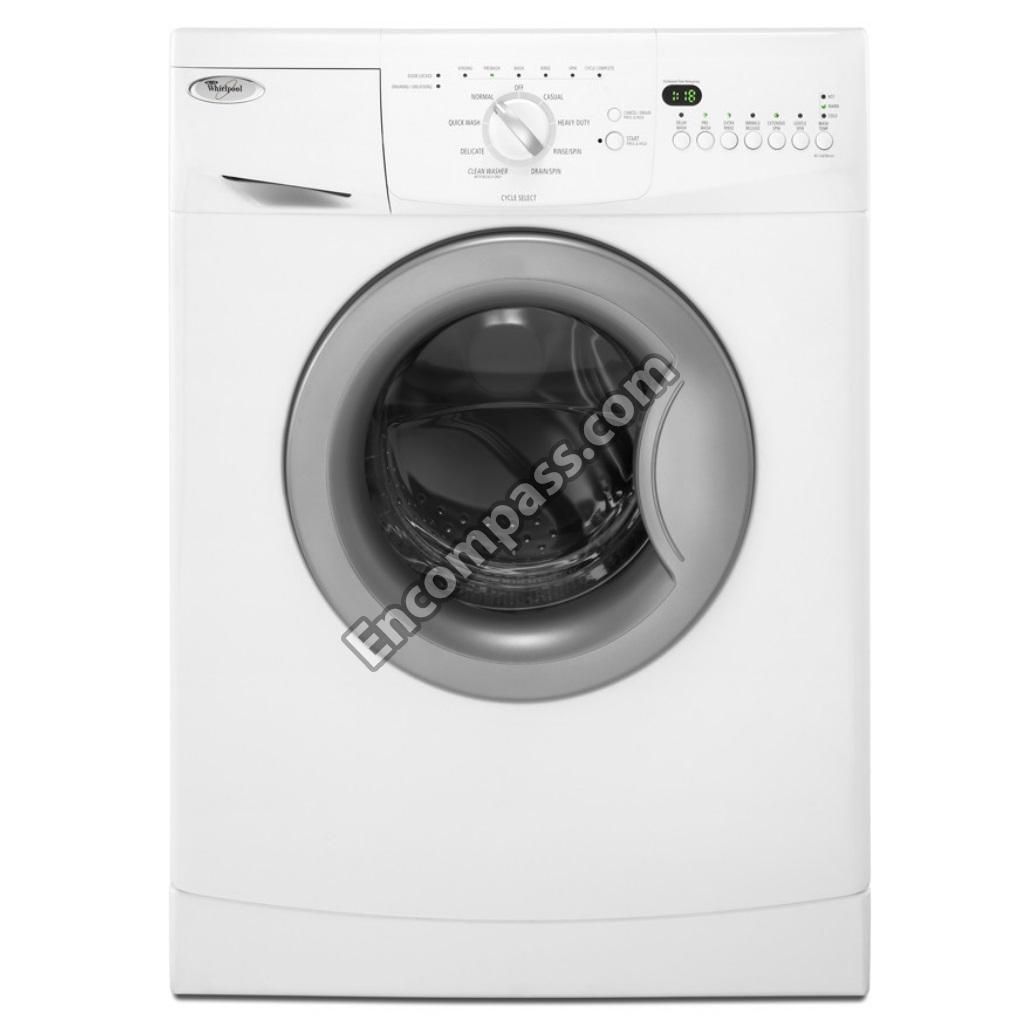

Model Image
Manufacturer

Whirlpool

Model Number

WFC7500VW2

Description

Residential Washers

Interactive Exploded View
Exploded View

Parts List

Part Number Description
799344 799344 APPLIANCE PORCELAIN TOUCH-UP PAINT (WHITE)
350938 350938 APPLIANCE SPRAY PAINT (GRAY PRIMER)
350930 350930 APPLIANCE SPRAY PAINT (WHITE)
72017 72017 APPLIANCE TOUCH-UP PAINT, 0.6-OZ (WHITE)
W10193033 W10193033 BALL
W10192985 W10192985 BRACE
W10193005 W10193005 BRACKET
W10193028 W10193028 BRACKET
W10192956 W10192956 CABINET
W10193111 W10193111 CLAMP
W10193106 W10193106 CLAMP
W10193110 W10193110 CLAMP
W10192999 W10192999 CLAMP
W10193039 W10193039 CLAMP
W10193044 W10193044 CLAMP
W10193090 W10193090 CLAMP
W10193101 W10193101 CLAMP
W10193003 W10193003 CLIP
W10192980 W10192980 CLIP
W10192982 W10192982 CLIP
WPW10192952 WPW10192952 COUNTERWEIGHT
W10192954 W10192954 COUNTERWEIGHT
W10917818 W10917818 COVER
W10180055 W10180055 ENERGY GUIDE
W10347721 W10347721 FILTER
WPW10192970 WPW10192970 FOOT
WPW10193001 WPW10193001 FRAME
WPW10193025 WPW10193025 GLASS
W11243775 W11243775 HINGE
W10193048 W10193048 HOSE
W10192951 W10192951 HOSE
W10192979 W10192979 HOSE
W10192978 W10192978 HOSE
W10192977 W10192977 HOSE
WPW10192976 WPW10192976 HOSE
W11105131 W11105131 HOSE
W11199482 W11199482 HOSE
W10192948 W10192948 HOSE CLAMP
W10181473 W10181473 KIT, STACK IF YOUR DRYER MODEL STARTS WITH WCD
W10178021A W10178021A LAUNDRY APPLIANCE STACKING KIT
W10193115 W10193115 NUT
W10192946 W10192946 NUT
W10192949 W10192949 O-RING
W10196351 W10196351 PLATE
W10196350 W10196350 PLATE
W10196349 W10196349 PLUG
W10193058 W10193058 PULLEY
W10179063 W10179063 QUICK START GUIDE
W10192992 W10192992 RELIEF STIRRER
W10193055 W10193055 RETAINER
W10193097 W10193097 RETAINER
W10193098 W10193098 RETAINER
W10852931 W10852931 SCREW
W10193036 W10193036 SCREW
W10193107 W10193107 SCREW
W10193112 W10193112 SCREW
W10193108 W10193108 SCREW
W10193105 W10193105 SCREW
W10193029 W10193029 SCREW
W10193034 W10193034 SCREW
W10193035 W10193035 SCREW
W10193093 W10193093 SCREW
W10193094 W10193094 SCREW
W10192945 W10192945 SCREW
W10193092 W10193092 SCREW
W10193095 W10193095 SCREW
W10192947 W10192947 SHAFT
W10192955 W10192955 SPRING
W10196353 W10196353 SPRING
W10851047 W10851047 SPRING
W10193054 W10193054 SUPPORT
W10193022 W10193022 SUPPORT
W10331054 W10331054 TECH SHEET
W10193047 W10193047 TRAP
WPW10192959 WPW10192959 TUB
W10175588 W10175588 USE & CARE GUIDE
W10192996 W10192996 VENT PIPE
W10196352 W10196352 WASHER
W10193096 W10193096 WASHER
W10192957 W10192957 WASHER CLIP
W10193023 W10193023 WASHER CLIP
WPW10192972 WPW10192972 WASHER CONTROL PANEL
W10193002 W10193002 WASHER COVER
W10192998 W10192998 WASHER COVER
WPW10215637 WPW10215637 WASHER DISPENSER DRAWER ASSEMBLY
WPW10192973 WPW10192973 WASHER DISPENSER DRAWER HANDLE
W10193052 W10193052 WASHER DISPENSER HOSE
WPW10192991 WPW10192991 WASHER DISPENSER VALVE
WPW10193056 WPW10193056 WASHER DOOR BOOT
WPW10193032 WPW10193032 WASHER DOOR HANDLE
WPW10192995 WPW10192995 WASHER DOOR LOCK
WPW10193026 WPW10193026 WASHER DOOR LOCK LATCH HOOK
WPW10192994 WPW10192994 WASHER DOOR LOCK SWITCH
WPW10465252 WPW10465252 WASHER DRAIN PUMP
WPW10192984 WPW10192984 WASHER DRIVE BELT
WPW10192987 WPW10192987 WASHER DRIVE MOTOR
WPW10192965 WPW10192965 WASHER ELECTRONIC CONTROL BOARD
WPW10192966 WPW10192966 WASHER ELECTRONIC CONTROL BOARD
WPW10192981 WPW10192981 WASHER ELECTRONIC CONTROL BOARD
WPW10192967 WPW10192967 WASHER FRONT PANEL
WPW10192990 WPW10192990 WASHER HOT WATER INLET VALVE
WPW10192960 WPW10192960 WASHER OUTER REAR TUB
W10193053 W10193053 WASHER OUTER TUB CLIP
W10192971 W10192971 WASHER PANEL
W10192958 W10192958 WASHER POWER CORD
W10193100 W10193100 WASHER SCREW
WPW10192968 WPW10192968 WASHER SHIPPING BOLT
WPW10192964 WPW10192964 WASHER SHOCK ABSORBER
WPW10192953 WPW10192953 WASHER SPIN BASKET
WPW10193004 WPW10193004 WASHER TOE PANEL
WPW10192961 WPW10192961 WASHER TOP PANEL
W10193000 W10193000 WASHER TUB VENT HOSE SPRING
W10192989 W10192989 WASHER WATER TEMPERATURE SENSOR AND BRACKET
W11448317 W11448317 WASHER WATER-LEVEL PRESSURE SWITCH
W10193027 W10193027 WASHER WIRE HARNESS
WPW10192993 WPW10192993 WASHER WIRE HARNESS
W10193109 W10193109 WIRE TIE
W10193113 W10193113 WIRE TIE
W10193091 W10193091 WIRE TIE
W10193114 W10193114 WIRE TIE
W10192983 W10192983 WIRE TIE
