Model Image
Manufacturer

Whirlpool

Model Number

WFC8090GX0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W10501250 W10501250 ACCESSORY PARTS, AFFRESH? 6 COUNT WASHER CLEANER
W10355053 W10355053 ACCESSORY PARTS, AFFRESH? MACHINE CLEANING WIPES
W10135699 W10135699 ACCESSORY PARTS, AFFRESH? WASHER CLEANER
W11291198 W11291198 ACCESSORY PARTS, DRIP PAN KIT (INCLUDED EXTENDED LEVELING FEET, SET OF 4)
W11225647 W11225647 ACCESSORY PARTS, FOOT, LEVELING (EXTENDED LENGTH, SET OF 4)
W10782875 W10782875 ACCESSORY PARTS, INLET HOSE, 5 FT (COLD WATER)
8212638RP 8212638RP ACCESSORY PARTS, INLET HOSES, 6 FT (TWO BRAIDED HOSES W/ ONE STRAIGHT END AND ONE 90 DEGREE END AND 4 RUBBER WASHERS)
PT220L PT220L ACCESSORY PARTS, POWER CORDS 4', 30 AMP, 3 WIRE, DRYER CORD
PT400L PT400L ACCESSORY PARTS, POWER CORDS 4', 30 AMP, 4 WIRE, DRYER CORD
PT500L PT500L ACCESSORY PARTS, POWER CORDS 6', 30 AMP, 3 WIRE, DRYER CORD
PT600L PT600L ACCESSORY PARTS, POWER CORDS 6', 30 AMP, 4 WIRE, DRYER CORD
W11283977 W11283977 ASSEMBLY, DOOR HINGE AND HARNESS (COMPLETE)
W11256708 W11256708 ASSEMBLY, DRYER CHANNEL
W11281876 W11281876 ASSEMBLY, MCU (INCLUDES MCU LINE INDUCTOR AND SCREW)
W11296978 W11296978 BAG
W11260731 W11260731 BLOCK-TERM
W11260745 W11260745 BOLT

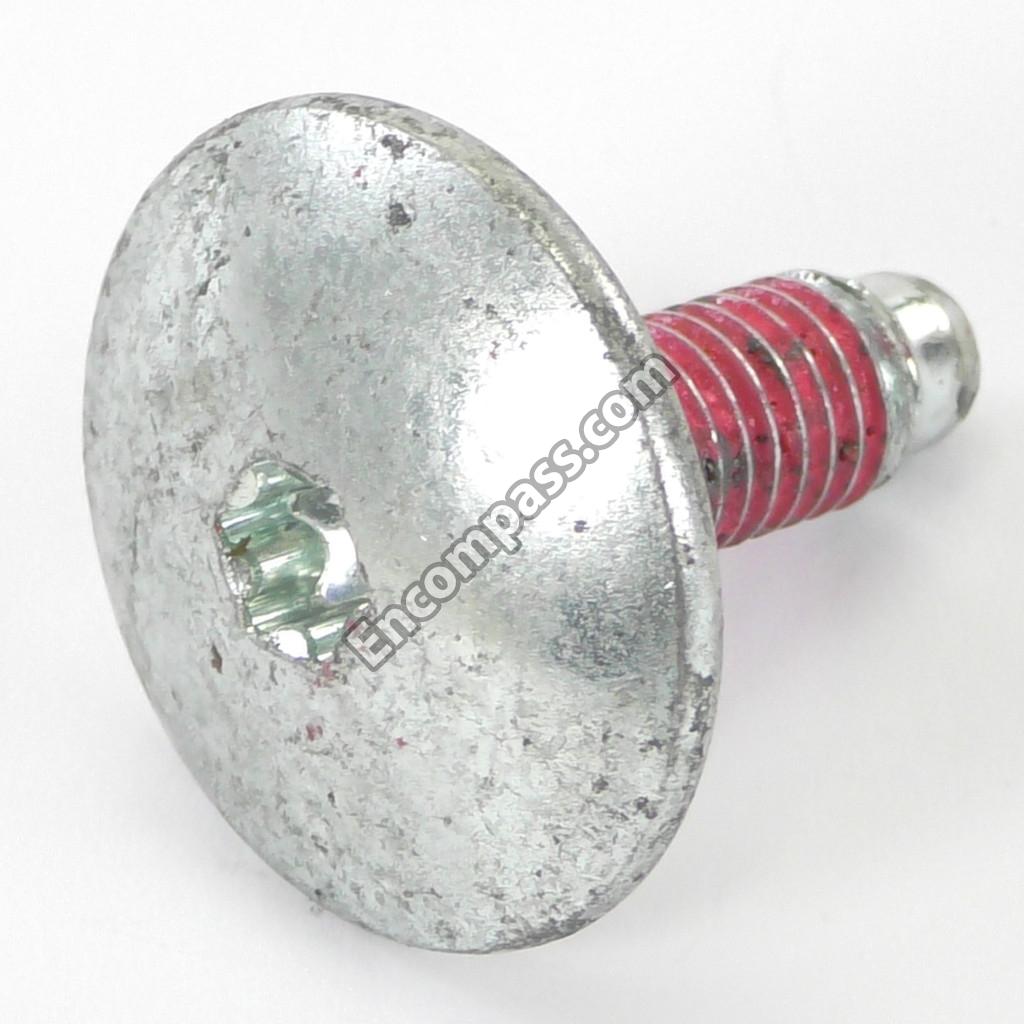

W10655372 W10655372 BOLT, ROTOR
W11243654 W11243654 BRACE, REAR TO FRONT SUPPORT
W11243651 W11243651 BRACE, TOP FRONT
W11243662 W11243662 BRACE, TOP REAR
W11269202 W11269202 BRACKET
W11269203 W11269203 BRACKET
W11269311 W11269311 BRACKET
W11301538 W11301538 BRACKET
W11243666 W11243666 BRACKET, ACU
W11243641 W11243641 CABINET (CASHMERE)
W11243684 W11243684 CABLE, EMERGENCY DOOR LOCK RELEASE
W11260763 W11260763 CATCH
W11256580 W11256580 CATCH, DOOR
W11269207 W11269207 CLAMP
W11261185 W11261185 CLAMP
W11301548 W11301548 CLAMP
W11269310 W11269310 CLAMP
W11260751 W11260751 CLAMP-HOSE
W11301541 W11301541 CLAMP-HOSE
W11261198 W11261198 CLAMP-HOSE
W11261199 W11261199 CLAMP-HOSE
W11268742 W11268742 CONDENSER CHANNEL
W11260742 W11260742 CONTROL BOARD
W11261186 W11261186 COUNTERWGT
W11261187 W11261187 COUNTERWGT
W11256727 W11256727 COUPLER, INTERNAL/OUTER DRAIN HOSE
W11260780 W11260780 COVER
W11260774 W11260774 COVER
W11283710 W11283710 COVER
W11289899 W11289899 COVER
W11243688 W11243688 COVER, ACU
W11256586 W11256586 COVER, DOOR HINGE
W11256691 W11256691 COVER, HEATER
W11256579 W11256579 COVER, INNER DOOR (UPPER)
W11243708 W11243708 COVER, MCU
W11256585 W11256585 COVER, PUMP FILTER
W11260734 W11260734 COVER-TERM
W11261204 W11261204 DISPENSER
W11287192 W11287192 DOME-PRESR
W11280150 W11280150 DOOR
W11261091 W11261091 DOOR LATCH
W11260747 W11260747 DOOR-GLASS
W11260754 W11260754 DOOR-INNER
W11279680 W11279680 DRAWER
W11256697 W11256697 DRUM (COMPLETE)
W11236406 W11236406 ENERGY GUIDE
W11643138 W11643138 FEET-LVLNG
W11269307 W11269307 FILTER
W11296988 W11296988 FILTER
W11243674 W11243674 FILTER, RFI
W11256700 W11256700 FLAP, ECO
W11256574 W11256574 HARNESS, CONTROL (CONNECTS MCU, DRUM GND, NTC SENSOR)
W11256575 W11256575 HARNESS, INLET VALVE - DISPENSER
W11260778 W11260778 HEATER
W11256724 W11256724 HOLDER, INTERNAL DRAIN HOSE (LOWER)
W11243681 W11243681 HOLDER, RECIRCULATION HOSE
W11260756 W11260756 HOSE
W11269309 W11269309 HOSE
W11261206 W11261206 HOSE
W11261203 W11261203 HOSE
W11261201 W11261201 HOSE
W11261197 W11261197 HOSE
W11243677 W11243677 HOUSING, TERMINAL
W11260746 W11260746 LID
W11256698 W11256698 LIFTER
W11260740 W11260740 LIGHT
W11178521 W11178521 NAMEPLATE
W11261184 W11261184 NOZZLE
W11260725 W11260725 PANEL
W11256584 W11256584 PANEL, FRONT (CASHMERE)
W11260728 W11260728 PANEL-REAR
W11260748 W11260748 PLUG
W11256729 W11256729 POST, OUTER DRAIN HOSE SUPPORT
W11280037 W11280037 PUMP MOTOR
W11280039 W11280039 PUMP MOTOR
W11132544 W11132544 QUICK START GUIDE
W11260737 W11260737 RETAINER
W11243675 W11243675 RETAINER, INLET VALVE - DISPENSER HARNESS
W11261916 W11261916 ROTOR
W11280036 W11280036 SCREEN
W11301551 W11301551 SCREW
W11269126 W11269126 SCREW
W11301540 W11301540 SCREW
W11301545 W11301545 SCREW
W11261188 W11261188 SCREW
W11287518 W11287518 SCREW
W11269101 W11269101 SCREW
W11296992 W11296992 SCREW
W11287194 W11287194 SCREW
W11176555 W11176555 SCREW
W10204809 W10204809 SCREW
W11174491 W11174491 SCREW
W10869499 W10869499 SCREW
W11261841 W11261841 SEAL, DOOR
W11260767 W11260767 SEAL-TUB
W11269200 W11269200 SENSOR
W11260785 W11260785 SENSOR
W11261205 W11261205 SHIELD
W11269102 W11269102 SHIELD
W11269103 W11269103 SHIELD
W11269318 W11269318 SOUND ABSR
W11261194 W11261194 SPRING
W11260794 W11260794 STATOR
W11256591 W11256591 SUPPORT, HEATING ELEMENT
W11287274 W11287274 SUSPENSION ROD KIT
W11269205 W11269205 SWITCH
W11300744 W11300744 TECH SHEET
WPW10339879 WPW10339879 TIE-WIRE
WPW10144763 WPW10144763 TIE-WIRE
W11283711 W11283711 TOP
W11256702 W11256702 TUB (FRONT)
W11279666 W11279666 TUB (REAR)
W10887723 W10887723 U-BEND
W11114293 W11114293 USE AND CARE GUIDE
W11260769 W11260769 VALVE
W11261183 W11261183 WASHER DOOR BELLOW
W11260743 W11260743 WATER LEVEL SWITCH
W11266444 W11266444 WATER PUMP
W11266434 W11266434 WIRE HARNESS
W11025407 W11025407 WIRING DIAGRAM
