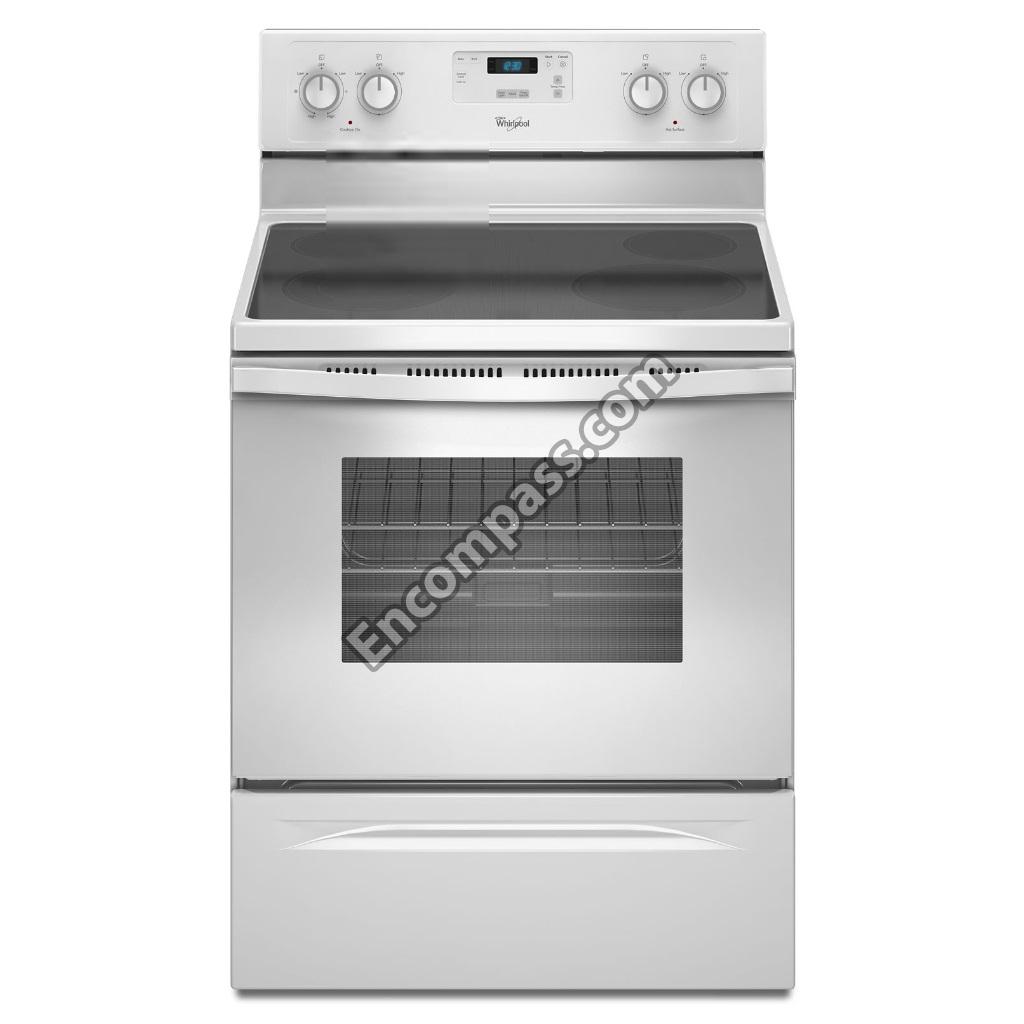

Model Image
Manufacturer

Whirlpool

Model Number

WFE320M0AW0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
WPW10299226 WPW10299226 ACTIVE (STAINLESS MODELS)
W11447673 W11447673 ANTI-TIP KIT
W10289149 W10289149 BACK, MAIN
WPW10245259 WPW10245259 BLOCK, TERMINAL
W10838990 W10838990 BRACKET, DRAWER (STAINLESS MODEL)
WPW10462912 WPW10462912 BRACKET, DRAWER (WHT & BLK MODELS)
W11728255 W11728255 BRACKET, SERVICE
W10525121 W10525121 BRKT-MNTG CONSOLE
W11230932 W11230932 BRKT-MNTG, EOC
4396923 4396923 BROILER PAN & GRID (PORCELAIN)
W10123240 W10123240 BROILER PAN & ROASTING RACK
8009 8009 BULB, OVEN LIGHT
W10275756 W10275756 CLEANER & POLISH (GRANITE)
31617A 31617A CLEANER (GAS GRATE & DRIP PAN)
W11042467 W11042467 CLEANER, (STAINLESS STEEL)
W10355051 W10355051 CLEANER, COOKTOP
W10355010 W10355010 CLEANER, KITCHEN/APPLIANCE
W10137382 W10137382 CLIP, PANEL
3196200 3196200 CLIP, SPRING
W11122555 W11122555 CONTROL, RANGE (LCC90) (BLACK)
W11122560 W11122560 CONTROL, RANGE (LCC90) (STAINLESS)
W11122557 W11122557 CONTROL, RANGE (LCC90) (WHITE)
W10245805 W10245805 COOKTOP (BLACK)
W10472020 W10472020 COOKTOP (WHITE)
WPW10326122 WPW10326122 COVER, TERMINAL BOX
WP8272473 WP8272473 COVER, UPPER
WPW10330077 WPW10330077 DOOR, OUTER (STAINLESS ONLY)
W10813962 W10813962 DRAWER, STORAGE
WPW10308477 WPW10308477 ELEMENT, BAKE
W10856603 W10856603 ELEMENT, BROIL
W11171119 W11171119 ELEMENT, SURFACE (1200 W - LR & RR)
W11047722 W11047722 ELEMENT, SURFACE (2500 W - RF)
W11517959 W11517959 ELEMENT, SURFACE (3000/1400W - LF)
W11219664 W11219664 ENDCAP (BLACK LH)
W11219665 W11219665 ENDCAP (BLACK RH)
W11219365 W11219365 ENDCAP (WHITE LH)
WPW10134285 WPW10134285 FLUE
WPW10341186 WPW10341186 FOOT, FRONT
WPW10058460 WPW10058460 FOOT, REAR
WPW10409946 WPW10409946 GLASS, OUTER (BLACK)
WPW10409945 WPW10409945 GLASS, OUTER (WHITE)
W10763667 W10763667 GLIDE, DRAWER
4396096RB 4396096RB GRIDDLE, GOURMET
W10300490 W10300490 HANDLE, DOOR (BLACK)
WPW10618239 WPW10618239 HANDLE, DOOR (STAINLESS)
W10300489 W10300489 HANDLE, DOOR (WHITE)
W10744211 W10744211 HARNESS, WIRE (COOKTOP LEFT)
W10261085 W10261085 HARNESS, WIRE (COOKTOP, RIGHT)
W11416847 W11416847 HARNESS, WIRE (MAIN)
W11232223 W11232223 HARNESS, WIRE (SENSOR/DR SWITCH)
WP3195060 WP3195060 HINGE, COOKTOP
WPW10299227 WPW10299227 HINGE, DOOR (PASSIVE)
WPW10299225 WPW10299225 HINGE, DOOR ACTIVE (WHT & BLK MODELS)
W10403811 W10403811 INSTRUCTIONS INSTALLATIONS
W11311894 W11311894 INSULATION
WP8272612 WP8272612 INSULATION, BACK
W11684918 W11684918 INSULATION, FLUE
WPW10208653 WPW10208653 INSULATION, WRAP
W10336909 W10336909 KIT, COOKTOP CARE
WPW10490038 WPW10490038 KNOB (BLACK)
WPW10490037 WPW10490037 KNOB (WHITE)
WP3196068 WP3196068 LENS, LIGHT
W11594027 W11594027 LIGHT SOCKET ASSY
WP8523265 WP8523265 LIGHT, INDICATOR
WP9761344 WP9761344 LINER, DOOR
WP7103P027-60 WP7103P027-60 NUT
W10394383 W10394383 OWNERS MANUAL
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
285006 285006 PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR BLACK)
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE)
350942 350942 PAINT, PRESSURIZED SPRAY 12 OZ.) (PRIMER (WHITE))
511873 511873 PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ.) (WHITE)
W11244088 W11244088 PAN, RADIANT
WPW10330070 WPW10330070 PANEL (STLS. MDL)
W11231943 W11231943 PANEL, BACKGUARD (BLACK)
W11251222 W11251222 PANEL, BACKGUARD (STAINLESS)
W11231942 W11231942 PANEL, BACKGUARD (WHITE)
W11230488 W11230488 PANEL, DRAWER FRNT (BLACK)
W11219377 W11219377 PANEL, DRAWER FRNT (WHITE)
WPW10162245 WPW10162245 PANEL, SIDE (BLACK)
WPW10575396 WPW10575396 PANEL, SIDE (WHITE-TEXTURED)
31463A 31463A PROTECTANT, COOKTOP
W11520287 W11520287 RACK, OVEN
WPW10306546 WPW10306546 RAIL, BASE (LEFT HAND)
W10647259 W10647259 RECEIVER, HINGE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN (1/2PT))
W11685635 W11685635 RETAINER, INSUL.
WP3196813 WP3196813 RIVET, PUSH (BLACK)
WP3196814 WP3196814 RIVET, PUSH (WHITE)
9762761 9762761 SAFER COOKING TIPS
WA906B WA906B SCRAPER, COOKTOP
W11233072 W11233072 SCREW
WP3196557 WP3196557 SCREW
WP3400882 WP3400882 SCREW
WP3196154 WP3196154 SCREW
WP3196174 WP3196174 SCREW
WPW10067840 WPW10067840 SCREW
3196172 3196172 SCREW
WP3400016 WP3400016 SCREW
W10777162 W10777162 SCREW
WP3196175 WP3196175 SCREW
W10817436 W10817436 SCREW
WPW10031790 WPW10031790 SCREW
W10491985 W10491985 SCREW
WPW10200660 WPW10200660 SCREW
W11244557 W11244557 SCREW
WP7101P485-60 WP7101P485-60 SCREW, ANTI-TIP
W11542153 W11542153 SEAL, OVEN DOOR
WPW10181986 WPW10181986 SENSOR, OVEN
W10134247 W10134247 SHIELD, HEAT
WPW10225448 WPW10225448 SPRING, LOCATOR
WPW10410341 WPW10410341 STANDOFF, HANDLE (STAINLESS ONLY)
W11502236 W11502236 STRAP, DOOR
W10404688 W10404688 SUPPORT, OVEN
WP3149404 WP3149404 SWITCH, INFINITE (LEFT - RIGHT REAR)
WPW10434452 WPW10434452 SWITCH, INFINITE (LEFT FRONT)
WP3149400 WP3149400 SWITCH, INFINITE (RIGHT FRONT)
W10432689 W10432689 TECH SHEET
WP3196548 WP3196548 THERMAL, FUSE
WP8054068 WP8054068 TRAY, INSULATION
WP8523177 WP8523177 TRIM, LOWER (BLACK)
WP8523175 WP8523175 TRIM, LOWER (WHITE)
W10761018 W10761018 TRIM, SIDE (BLACK LH)
W10761014 W10761014 TRIM, SIDE (BLACK RH)
WP8523172 WP8523172 TRIM, SIDE (WHITE LEFT HAND)
WP8523166 WP8523166 TRIM, SIDE (WHITE RIGHT HAND)
WPW10310922 WPW10310922 TRIM, TOP (BLACK)
W10817433 W10817433 TRIM, TOP (WHITE)
WP8053948 WP8053948 WINDOW, INNER
W10355049 W10355049 WIPES, CLEANING (STAINLESS STEEL)
