Model Image
Manufacturer

Whirlpool

Model Number

WFE364LVD0

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
W11447673 W11447673 ANCHOR-TIP
8274034 8274034 BACK, MAIN
WP9761958 WP9761958 BLOCK-TERM
W10525121 W10525121 BRACKET, CONSOLE MOUNTING
WP3196794 WP3196794 BRKT-GLASS
WPW10462912 WPW10462912 BRKT-MNTG
9762078 9762078 BRKT-MNTG, EOC
W11728255 W11728255 BRKT-SRVCE
W11502236 W11502236 BRKT-SUPRT
9762761 9762761 BROCHURE, TIPS (SAFE COOKING)
W10355051 W10355051 CLEANER, COOKTOP
WP8273564 WP8273564 CLIP
W10183541 W10183541 CLIP
9761517 9761517 CLIP, DOOR MNTG(2)
313660 313660 CLIP, GROUND WIRE
W10404688 W10404688 CLIP, OVEN SUPPORT
3196576 3196576 CLIP, PANEL (6)

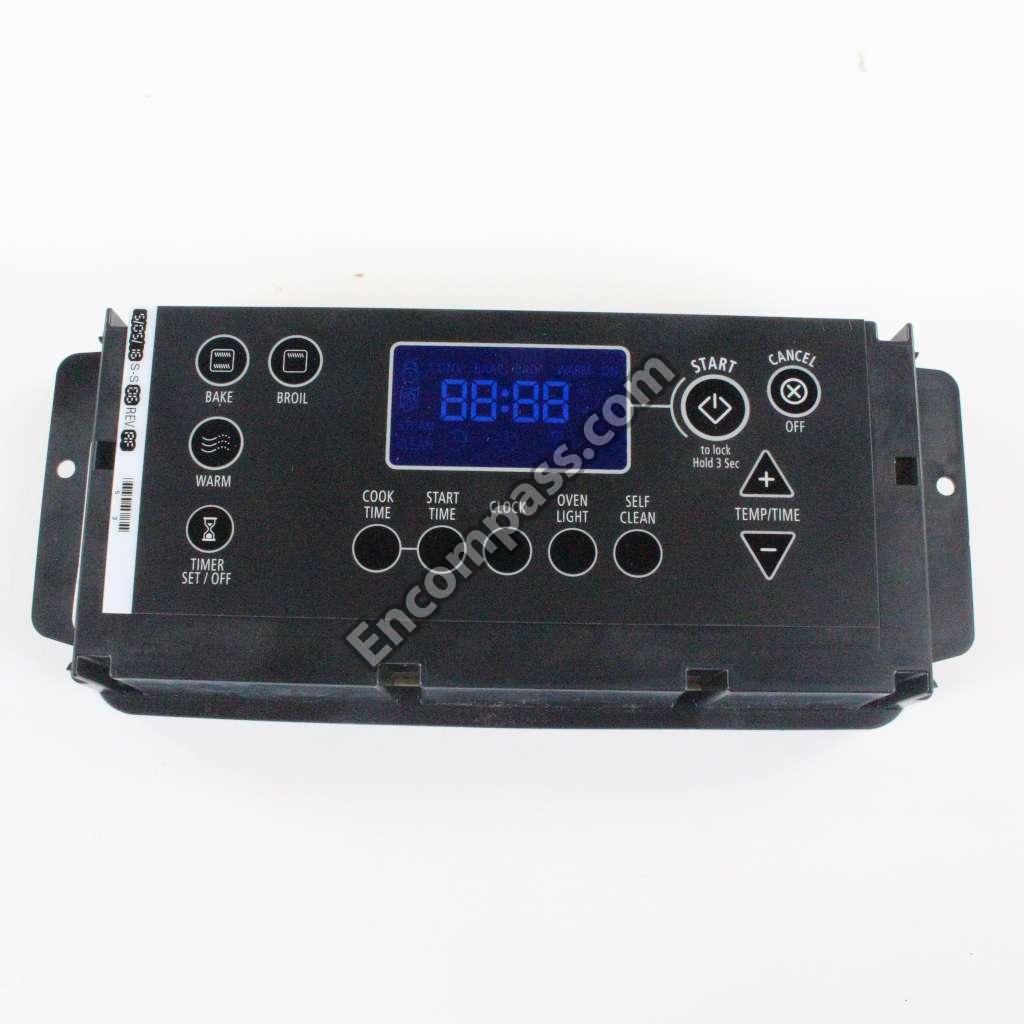

WPW10271737 WPW10271737 CONTROL BOARD
WPW10271738 WPW10271738 CONTROL BOARD
W10239441 W10239441 COOKTOP
W10239438 W10239438 COOKTOP
W10239443 W10239443 COOKTOP
WPW10326122 WPW10326122 COVER-BLCK
WP8272473 WP8272473 COVER-REAR
WPW10107820 WPW10107820 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
W10817434 W10817434 DOOR HANDLE
WPW10323589 WPW10323589 DOOR HANDLE
W10347464 W10347464 DOOR HINGE
W10347466 W10347466 DOOR HINGE
WP8523180 WP8523180 DOOR TRIM
WP8523178 WP8523178 DOOR TRIM
WP8523177 WP8523177 DOOR TRIM
WPW10067550 WPW10067550 DOOR TRIM
WP8523175 WP8523175 DOOR TRIM
W10761018 W10761018 DOOR TRIM
WP8523166 WP8523166 DOOR TRIM
WP8523167 WP8523167 DOOR TRIM
8184858 8184858 DOOR TRIM
WP8523172 WP8523172 DOOR TRIM
WP8523173 WP8523173 DOOR TRIM
W10761014 W10761014 DOOR TRIM
W10296838 W10296838 DRAWER, STORAGE
WP9755770 WP9755770 ELMNT-BAKE
W10856603 W10856603 ELMNT-BROL
W11219664 W11219664 ENDCAP-PNL
W11219665 W11219665 ENDCAP-PNL
W11219365 W11219365 ENDCAP-PNL
W11230611 W11230611 ENDCAP-PNL
W11230612 W11230612 ENDCAP-PNL
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
WPW10058460 WPW10058460 FOOT-LEVEL
WP3196037 WP3196037 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WP3196548 WP3196548 FUSE-THRML
W11542153 W11542153 GASKT-DOOR
WPW10118454 WPW10118454 GLASS DOOR
WPW10118455 WPW10118455 GLASS DOOR
WPW10330077 WPW10330077 GLASS DOOR
WPW10330079 WPW10330079 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR
WPW10118456 WPW10118456 GLASS, OUTER (BISCUIT)
WP8053334 WP8053334 GLIDE-DRWR
WPW10114344 WPW10114344 GLIDE-DRWR
W10323590 W10323590 HANDLE, DOOR (BISCUIT)
W10465644 W10465644 HARNESS, HIDDEN BAKE
W11172524 W11172524 HARNS-WIRE
W10174423 W10174423 HARNS-WIRE
W10174422 W10174422 HARNS-WIRE
W10647259 W10647259 HINGE-RECV
WP3149404 WP3149404 INFINITE CONTROL SWITCH
WPW10149355 WPW10149355 INFINITE CONTROL SWITCH
W10196159 W10196159 INSTALLATION INSTRUCTIONS
W10204650 W10204650 INSUL, TERM BLOCK
WPW10278991 WPW10278991 INSULATION
WPW10208653 WPW10208653 INSULATION
W10182346 W10182346 INSULATION
8053915 8053915 INSULATION, VENT
WP9761963 WP9761963 KNOB
WP9761962 WP9761962 KNOB
WP9761964 WP9761964 KNOB
8009 8009 LIGHT BULB
WP9761344 WP9761344 LINER-DOOR
9757609 9757609 NAMEPLATE
WP7103P027-60 WP7103P027-60 NUT
W10200357 W10200357 OWNERS MANUAL
4392900 4392900 PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
4392901 4392901 PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
4392899 4392899 PAINT, TOUCH-UP (1/2OZ.) (BISCUIT)
W10170526 W10170526 PAN
W10184053 W10184053 PANEL, CONTROL (BISCUIT)
W10184055 W10184055 PANEL, CONTROL (UNIVERSAL SILVER)
WPW10184052 WPW10184052 PANEL, CONTROL (WHITE)
8053832 8053832 PANEL, SIDE (2) (BLACK)
W10162246 W10162246 PANEL, SIDE (BISCUIT)
W11230488 W11230488 PANEL-DRWR
W11219377 W11219377 PANEL-DRWR
W11230479 W11230479 PANEL-DRWR
W11230476 W11230476 PANEL-DRWR
WPW10575396 WPW10575396 PANEL-SIDE
W10170636 W10170636 PANL-CNTRL
W10184054 W10184054 PANL-CNTRL
WP3195060 WP3195060 PIN-COOKTP
WPW10256908 WPW10256908 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
261582 261582 REFINISHING MATERIAL (GREASE)
799832 799832 REFINISHING MATERIAL (KIT, PORCELAIN REPAIR (WHITE))
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11539580 W11539580 RETAINER
W10465685 W10465685 RETAINER
W10134125 W10134125 RETAINER
W10450380 W10450380 RETAINER, INSULATION
WP3196814 WP3196814 RIVET
WP3196813 WP3196813 RIVET
9757239 9757239 ROD - DR SWITCH
W10078380 W10078380 ROD-LATCH
9761301 9761301 SCREEN, CATALYST
W11244557 W11244557 SCREW
WP3196154 WP3196154 SCREW
WPW10200660 WPW10200660 SCREW
W10491985 W10491985 SCREW
W101168559 W101168559 SCREW
WPW10031790 WPW10031790 SCREW
W11169708 W11169708 SCREW
WP3196174 WP3196174 SCREW
WPW10067840 WPW10067840 SCREW
W10777162 W10777162 SCREW
3196172 3196172 SCREW
WP3400016 WP3400016 SCREW
WP98008545 WP98008545 SCREW
WP3196175 WP3196175 SCREW
WP489491 WP489491 SCREW
WP3400832 WP3400832 SCREW
WP3400882 WP3400882 SCREW
W11233072 W11233072 SCREW
WP3196170 WP3196170 SCREW
WP3196557 WP3196557 SCREW
98008169 98008169 SCREW (BISCUIT)
3196166 3196166 SCREW (WHITE)
8522414 8522414 SEAL, WINDOW
WPW10181986 WPW10181986 SENSOR
W10134247 W10134247 SHIELD-HT
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER
242828 242828 SPLICING WIRES--25FT. LENGTH (WIRE, BLACK 12 GA. 150 C)
242821 242821 SPLICING WIRES--25FT. LENGTH (WIRE, BLUE 14 GA. 150 C)
242822 242822 SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 GA. 150 C)
8316784 8316784 SPLICING WIRES--25FT. LENGTH (WIRE, BROWN 14 GA. 200 C)
242823 242823 SPLICING WIRES--25FT. LENGTH (WIRE, GREEN 14 GA. 150 C)
242824 242824 SPLICING WIRES--25FT. LENGTH (WIRE, ORANGE 14 GA. 150 C)
242825 242825 SPLICING WIRES--25FT. LENGTH (WIRE, RED 14 GA. 150 C)
242831 242831 SPLICING WIRES--25FT. LENGTH (WIRE, RED 14 GA. 200 C)
242827 242827 SPLICING WIRES--25FT. LENGTH (WIRE, YELLOW 14 GA. 150 C)
WPW10225448 WPW10225448 SPRING
74007134 74007134 SPRING, ELEMENT SUPPORT
3195736 3195736 SUPPORT, FRONT (2)
W11171119 W11171119 SURFACE ELEMENT
WPW10275049 WPW10275049 SURFACE ELEMENT
WP9757262 WP9757262 SWTCH-LITE
W10198580 W10198580 TECH SHEET
9757143 9757143 TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
9757142 9757142 TEMPLATE, ANTI-TIP (ENGLISH/SPANISH)
WPW10144763 WPW10144763 TIE-WIRE
W10016450 W10016450 TRIM-DOOR
WPW10310922 WPW10310922 TRIM-VENT
W10817433 W10817433 TRIM-VENT
WPW10134285 WPW10134285 TUBE-VENT

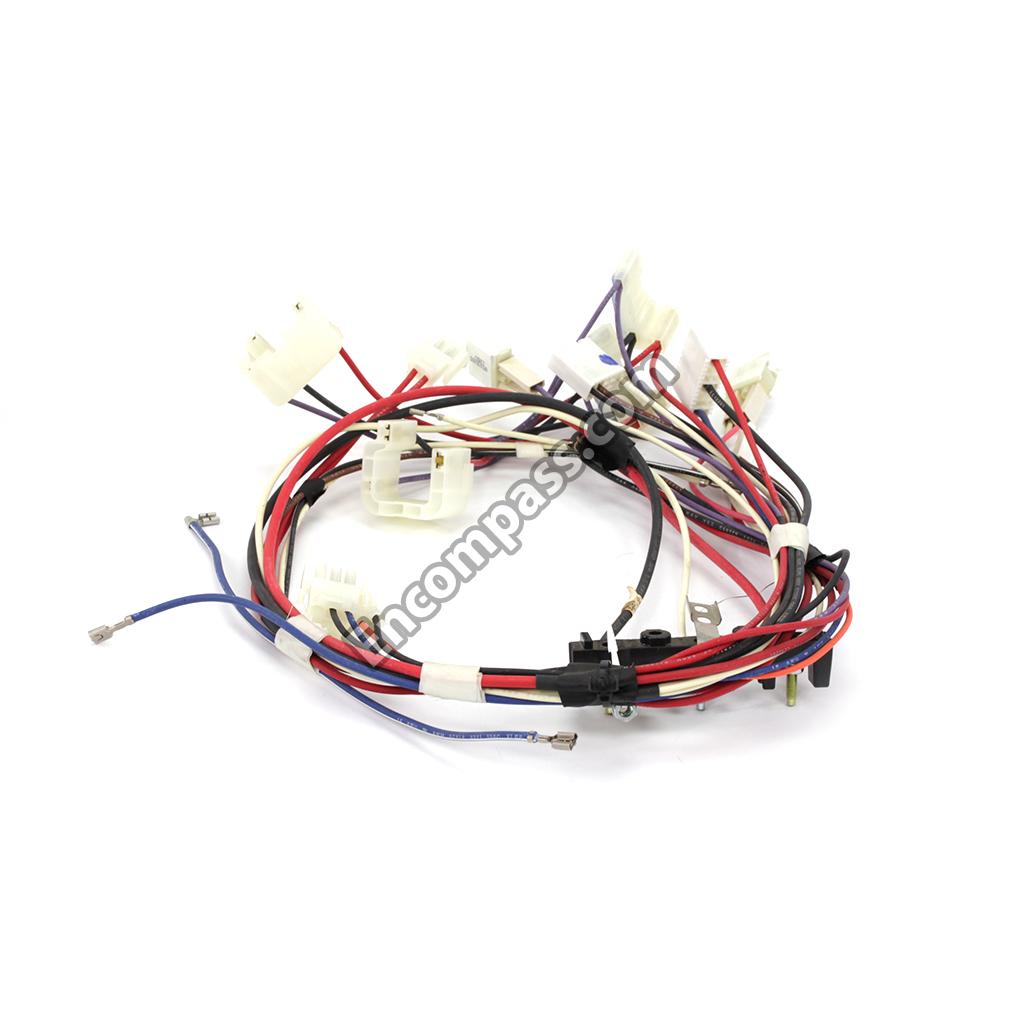

W10251758 W10251758 WIRE HARNESS
3184020 3184020 WIRE, GROUND
