Model Image
Manufacturer

Whirlpool

Model Number

WFE374LVB1

Description

No description available

Interactive Exploded View
Exploded View

Parts List

Part Number Description
31682 31682 ALL PURPOSE APPLIANCE CLEANER
W11447673 W11447673 ANCHOR-TIP
8274034 8274034 BACK, MAIN
W10217758 W10217758 BEZEL-SWTH
W10217760 W10217760 BEZEL-SWTH
WPW10245259 WPW10245259 BLOCK-TERM
W10525121 W10525121 BRACKET, CONSOLE MOUNTING
WPW10462912 WPW10462912 BRKT-MNTG
W10838990 W10838990 BRKT-MNTG
9762078 9762078 BRKT-MNTG, EOC
W11728255 W11728255 BRKT-SRVCE
W11502236 W11502236 BRKT-SUPRT
W10404688 W10404688 BRKT-SUPRT
4396923 4396923 BROILER PAN
9758491 9758491 BUTTON, KEEP WARM (BLACK)
9757492 9757492 BUTTON, KEEP WARM (WHITE)
WP3196068 WP3196068 CAMERA LENS-LIGHT
242905 242905 CANNING KIT
W10646923 W10646923 CARD, INSULATOR
W10336909 W10336909 CLEANER
W10355051 W10355051 CLEANER, COOKTOP
WP8273564 WP8273564 CLIP
W10137382 W10137382 CLIP
W10183541 W10183541 CLIP
313660 313660 CLIP, GROUND WIRE
3196200 3196200 CLIP, SPRING

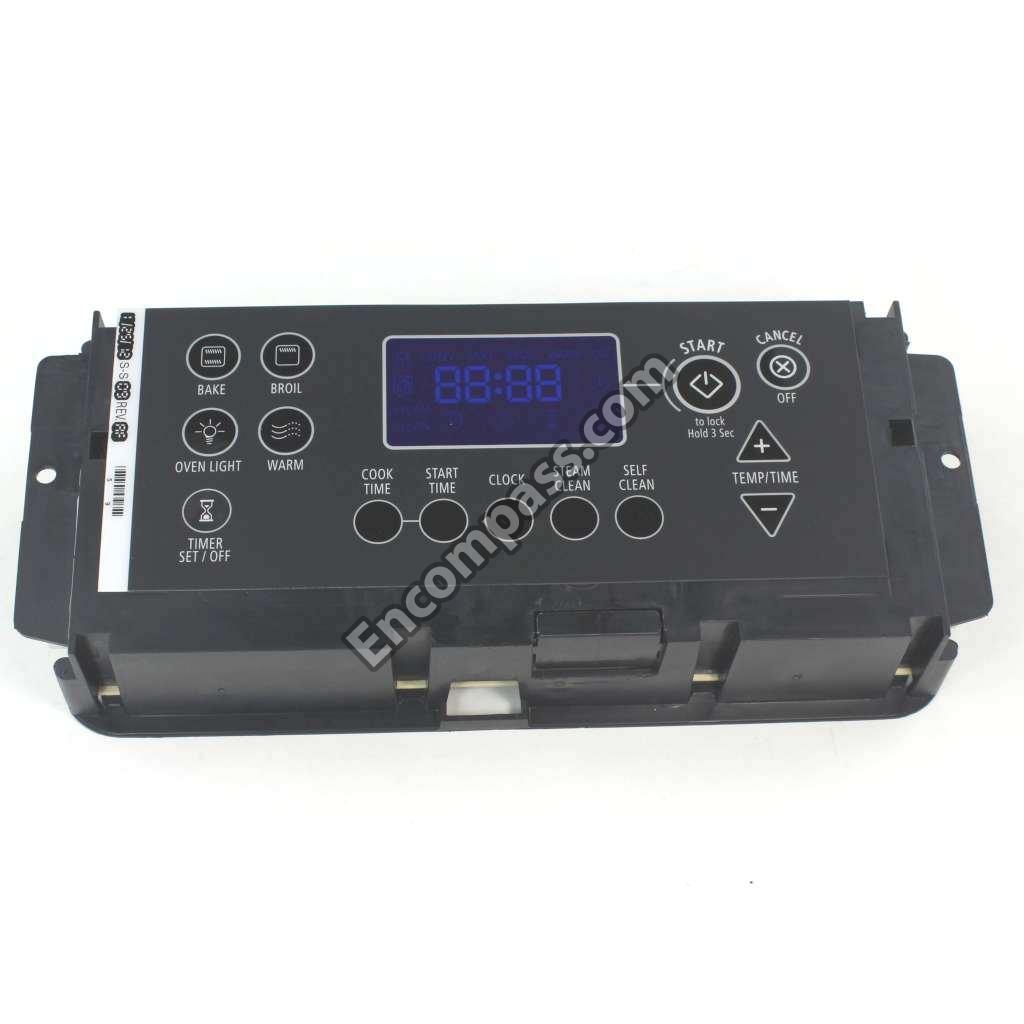

WPW10476353 WPW10476353 CONTROL BOARD
W10250721 W10250721 COOKTOP
W10250718 W10250718 COOKTOP
31463 31463 COOKTOP PROTECTANT
WPW10326122 WPW10326122 COVER-BLCK
WP8272473 WP8272473 COVER-REAR
WPW10107820 WPW10107820 DOOR DOOR LATCH
WP9761013 WP9761013 DOOR DOOR LATCH
WPW10144883 WPW10144883 DOOR HANDLE
W10817434 W10817434 DOOR HANDLE
WPW10323589 WPW10323589 DOOR HANDLE
WPW10299227 WPW10299227 DOOR HINGE
WPW10299224 WPW10299224 DOOR HINGE
WP8523177 WP8523177 DOOR TRIM
WP8523175 WP8523175 DOOR TRIM
WP8523166 WP8523166 DOOR TRIM
W10761018 W10761018 DOOR TRIM
WP8523172 WP8523172 DOOR TRIM
W10761014 W10761014 DOOR TRIM
W10296838 W10296838 DRAWER, STORAGE
WP9755770 WP9755770 ELMNT-BAKE
W10856603 W10856603 ELMNT-BROL
WPW10583047 WPW10583047 ELMNTBROL
W11219370 W11219370 ENDCAP-PNL
W11219665 W11219665 ENDCAP-PNL
W11219664 W11219664 ENDCAP-PNL
W11219365 W11219365 ENDCAP-PNL
241430 241430 FOIL, ALUMINUM OVEN (18`` X 25 )
WPW10058460 WPW10058460 FOOT-LEVEL
WPW10341186 WPW10341186 FOOT-LEVEL
WPW10316950 WPW10316950 FRAME-WNDW
WP3196548 WP3196548 FUSE-THRML
W11542153 W11542153 GASKT-DOOR
WPW10118454 WPW10118454 GLASS DOOR
WPW10118455 WPW10118455 GLASS DOOR
WPW10330077 WPW10330077 GLASS DOOR
WP8053948 WP8053948 GLASS DOOR
WP8053334 WP8053334 GLIDE-DRWR
WPW10114344 WPW10114344 GLIDE-DRWR
W10465644 W10465644 HARNESS, HIDDEN BAKE
W10744211 W10744211 HARNESS, WIRE (COOKTOP LEFT)
W11172524 W11172524 HARNS-WIRE
W11134592 W11134592 HARNS-WIRE
W11134550 W11134550 HARNS-WIRE
W10349659 W10349659 HARNS-WIRE
W10647259 W10647259 HINGE-RECV
WPW10434452 WPW10434452 INFINITE CONTROL SWITCH
WP3149404 WP3149404 INFINITE CONTROL SWITCH
W10252706 W10252706 INSTRUCTIONS, INSTALLATION
WPW10278991 WPW10278991 INSULATION
WPW10208653 WPW10208653 INSULATION
W10326347 W10326347 INSULATION
W11684918 W11684918 INSULATION
WP9761964 WP9761964 KNOB
WP9761962 WP9761962 KNOB
8009 8009 LIGHT BULB
WP8523265 WP8523265 LIGHT-IND
WP9761344 WP9761344 LINER-DOOR
W10209617 W10209617 NAMEPLATE
WP3400968 WP3400968 NUT
WP7103P027-60 WP7103P027-60 NUT
799344 799344 PAINT, BULK (1 QT.) (WHITE (UNCUT))
350930 350930 PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
350942 350942 PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WHITE)
285006 285006 PAINT, PRESSURIZED SPRAY 12 OZ.) (SUPERIOR BLACK)
511873 511873 PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ.))
72017 72017 PAINT, TOUCH-UP (1/2OZ. WHITE)
W10170526 W10170526 PAN
WPW10170662 WPW10170662 PANEL, CONTROL (BLACK)
WPW10282465 WPW10282465 PANEL, DRAWER FRNT (STAINLESS STEEL)
W11219377 W11219377 PANEL-DRWR
W11230488 W11230488 PANEL-DRWR
WPW10162245 WPW10162245 PANEL-SIDE
WPW10575396 WPW10575396 PANEL-SIDE
W10170661 W10170661 PANL-CNTRL
W10183213 W10183213 PANL-CNTRL
WP3195060 WP3195060 PIN-COOKTP
W11520287 W11520287 RACK-OVEN
WPW10306546 WPW10306546 RAIL-BASE
8212471 8212471 REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 PT))
W11539580 W11539580 RETAINER
W10465685 W10465685 RETAINER
W10134121 W10134121 RETAINER
W10134125 W10134125 RETAINER
W10450380 W10450380 RETAINER, INSULATION
WP3196814 WP3196814 RIVET
9757239 9757239 ROD - DOOR SWITCH, REAR MOUNT
W10078380 W10078380 ROD-LATCH
WA906B WA906B SCRAPER, COOKTOP
9761301 9761301 SCREEN, CATALYST
W11244557 W11244557 SCREW
W10777162 W10777162 SCREW
WPW10031790 WPW10031790 SCREW
W10491985 W10491985 SCREW
WPW10200660 WPW10200660 SCREW
W10817436 W10817436 SCREW
WP3400832 WP3400832 SCREW
WP3196174 WP3196174 SCREW
WP3196154 WP3196154 SCREW
3196172 3196172 SCREW
W11169708 W11169708 SCREW
WPW10067840 WPW10067840 SCREW
WP3400882 WP3400882 SCREW
W11233072 W11233072 SCREW
WP3196175 WP3196175 SCREW
WP3196557 WP3196557 SCREW
3400964 3400964 SCREW, GROUND
WPW10181986 WPW10181986 SENSOR
W10134247 W10134247 SHIELD-HT
W11594027 W11594027 SOCKT-LITE
W10877054 W10877054 SPACER
4396927 4396927 SPLIT-RACK WITH REMOVABLE INSERT
WPW10225448 WPW10225448 SPRING
31462A 31462A STAINLESS STEEL, CLEANER & POLISH
W10823711 W10823711 SURFACE ELEMENT
WP9762851 WP9762851 SURFACE ELEMENT
W11517959 W11517959 SURFACE ELEMENT
WP8272820 WP8272820 SWITCH-PB
WP9757262 WP9757262 SWTCH-LITE
9757143 9757143 TEMPLATE, ANTI-TIP (ENGLISH/FRENCH)
9757142 9757142 TEMPLATE, ANTI-TIP (ENGLISH/SPANISH)
W10200357 W10200357 TEMPLATE, ANTI-TIP (OWNERS MANUAL)
9762761 9762761 TEMPLATE, ANTI-TIP (SAFER COOKING TIPS)
W10432691 W10432691 TEMPLATE, ANTI-TIP (TECH SHEET)
W10183712 W10183712 TRAY-BAKE
WPW10310922 WPW10310922 TRIM-VENT
W10817433 W10817433 TRIM-VENT
WPW10134285 WPW10134285 TUBE-VENT
3184020 3184020 WIRE, GROUND
